Relay

1AR-FE ENGINE CONTROL: RELAY: ON-VEHICLE INSPECTION

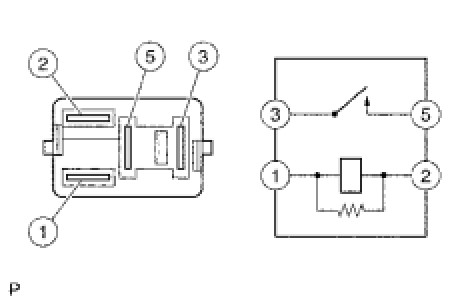

1. INSPECT IG2 RELAY

(a) Remove the IG2 relay from the relay block.

(b) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the relay.
