POWER DISTRIBUTION: MAIN BODY ECU: REMOVAL

1. REMOVE UPPER INSTRUMENT PANEL

HINT
Refer to the procedure up to Remove Upper Instrument Panel Sub-assembly Removal.

2. REMOVE MAIN BODY ECU (DRIVER SIDE JUNCTION BLOCK ASSEMBLY)

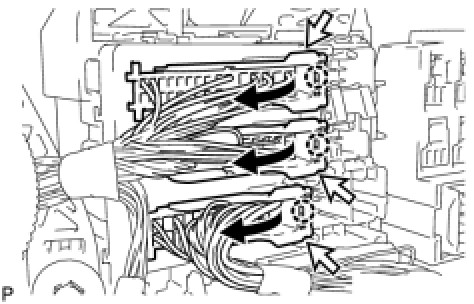

(a) Disconnect the 4 connectors.

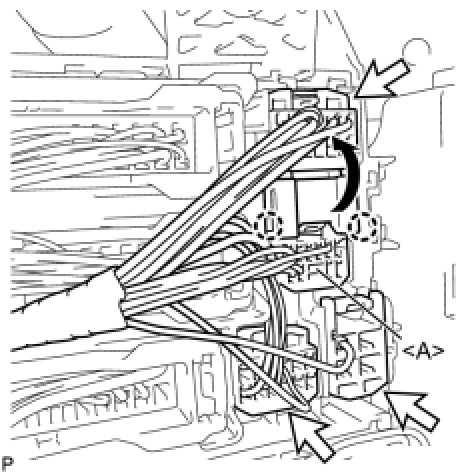

(b) Disengage the 2 claws and disconnect the connector [A] as shown in the illustration.

(e) Disconnect the connector [A] as shown in the illustration.

(f) Disconnect the connector.

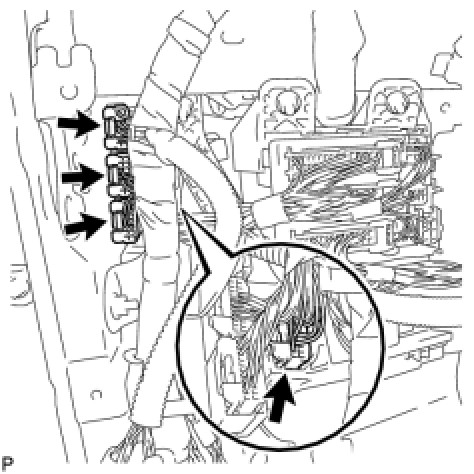

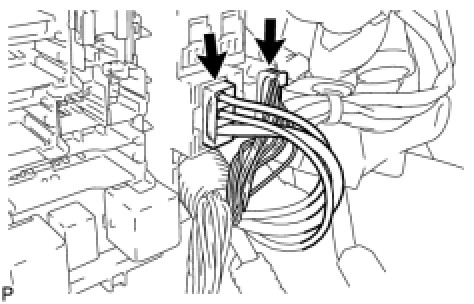

(g) Disconnect the 2 connectors.

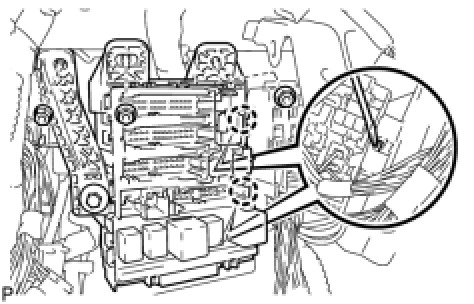

(h) Remove the 3 nuts.

(i) Disengage the 2 claws.

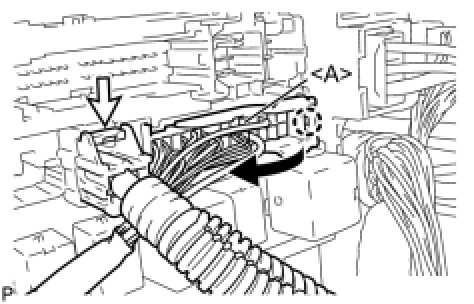

(j) Disconnect the connector [A] as shown in the illustration.

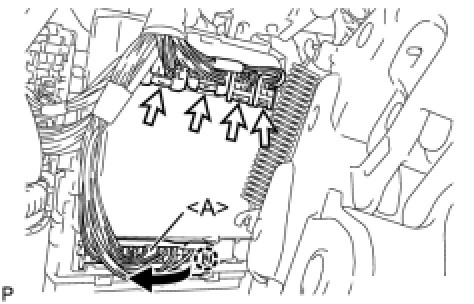

(k) Disconnect the 4 connectors and remove the main body ECU (driver side junction block assembly).

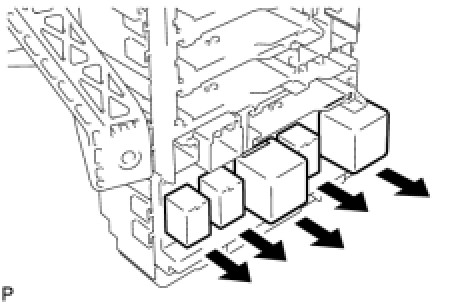

(l) Remove the 5 relays.
