Service Data





SPECIFICATIONS: U760F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

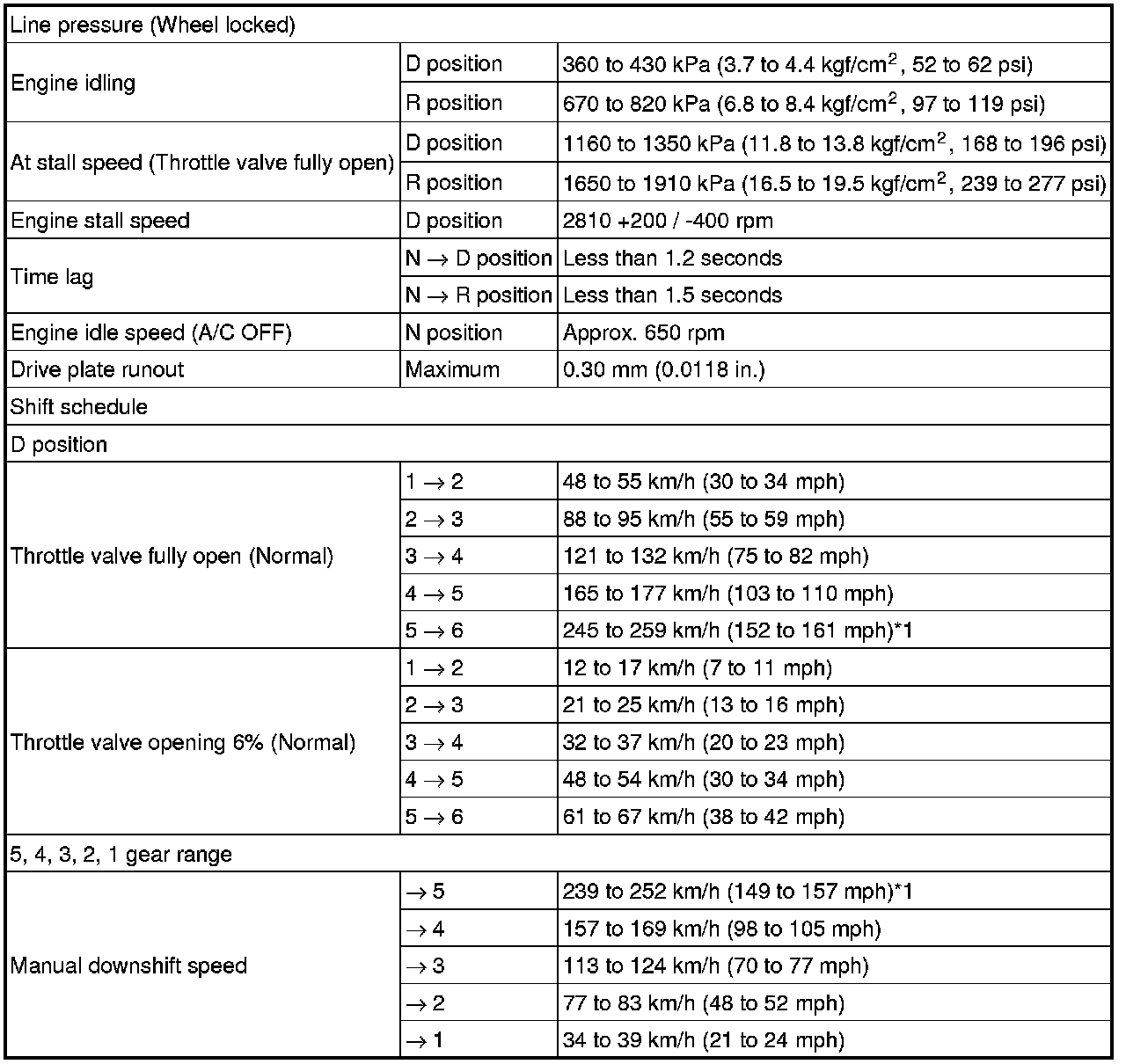

*1: Speed limiter active

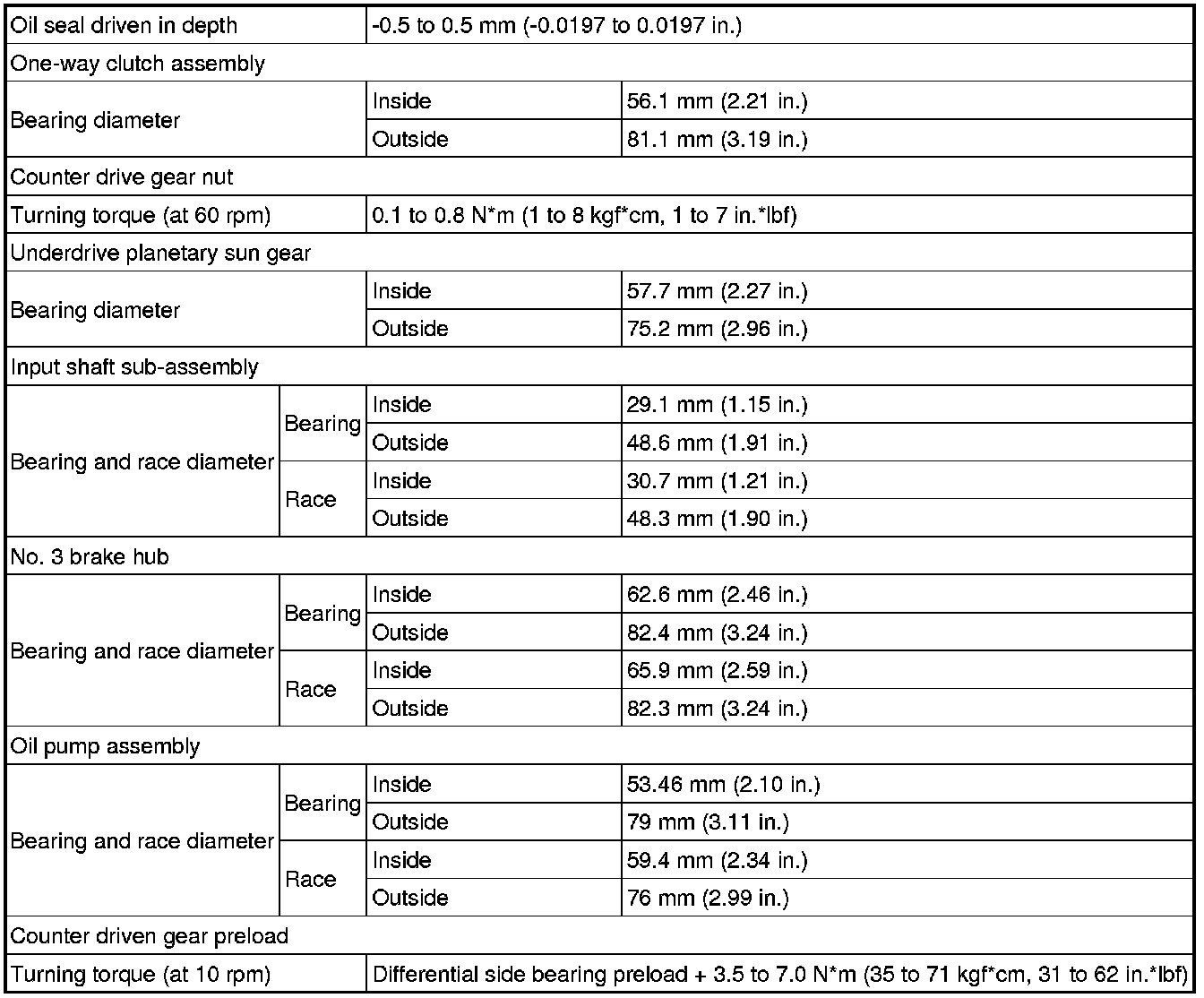

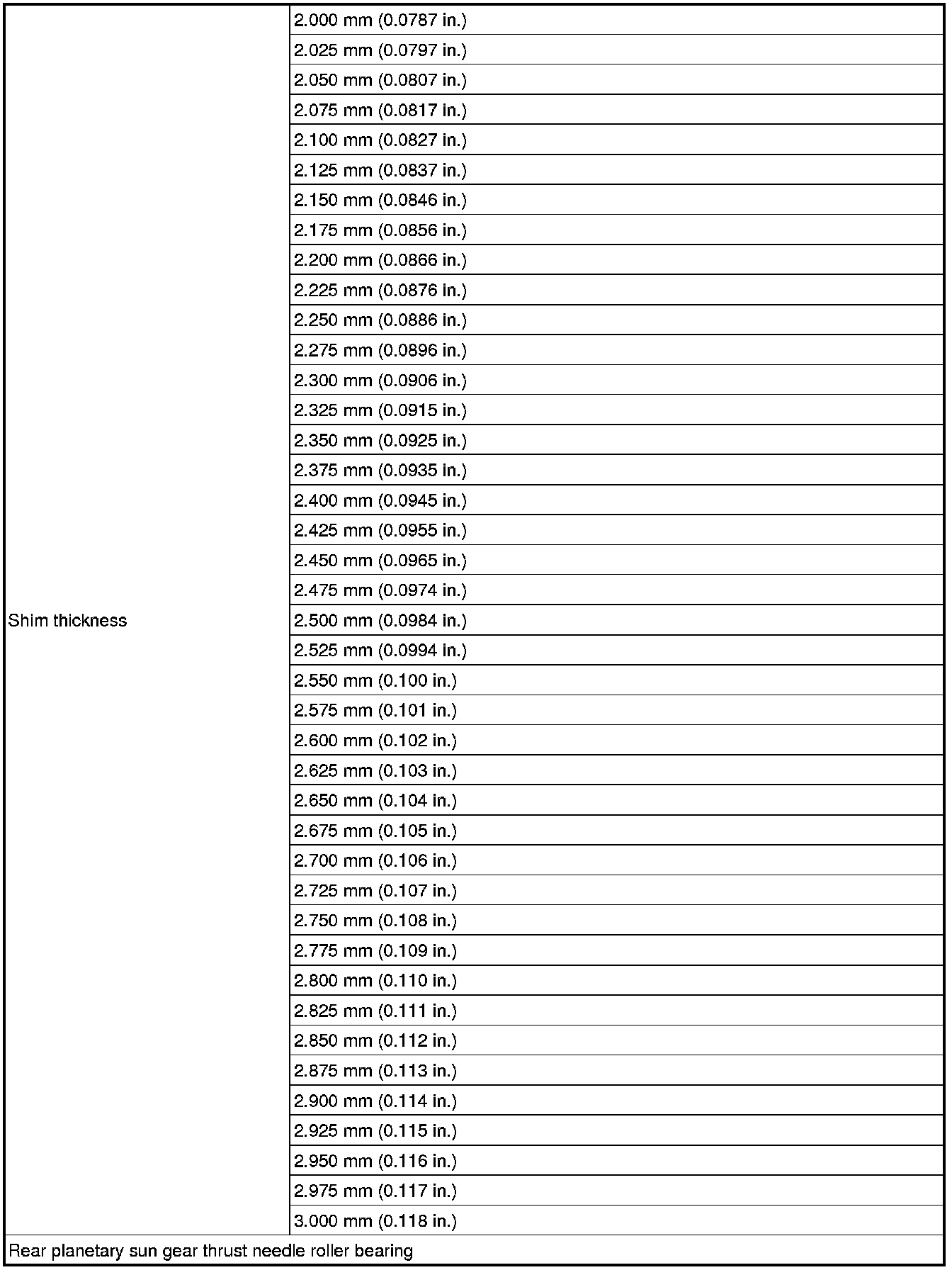

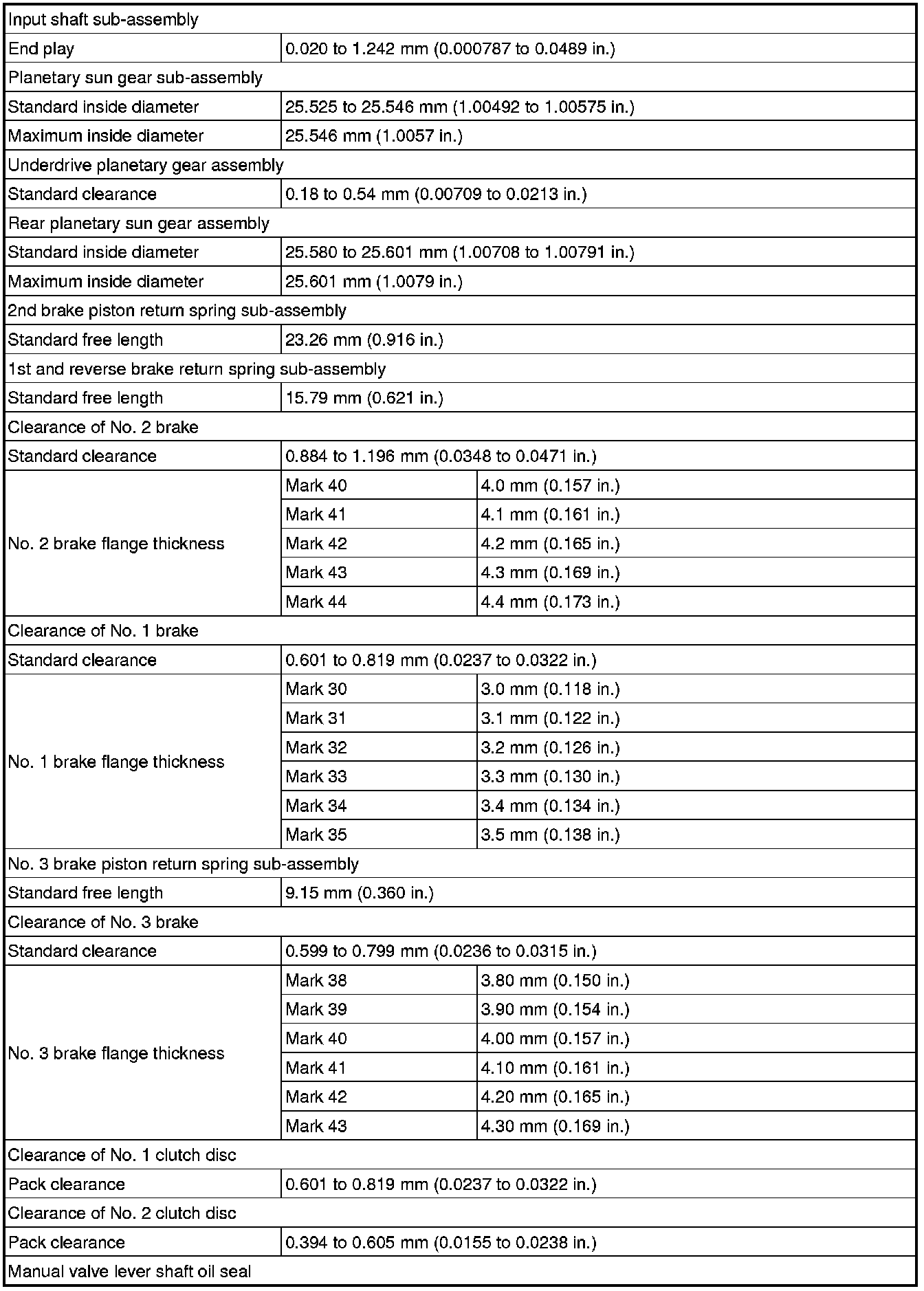

Automatic Transaxle Unit

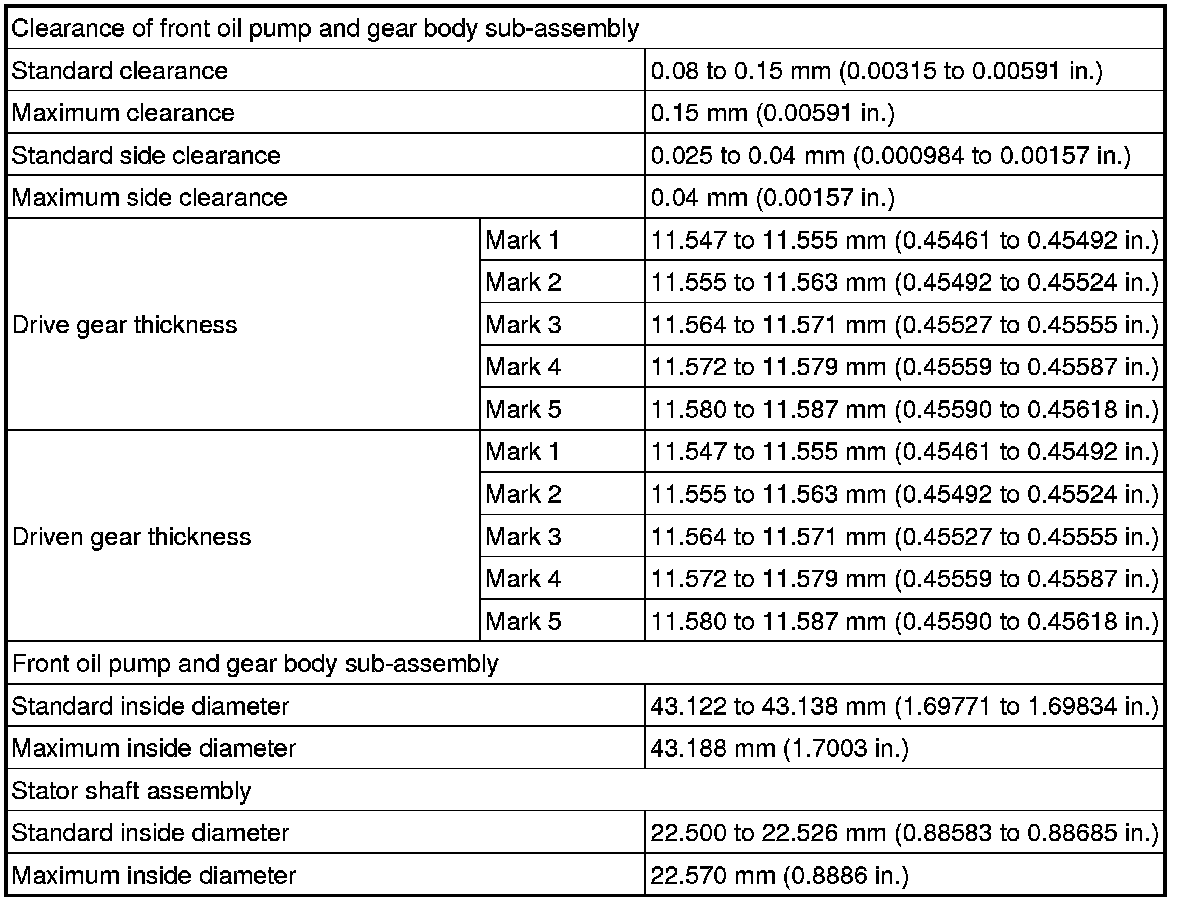

Oil Pump

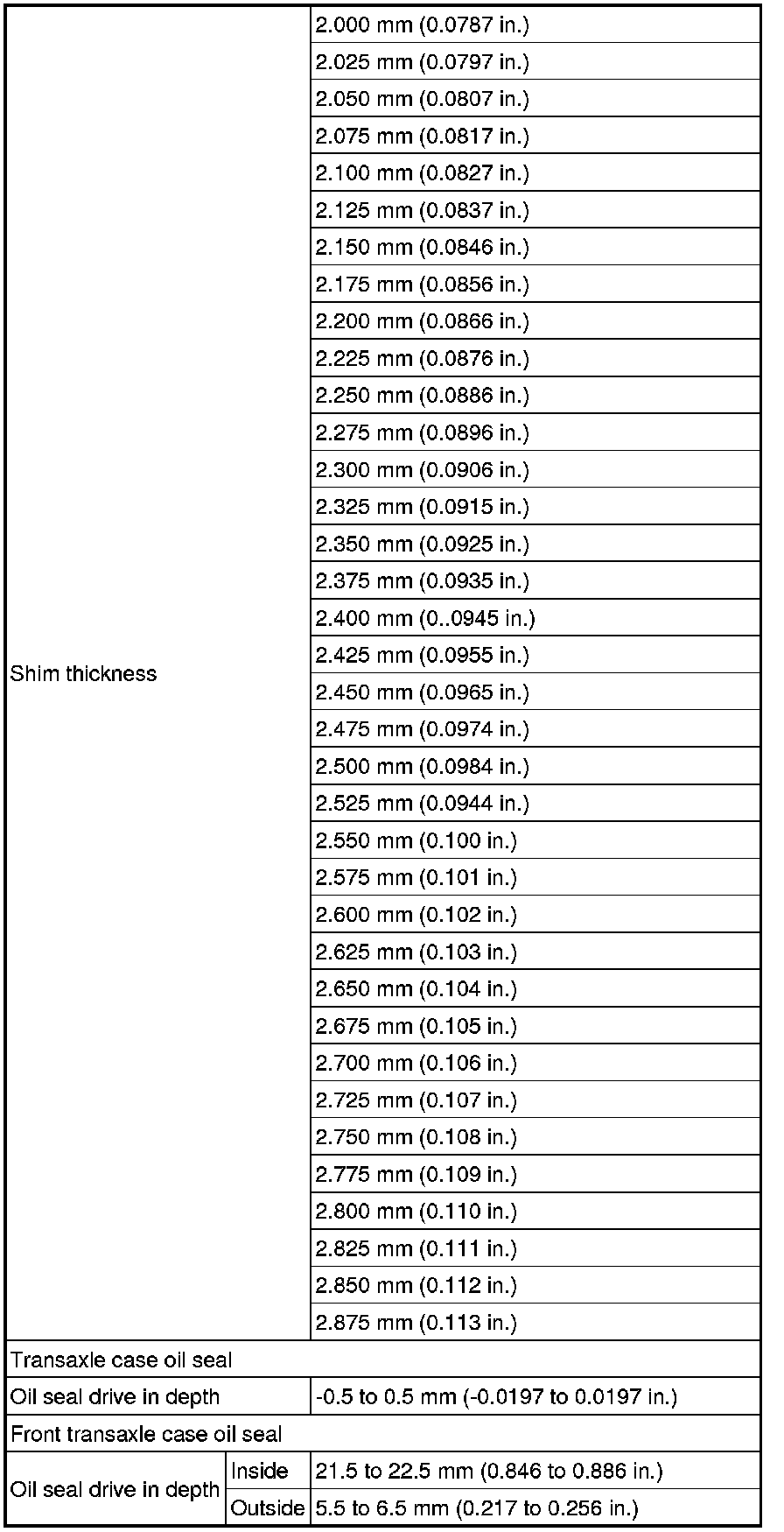

Differential Case
