Torque Specifications





SPECIFICATIONS: U760F AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

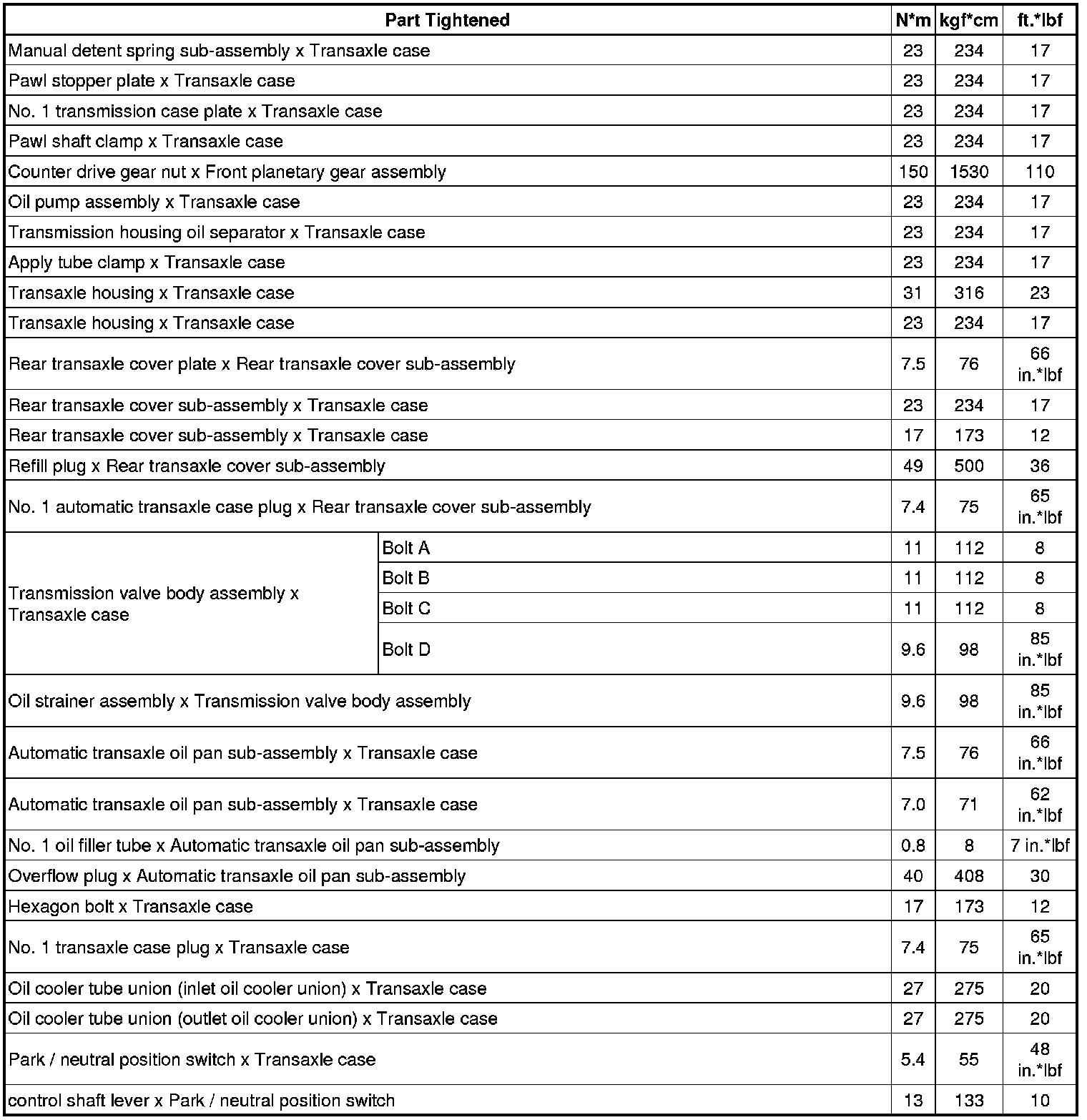

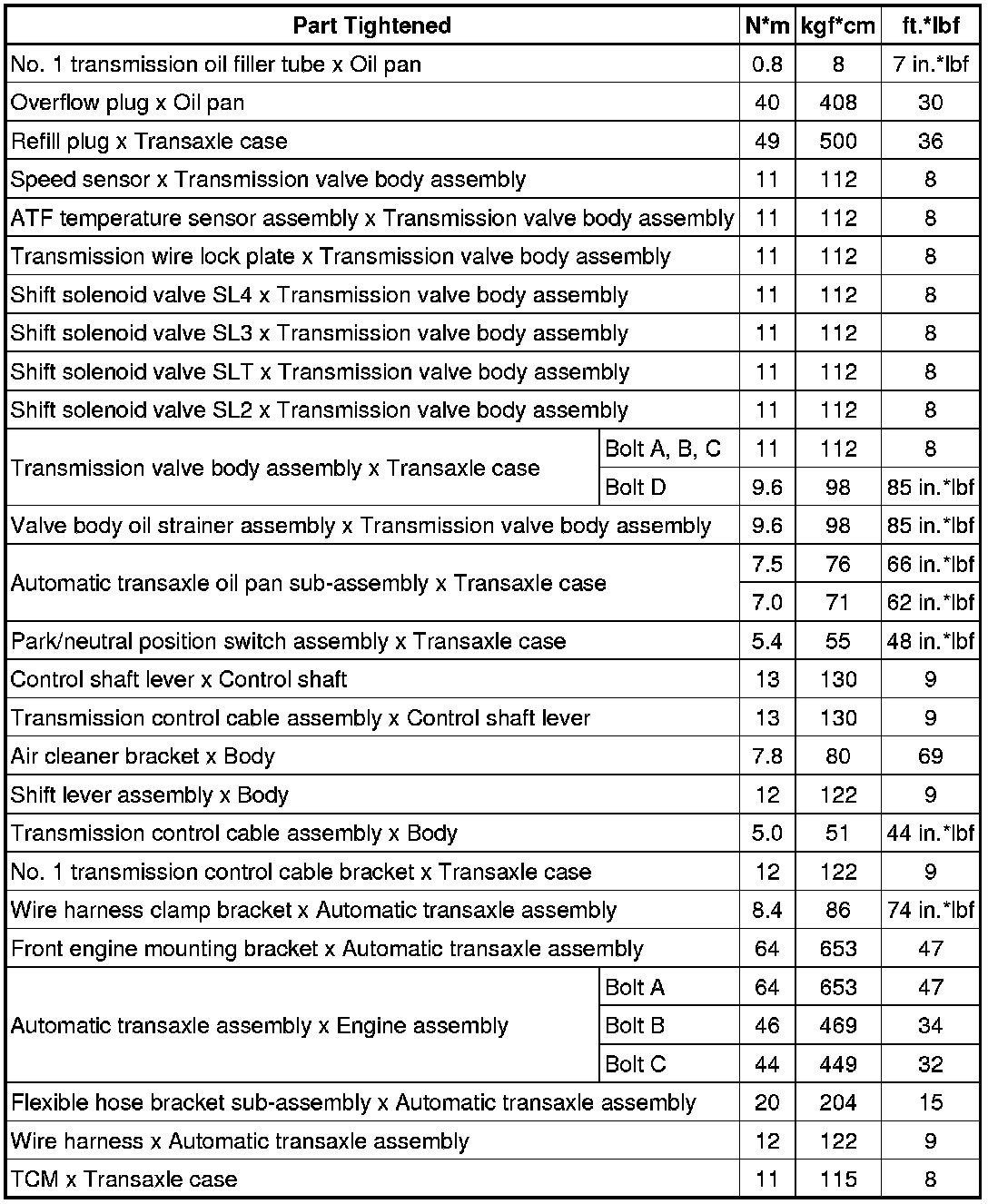

Automatic Transaxle Unit






Oil Pump






Differential Case
