Service Data

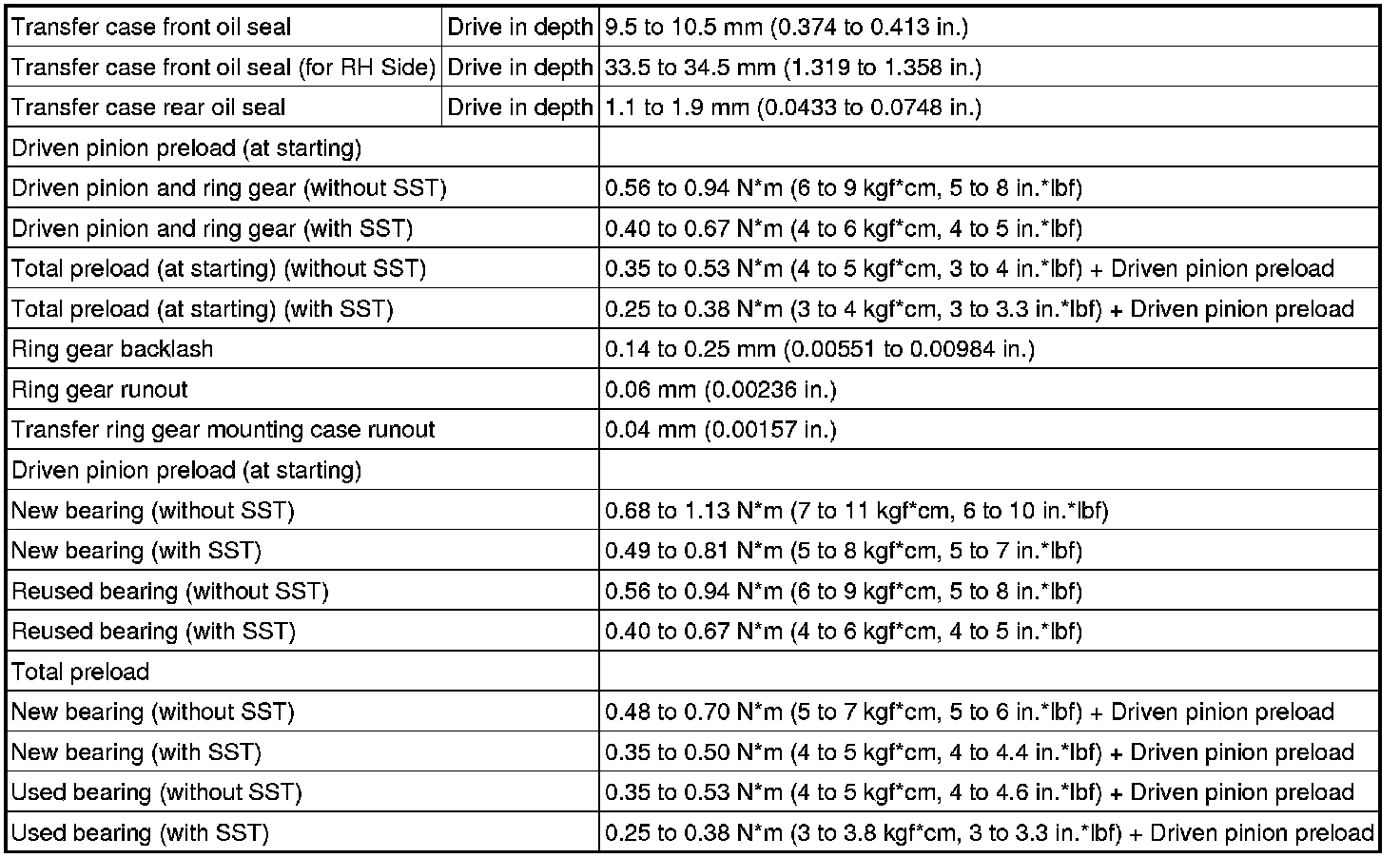

SPECIFICATIONS: MF1A TRANSFER / 4WD / AWD: SERVICE DATA






Thrust Washer Thickness (Backlash Adjustment)










Thrust Washer Thickness (Tooth Contact Adjustment)






Thrust Washer Thickness (Preload Adjust)
