Installation

MF1A TRANSFER / 4WD / AWD: 4WD CONTROL ECU: INSTALLATION

1. INSTALL 4WD CONTROL ECU

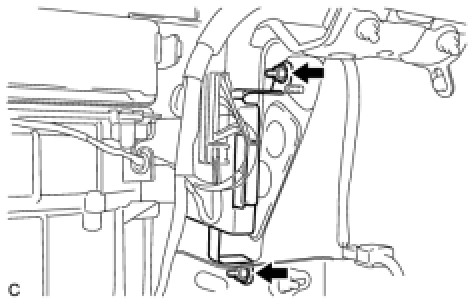

(a) Install the ECU with the 2 nuts.





Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

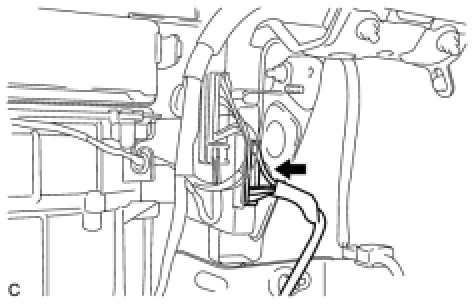

(b) Connect the connector.





2. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation

3. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

4. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

5. INSTALL FRONT DOOR SCUFF PLATE RH
