Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System): Notes

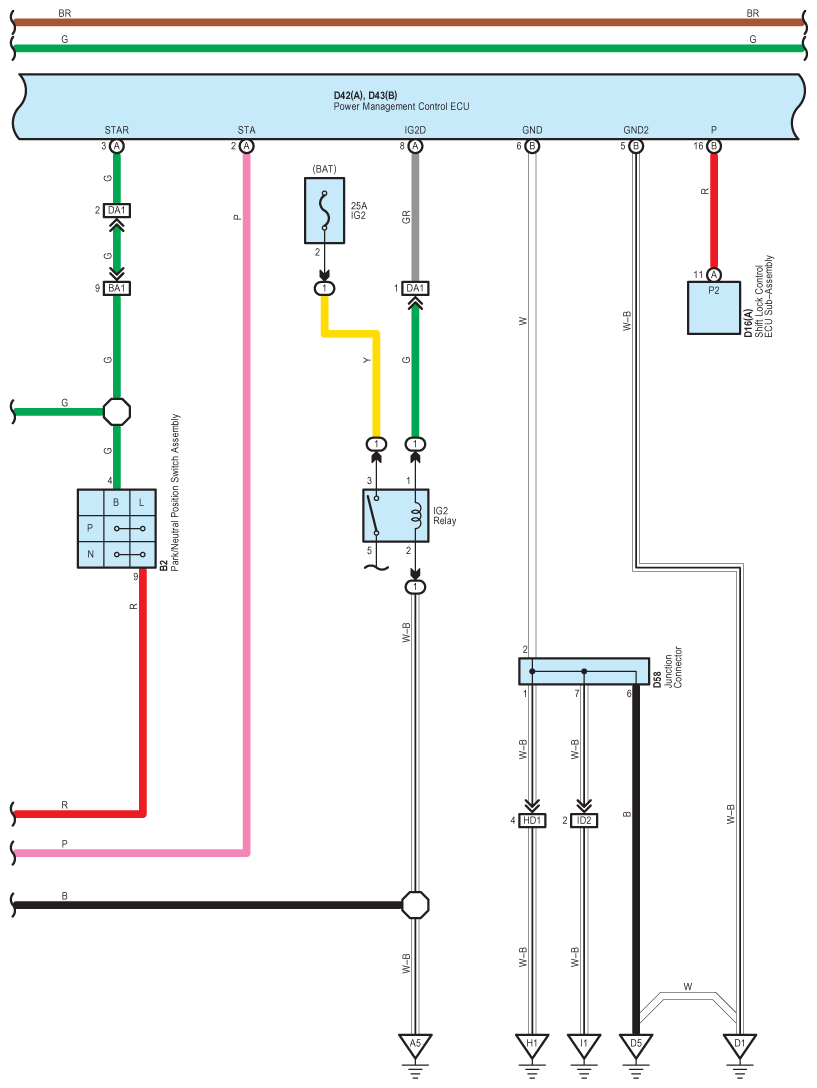

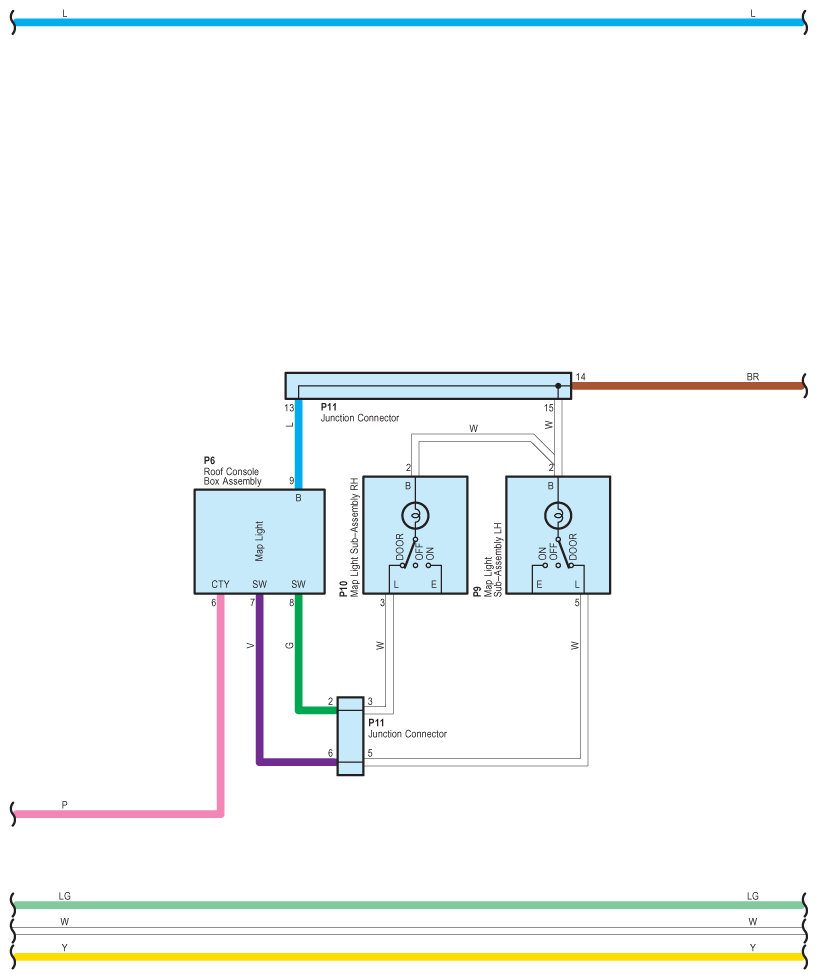

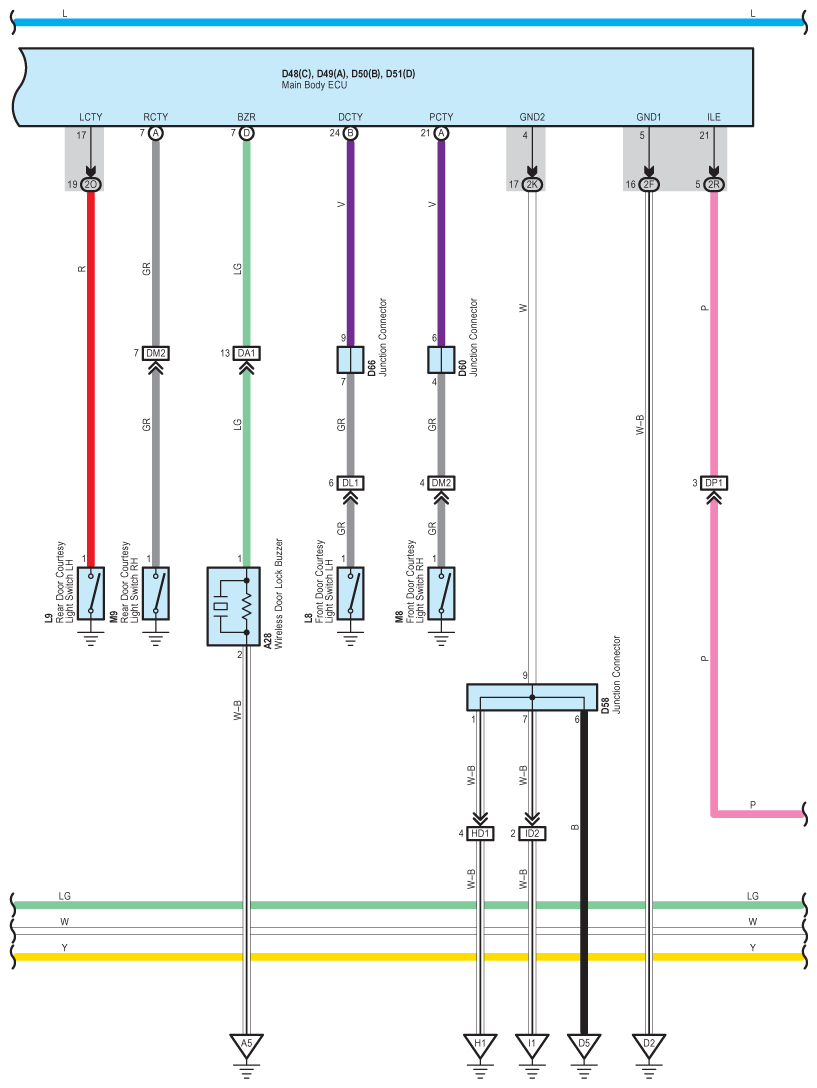

Fig 1: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

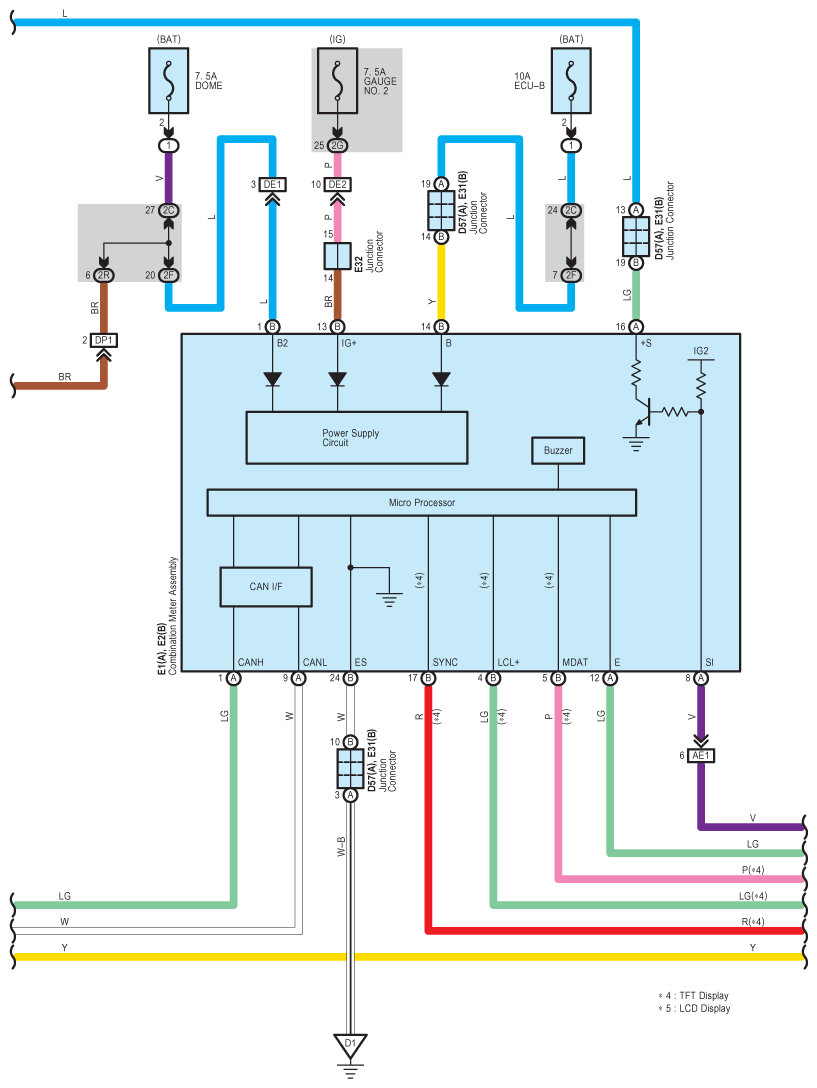

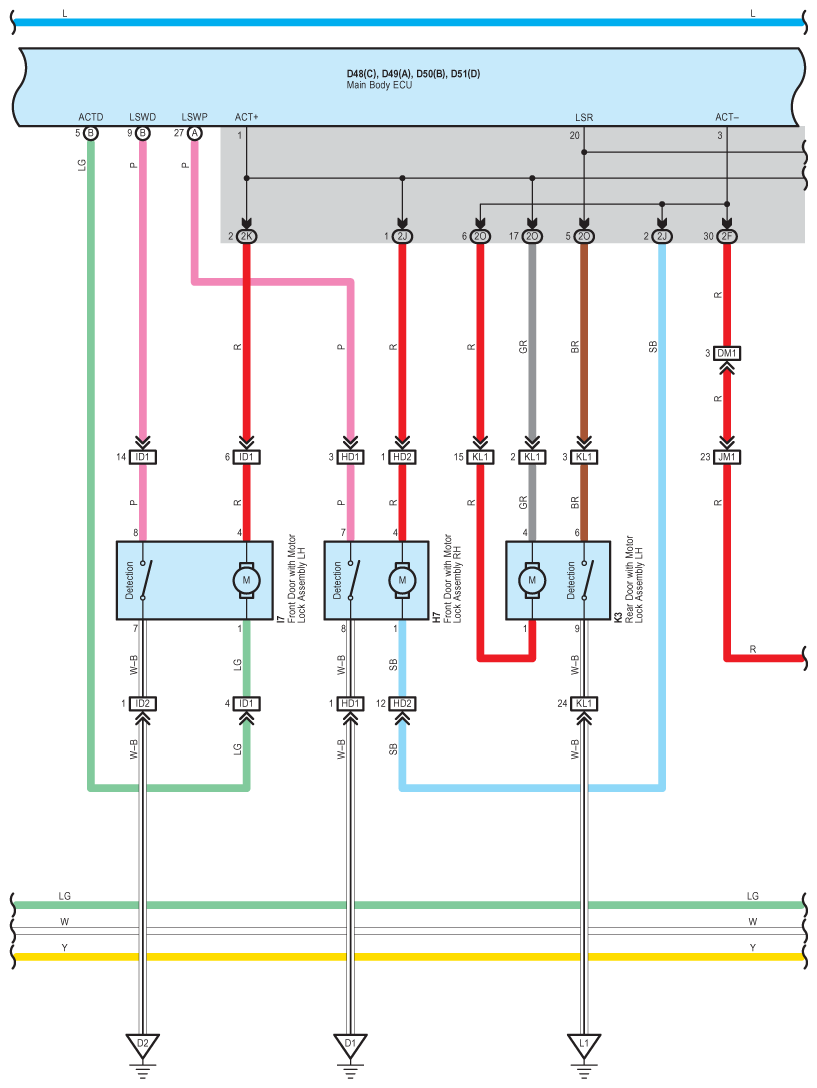

Fig 2: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

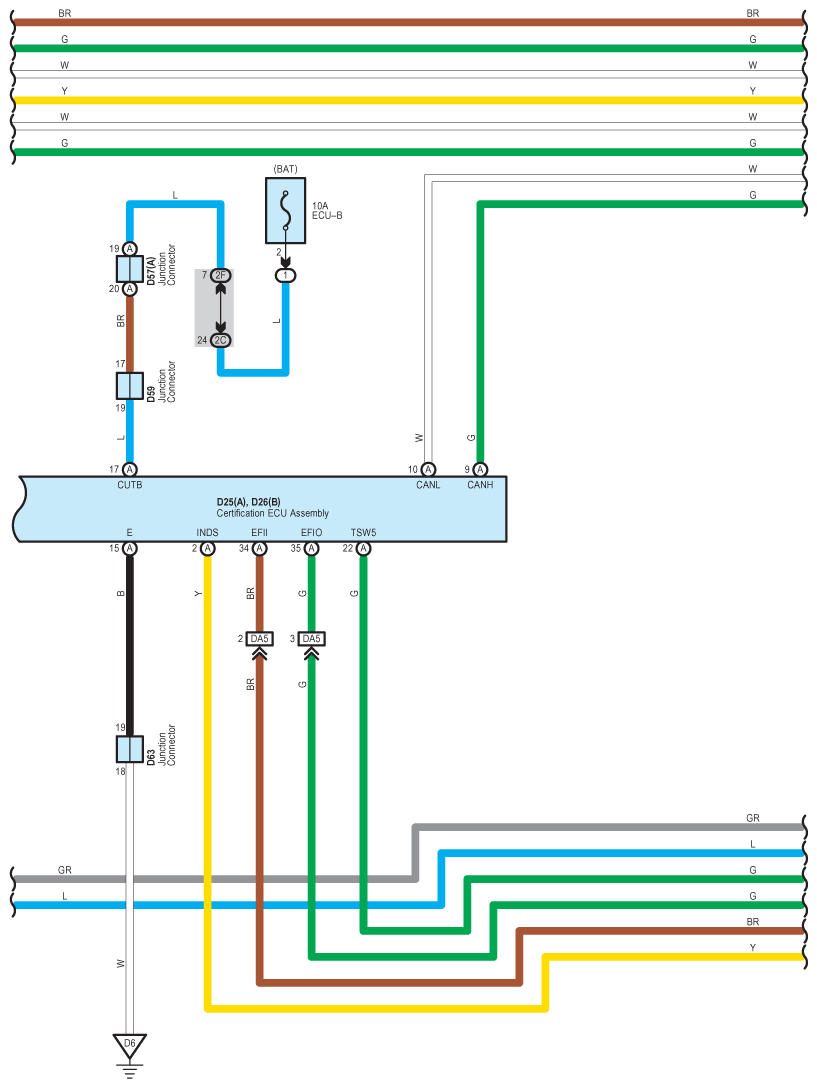

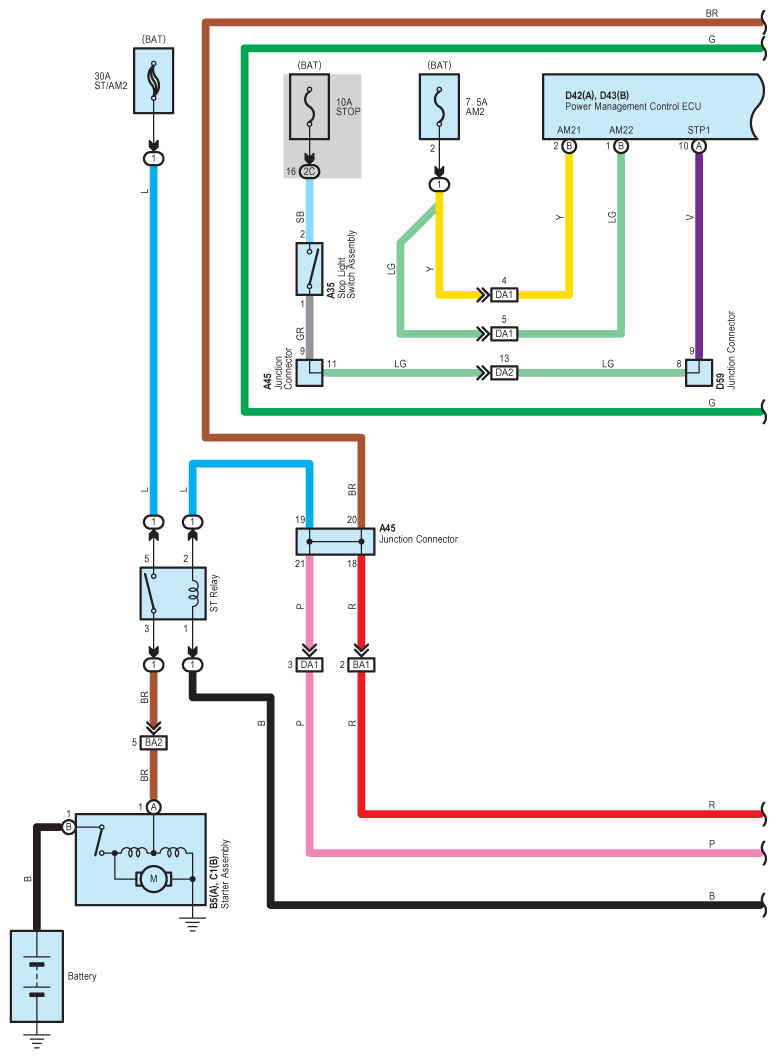

Fig 3: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

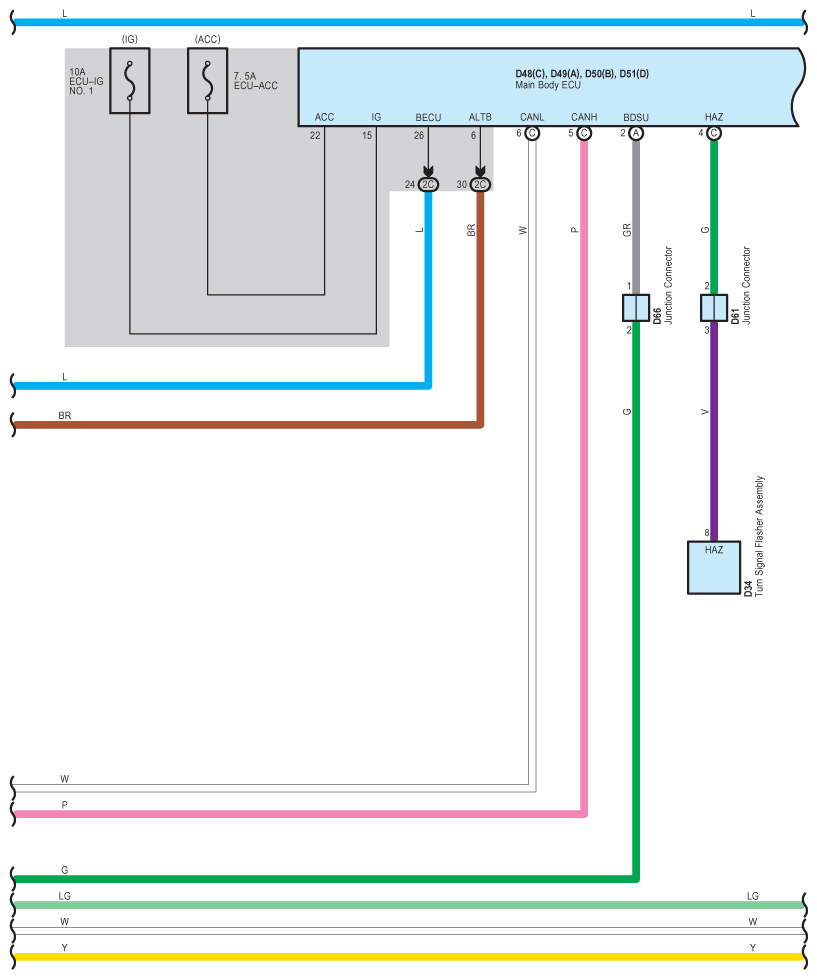

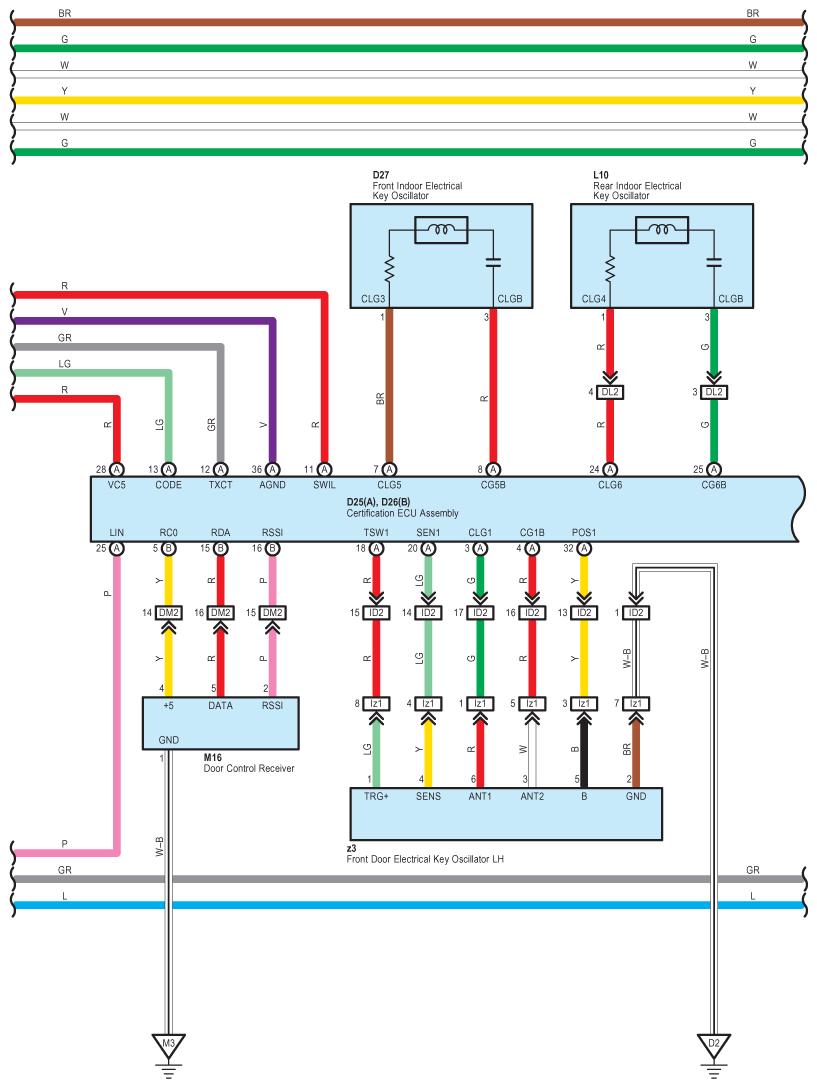

Fig 4: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

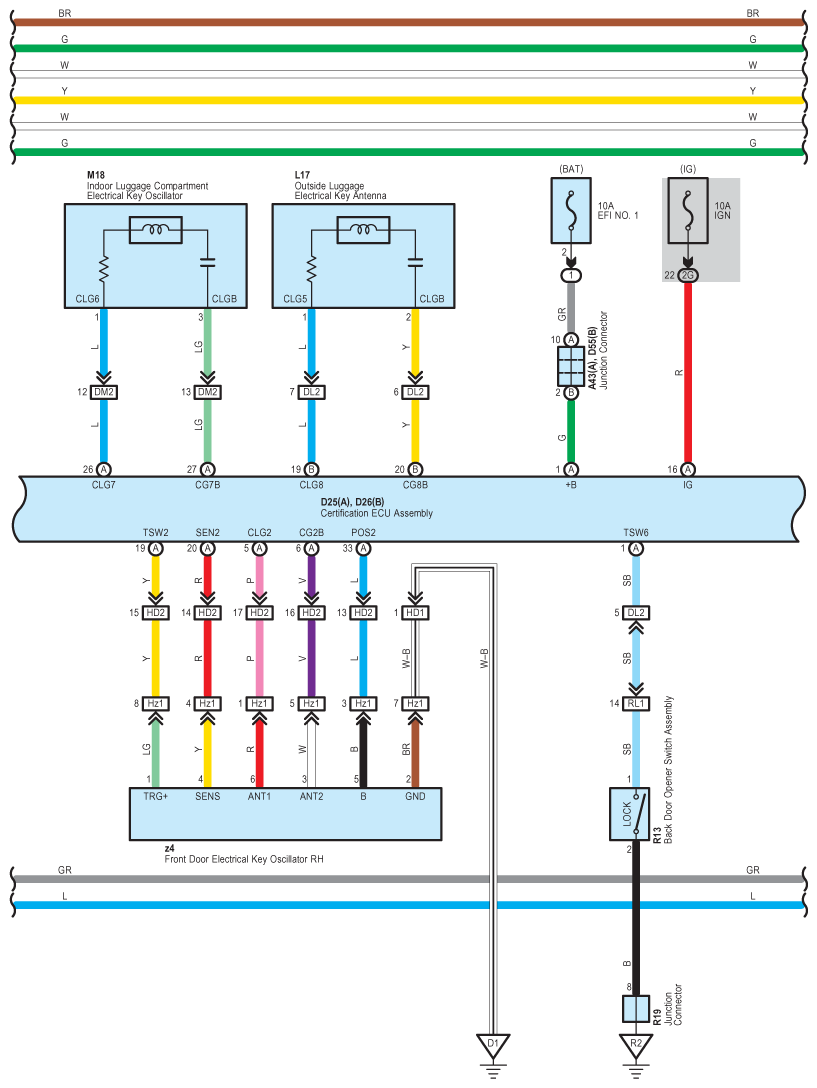

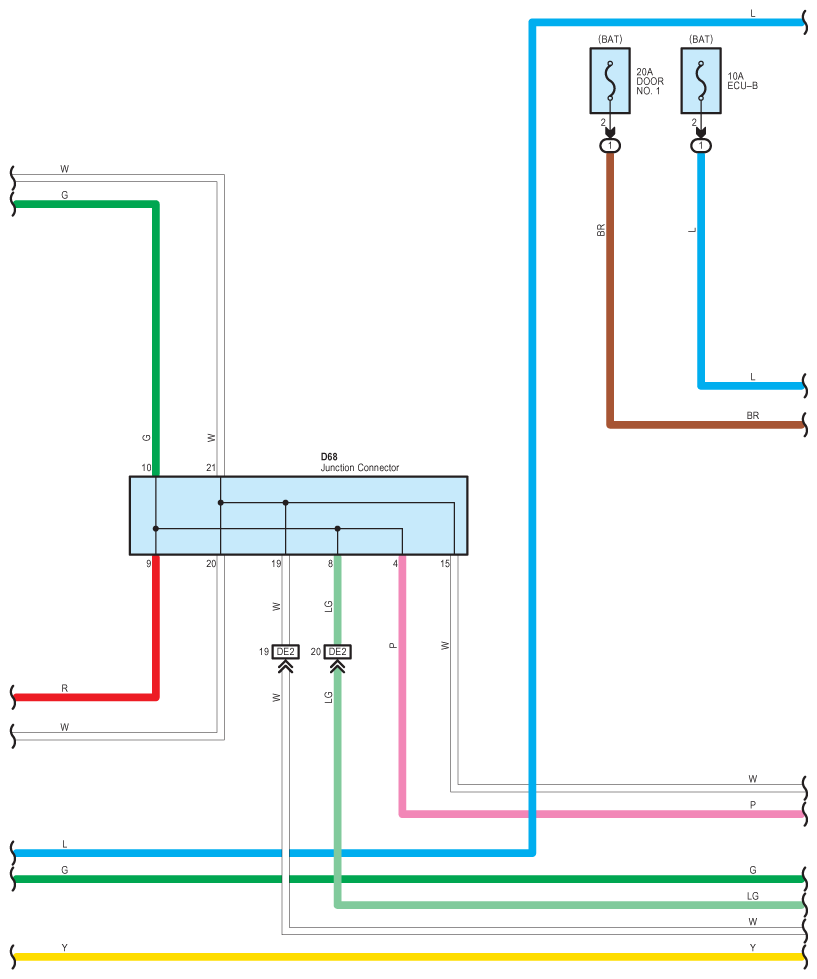

Fig 5: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

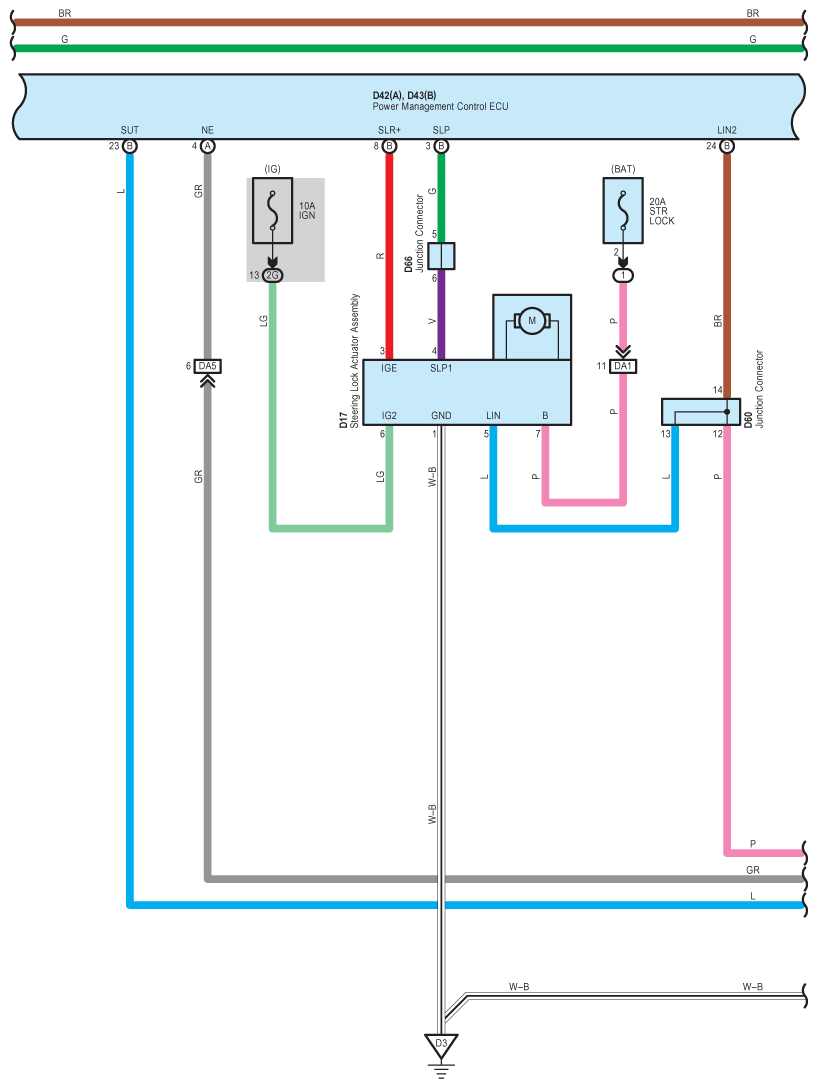

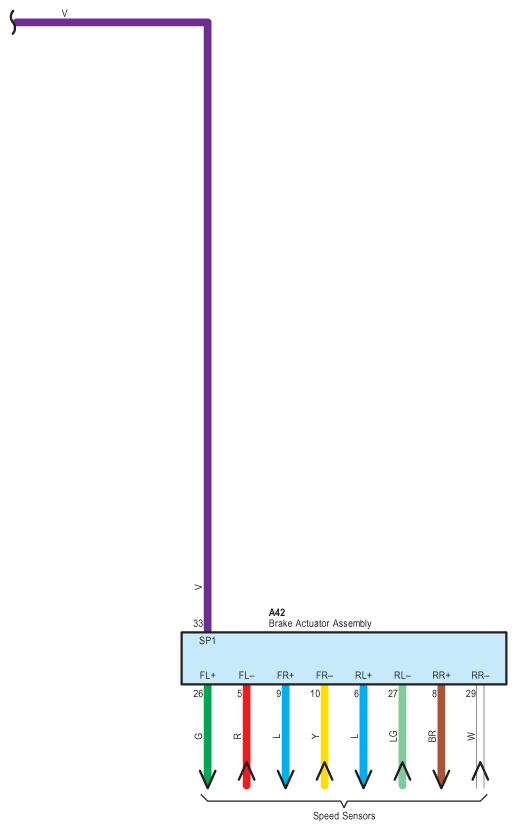

Fig 6: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

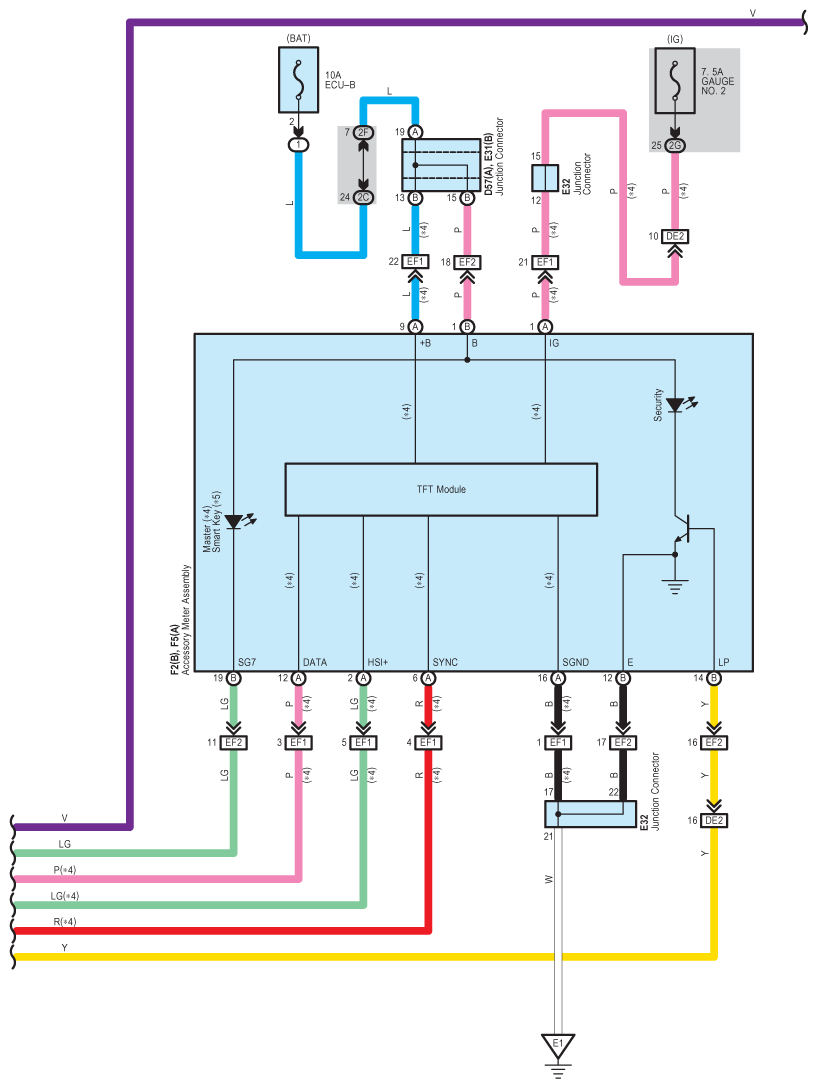

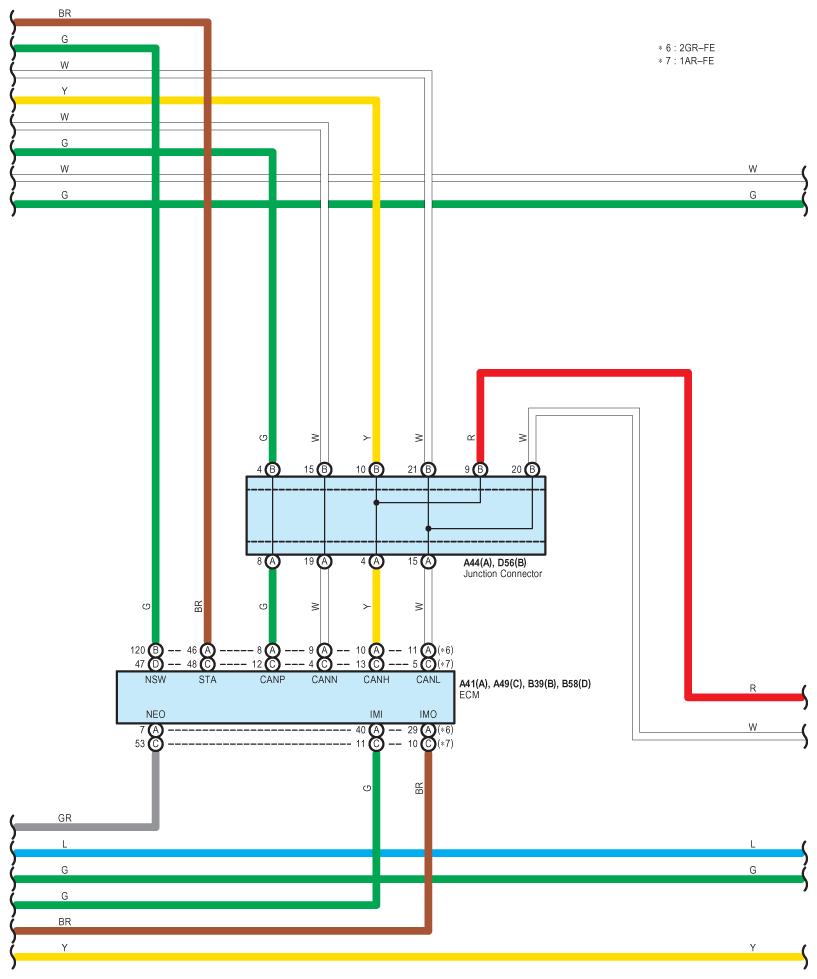

Fig 7: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

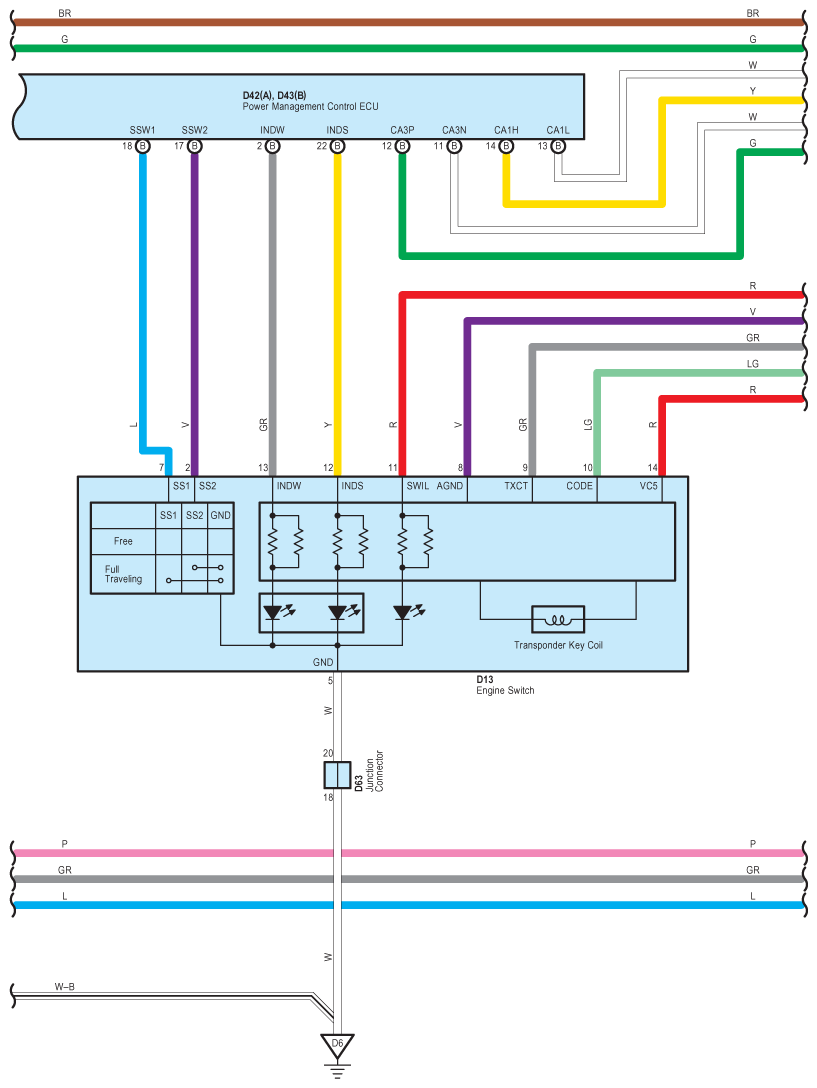

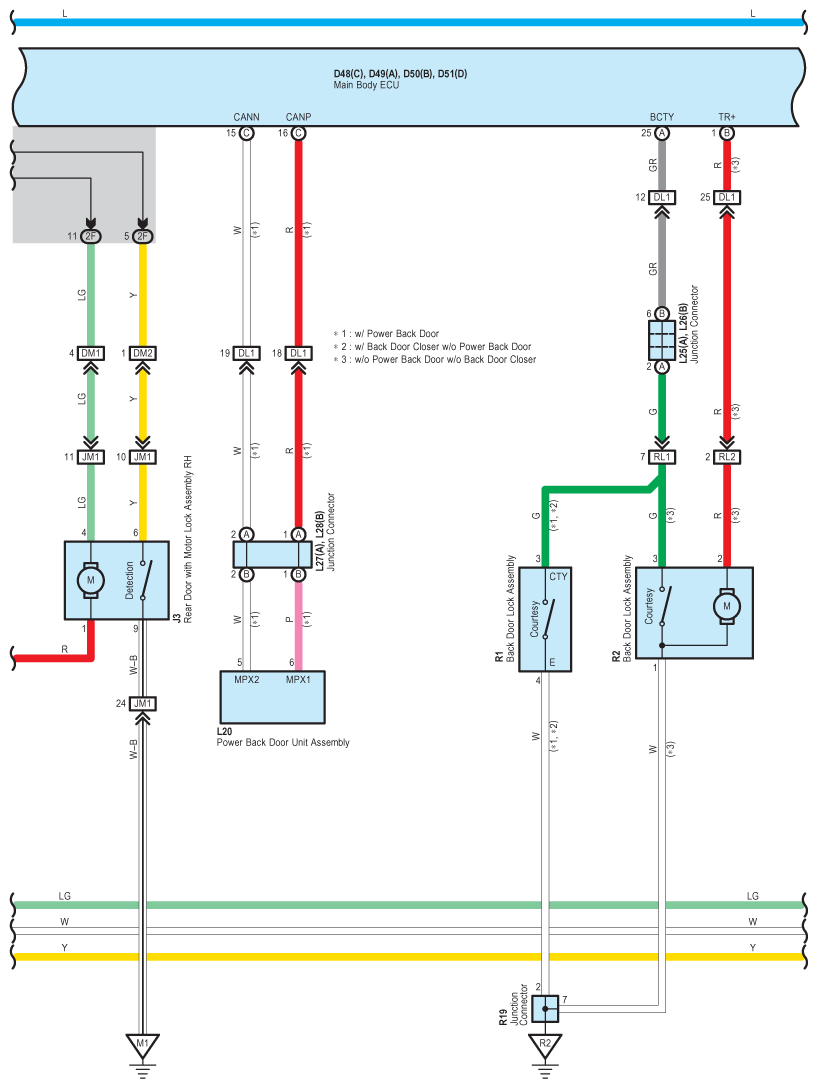

Fig 8: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (12 Of 17)

Fig 13: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (13 Of 17)

Fig 14: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (14 Of 17)

Fig 15: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (15 Of 17)

Fig 16: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (16 Of 17)

Fig 17: Engine Immobilizer System, Smart Key System, Starting, Steering Lock And Wireless Door Lock Control (W/Smart Key System) - Circuit Diagram (17 Of 17)
