Power Source: Notes

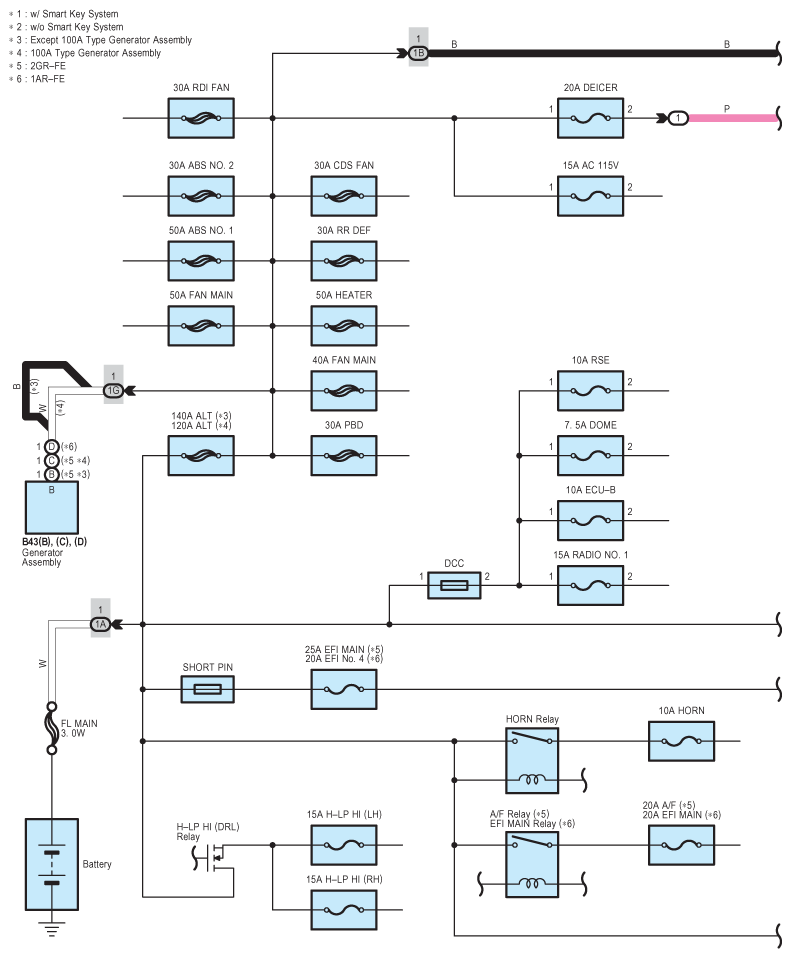

Fig 1: Power Source - Circuit Diagram (1 Of 4)
G08968914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

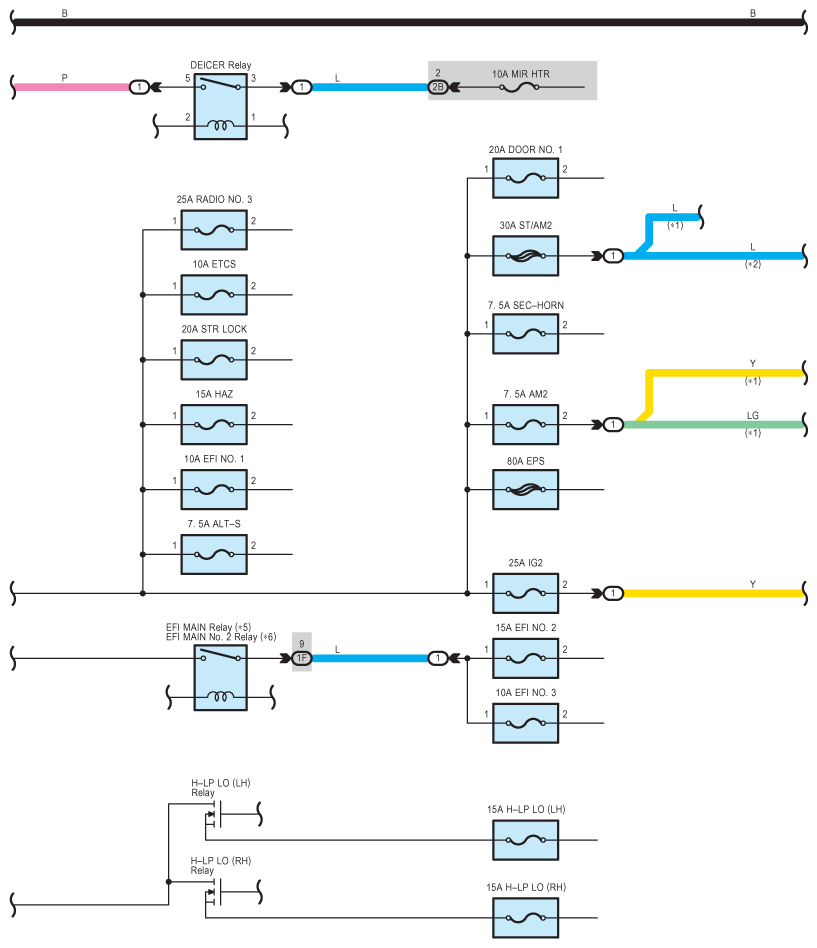

Fig 2: Power Source - Circuit Diagram (2 Of 4)
G08968915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

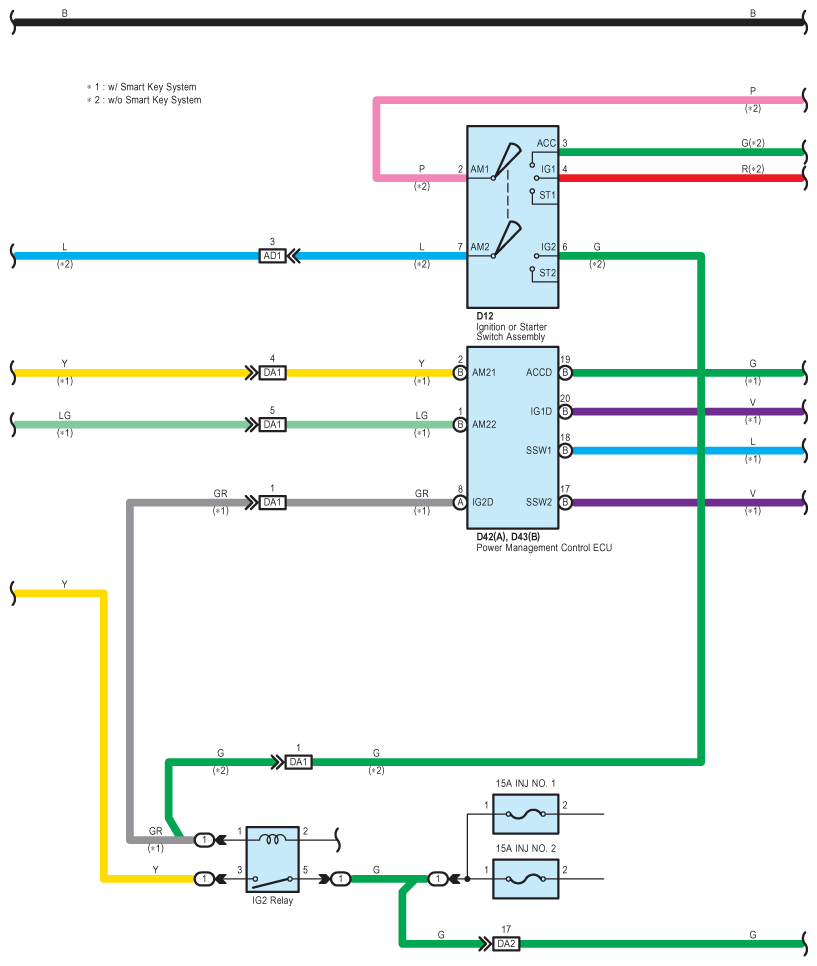

Fig 3: Power Source - Circuit Diagram (3 Of 4)
G08968916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

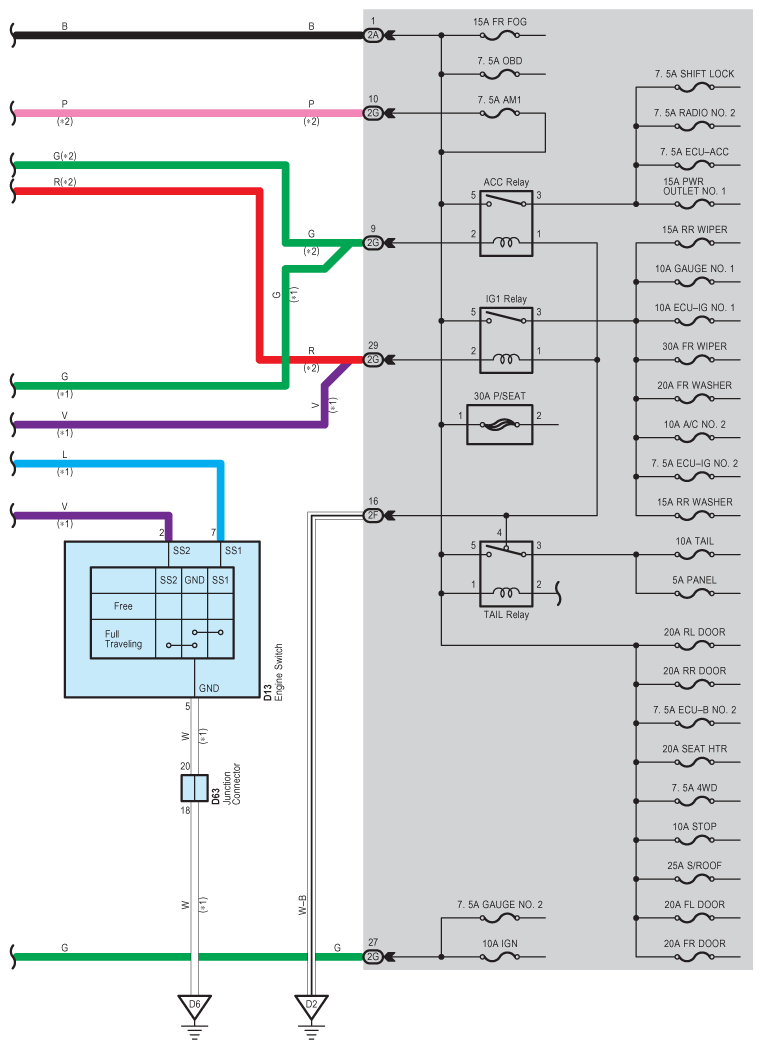

Fig 4: Power Source - Circuit Diagram (4 Of 4)
G08968917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
