Theft Deterrent (S/D): Notes

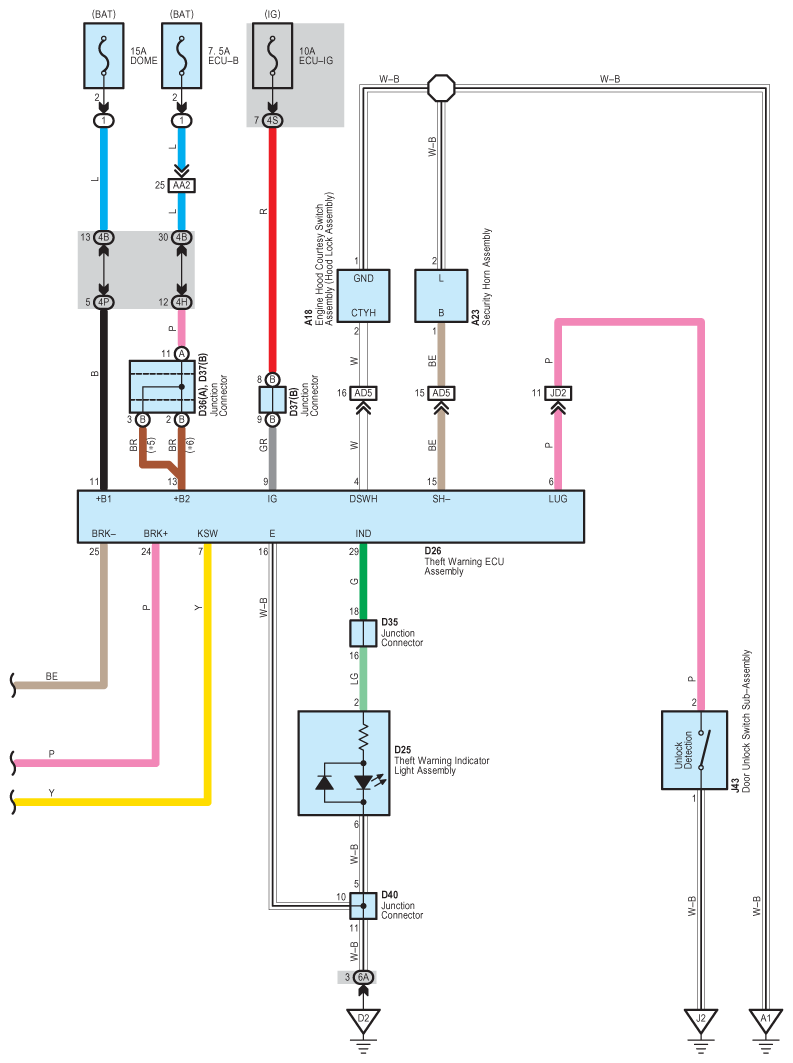

Fig 1: Theft Deterrent (S/D) - Circuit Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

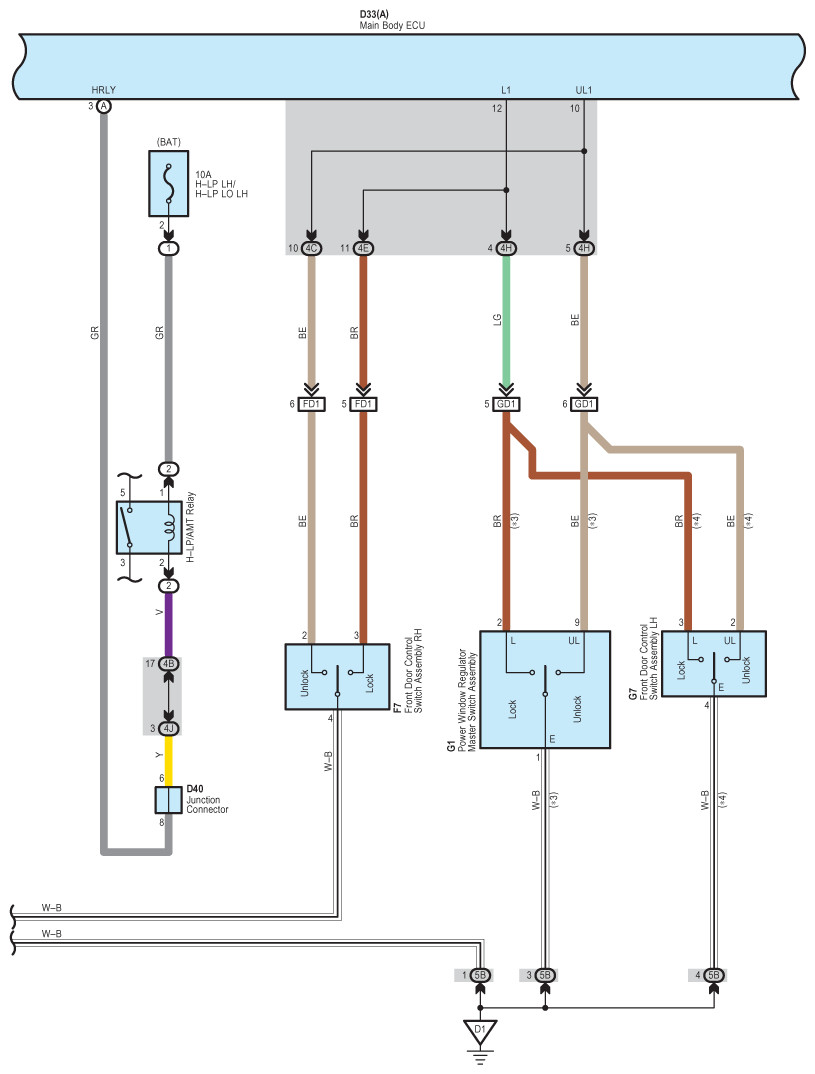

Fig 2: Theft Deterrent (S/D) - Circuit Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

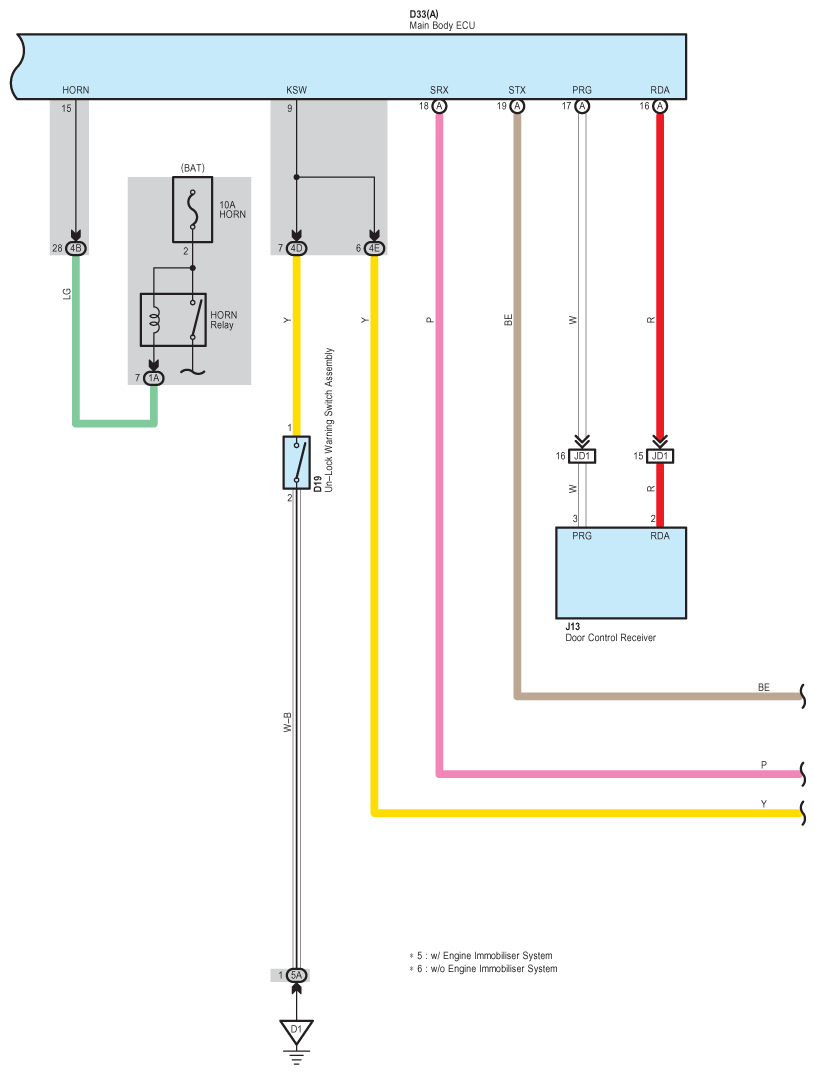

Fig 3: Theft Deterrent (S/D) - Circuit Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

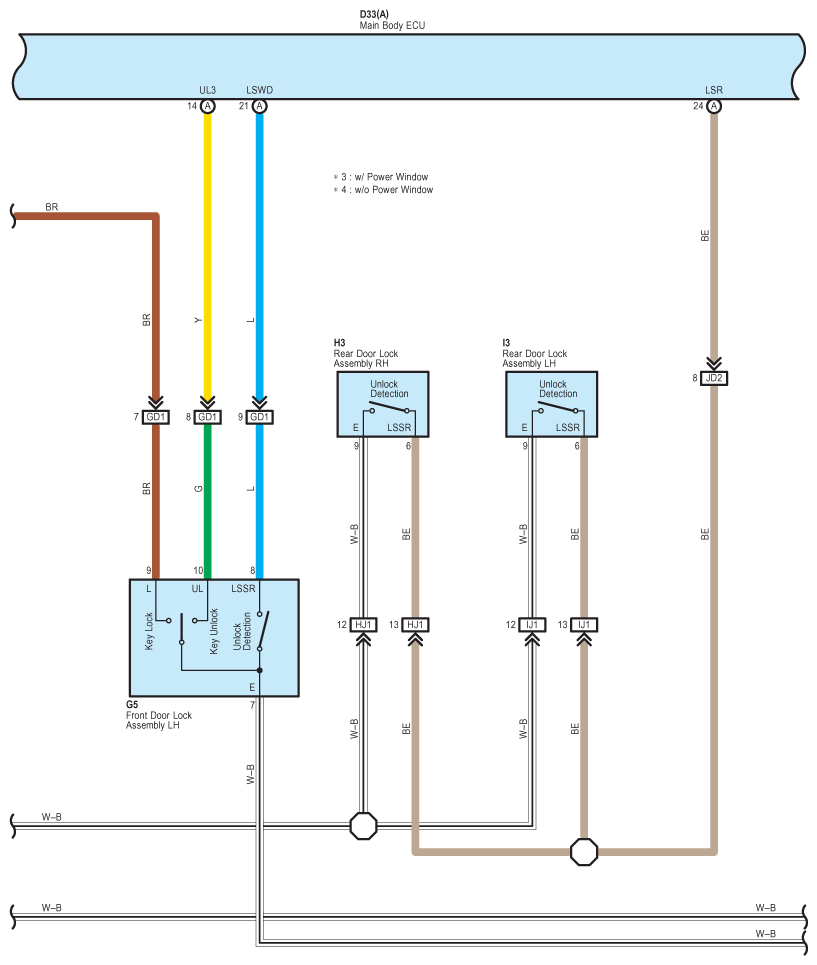

Fig 4: Theft Deterrent (S/D) - Circuit Diagram (4 Of 6)

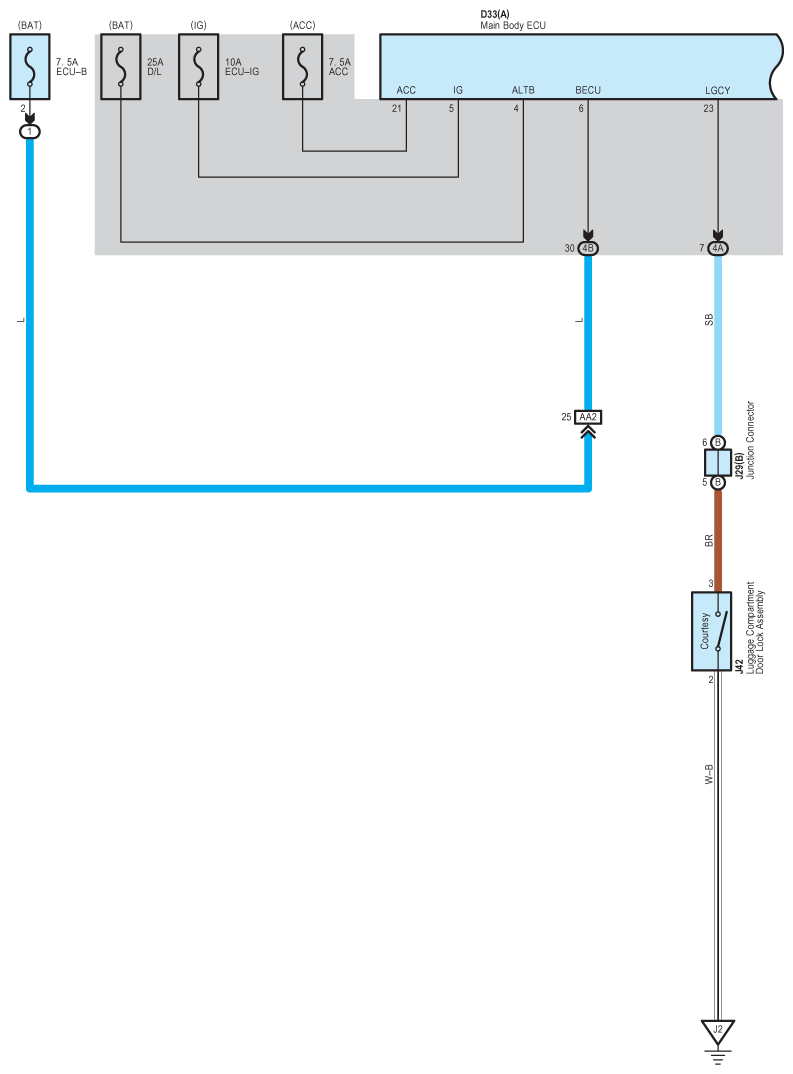

Fig 5: Theft Deterrent (S/D) - Circuit Diagram (5 Of 6)

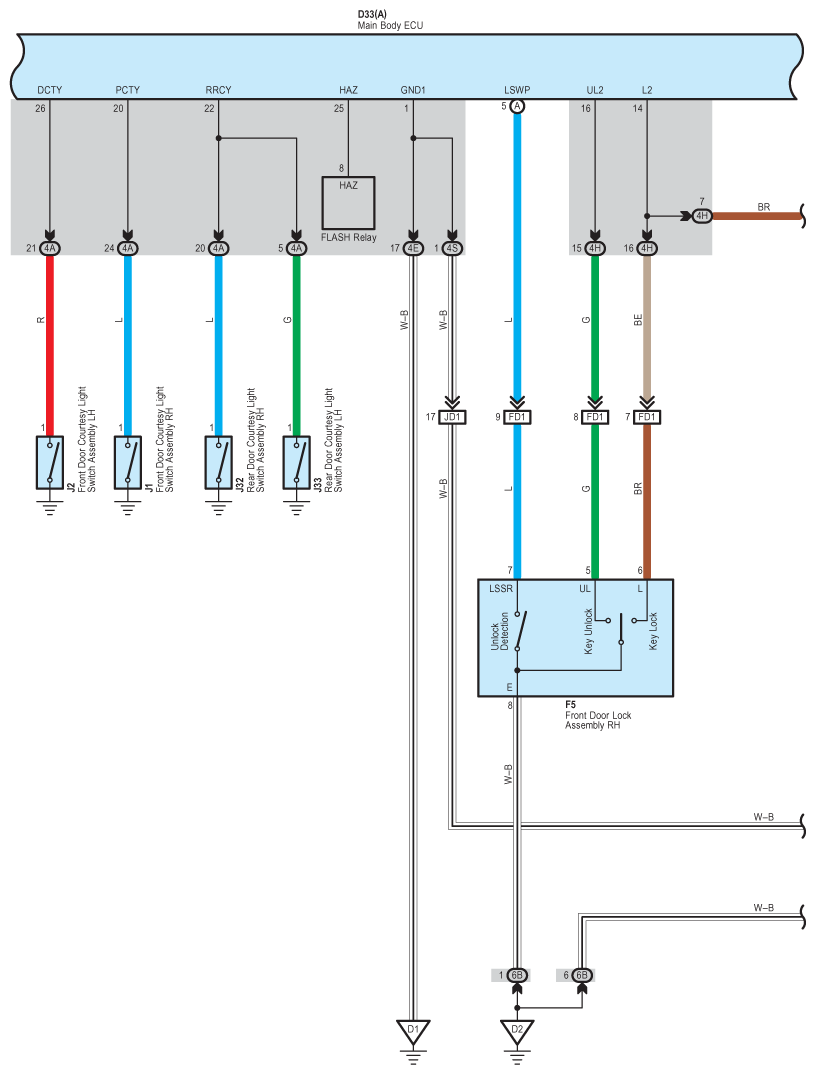

Fig 6: Theft Deterrent (S/D) - Circuit Diagram (6 Of 6)
