Accelerator Pedal: Removal: Removal

REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
NOTE:
- Avoid physical shocks to the accelerator pedal sensor assembly.
- Do not disassemble the accelerator pedal sensor assembly.
- This accelerator pedal does not require lubrication. Do not apply oil or other lubrication to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.
1. Disconnect the accelerator pedal position sensor connector.

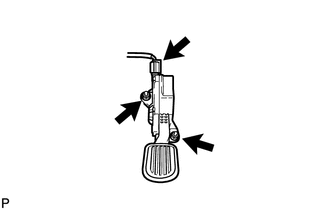

  Fig 1: Identifying Accelerator Pedal Sensor Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts and accelerator pedal sensor.
