Air Fuel Ratio Sensor: Removal: Removal

Refer to REMOVAL

1. Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly RH.
   • SST: 09224-00010

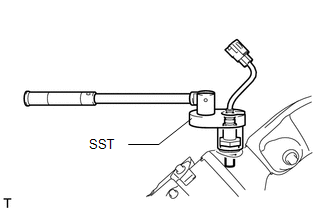

   Fig 1: View Of Air Fuel Ratio Sensor (For Bank 1 Sensor 1) With SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   Do not use the air fuel ratio sensor if it has been subjected to physical shocks, such as being dropped, etc.

1. Using SST, remove the air fuel ratio sensor from the exhaust manifold sub-assembly LH.
   • SST: 09224-00010

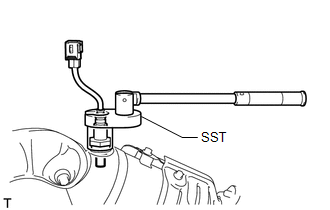

   Fig 2: View Of Removing Air Fuel Ratio Sensor (For Bank 2 Sensor 1)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   Do not use the air fuel ratio sensor if it has been subjected to physical shocks, such as being dropped, etc.
