Heated Oxygen Sensor: Removal: Removal

  1. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
    1. Disconnect the sensor connector.

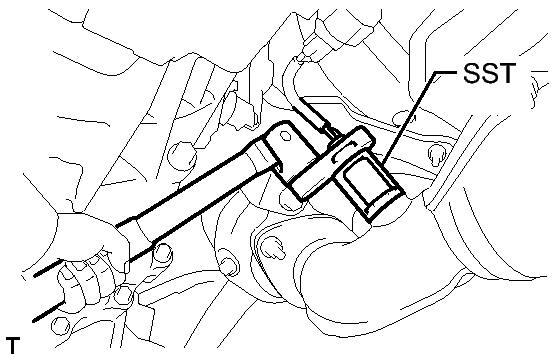

      2. Fig 1: View Of Removing Heated Oxygen Sensor (For Bank 1 Sensor 2)
      GTY224905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the sensor.
      • SST: 09224-00010
  2. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

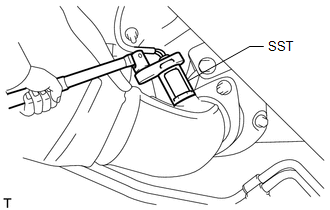

      Fig 2: View Of Removing Heated Oxygen Sensor (For Bank 2 Sensor 2)
      GTY214769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST, remove the sensor.
      • SST: 09224-00010
