Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control: Notes

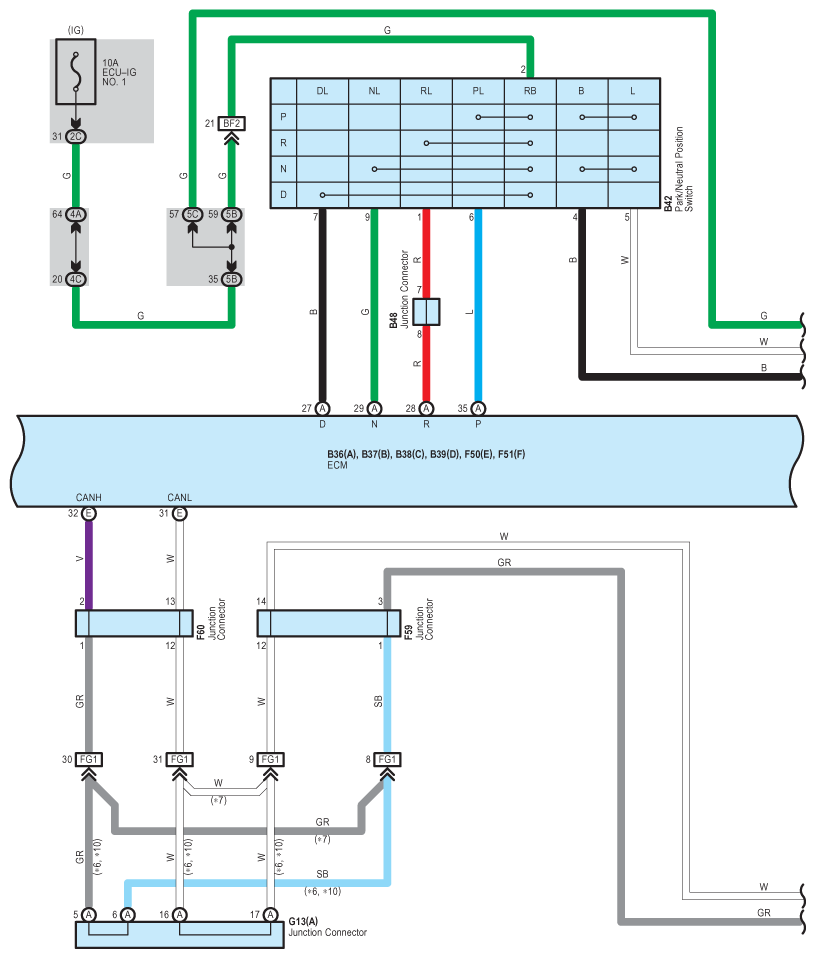

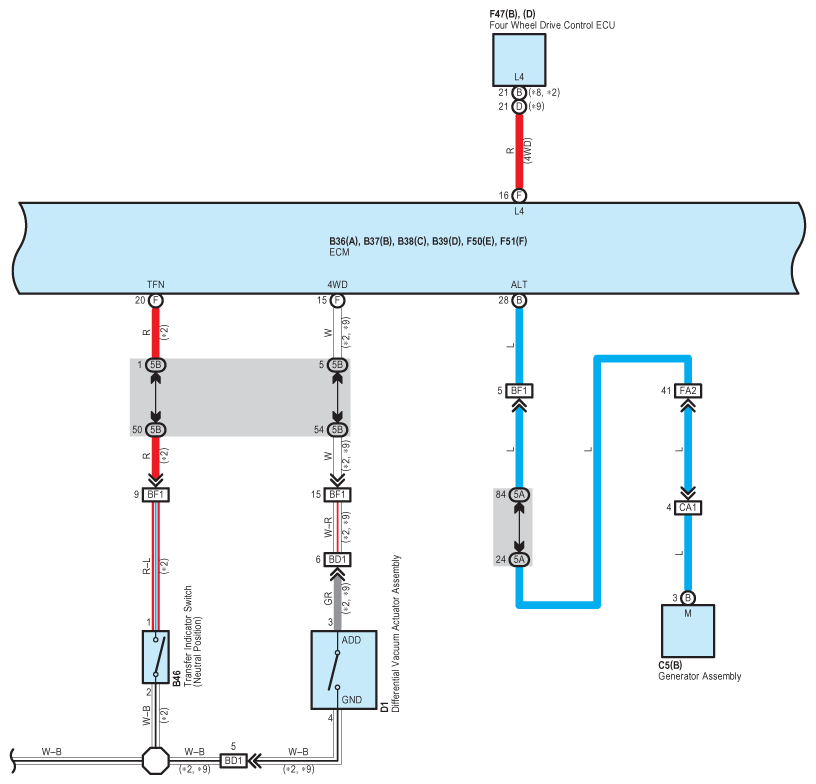

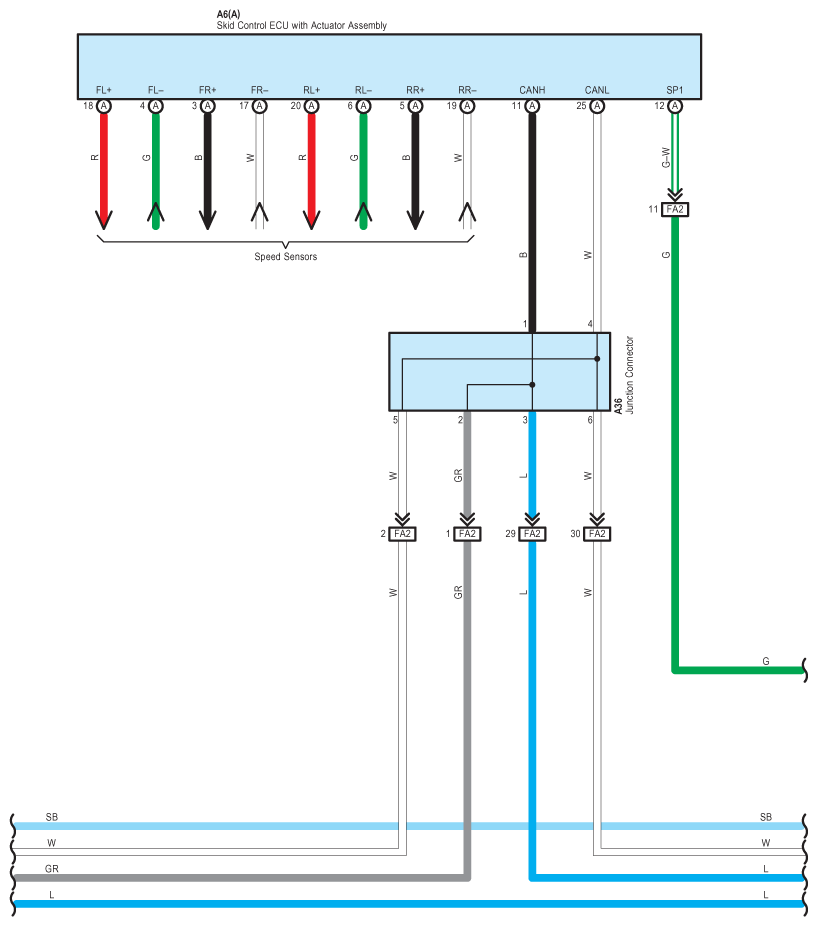

Fig 1: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (1 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

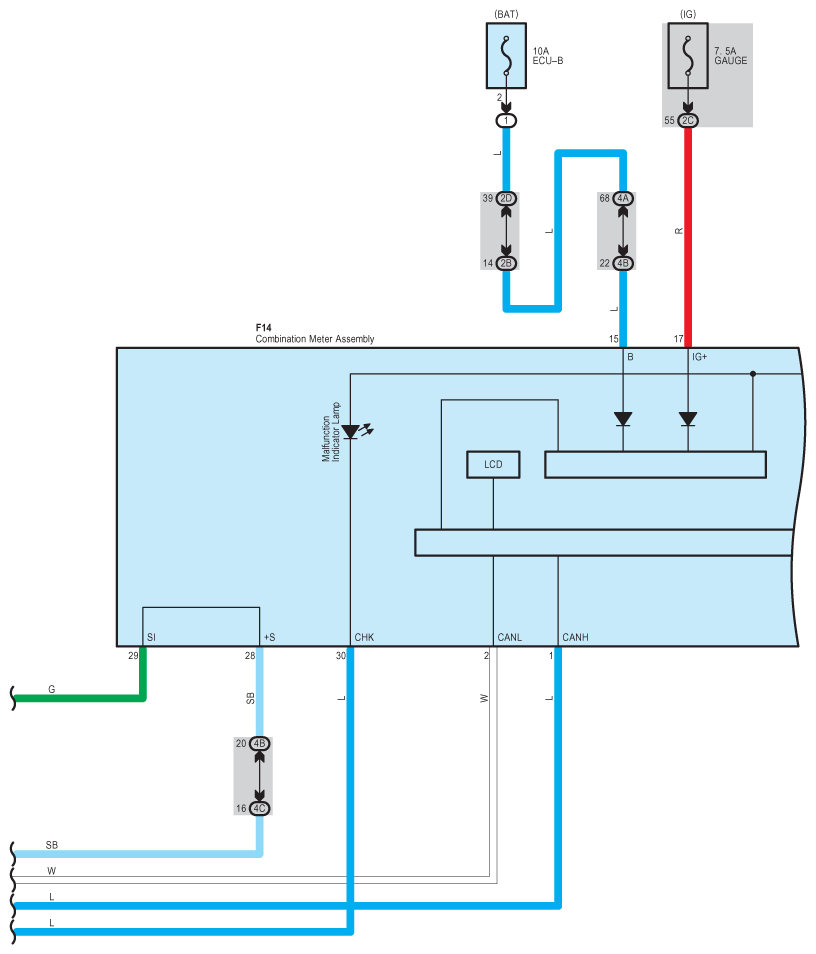

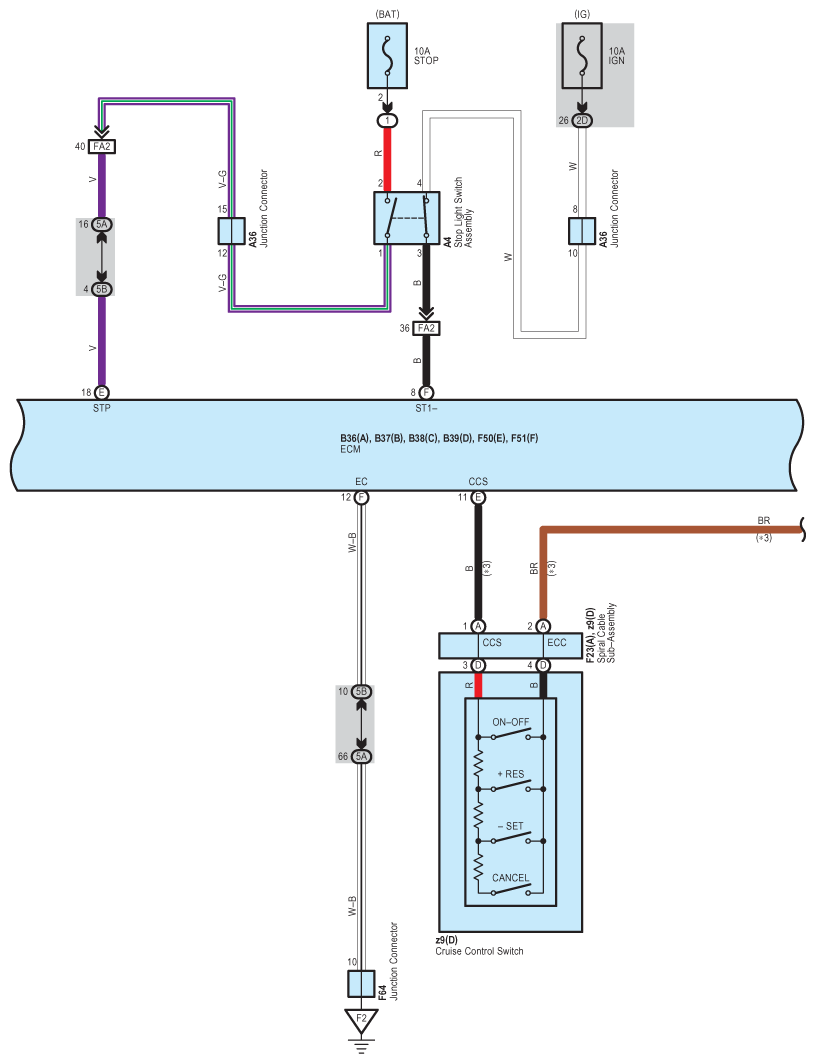

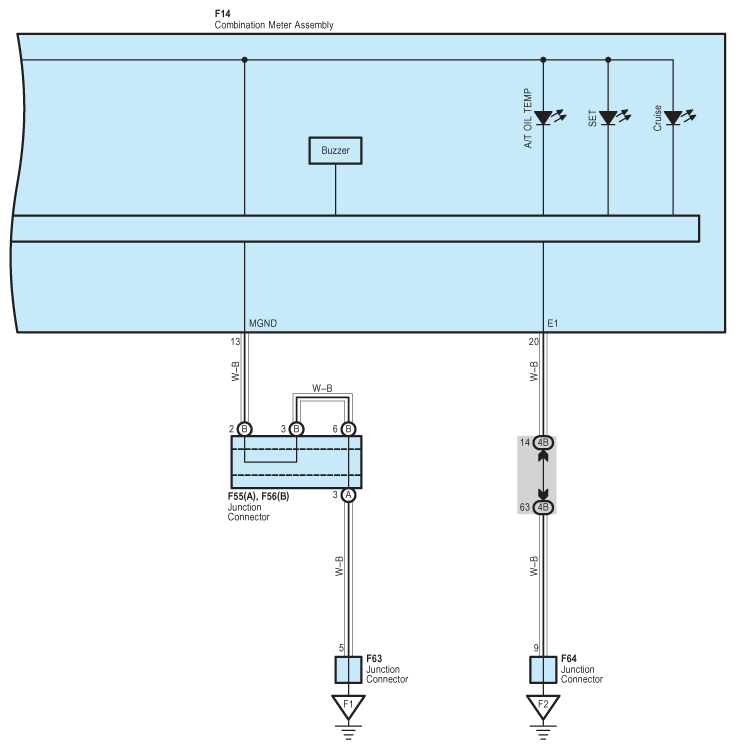

Fig 2: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (2 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

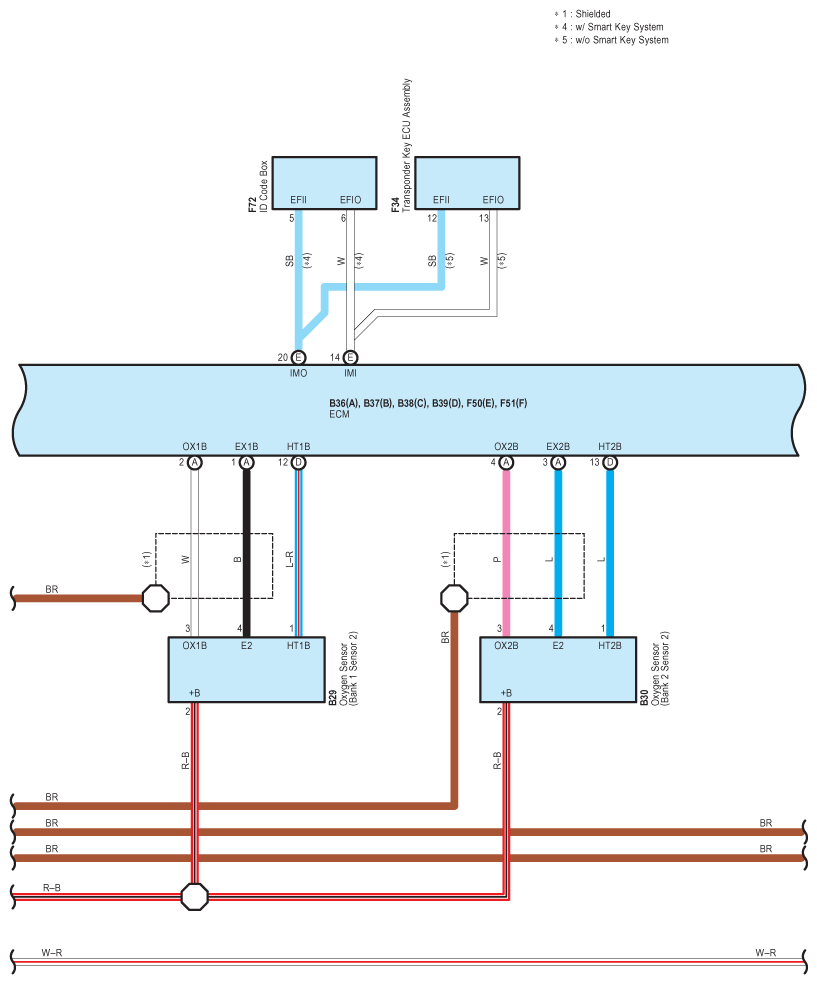

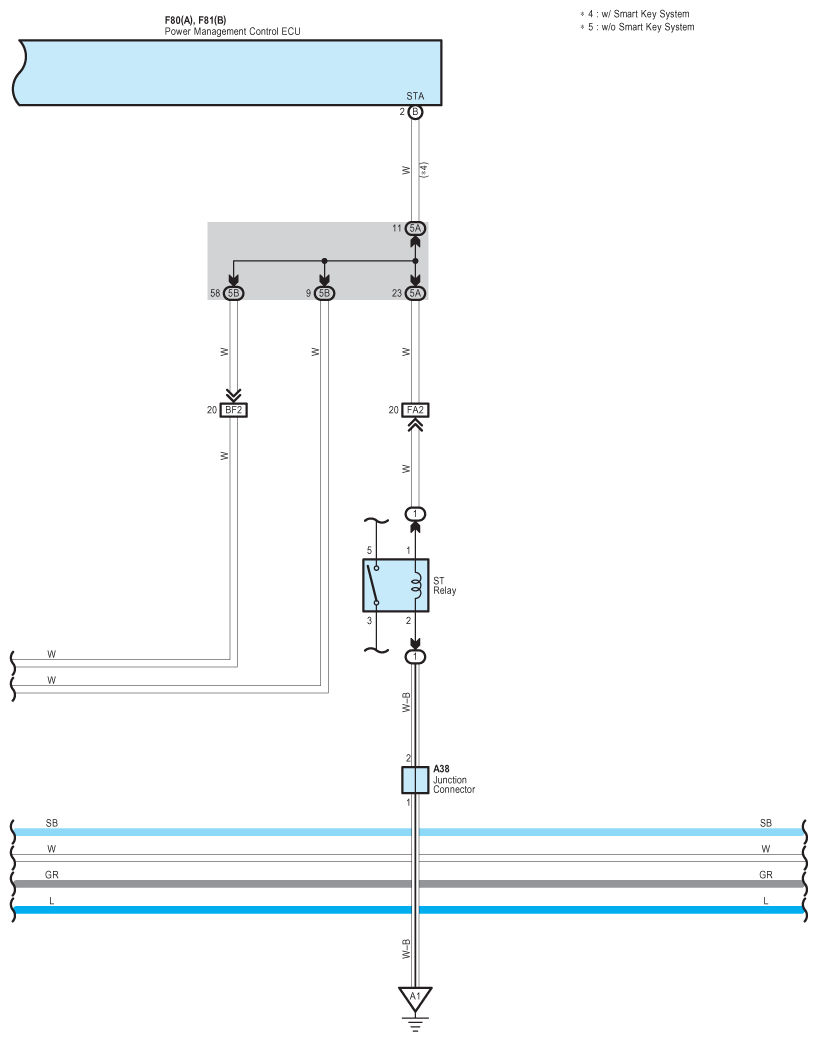

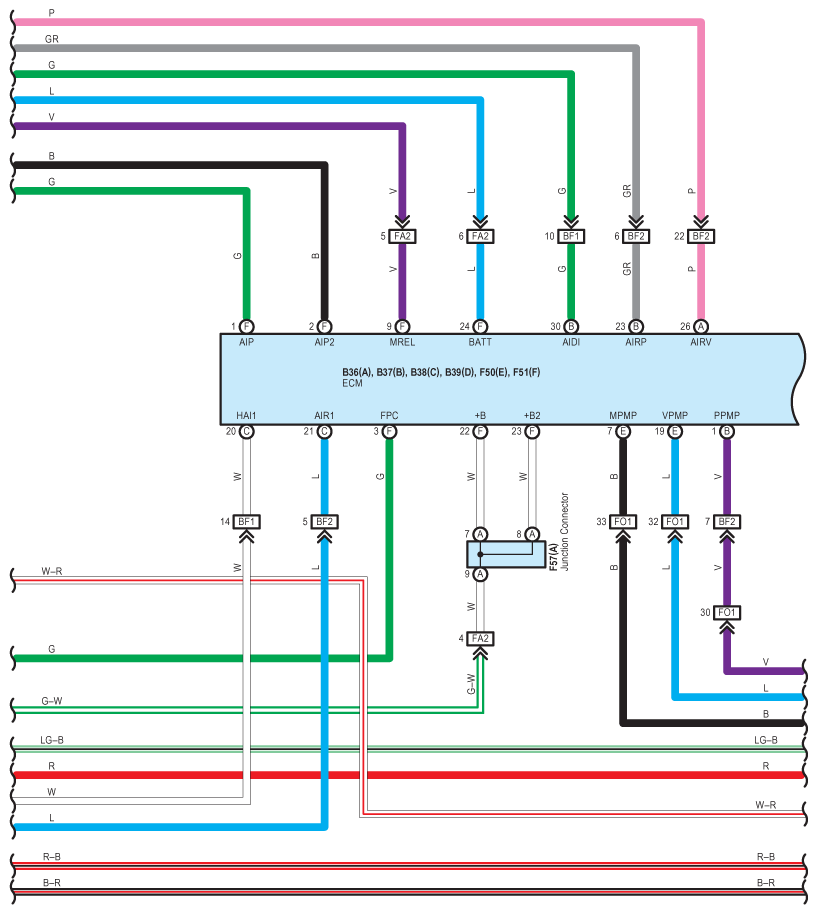

Fig 3: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (3 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

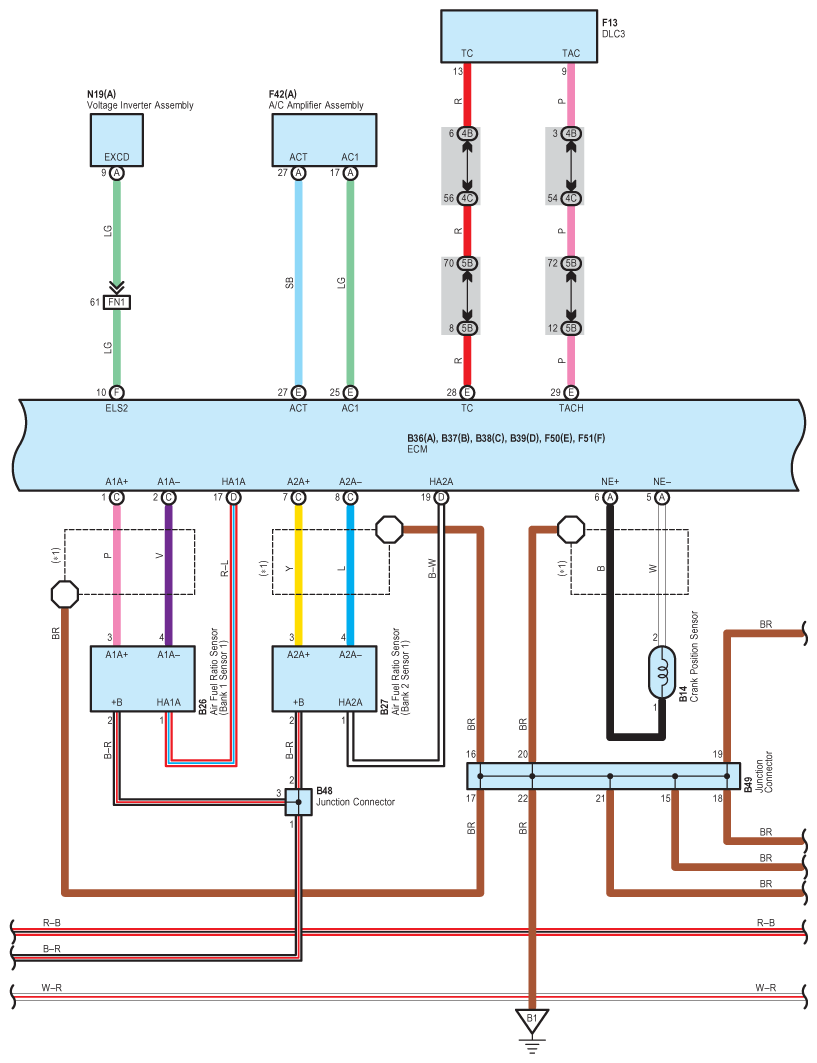

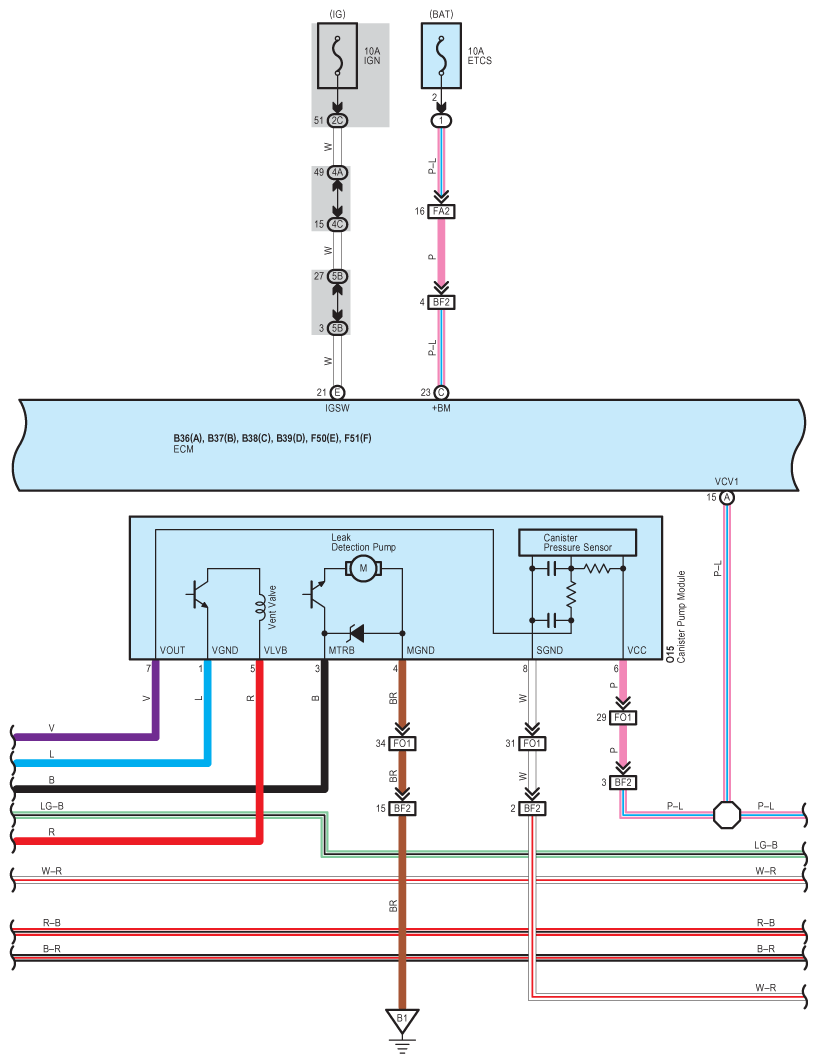

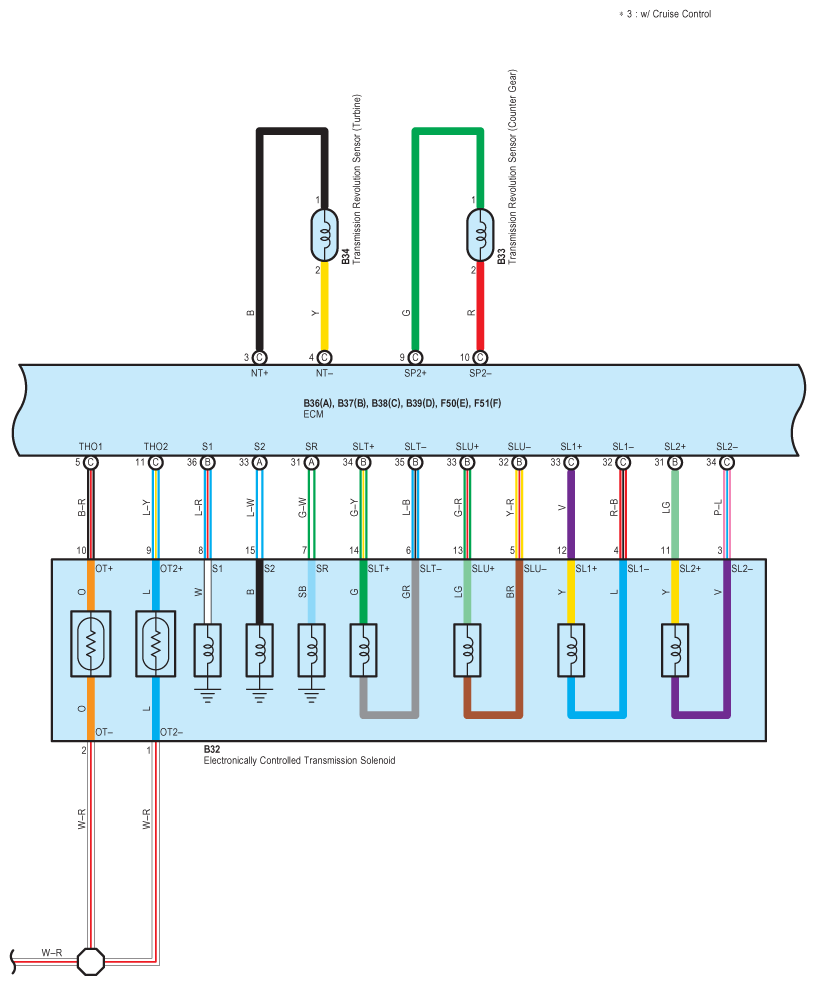

Fig 4: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (4 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

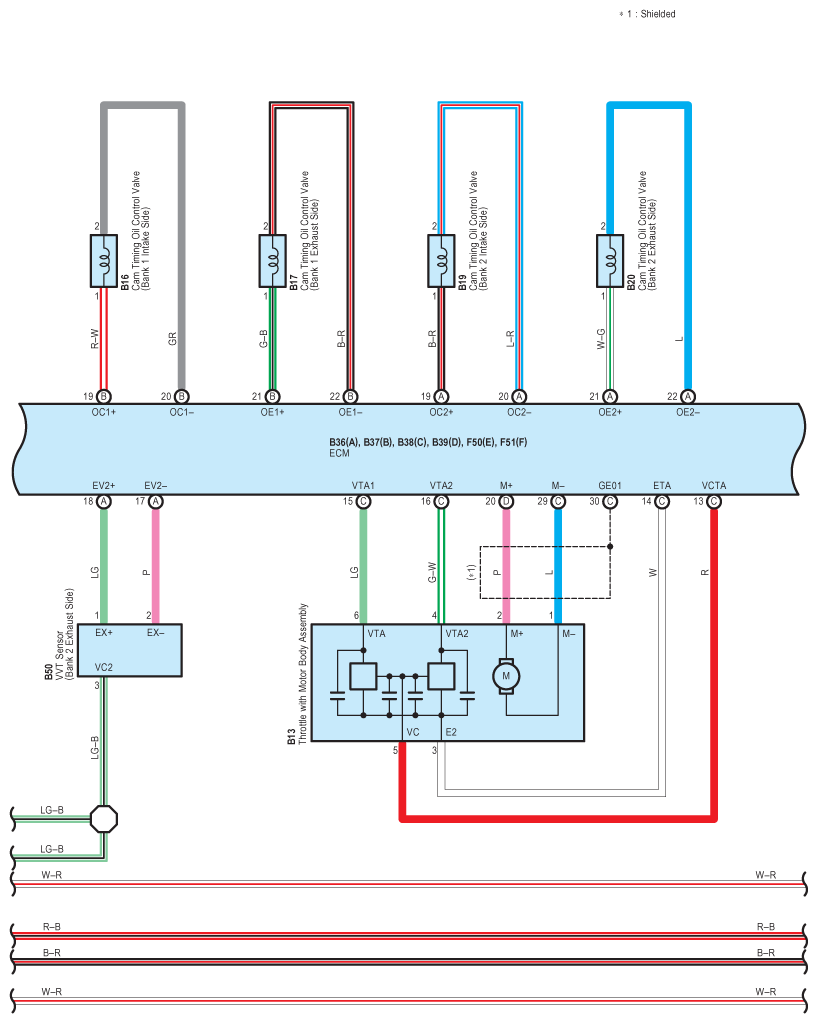

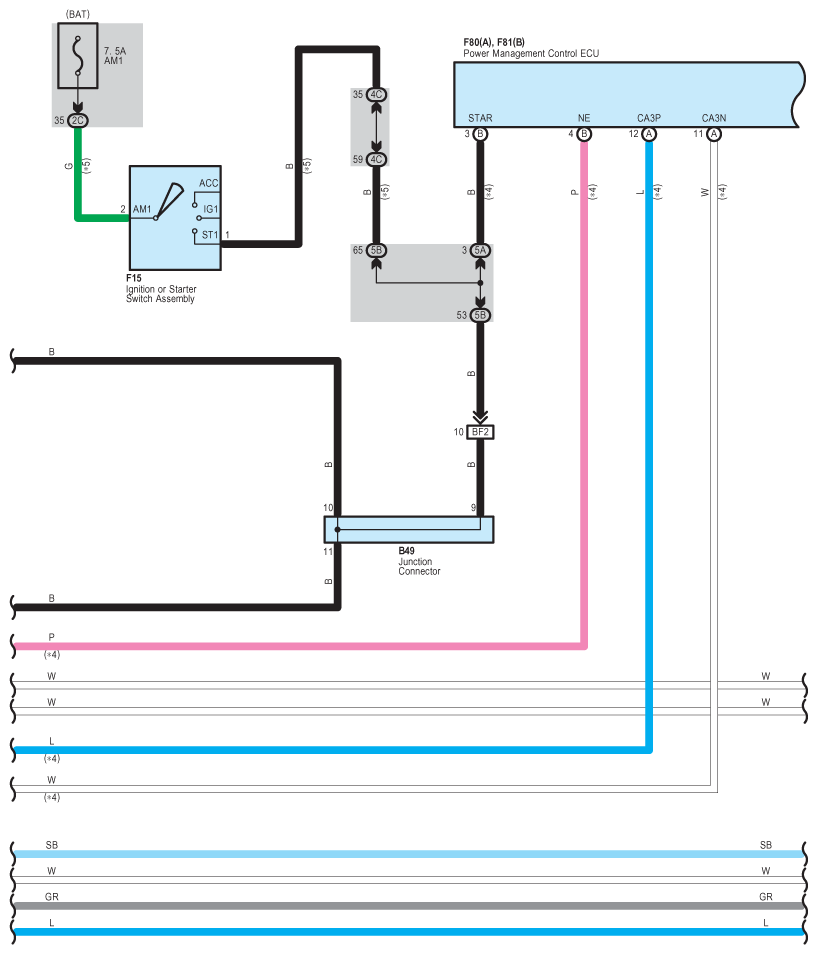

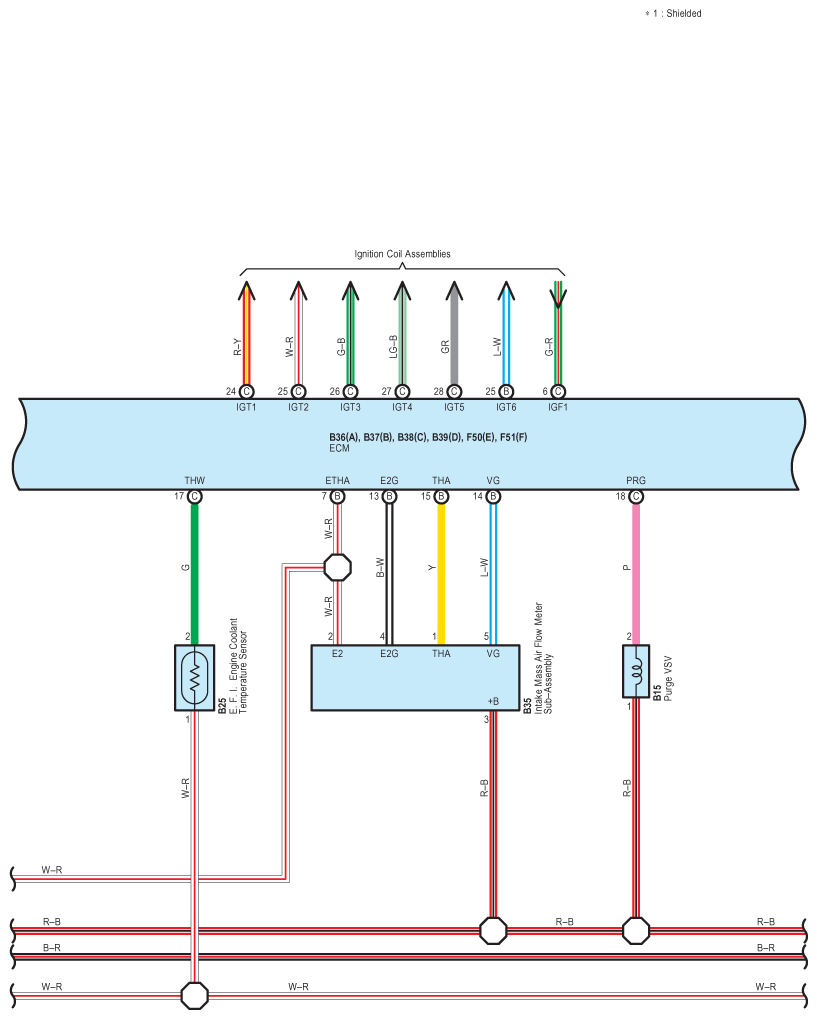

Fig 5: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (5 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

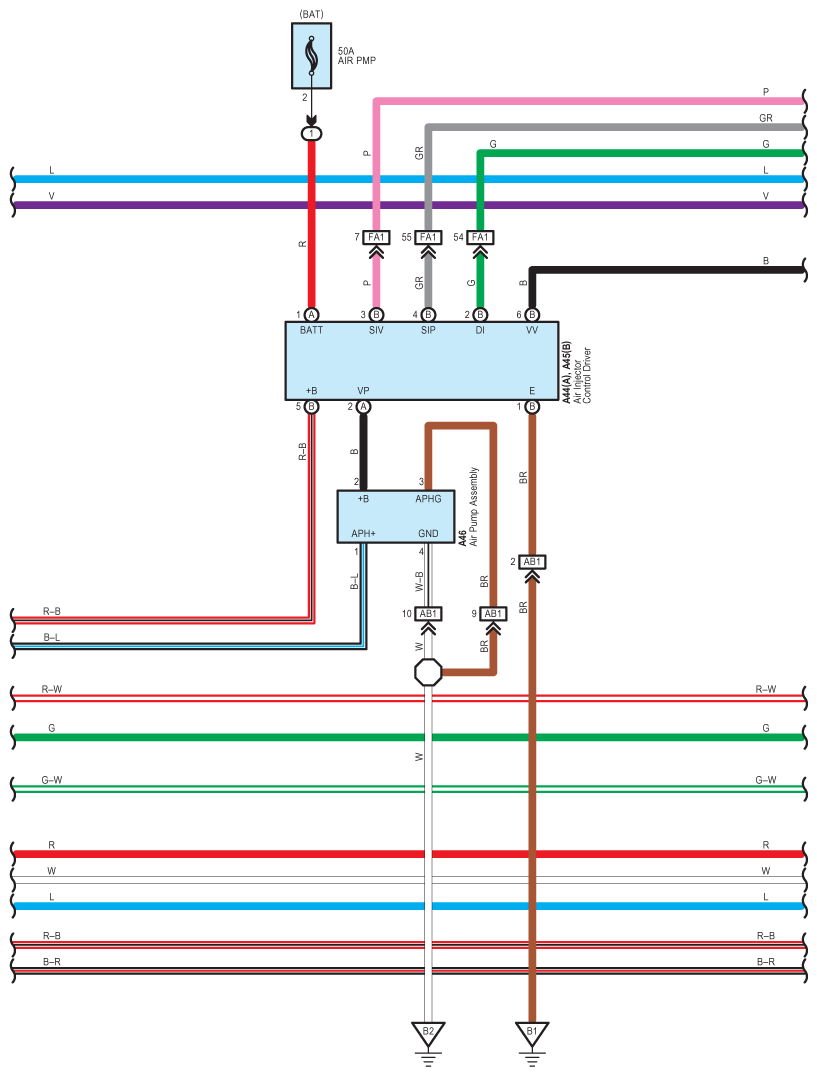

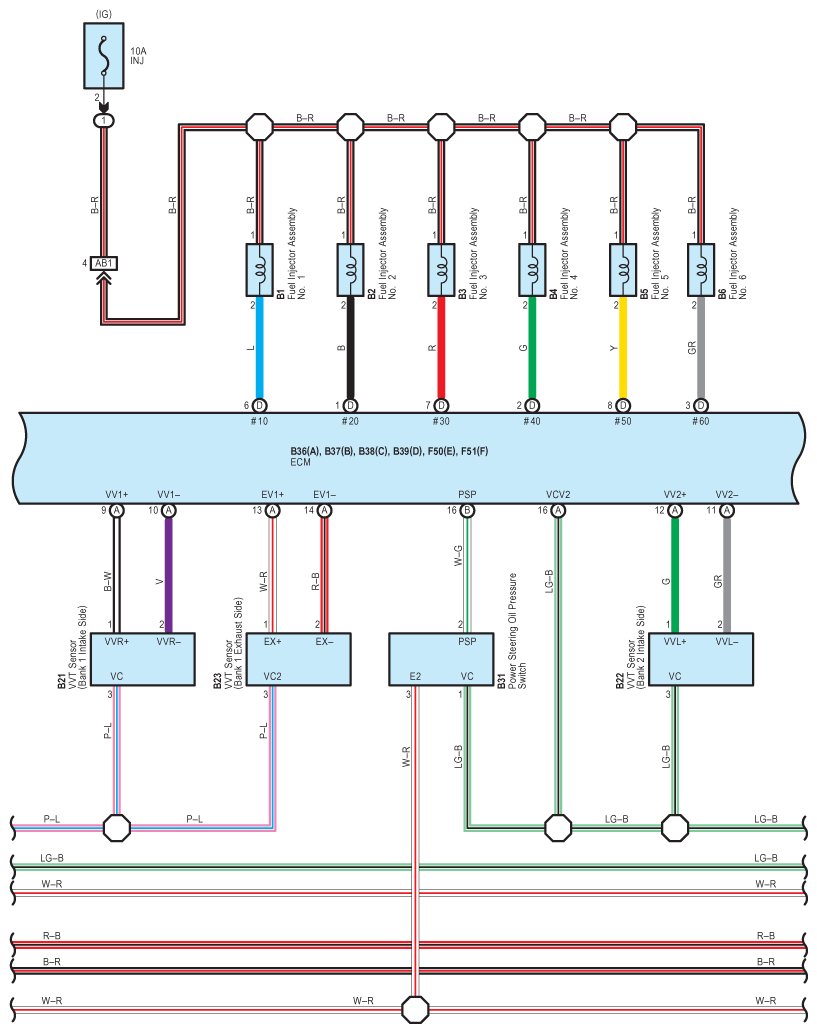

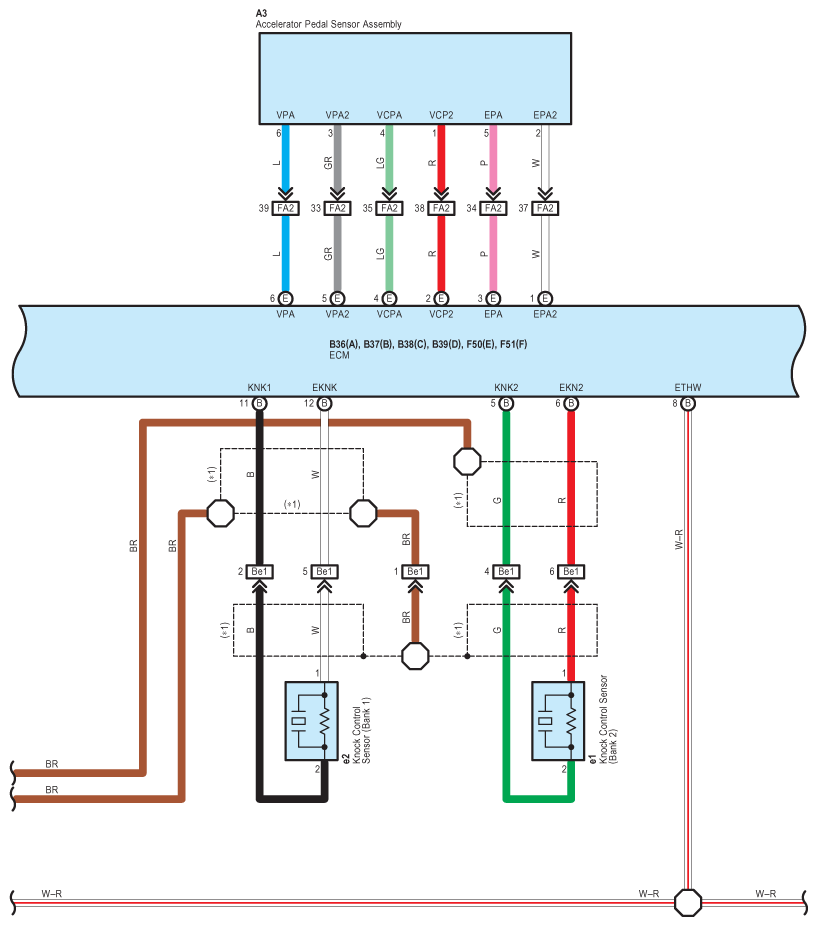

Fig 6: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (6 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

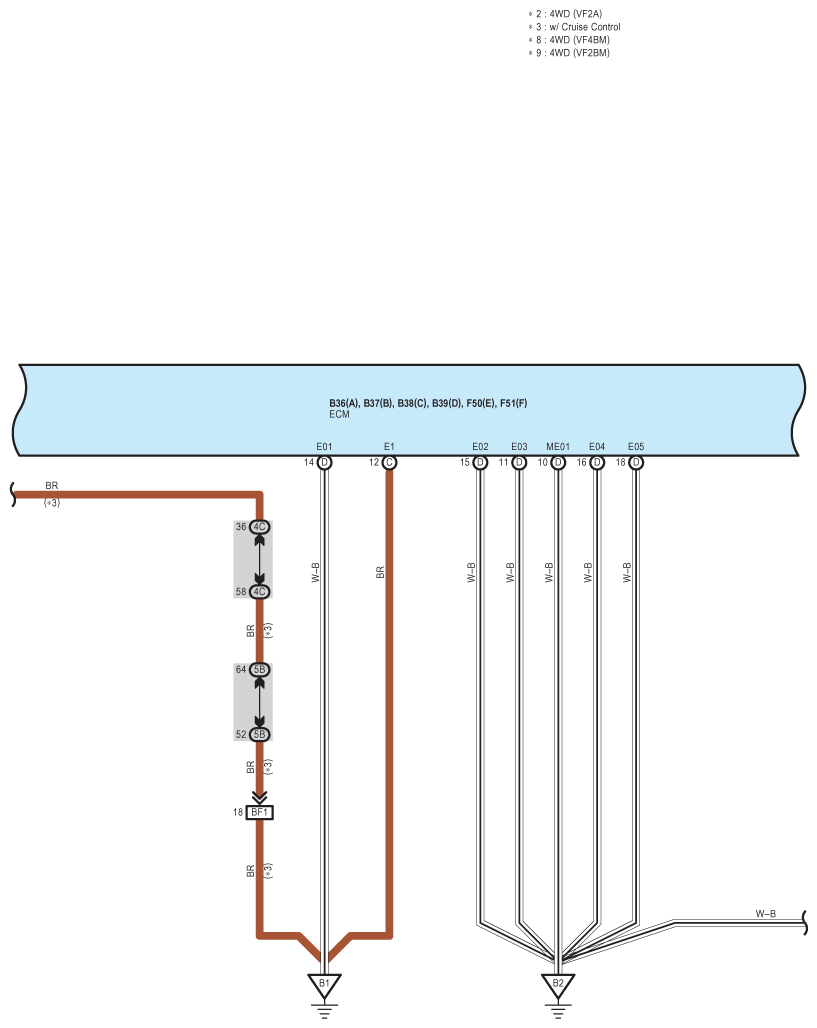

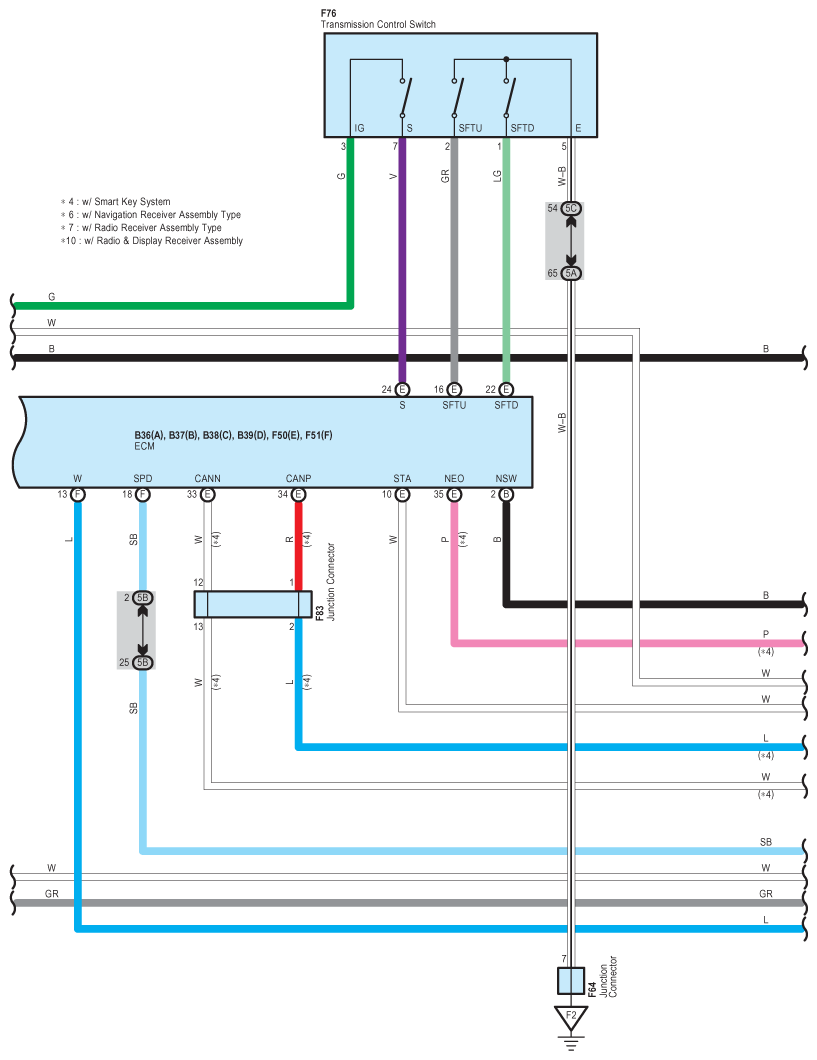

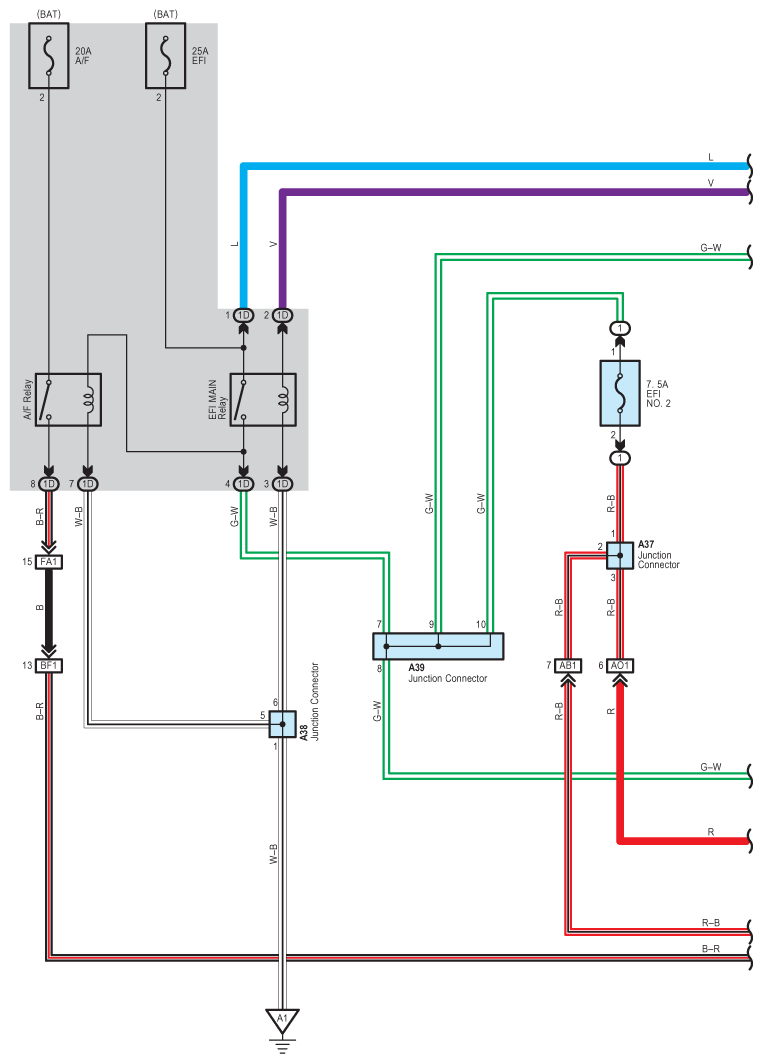

Fig 7: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (7 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

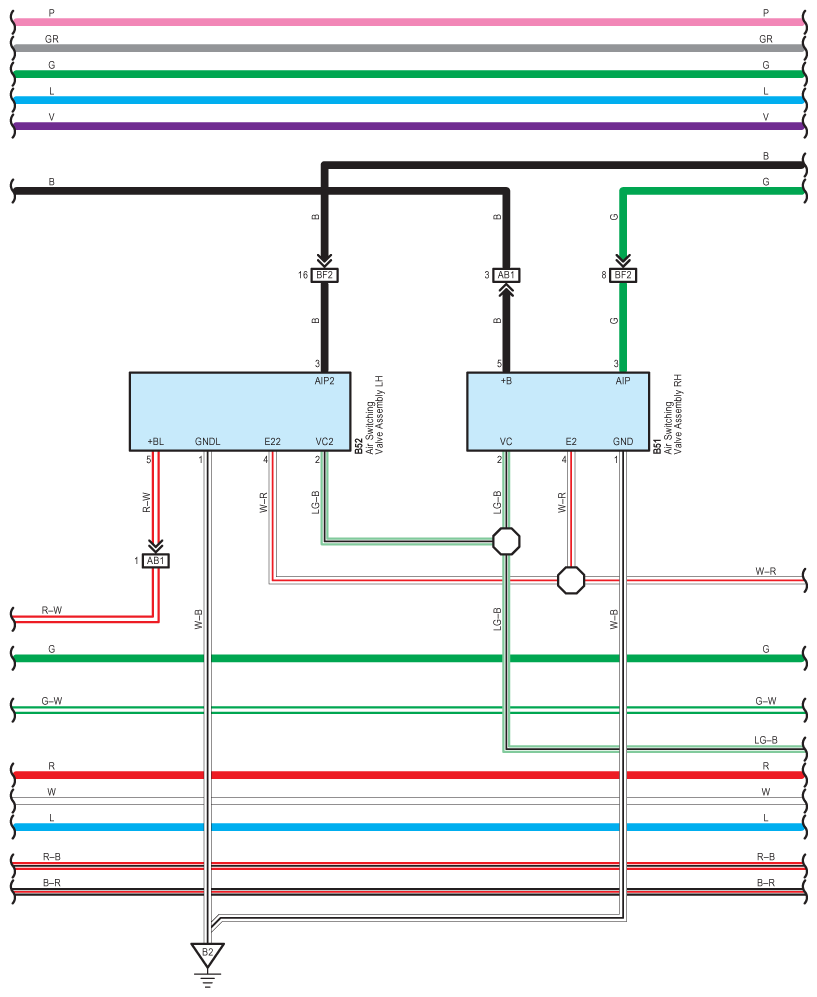

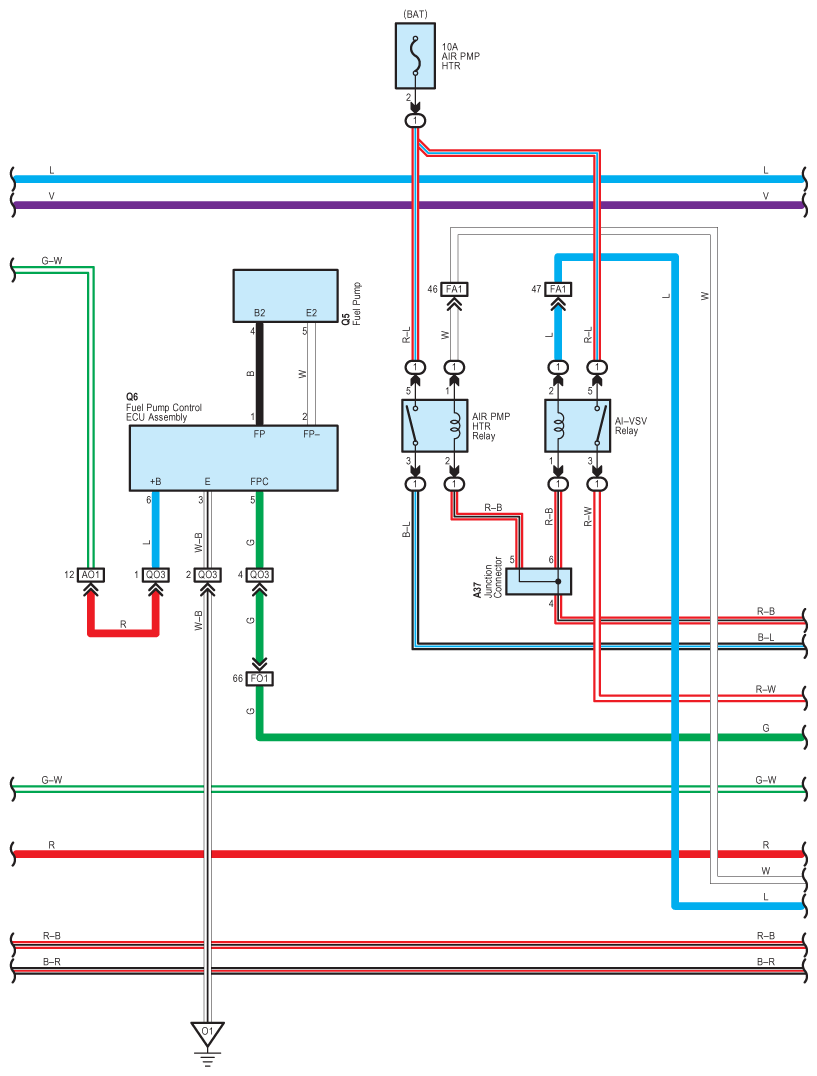

Fig 8: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (8 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (9 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (10 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (11 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (12 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (13 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (14 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (15 Of 23)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (16 Of 23)

Fig 17: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (17 Of 23)

Fig 18: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (18 Of 23)

Fig 19: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (19 Of 23)

Fig 20: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (20 Of 23)

Fig 21: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (21 Of 23)

Fig 22: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (22 Of 23)

Fig 23: Cruise Control, Electronically Controlled Transmission And A/T Indicator And Engine Control - Circuit Diagram (23 Of 23)
