Mirror Heater and Rear Window Defogger: Notes

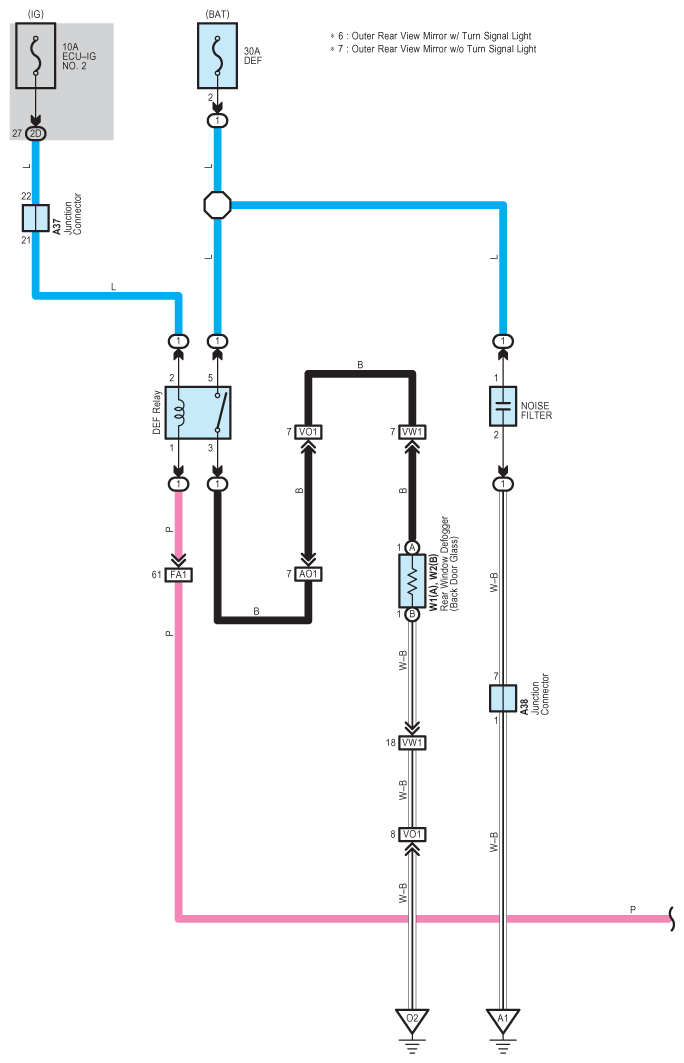

Fig 1: Mirror Heater And Rear Window Defogger - Circuit Diagram (1 Of 5)
G08950384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

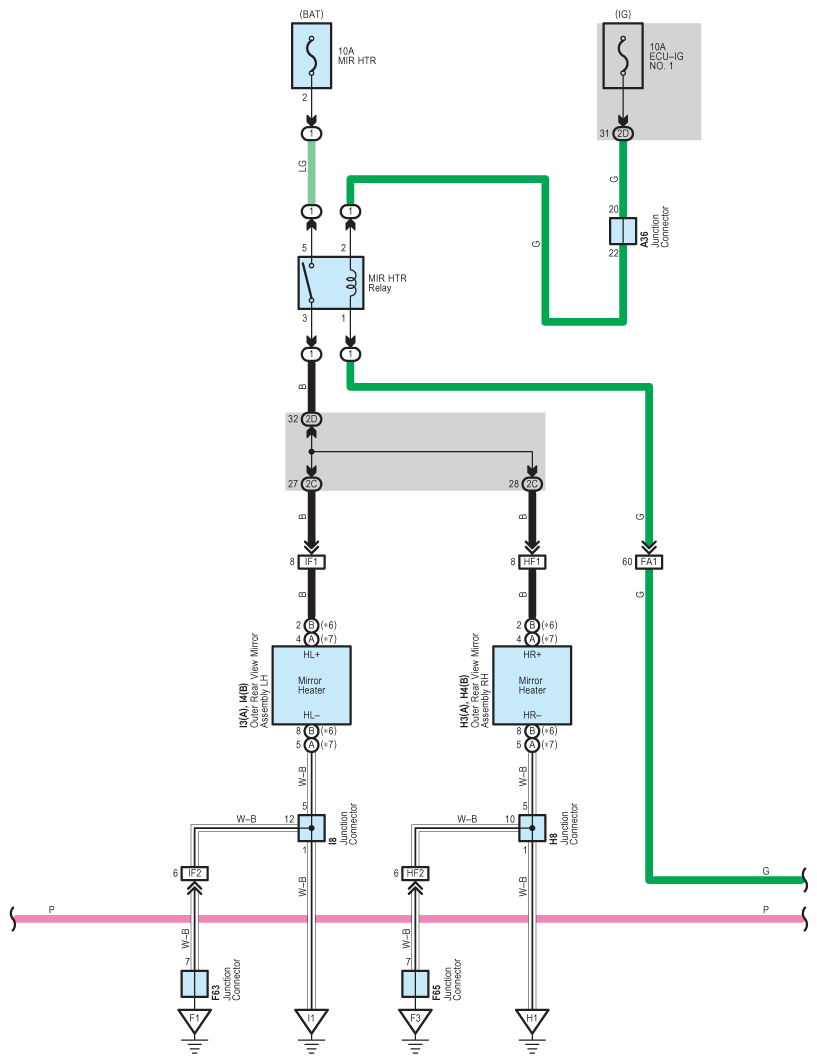

Fig 2: Mirror Heater And Rear Window Defogger - Circuit Diagram (2 Of 5)
G08950385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

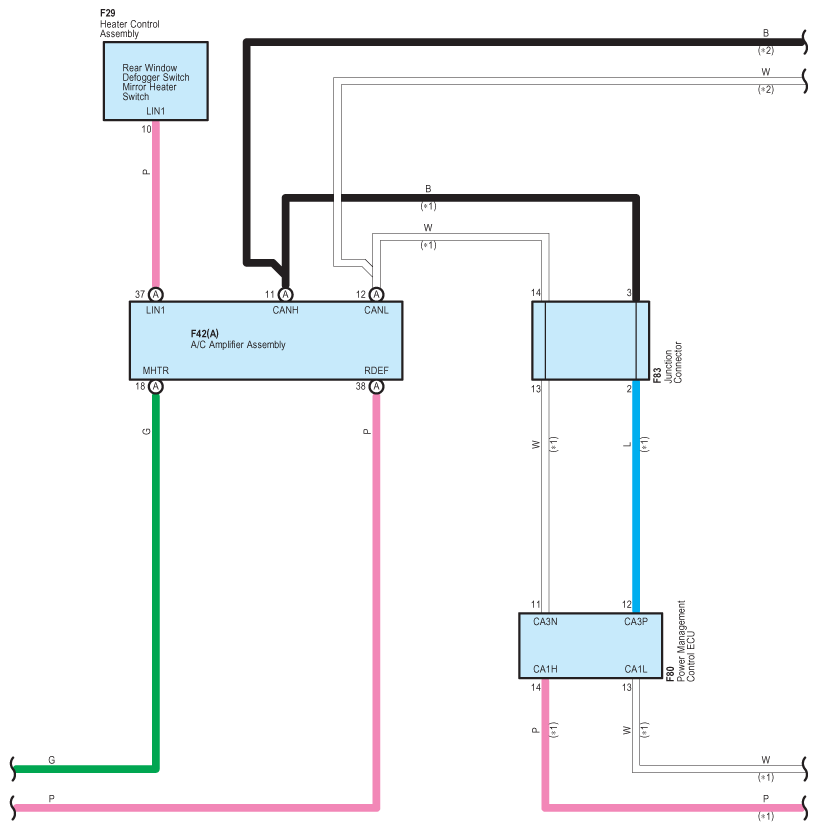

Fig 3: Mirror Heater And Rear Window Defogger - Circuit Diagram (3 Of 5)
G08950386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

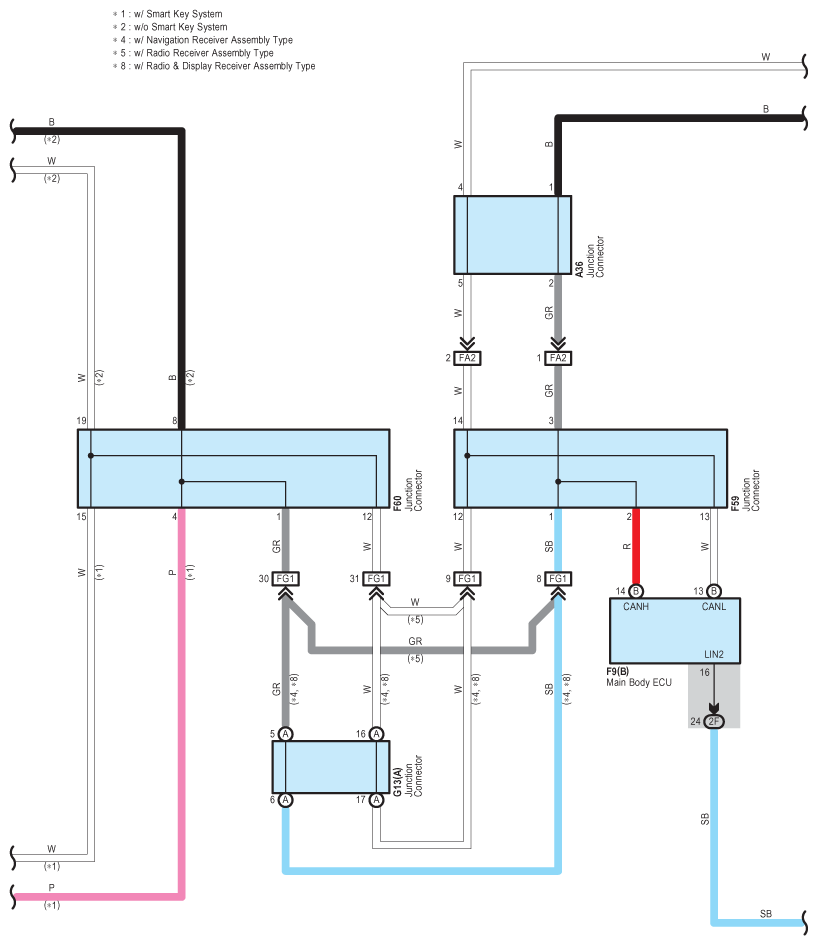

Fig 4: Mirror Heater And Rear Window Defogger - Circuit Diagram (4 Of 5)
G08950387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

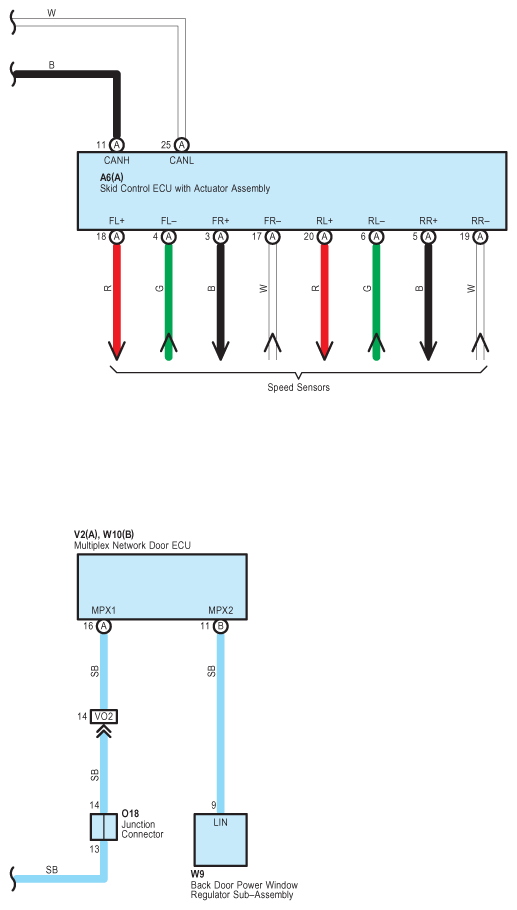

Fig 5: Mirror Heater And Rear Window Defogger - Circuit Diagram (5 Of 5)
G08950388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
