Parts Location: Illustration

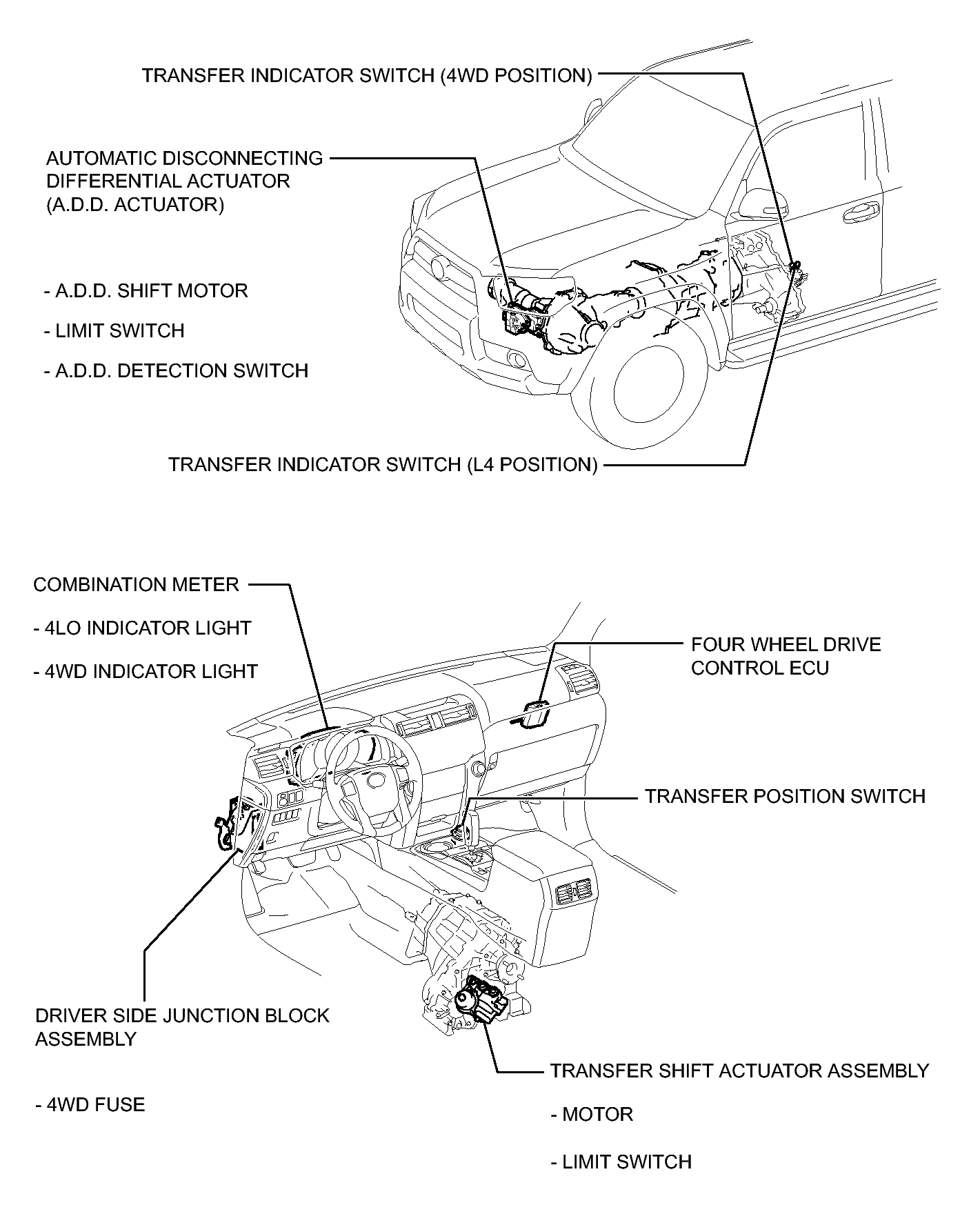

Fig 1: Identifying Touch Select 2-4 & High-Low System Components Location
GTY381415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
