Camshaft Position Sensor: Components: Illustration

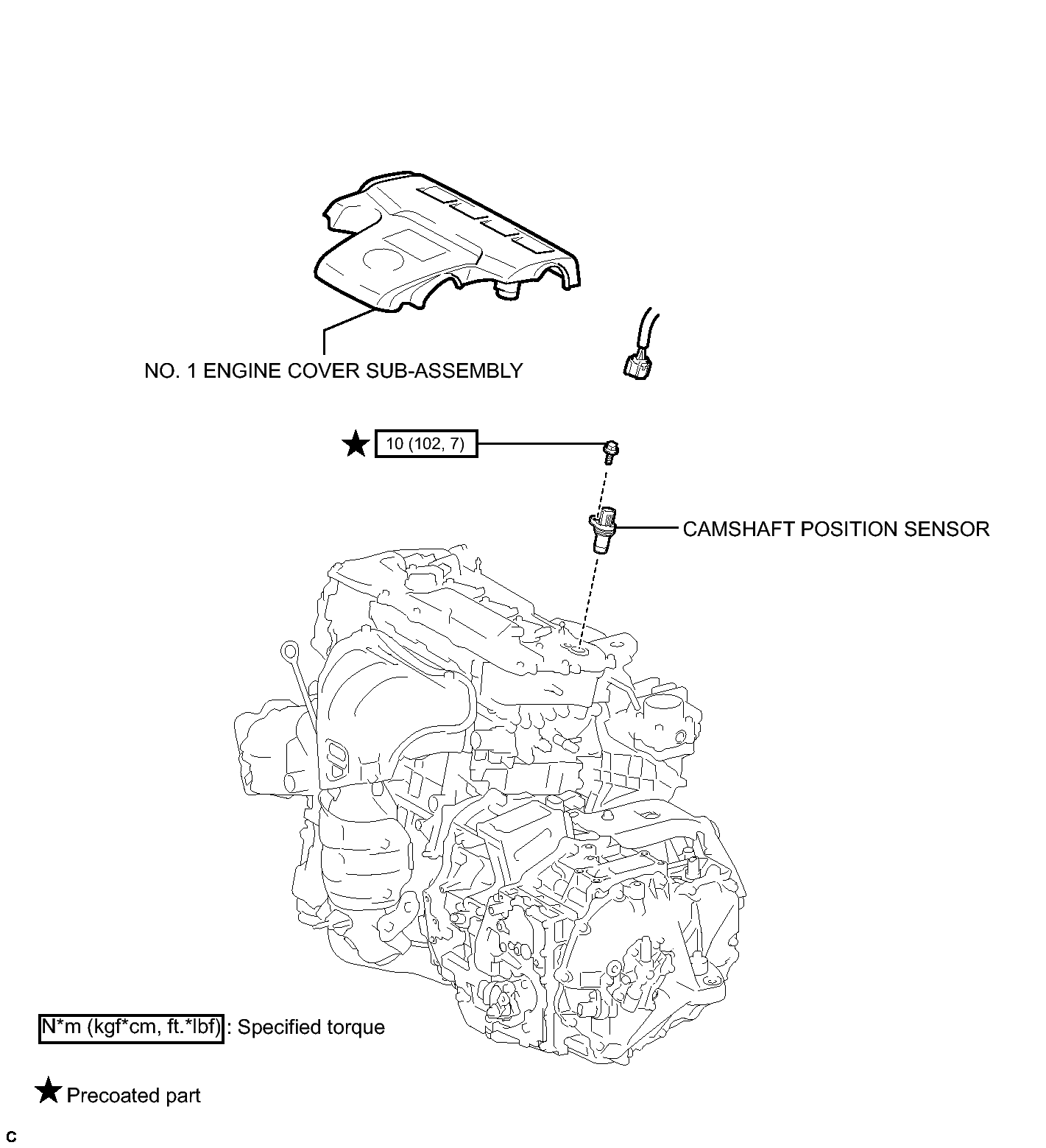

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
GTY369170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
