Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control: Notes

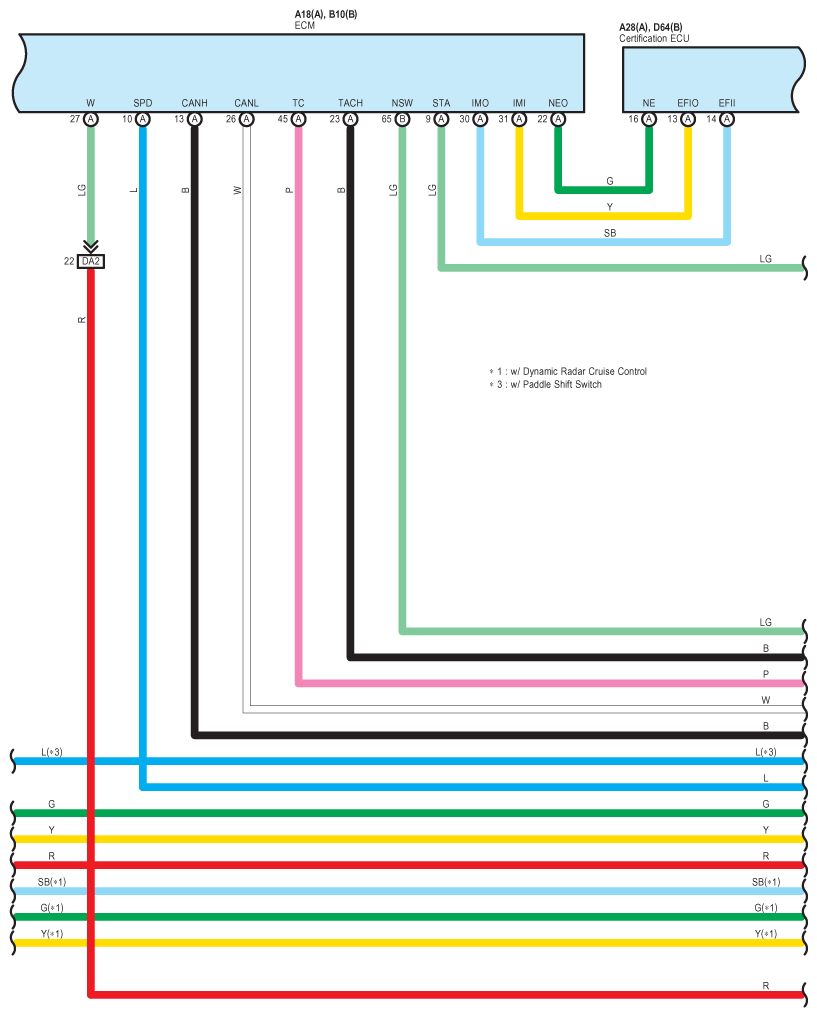

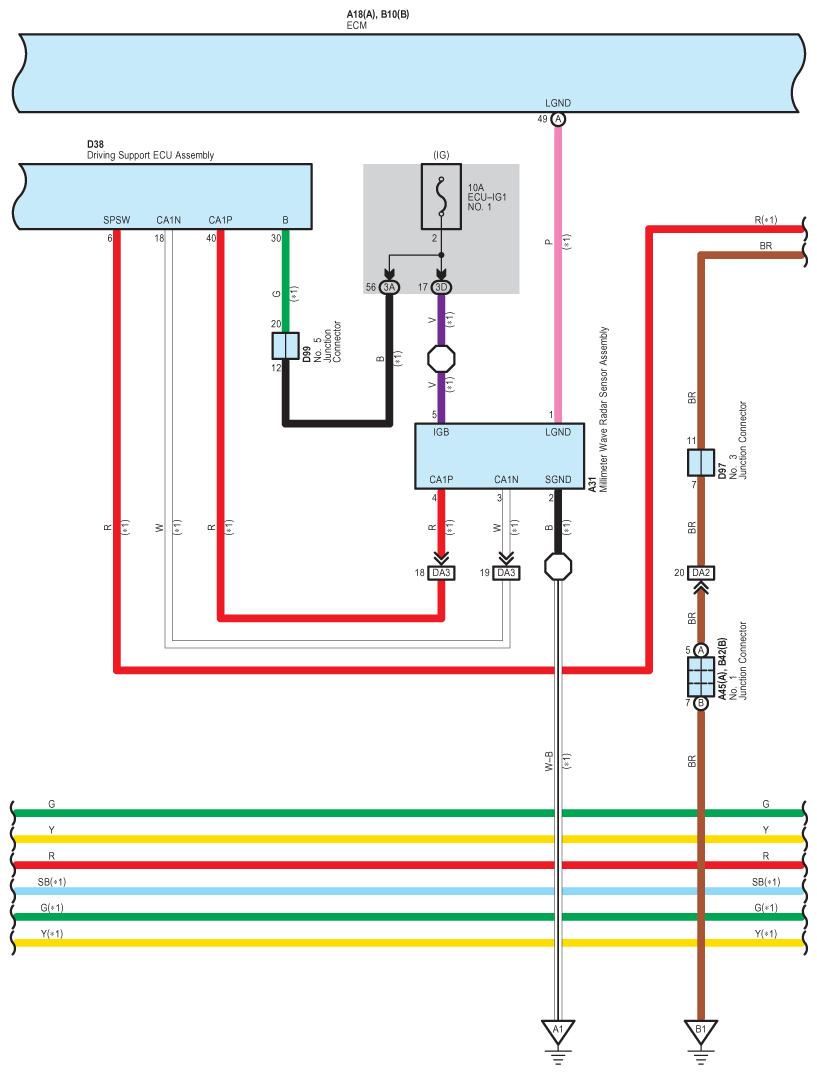

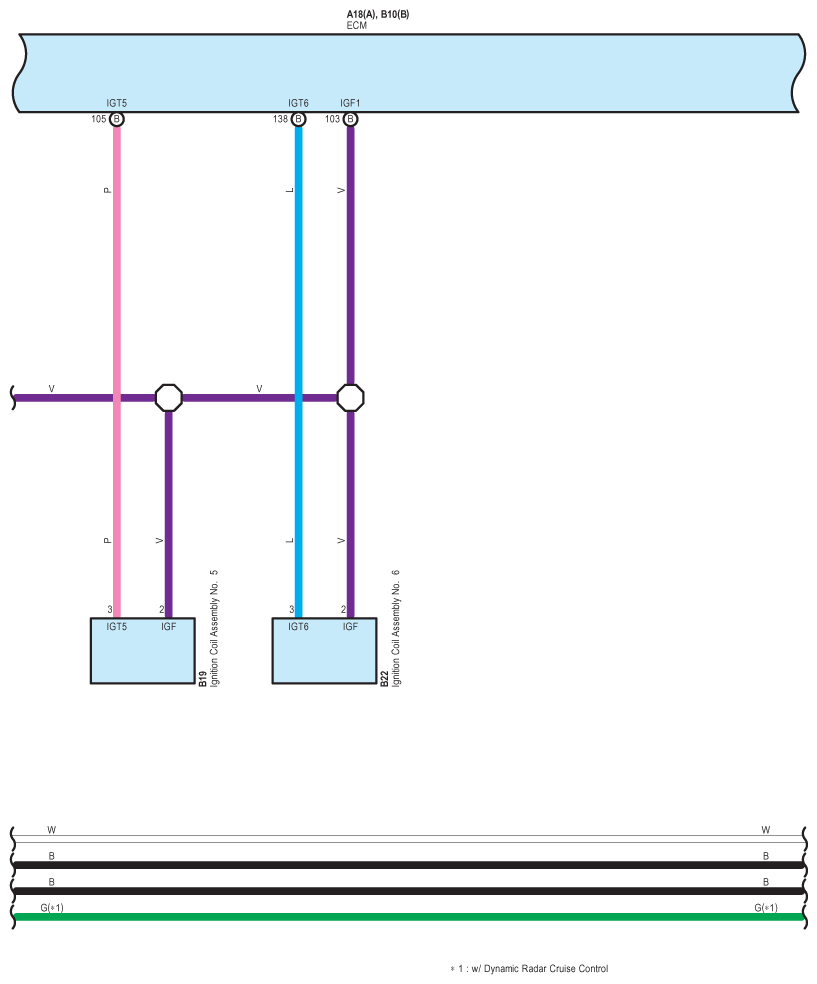

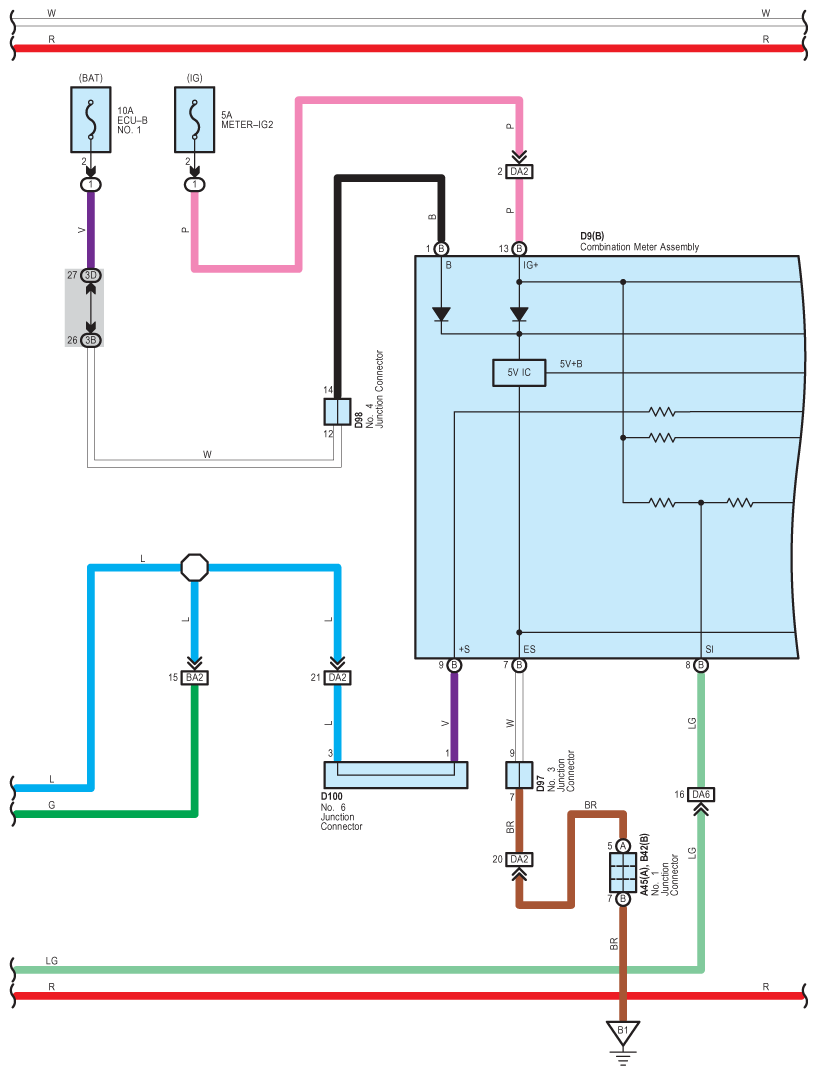

Fig 1: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (1 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

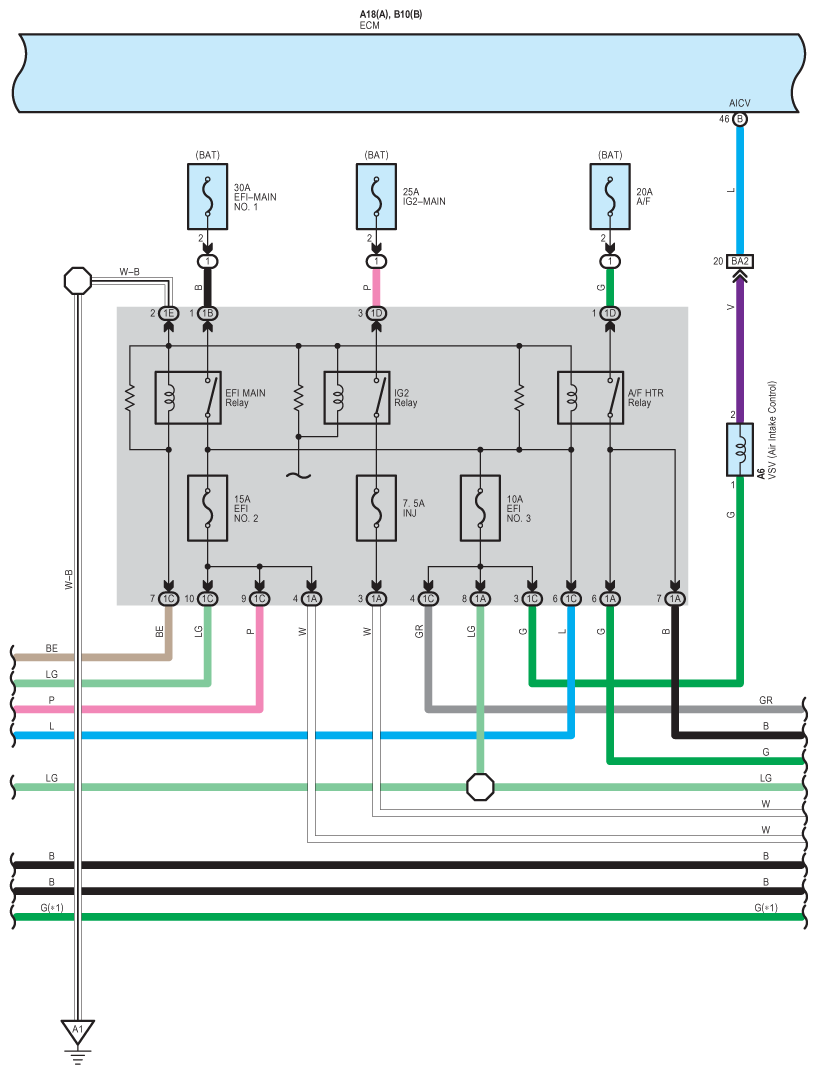

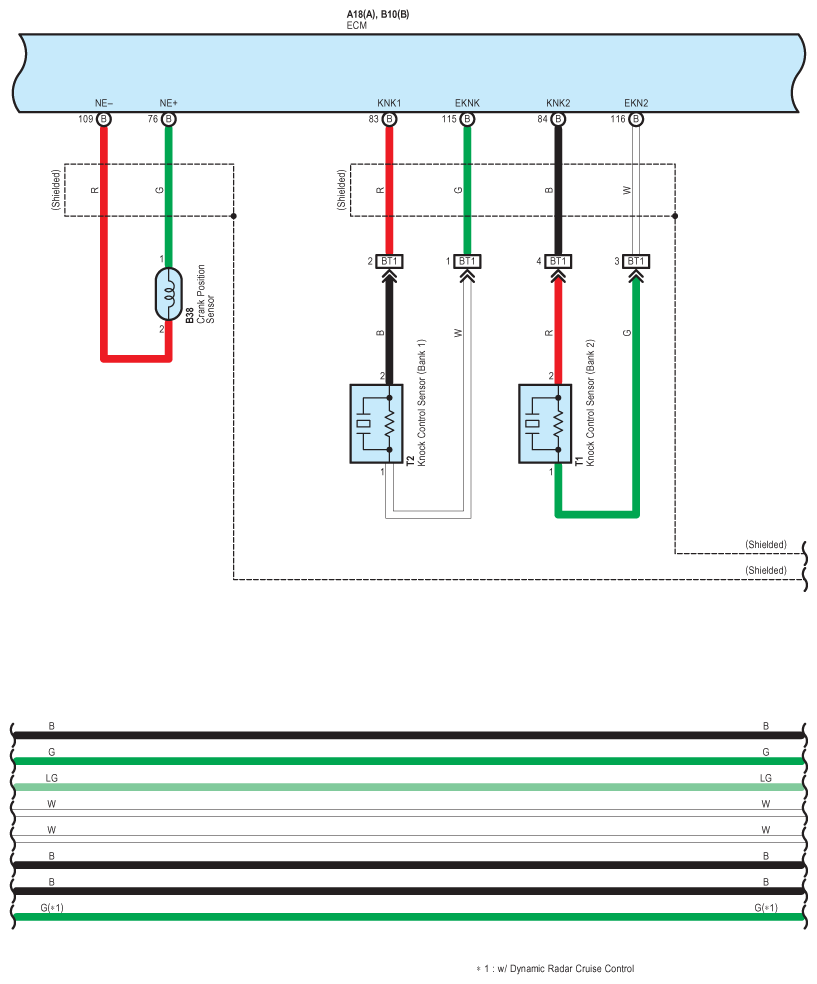

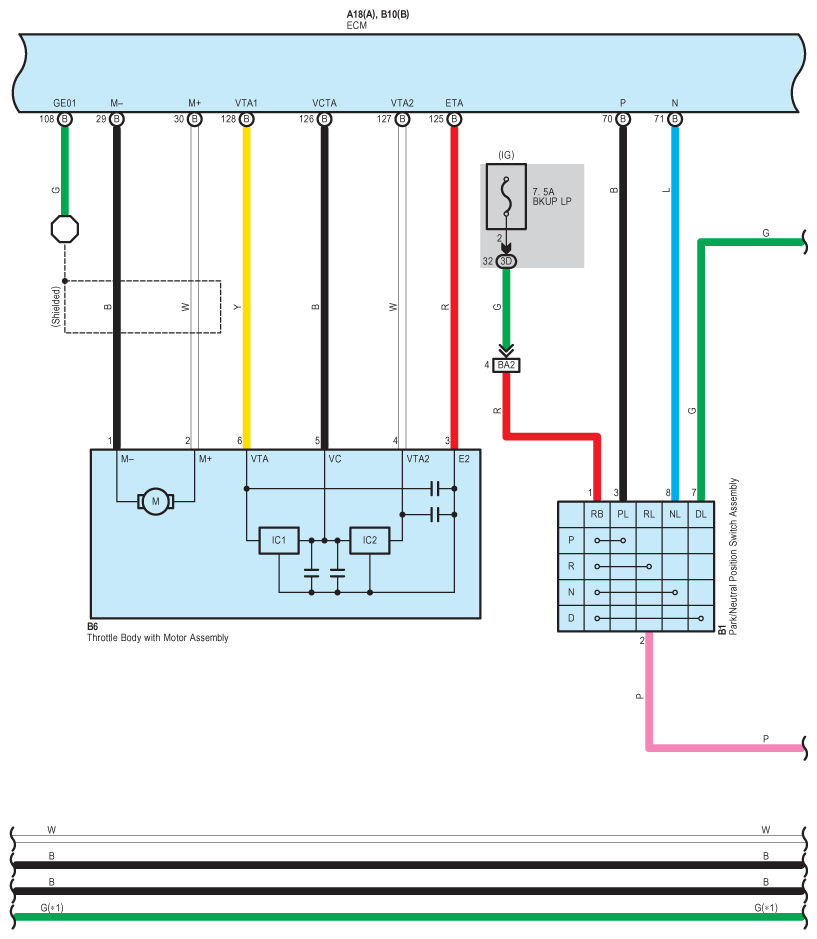

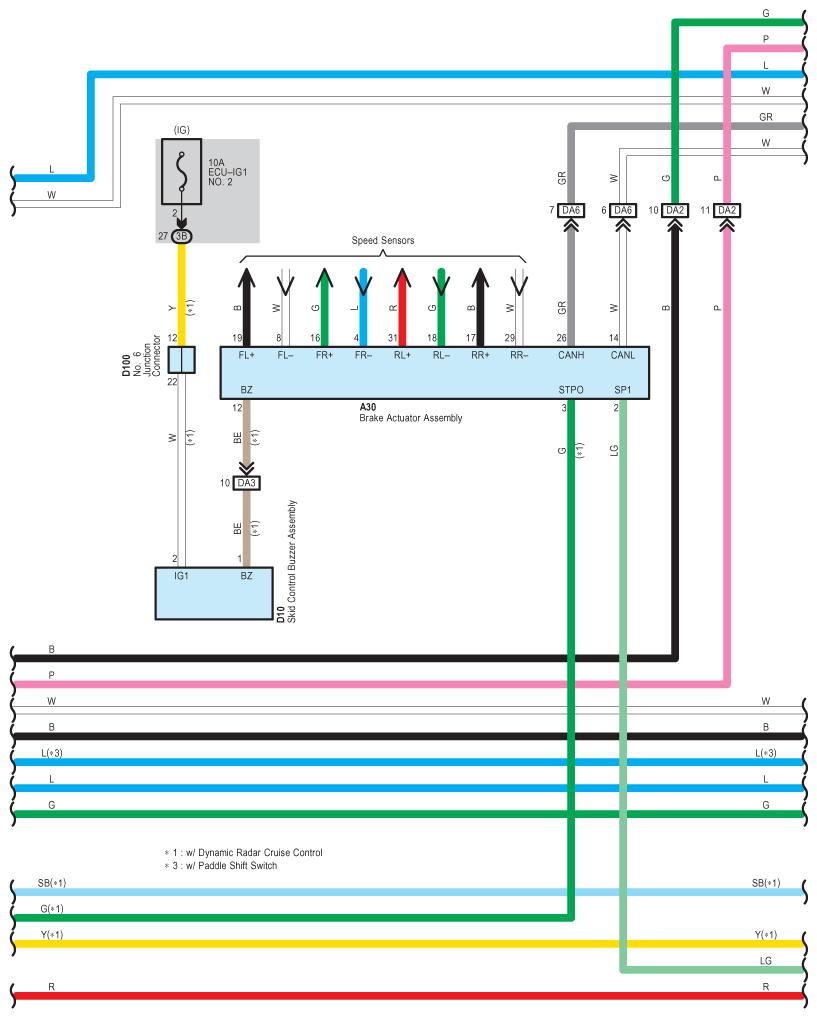

Fig 2: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (2 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

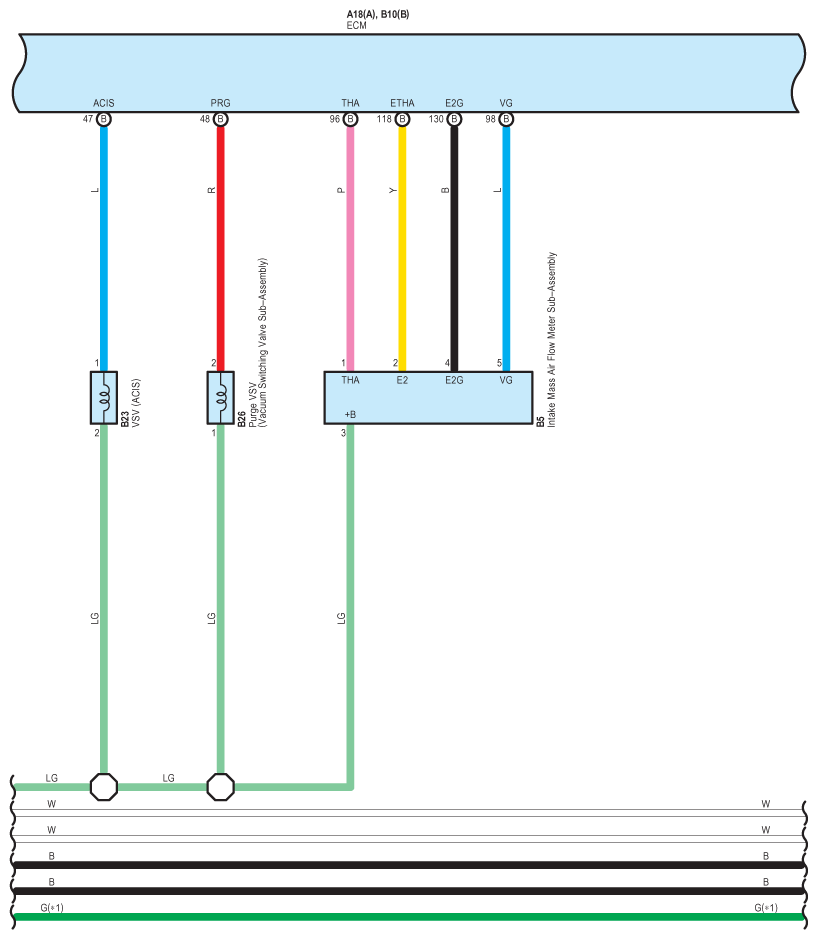

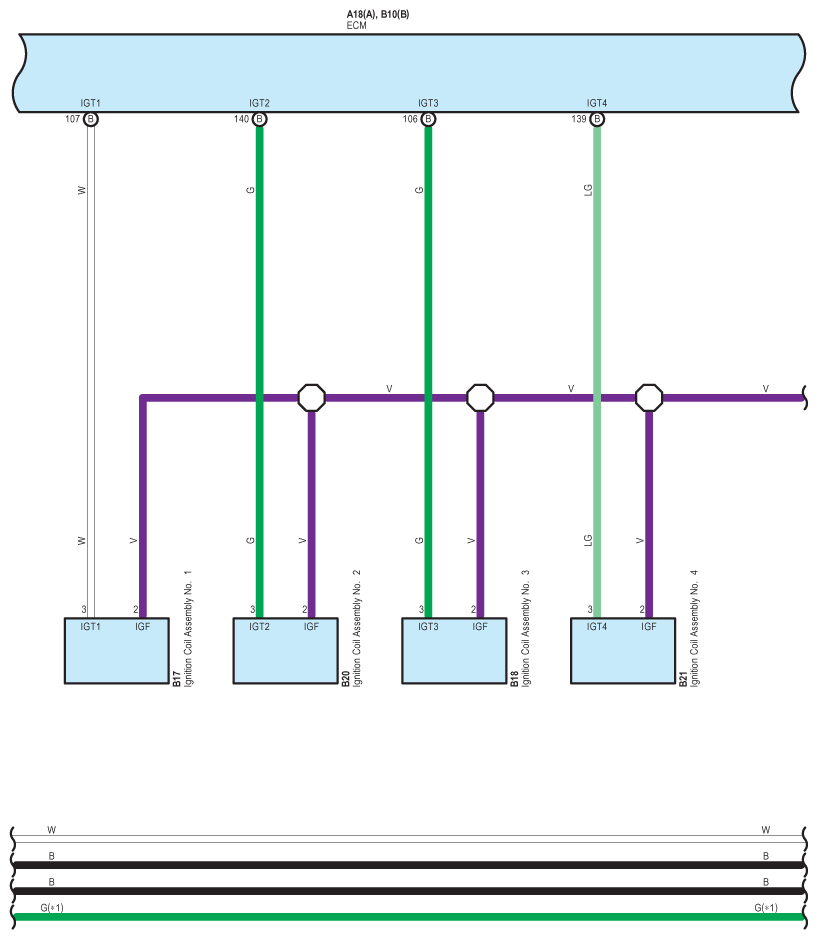

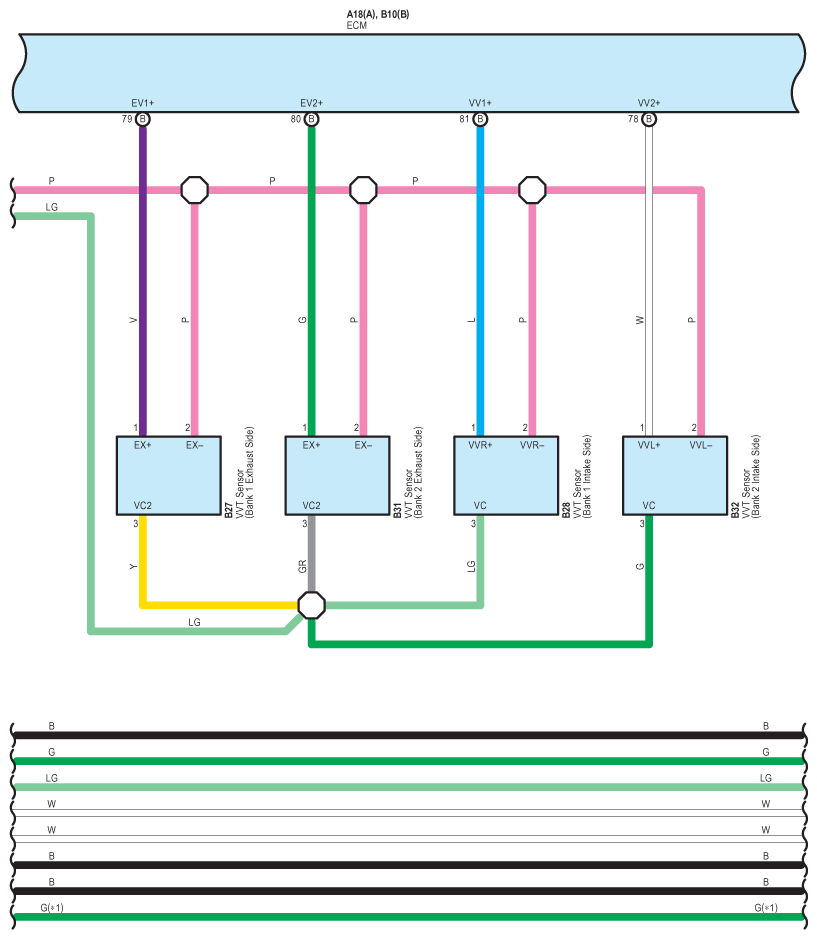

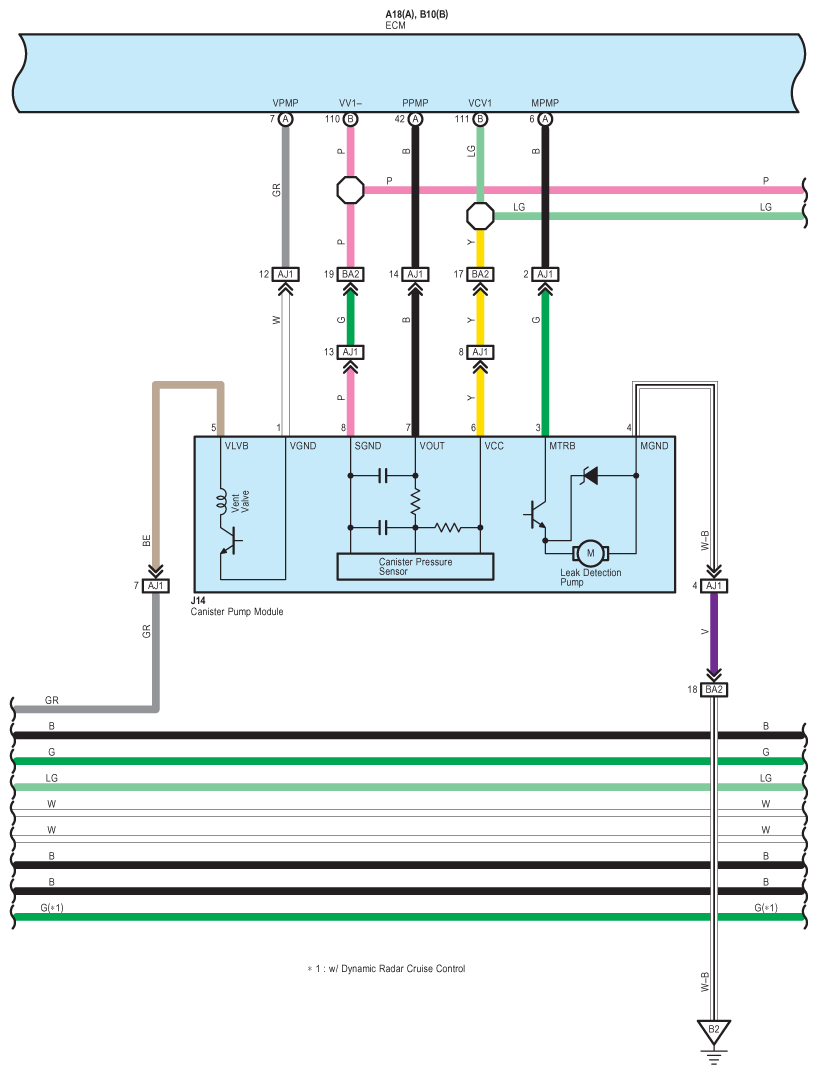

Fig 3: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (3 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

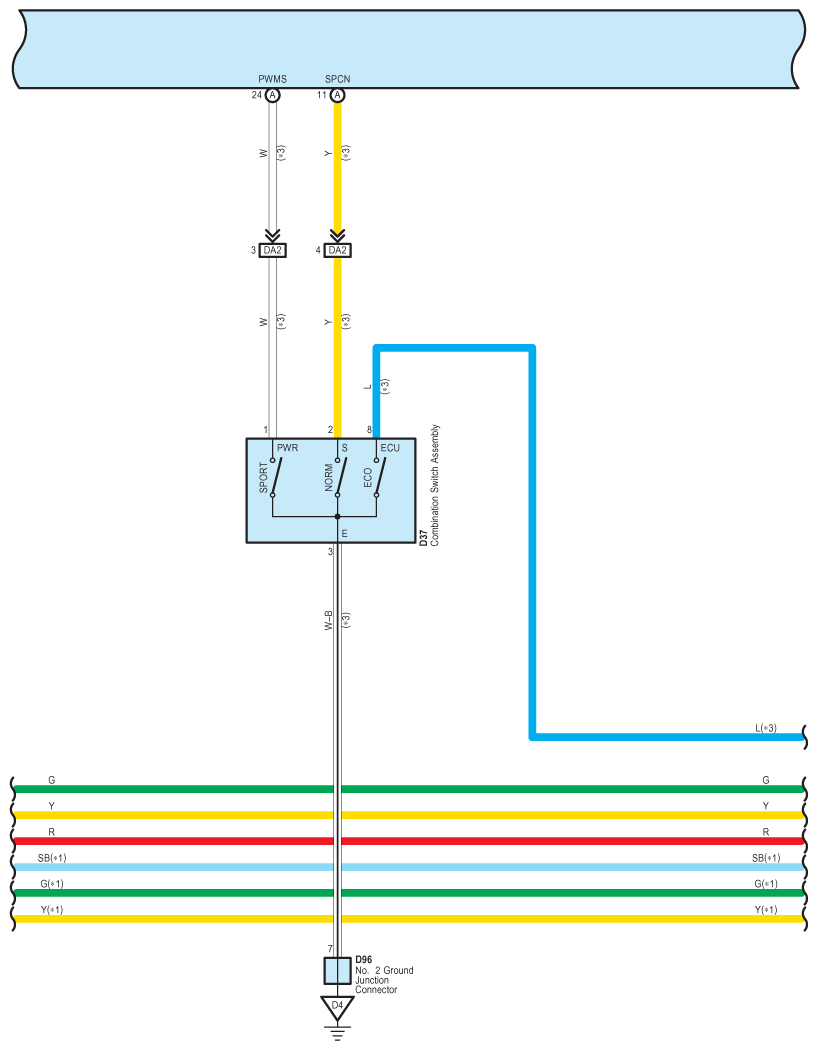

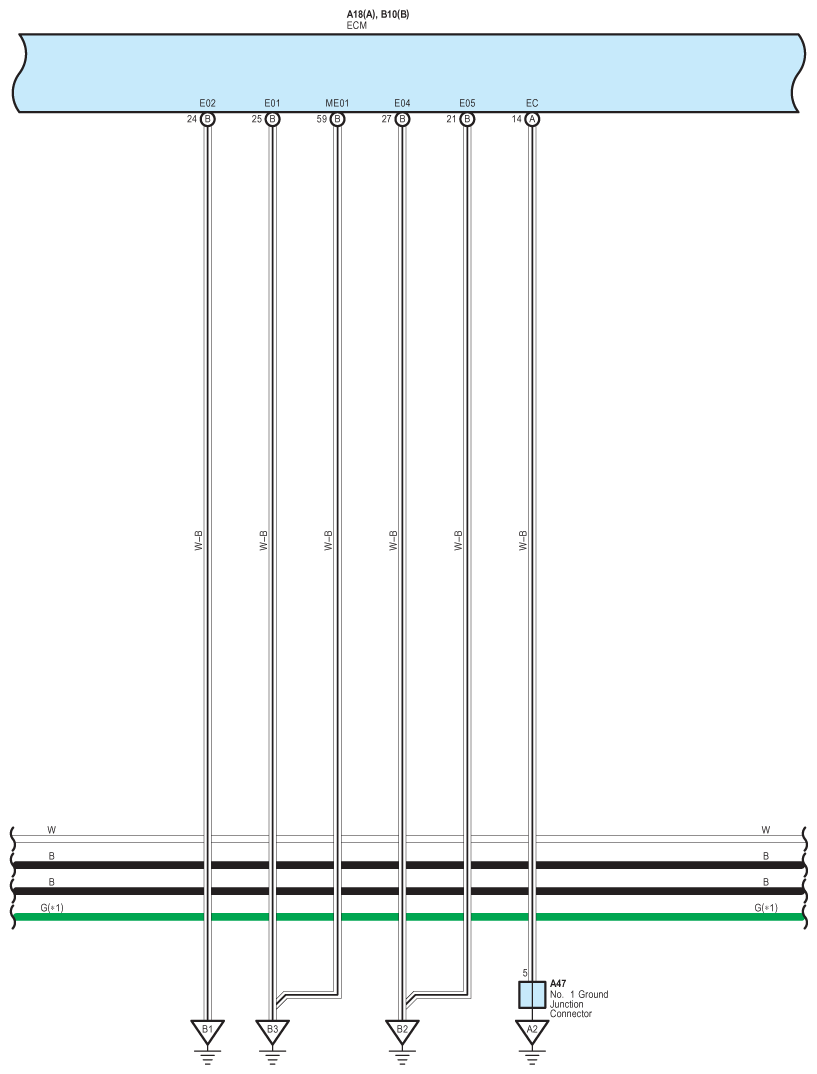

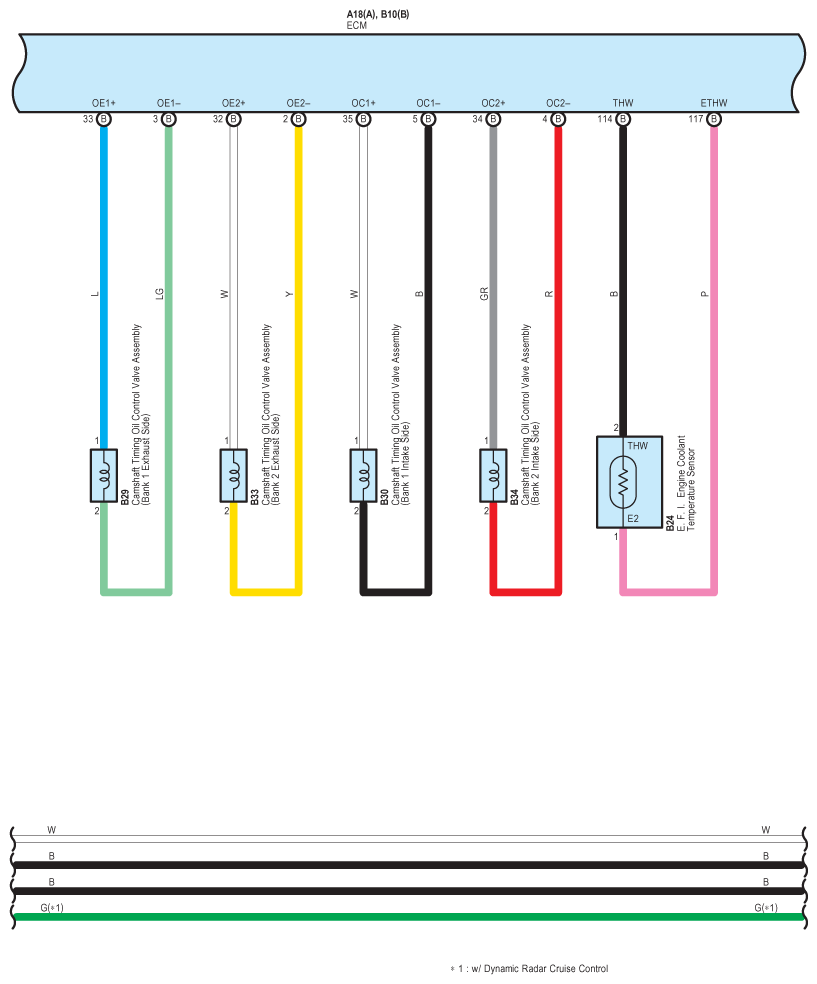

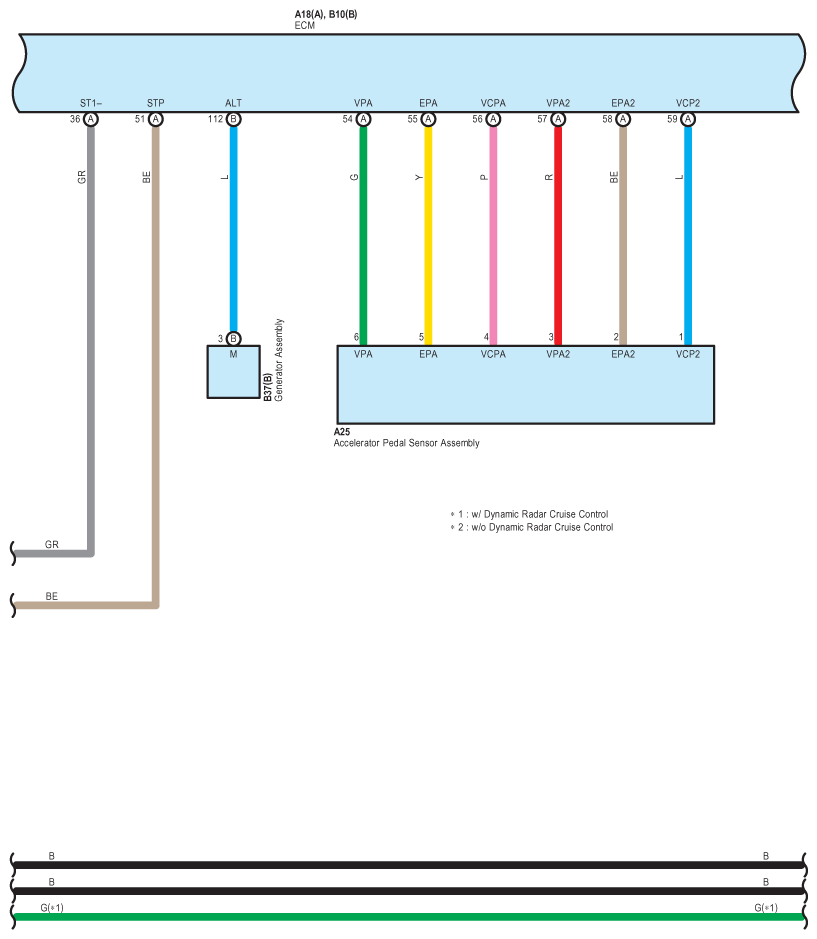

Fig 4: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (4 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

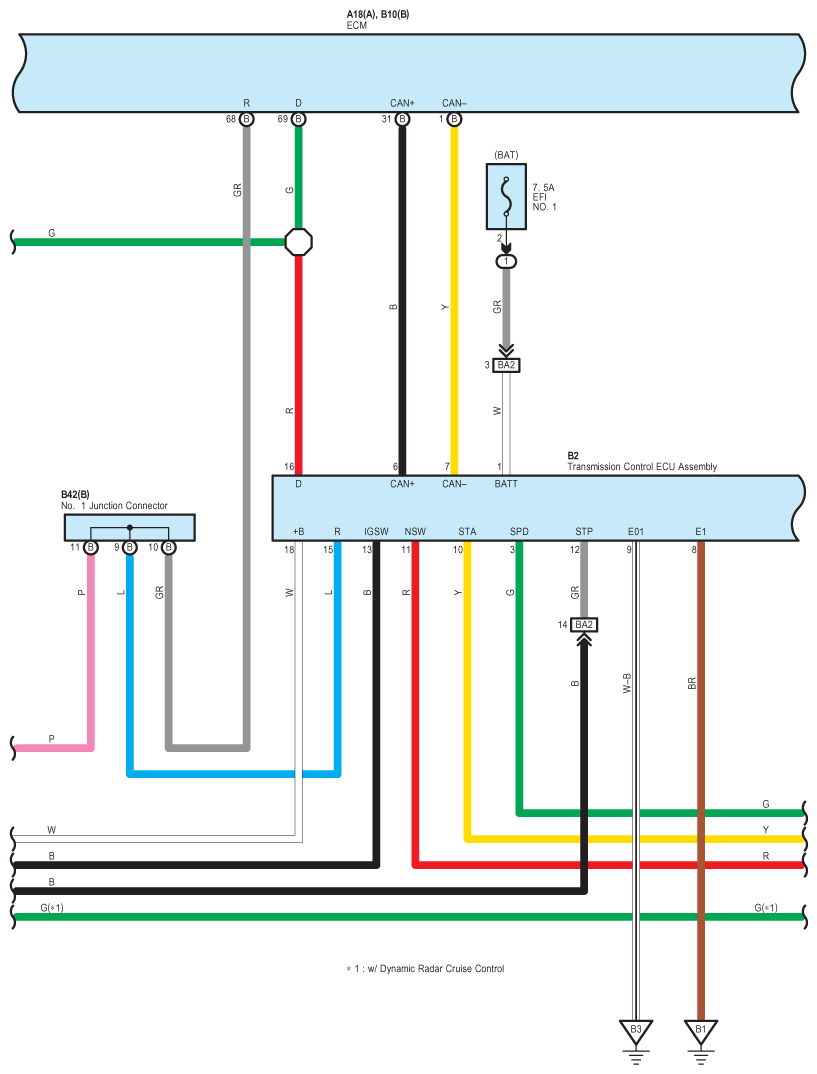

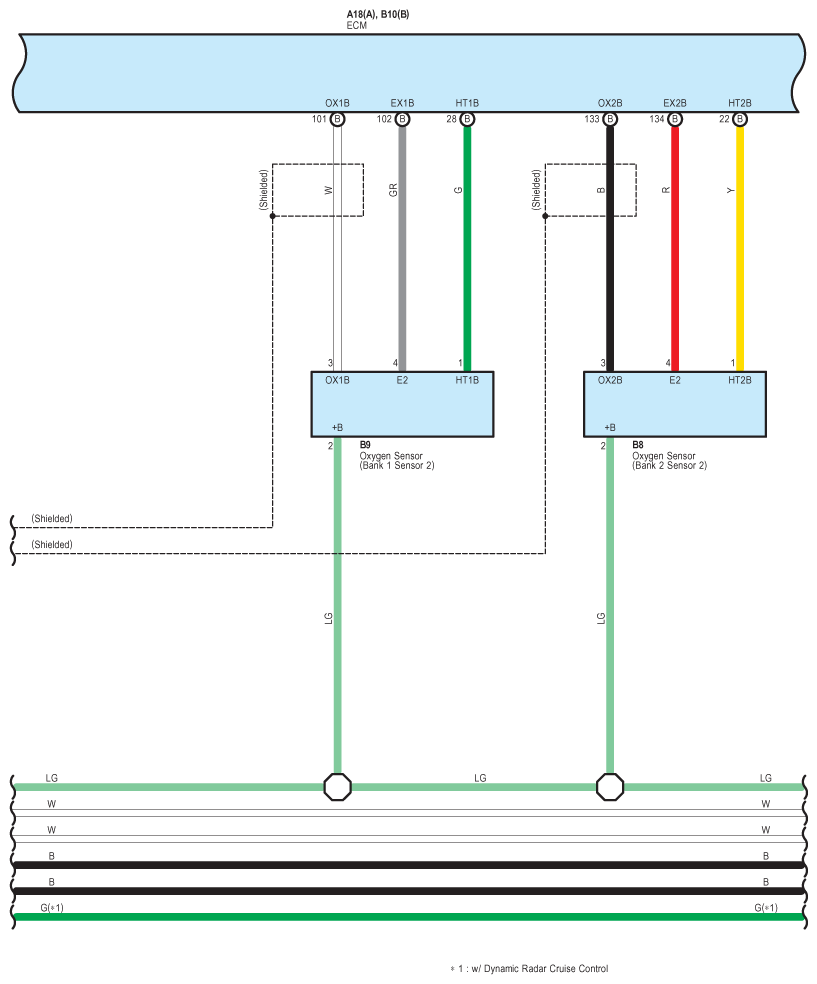

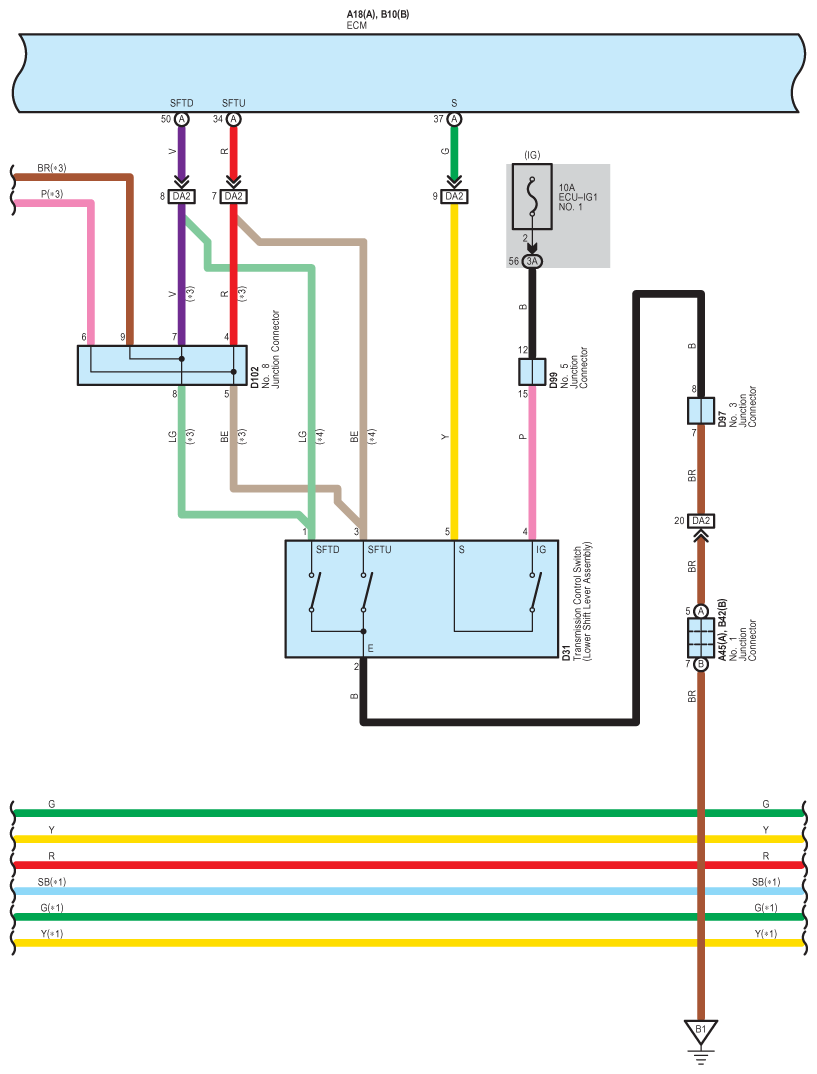

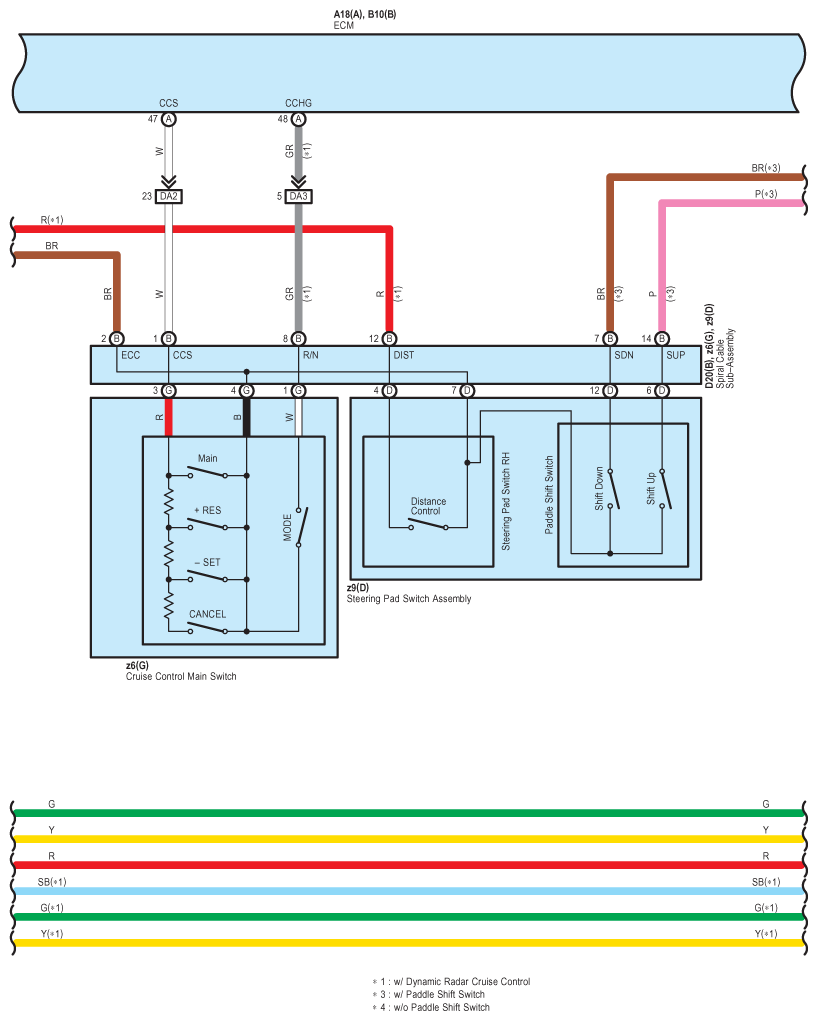

Fig 5: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (5 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

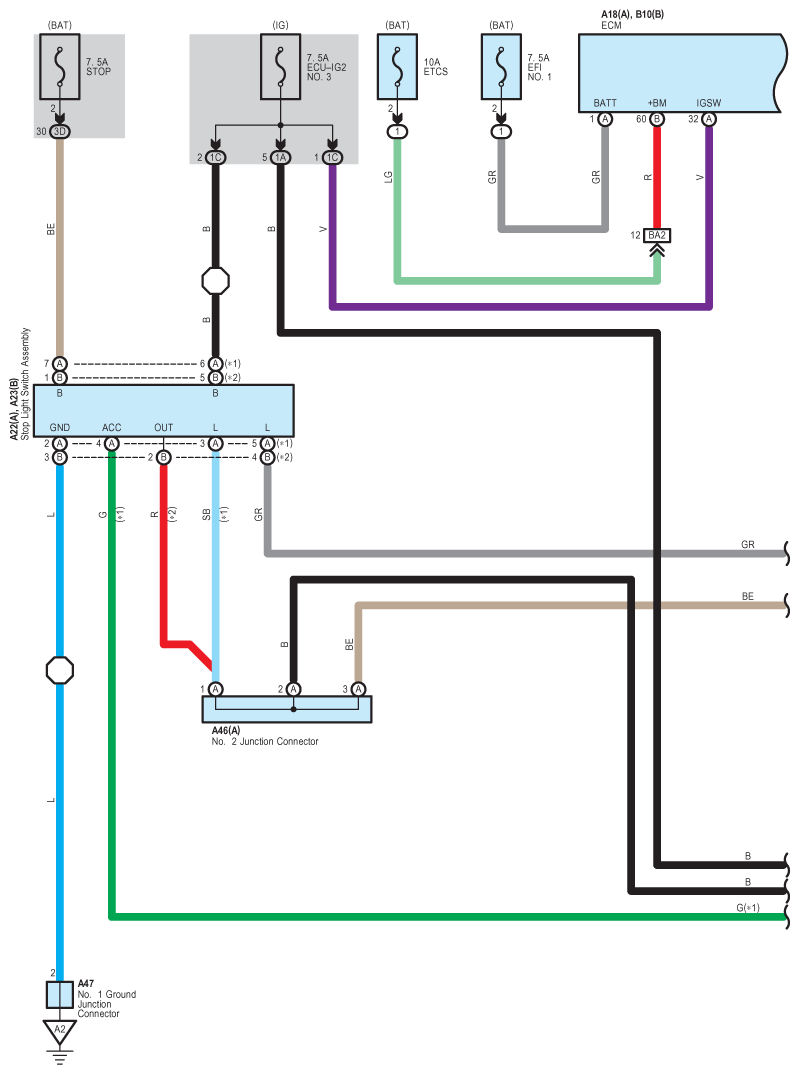

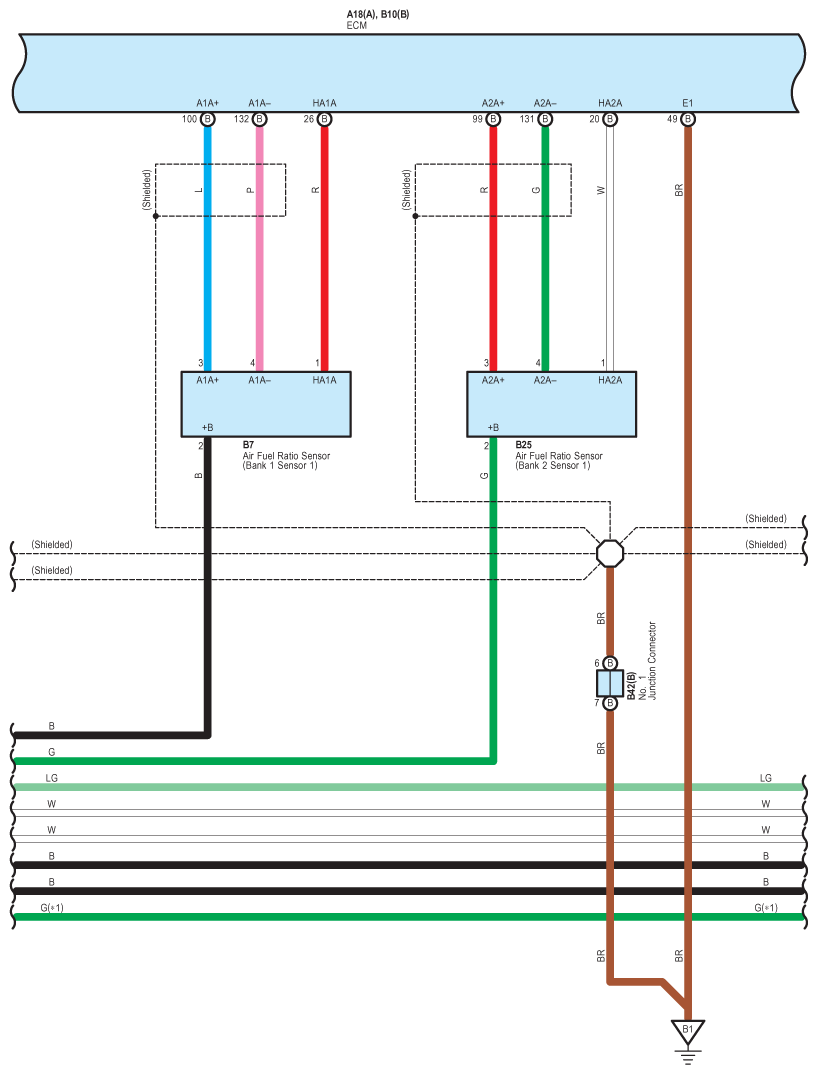

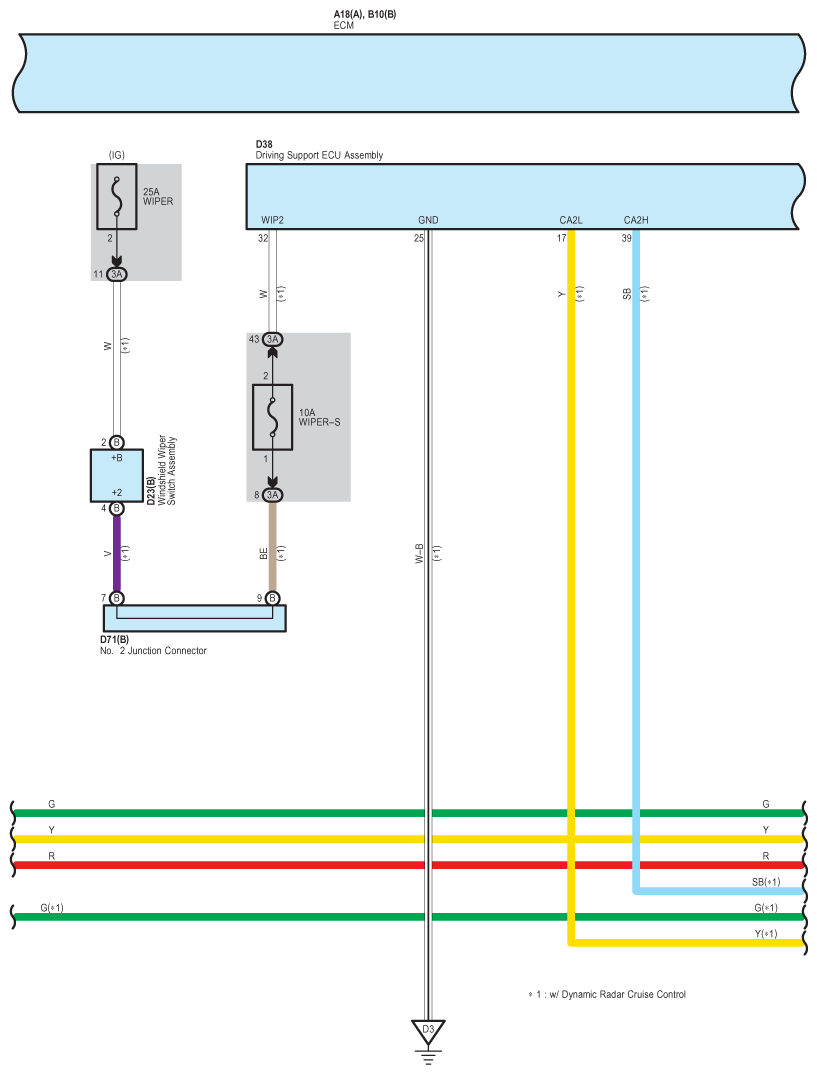

Fig 6: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (6 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

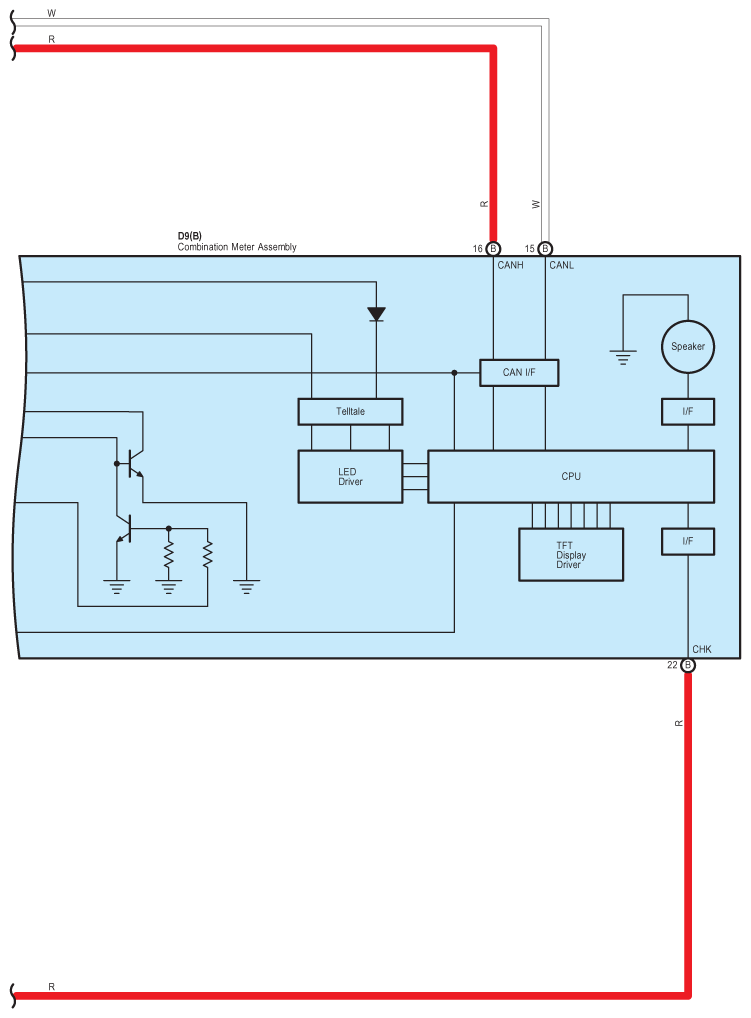

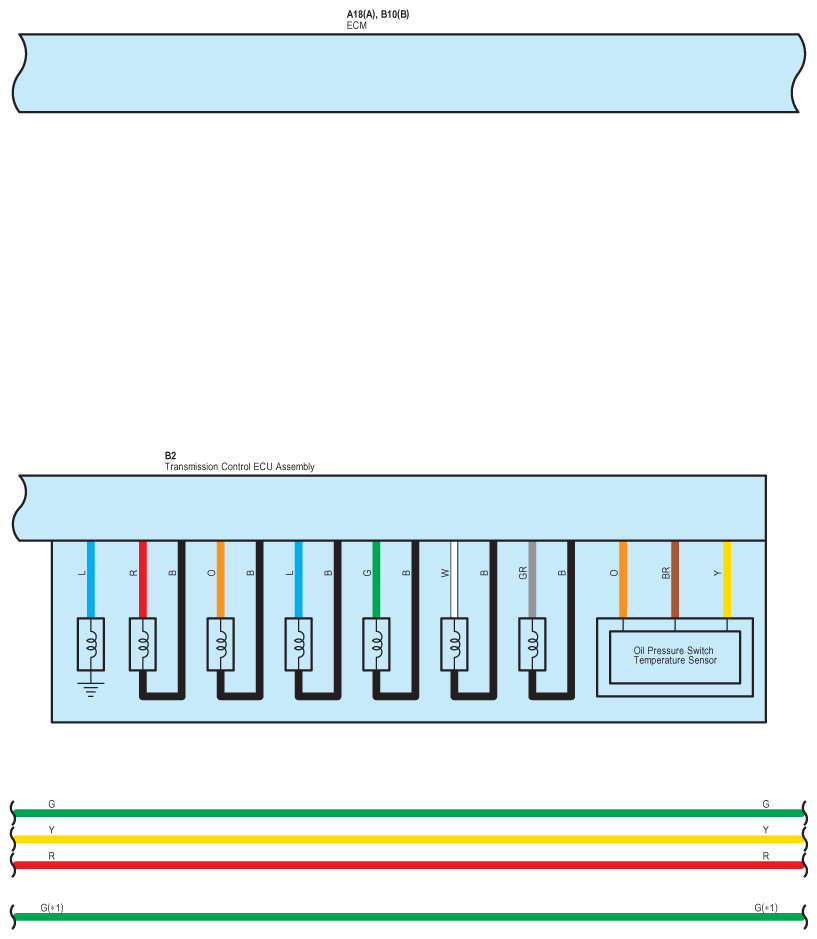

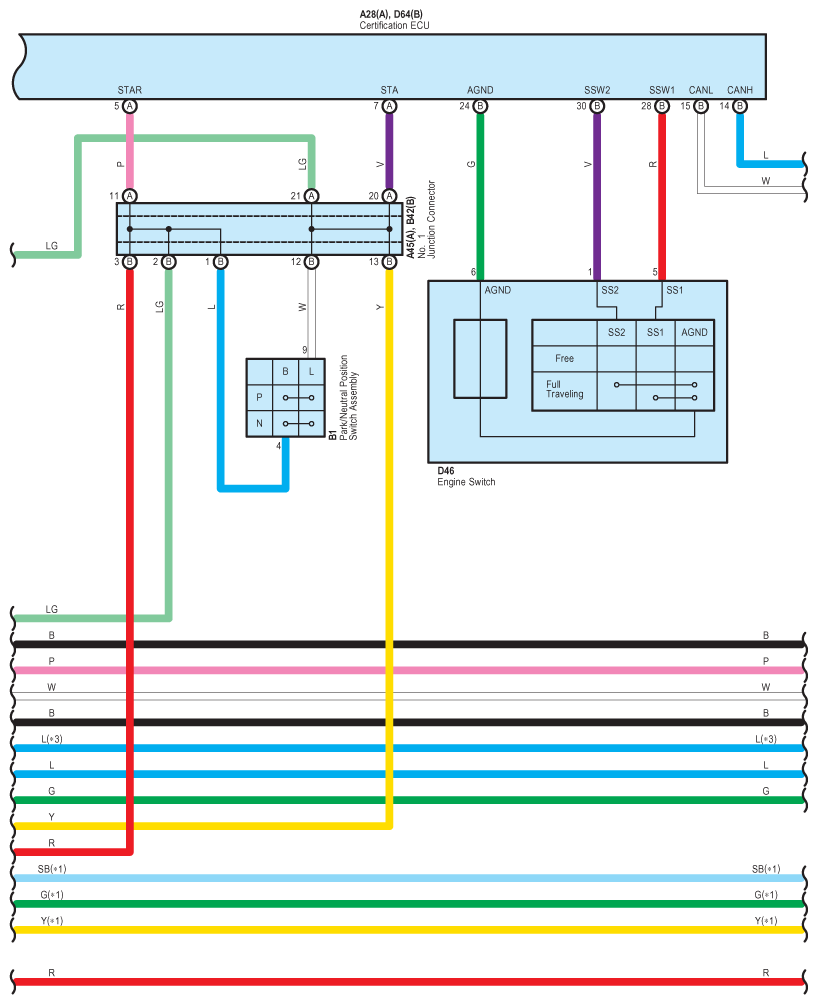

Fig 7: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (7 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

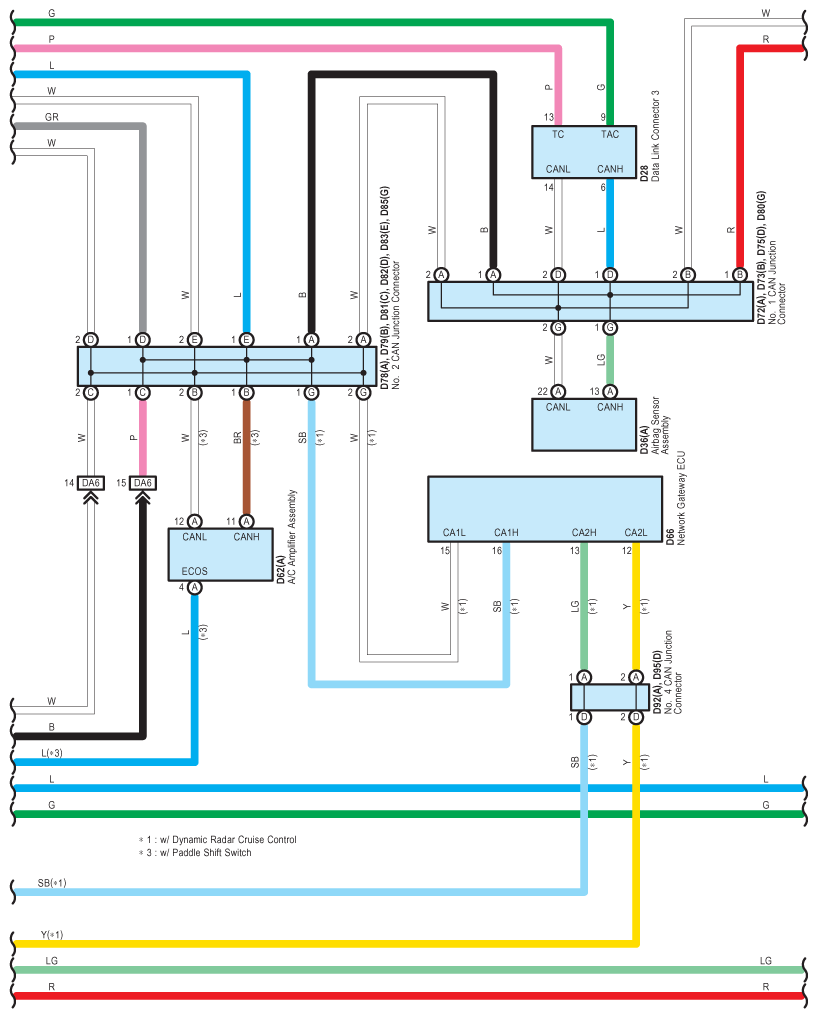

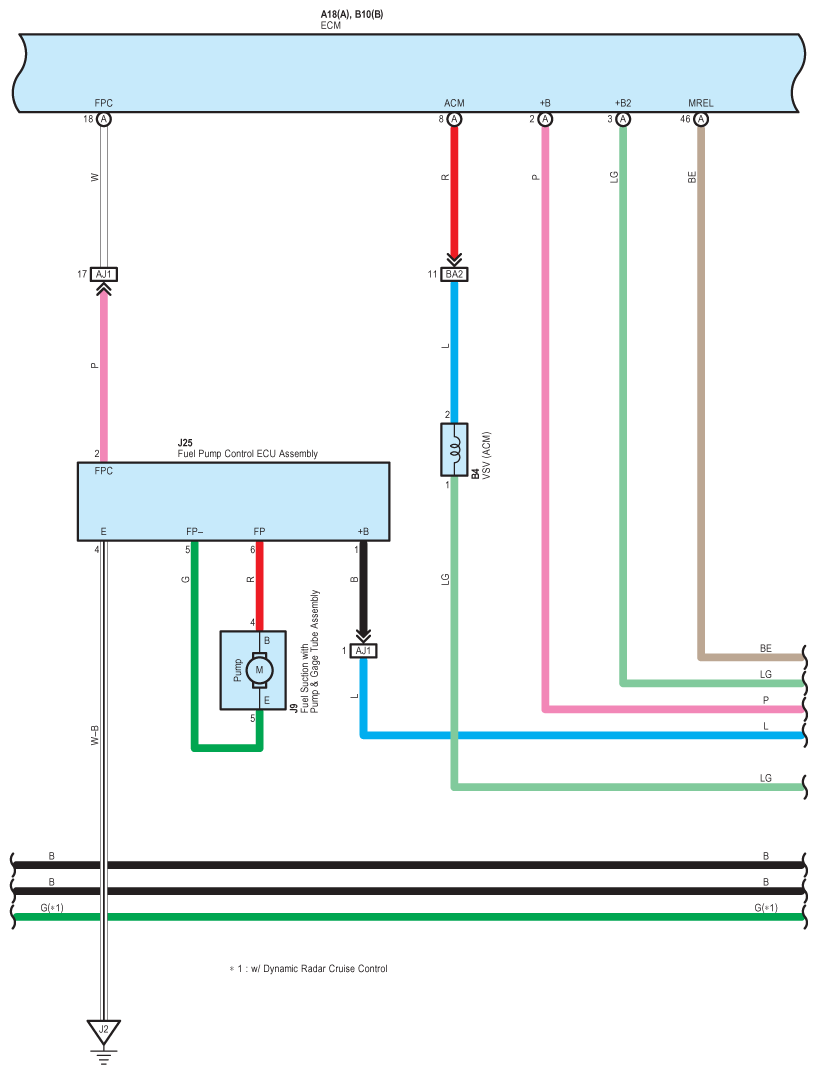

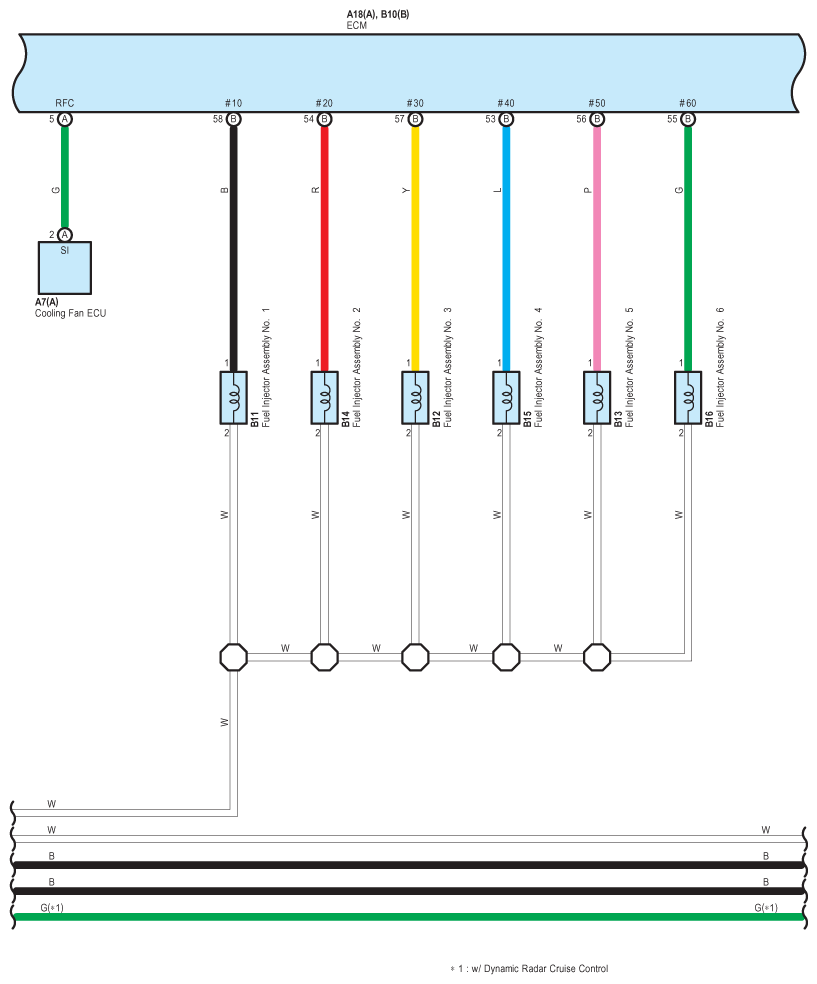

Fig 8: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (8 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (9 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (10 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (11 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (12 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (13 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (14 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (15 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (16 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (17 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (18 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (19 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (20 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (21 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (22 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (23 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 24: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (24 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 25: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (25 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (26 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 27: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (27 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 28: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (28 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 29: Cruise Control, Dynamic Radar, Electronically Controlled Transmission, A/T Indicator And Engine Control System Wiring Diagram (29 Of 29)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
