Transmission Position Sensor/Switch: Specifications

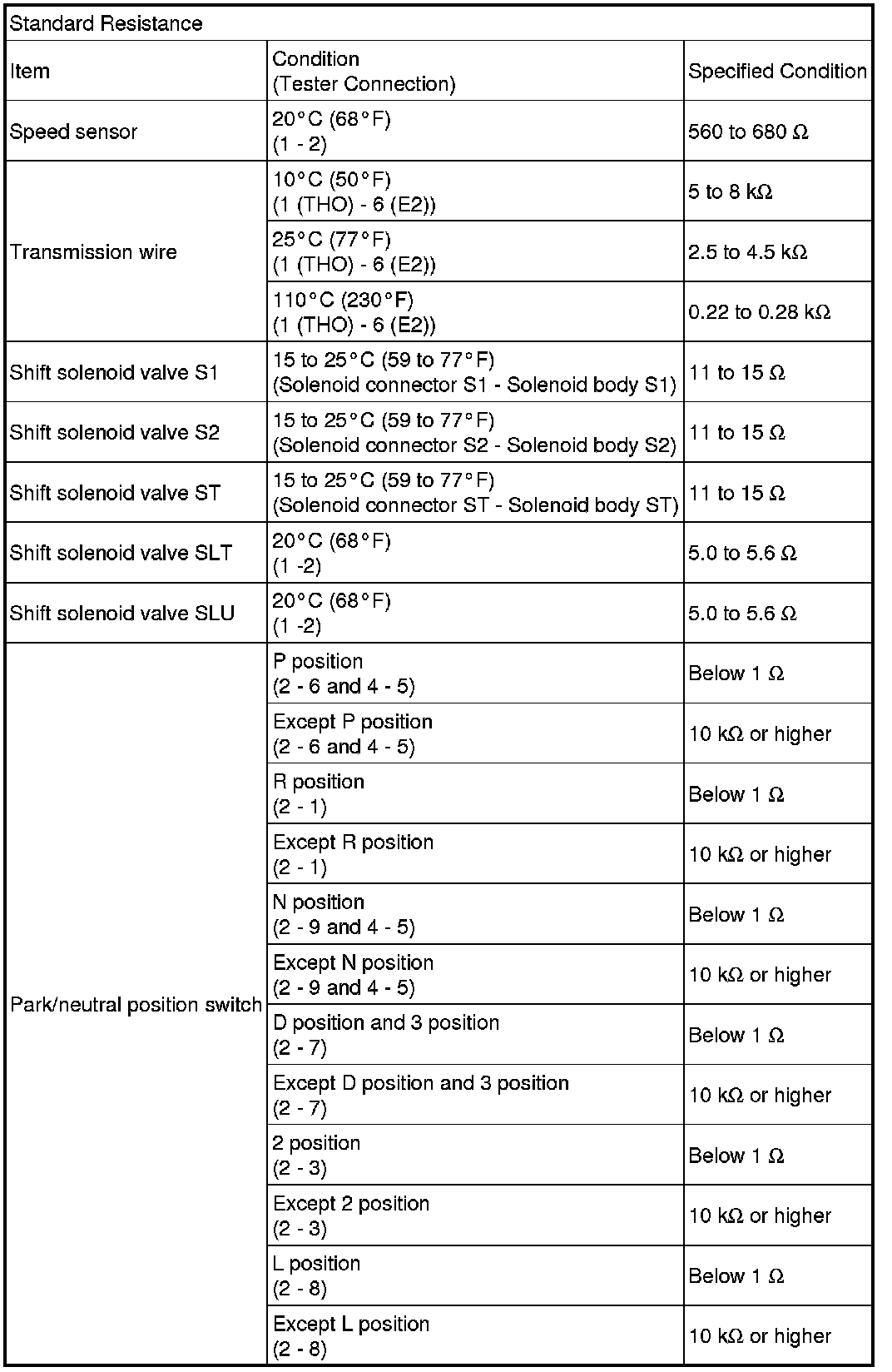

SPECIFICATIONS: U341E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA; 2013 MY Corolla [07/2012 -]
