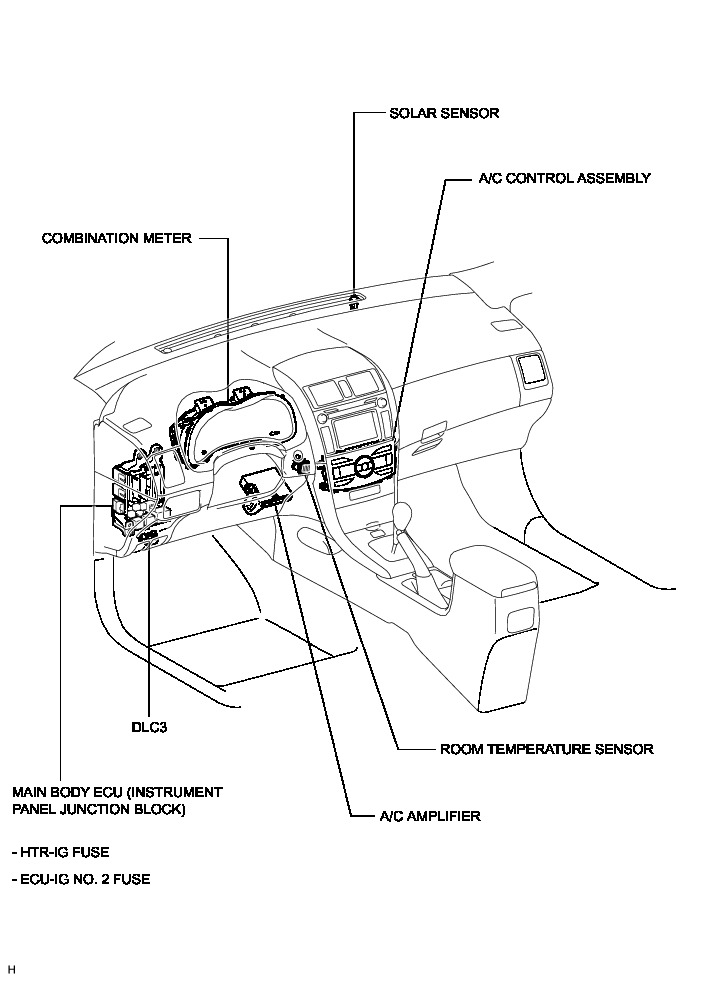

Air Conditioning System (For Automatic Air Conditioning System)





HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System): PARTS LOCATION; 2013 MY Corolla [07/2012 -]
