Stop Light (TMC Made): Notes

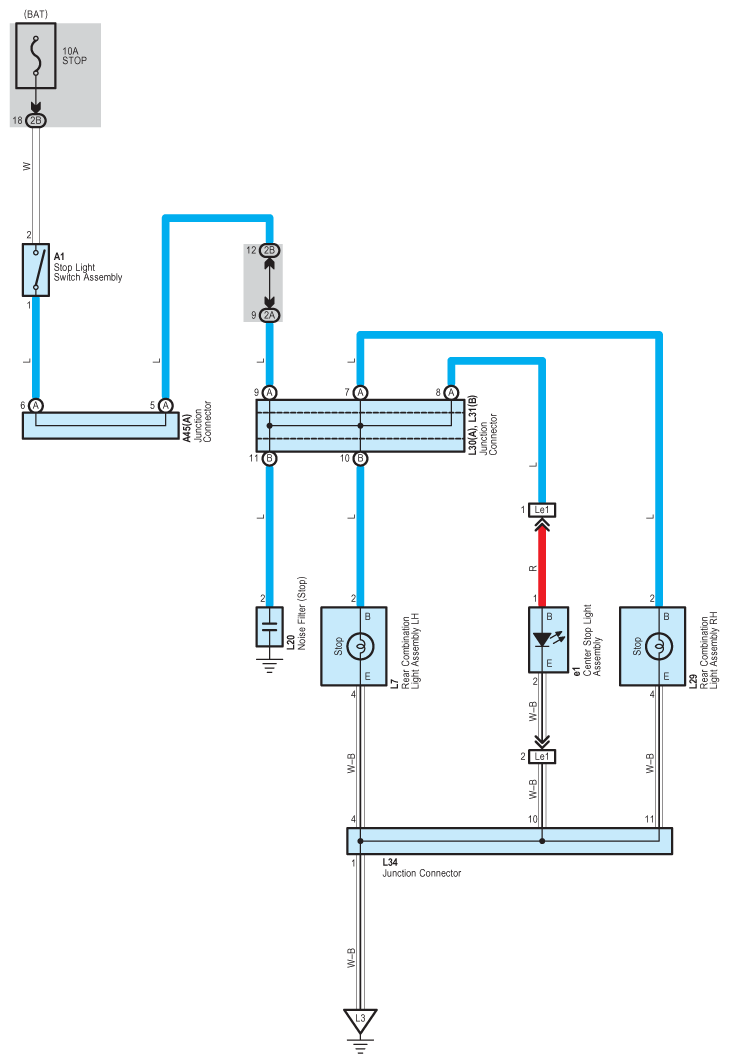

Fig 1: Stop Light System Wiring Diagram (TMC Made)
G09106454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
