Multiplex Communication System (CAN): Notes

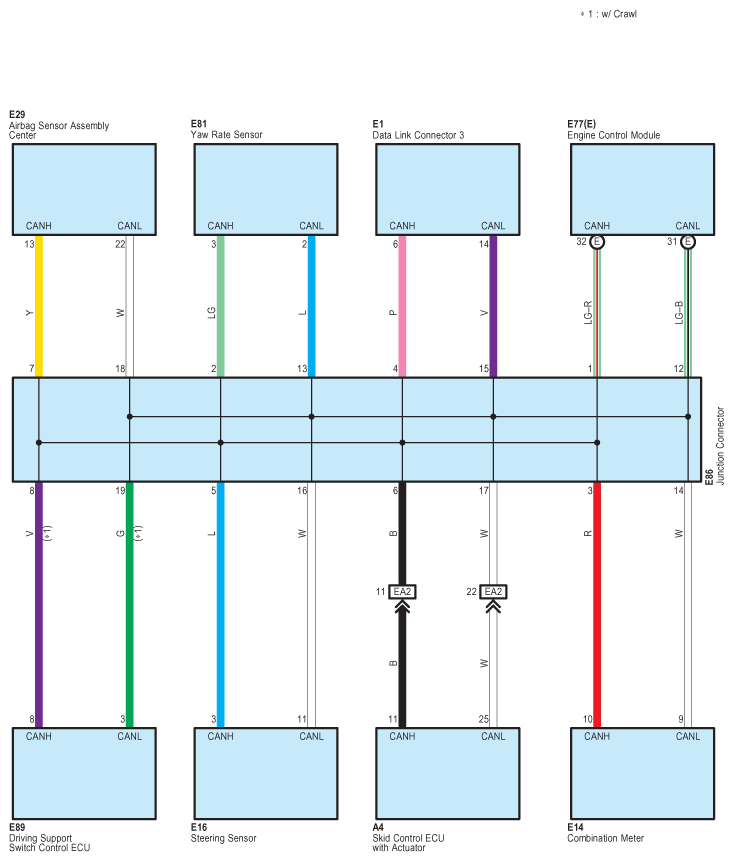

Fig 1: Multiplex Communication (CAN) Wiring Diagram
G09096999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
