Crankshaft Position Sensor: Inspection: Inspection

  1. INSPECT CRANKSHAFT POSITION SENSOR
    1. Measure the resistance according to the value(s) in the table below.

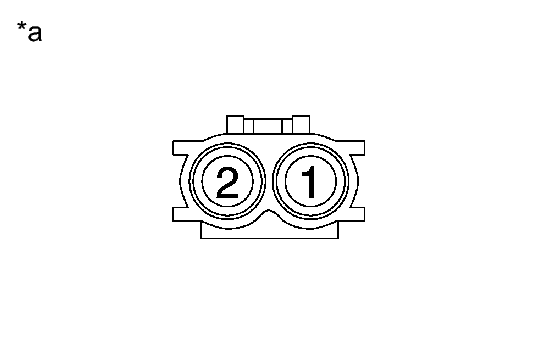

      Fig 1: Identifying Crankshaft Position Sensor Component Without Harness Connected
      GTY177083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Component without harness connected:
      (Crankshaft Position Sensor)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 Cold 1630 to 2740 Ω
      Hot 2065 to 3225 Ω
      NOTE:

      In the table above, the terms "Cold" and "Hot" refer to the temperature of the sensor. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).

      If the resistance is not as specified, replace the sensor.
