Fuel Injector: Components: Illustration

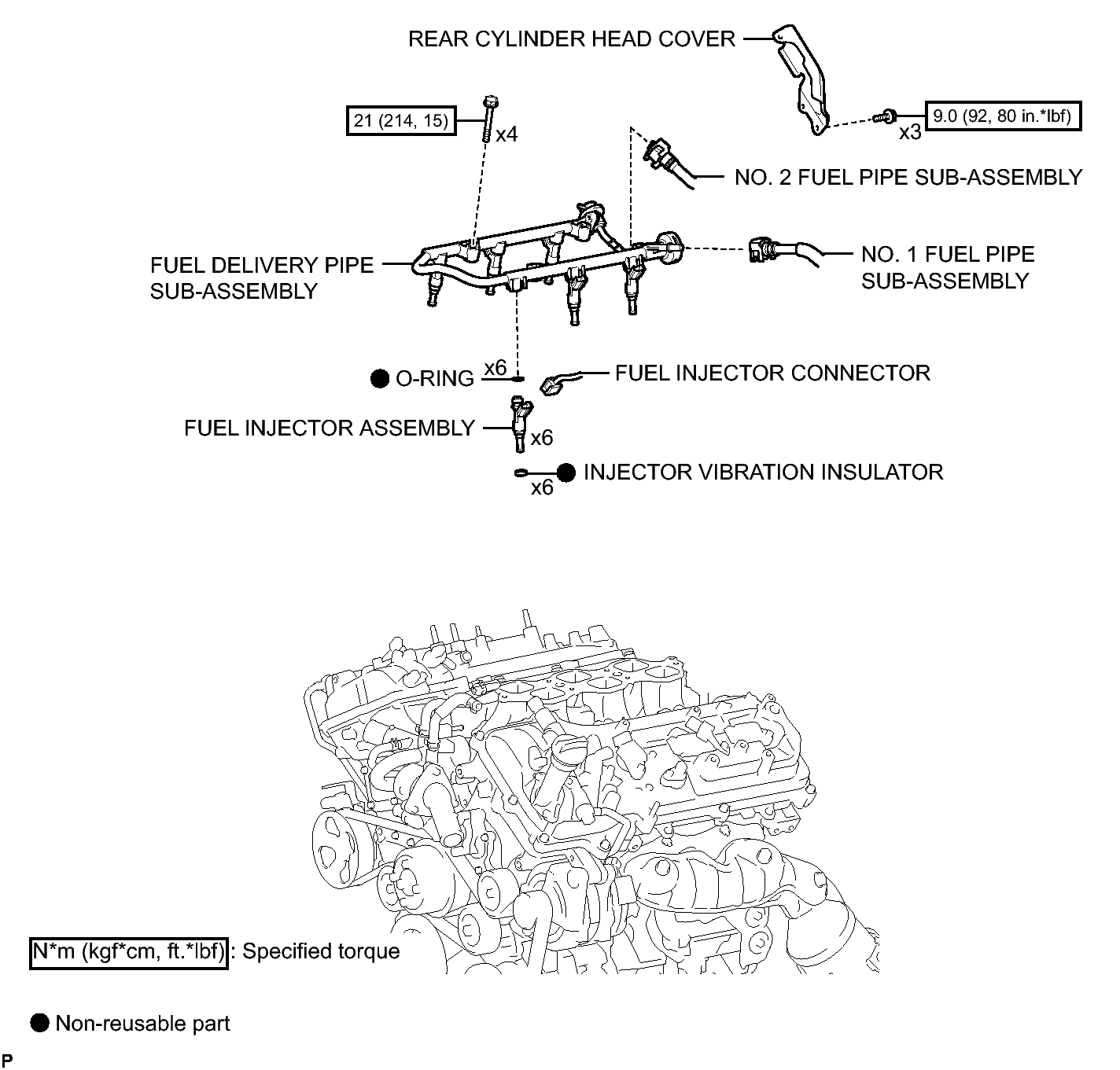

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications
GTY376398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
