Integration Relay: Inspection: Inspection

  1. INSPECT ENGINE ROOM JUNCTION BLOCK ASSEMBLY

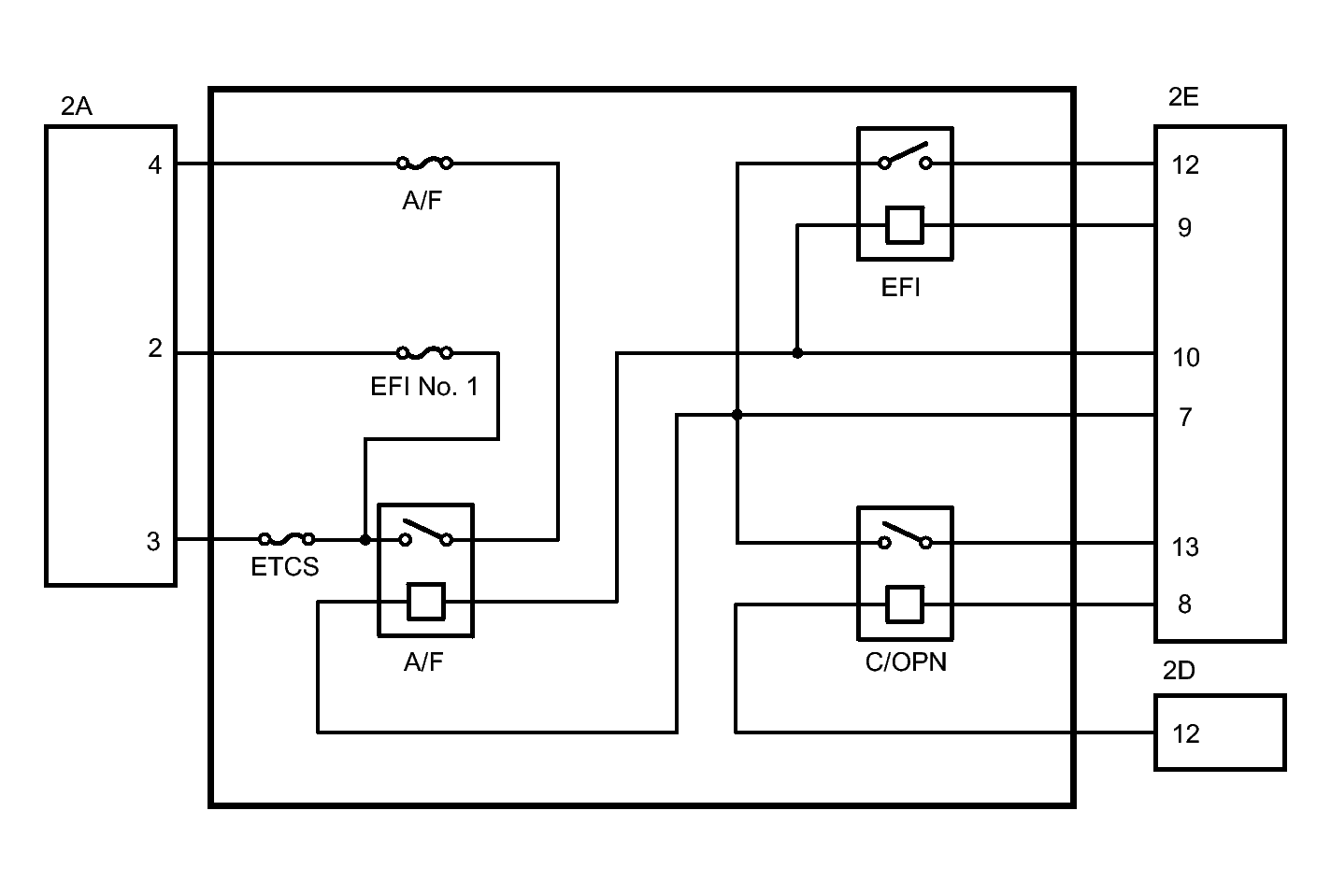

    Fig 1: Identifying EFI No. 1 Fuse
    GTY302596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Inspect the EFI No. 1 fuse.
      1. Remove the EFI No. 1 fuse.
      2. Using an ohmmeter, measure the resistance of the fuse.

        Standard Resistance

        Tester Connection Condition Specified Condition
        EFI No. 1 fuse Always Below 1 Ω
    2. Inspect the A/F fuse.
      1. Remove the A/F fuse.
      2. Using an ohmmeter, measure the resistance of the fuse.

        Standard Resistance

        Tester Connection Condition Specified Condition
        A/F fuse Always Below 1 Ω
    3. Inspect the ETCS fuse.
      1. Remove the ETCS fuse.
      2. Using an ohmmeter, measure the resistance of the fuse.

        Standard Resistance

        Tester Connection Condition Specified Condition
        ETCS fuse Always Below 1 Ω
    4. Inspect EFI relay.
      1. Measure the resistance according to the value(s) in the table below.
        Fig 2: Identifying 2E Connector Terminals
        GTY190201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard Resistance

        Tester Connection Condition Specified Condition
        2E-12 - 2E-7 No battery voltage applied 10 kΩ or higher
        2E-12 - 2E-7 Battery voltage applied to terminals 2E-10 and 2E-9 Below 1 Ω
        NOTE:

        While using the battery for the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

    5. Inspect the C/OPN relay.
      1. Measure the resistance according to the value(s) in the table below.
        Fig 3: Identifying Engine Room Junction Block Assembly Connector Terminals (C/OPN Relay)
        GTY179946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard Resistance

        Tester Connection Condition Specified Condition
        2E-13 - 2E-7 No battery voltage applied 10 kΩ or higher
        2E-13 - 2E-7 Battery voltage applied to terminals 2E-8 and 2D-12 Below 1 Ω
        NOTE:

        While using the battery for the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

    6. Inspect the A/F relay.
      1. Measure the resistance according to the value(s) in the table below.
        Fig 4: Identifying Engine Room Junction Block Assembly
        GTY301792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard Resistance

        Tester Connection Condition Specified Condition
        2A-4 - 2A-3 No battery voltage applied 10 kΩ or higher
        2A-4 - 2A-3 Battery voltage applied to terminals 2E-10 and 2E-7 Below 1 Ω
        NOTE:

        While using the battery for the inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
