Cooling Fan (2AZ-FE): Notes

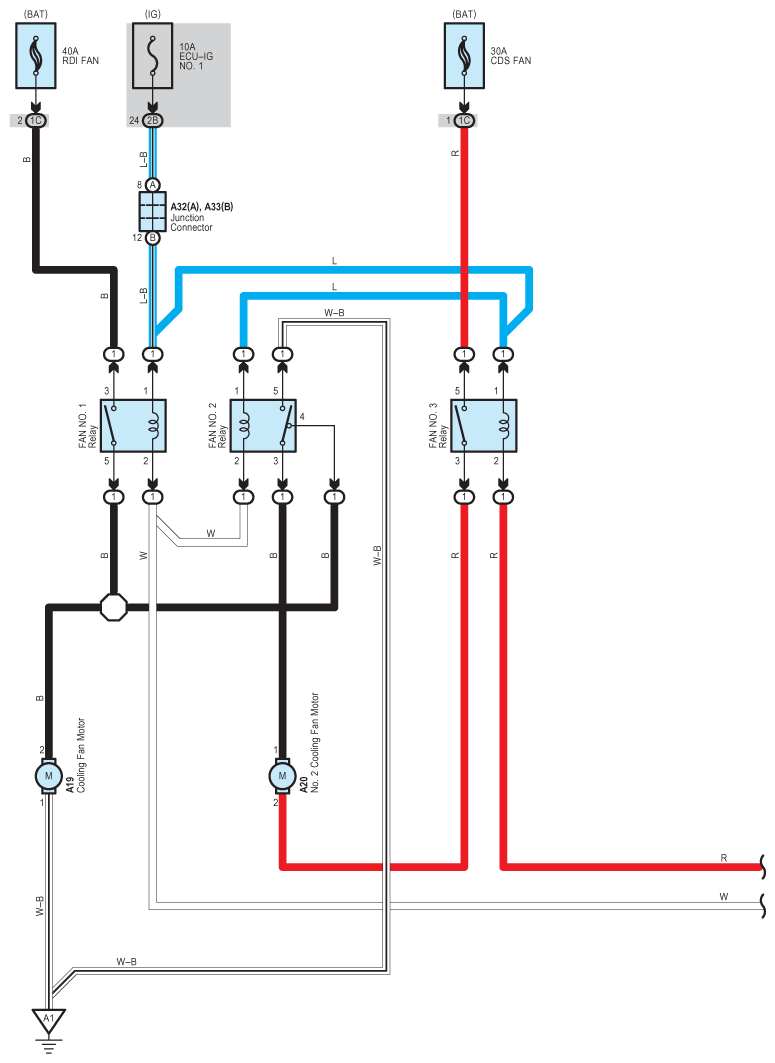

Fig 1: Cooling Fan Wiring Diagram (2AZ-FE) (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

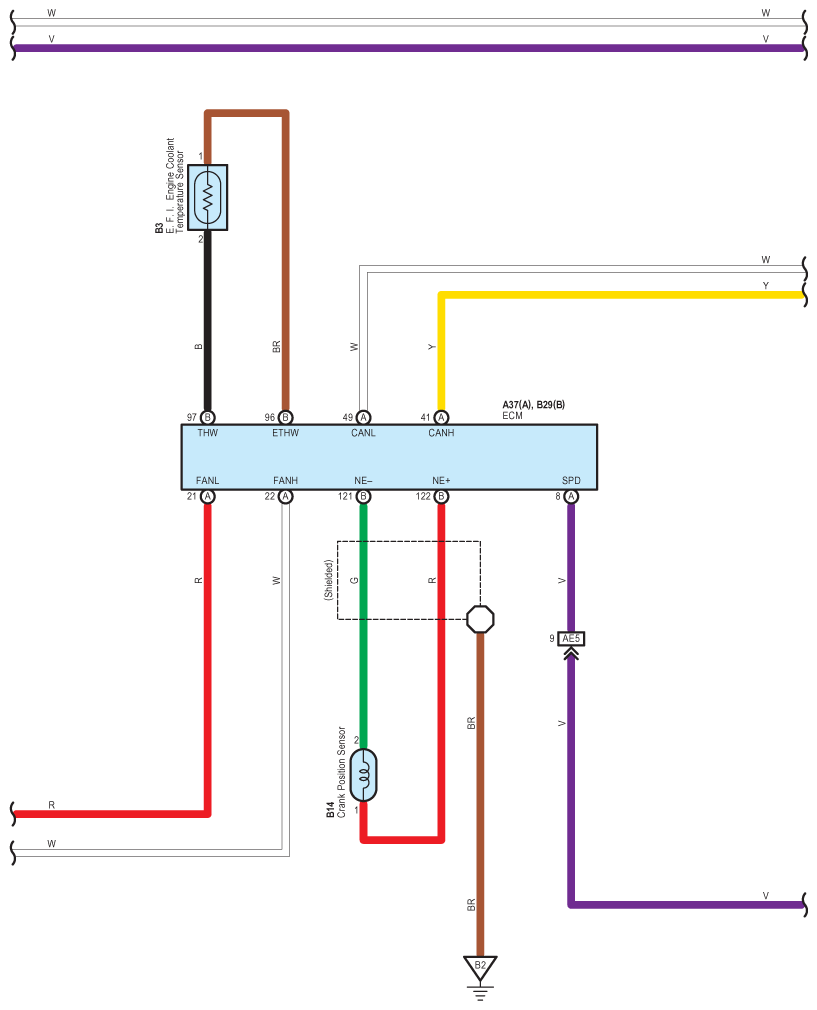

Fig 2: Cooling Fan Wiring Diagram (2AZ-FE) (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

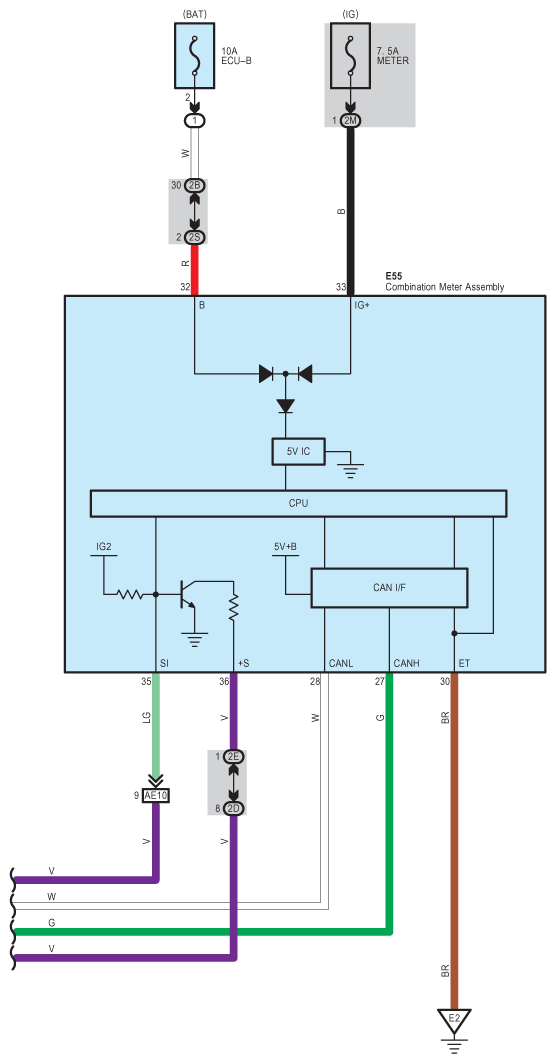

Fig 3: Cooling Fan Wiring Diagram (2AZ-FE) (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

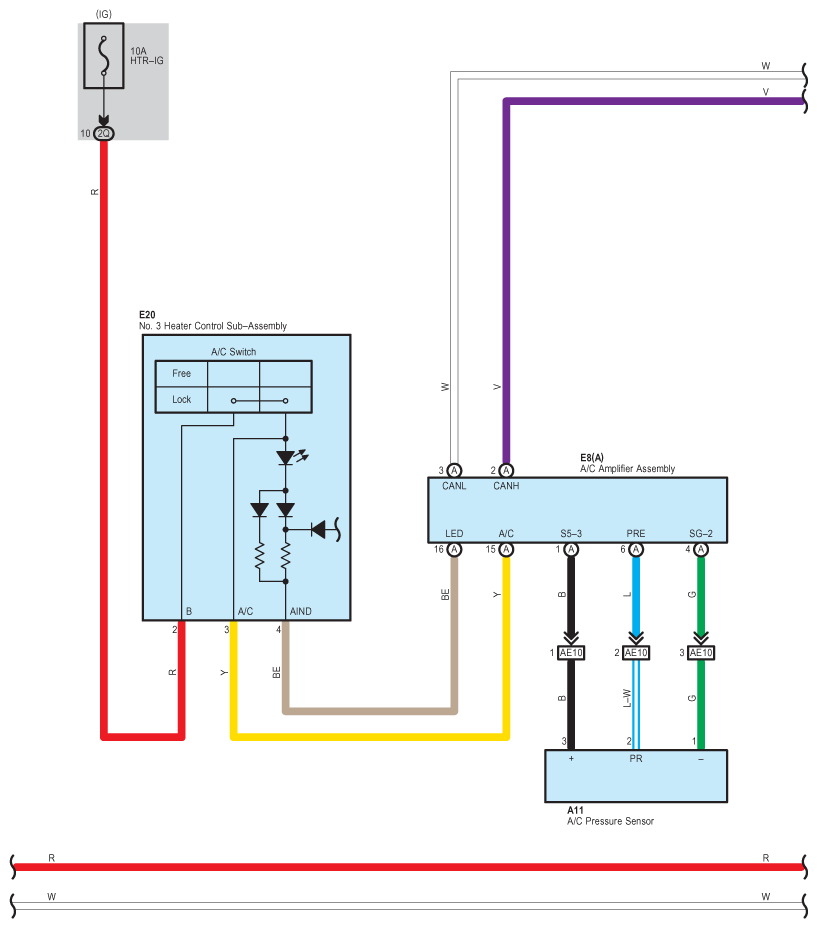

Fig 4: Cooling Fan Wiring Diagram (2AZ-FE) (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Cooling Fan Wiring Diagram (2AZ-FE) (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
