System Diagram

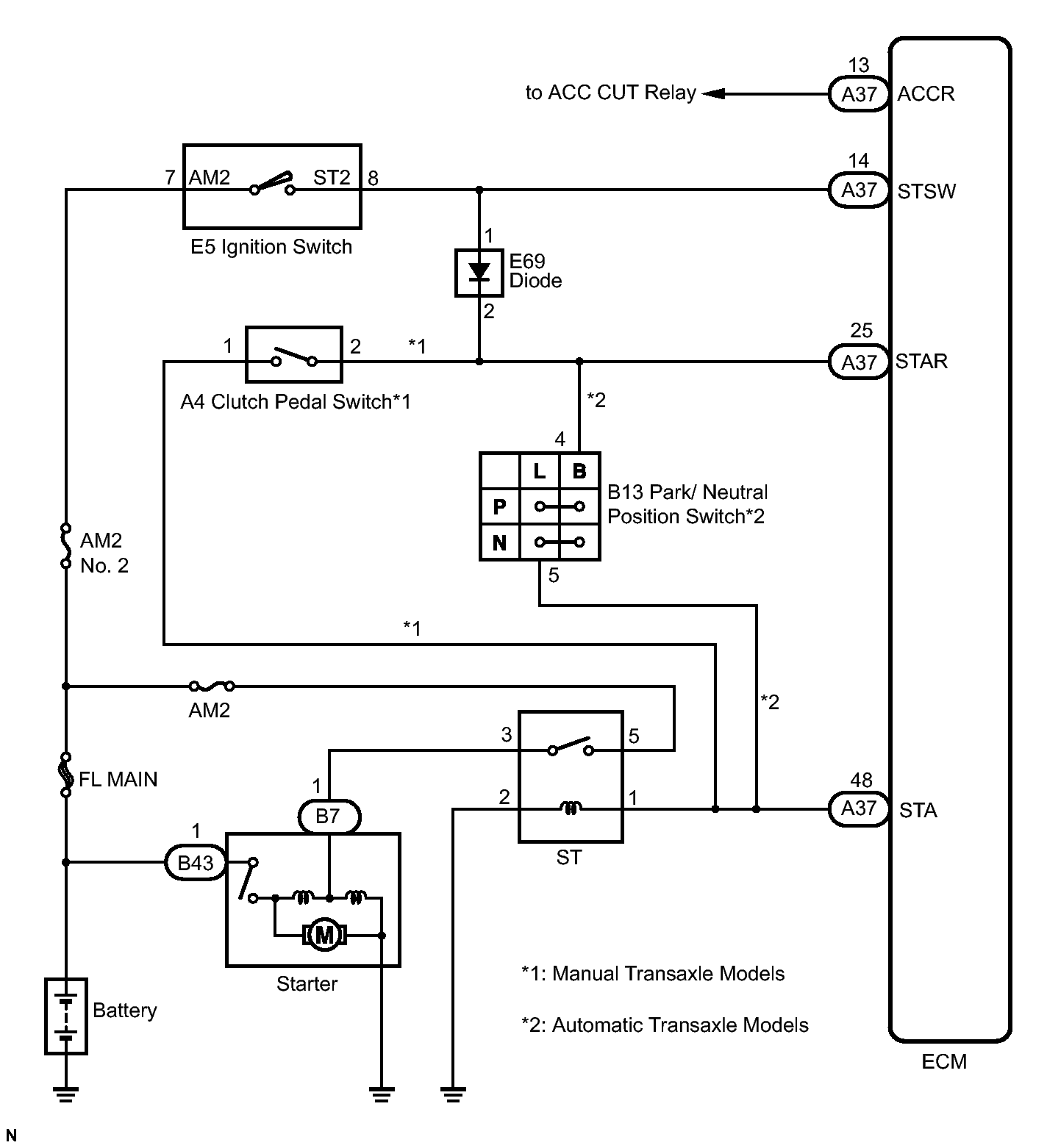

Fig 1: Starting System Circuit Diagram

GTY293087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
