Cruise Control and Engine Control
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Cruise Control and Engine Control: Notes

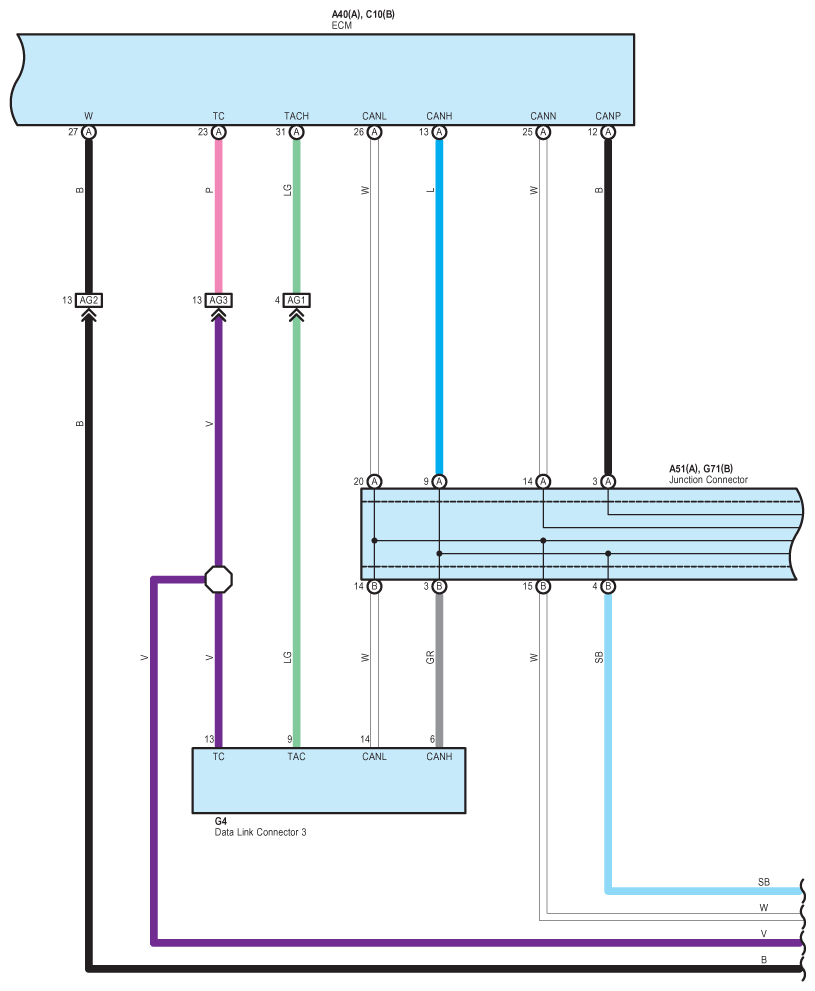

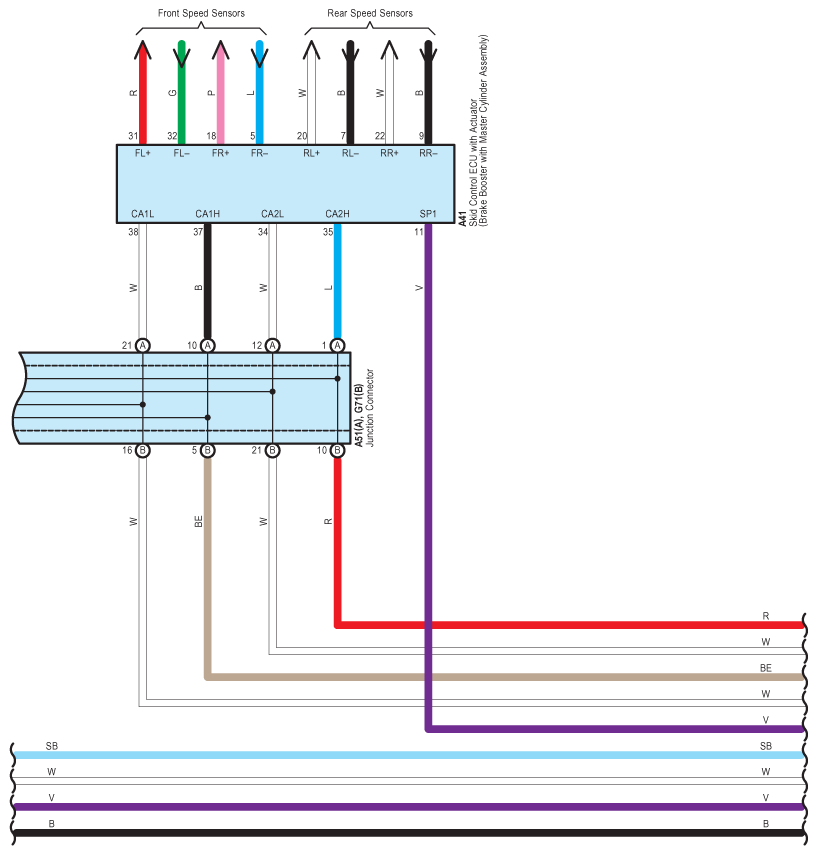

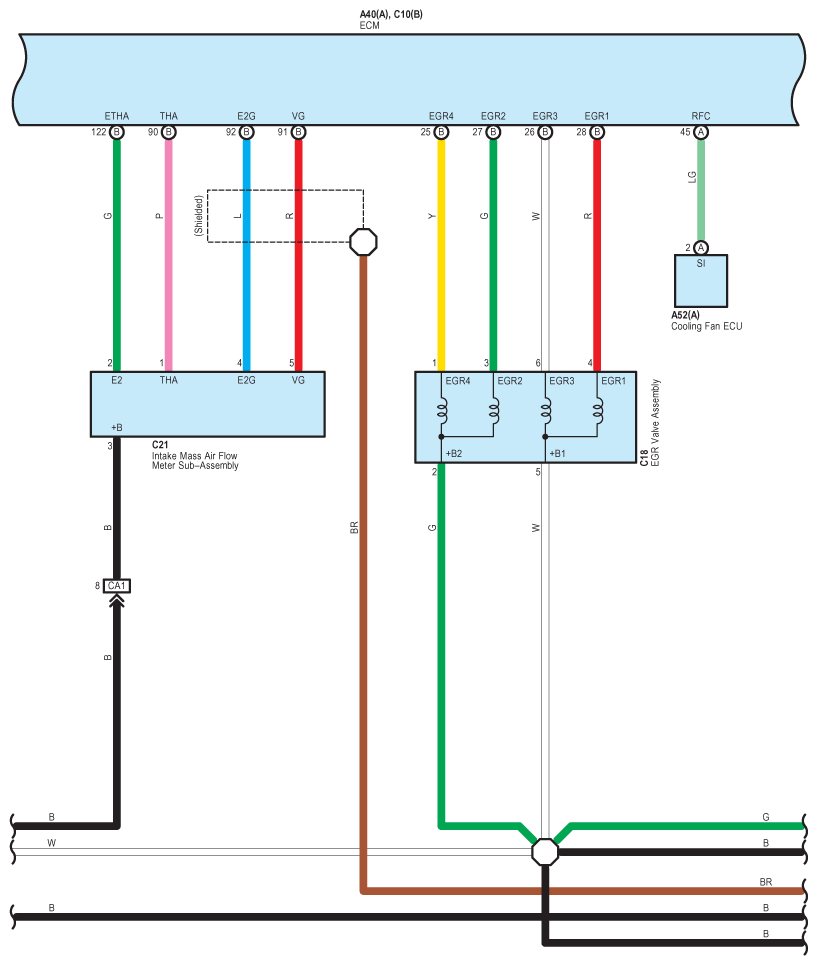

Fig 1: Cruise And Engine Control Wiring Diagram (1 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

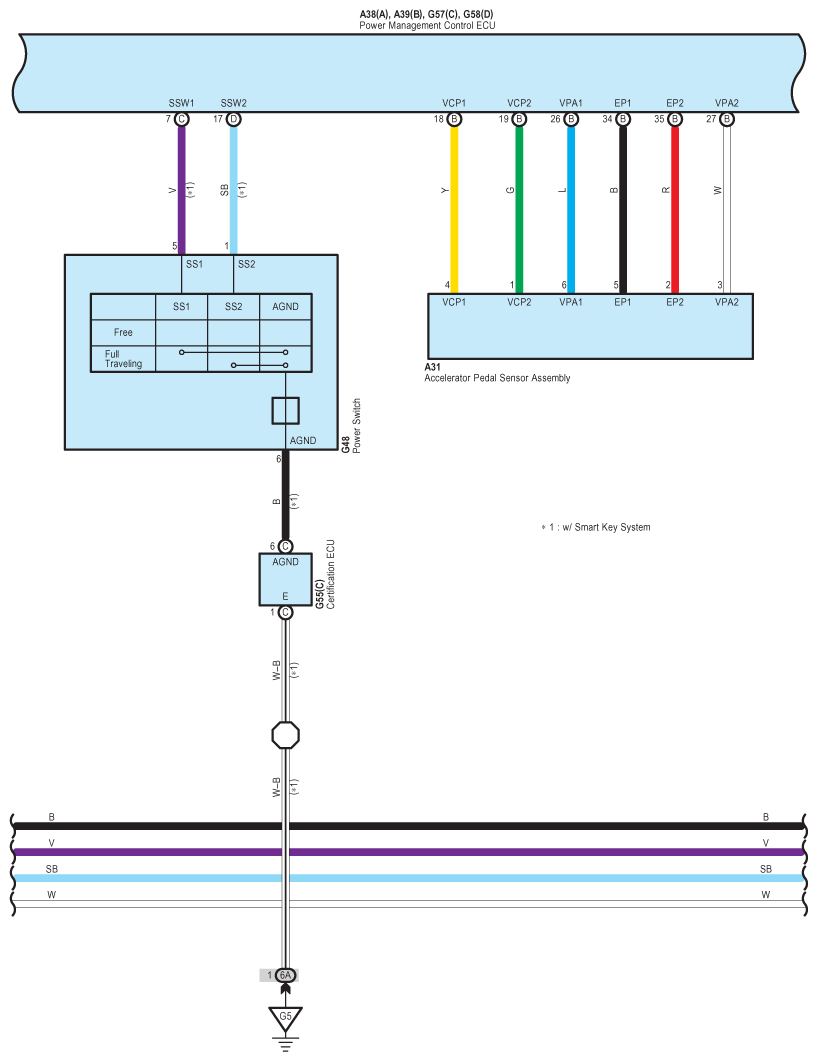

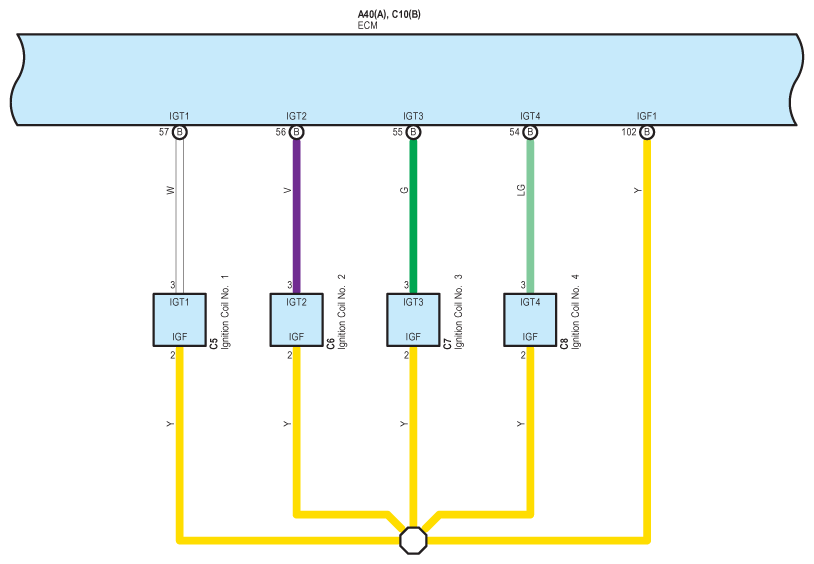

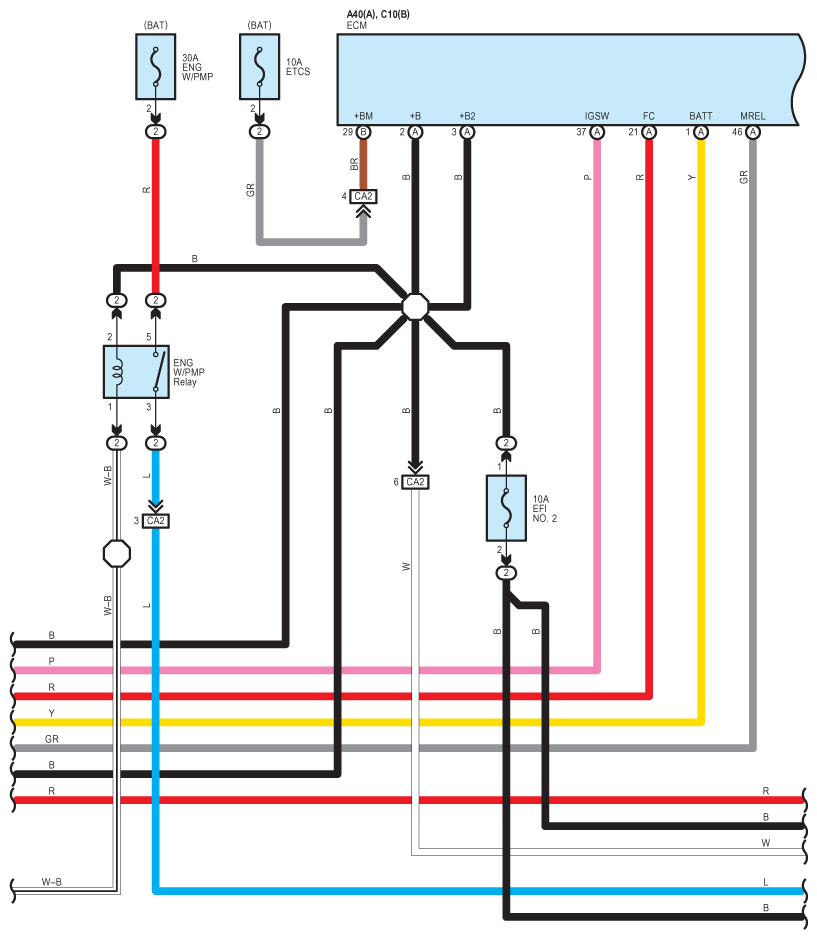

Fig 2: Cruise And Engine Control Wiring Diagram (2 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

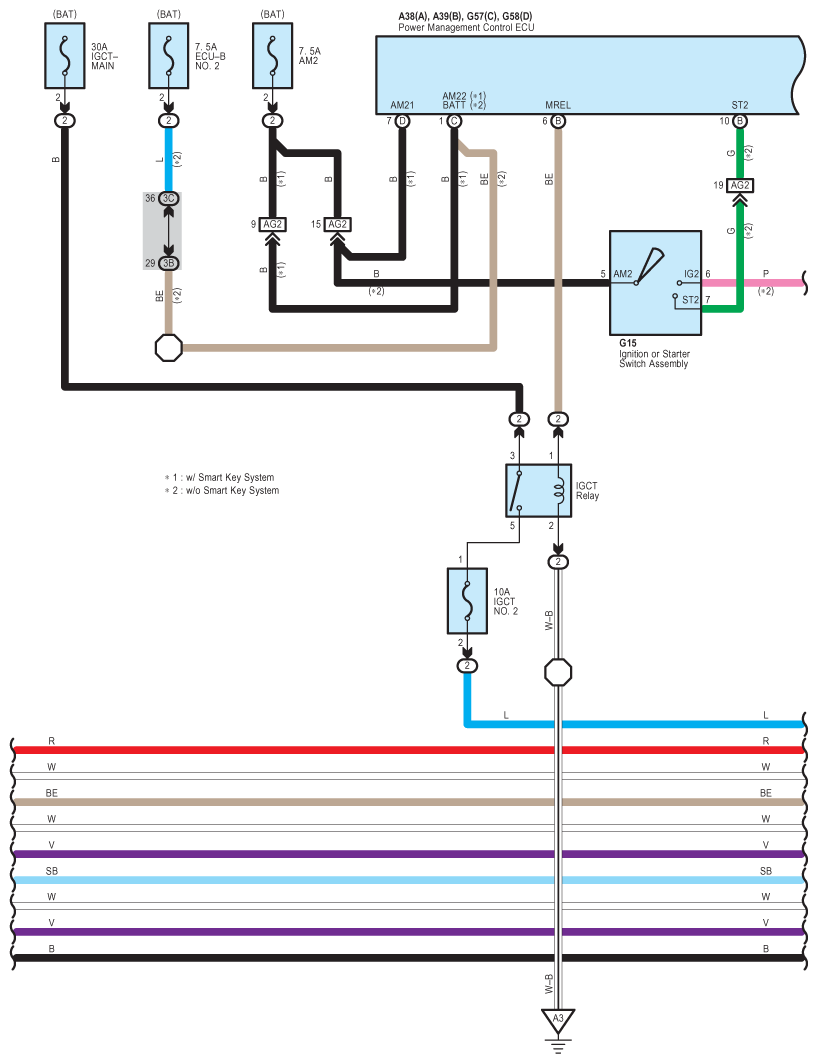

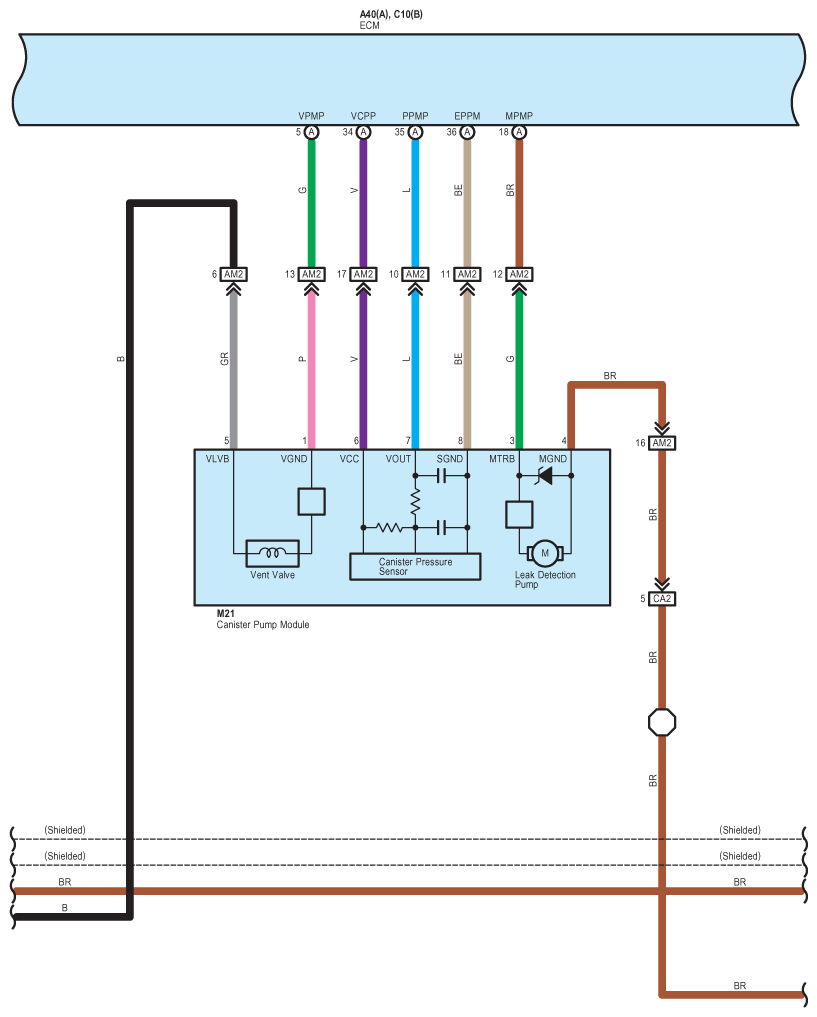

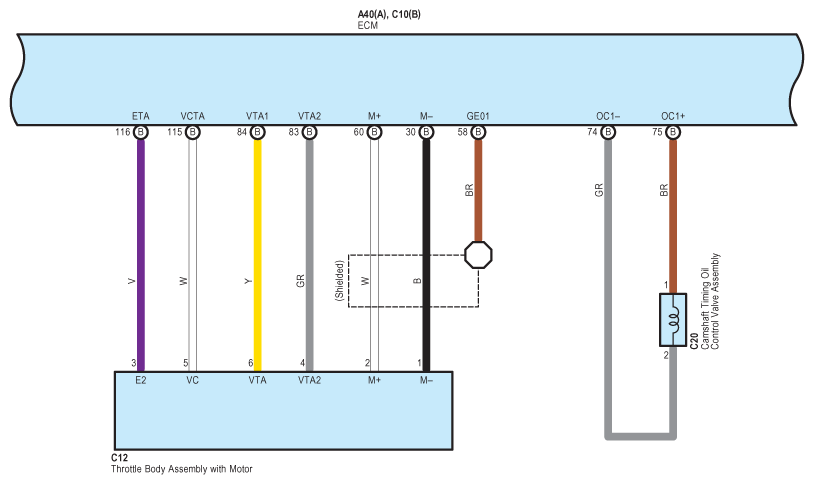

Fig 3: Cruise And Engine Control Wiring Diagram (3 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

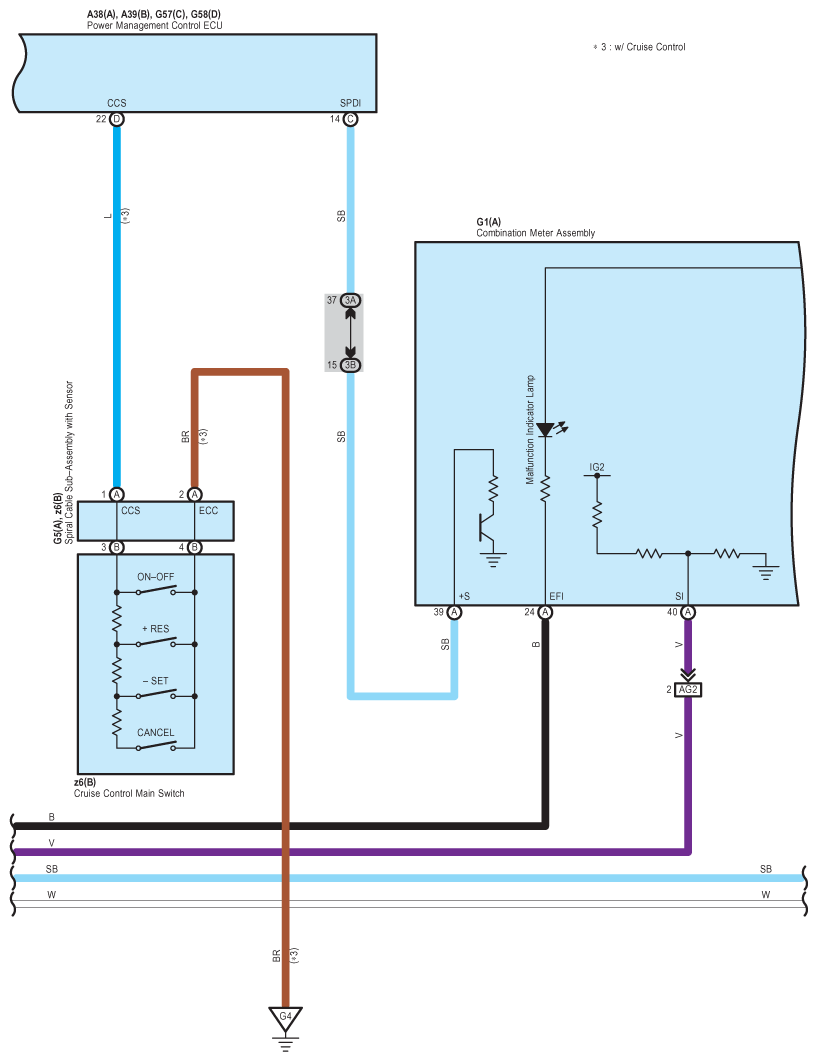

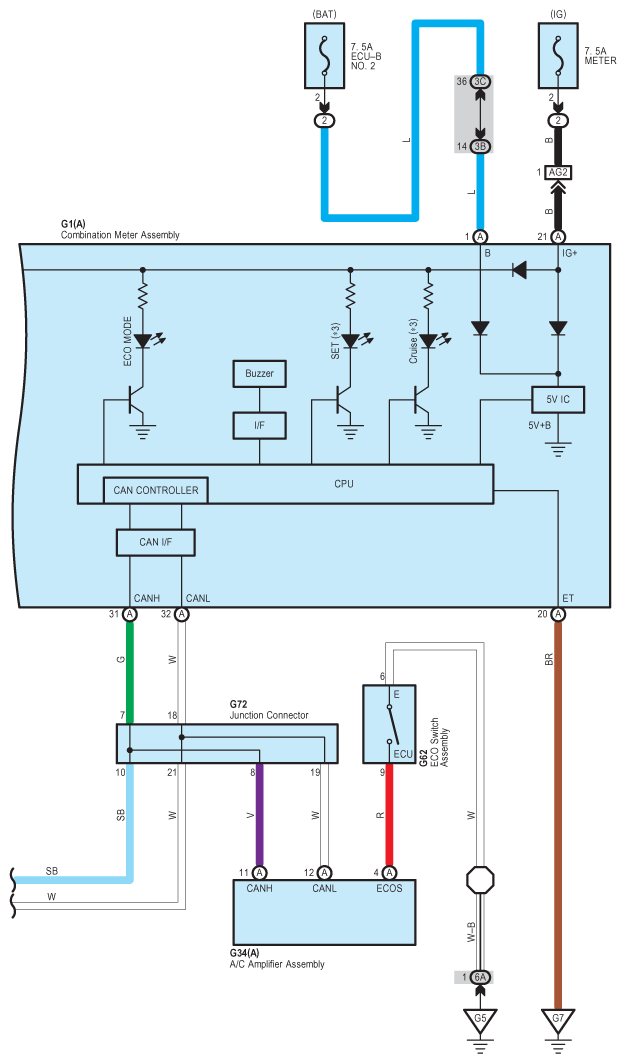

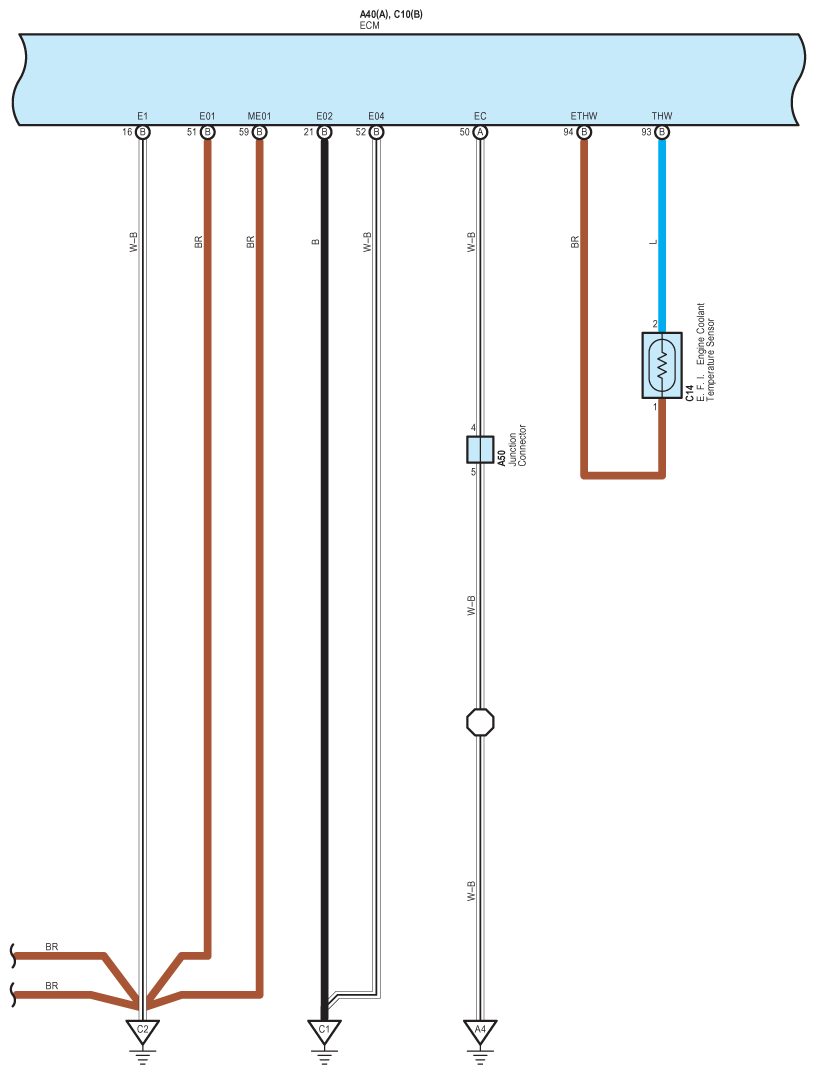

Fig 4: Cruise And Engine Control Wiring Diagram (4 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

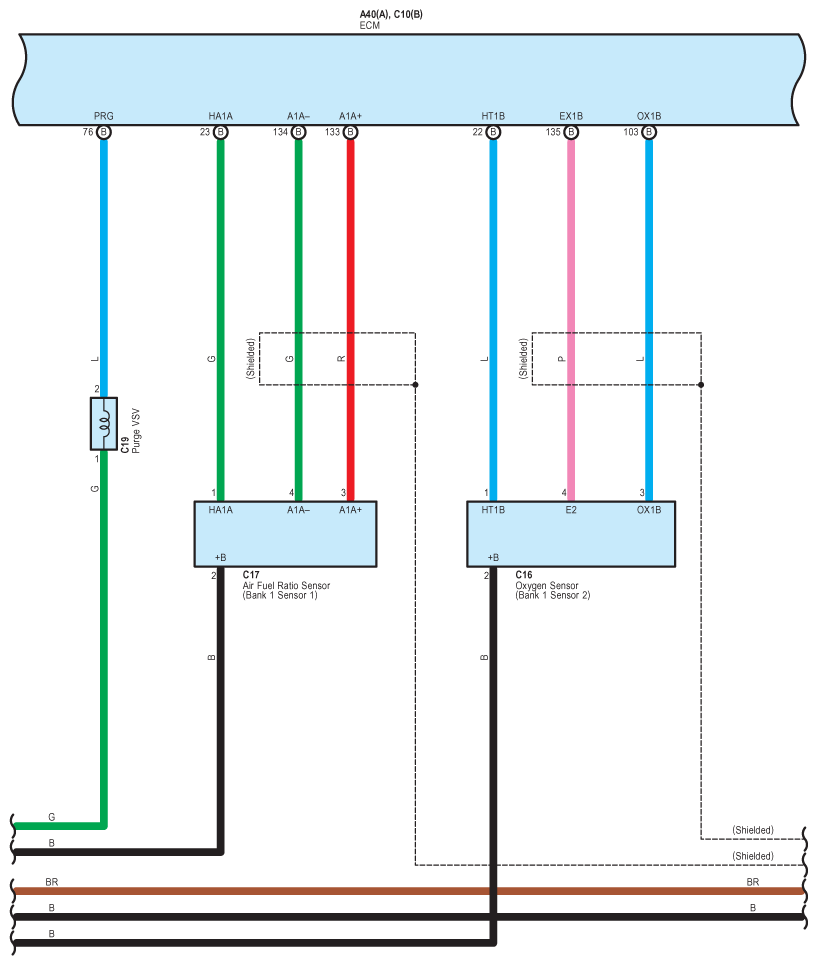

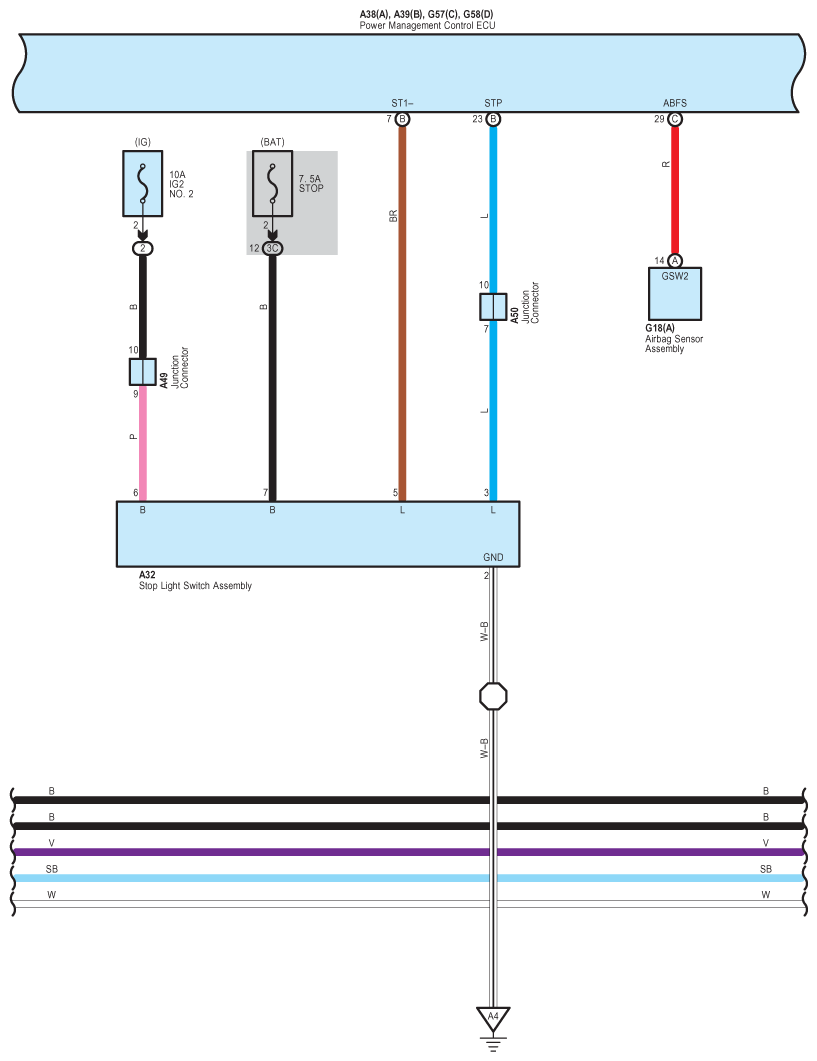

Fig 5: Cruise And Engine Control Wiring Diagram (5 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

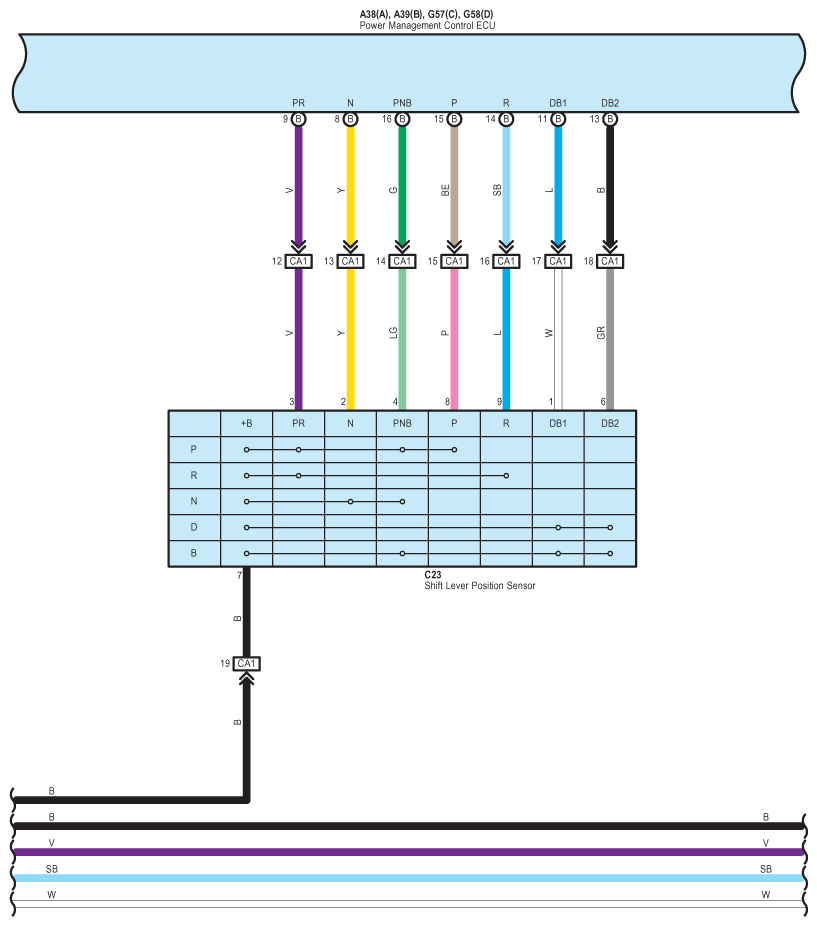

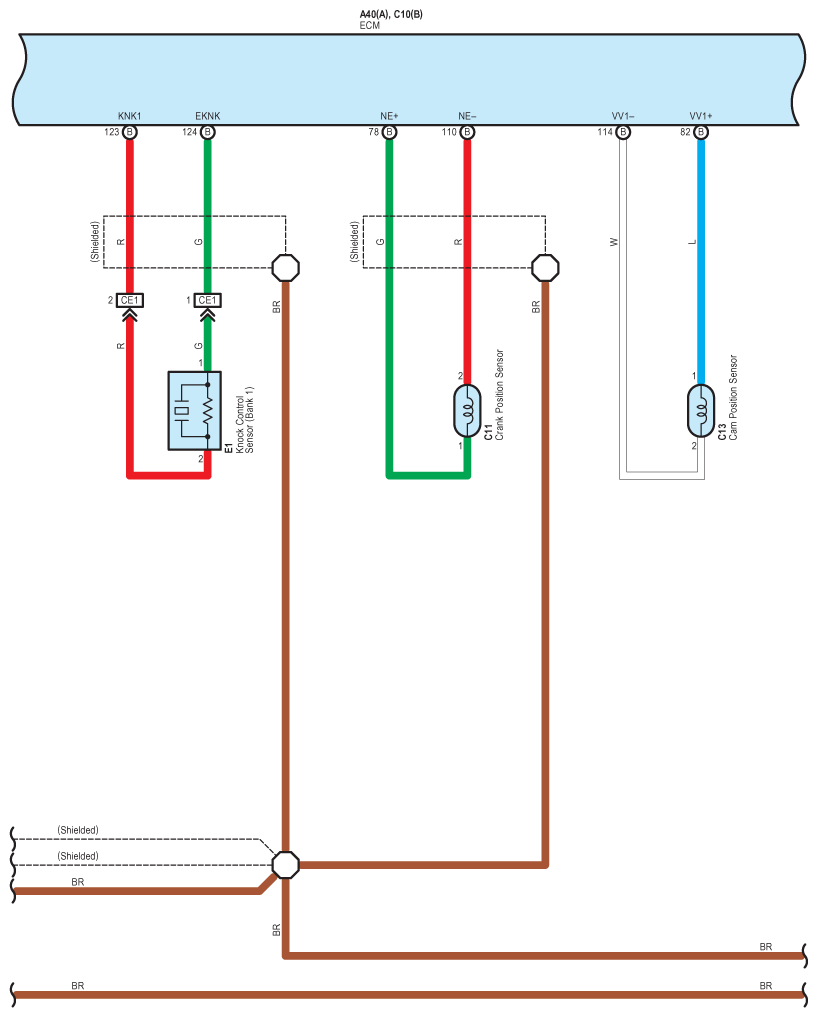

Fig 6: Cruise And Engine Control Wiring Diagram (6 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

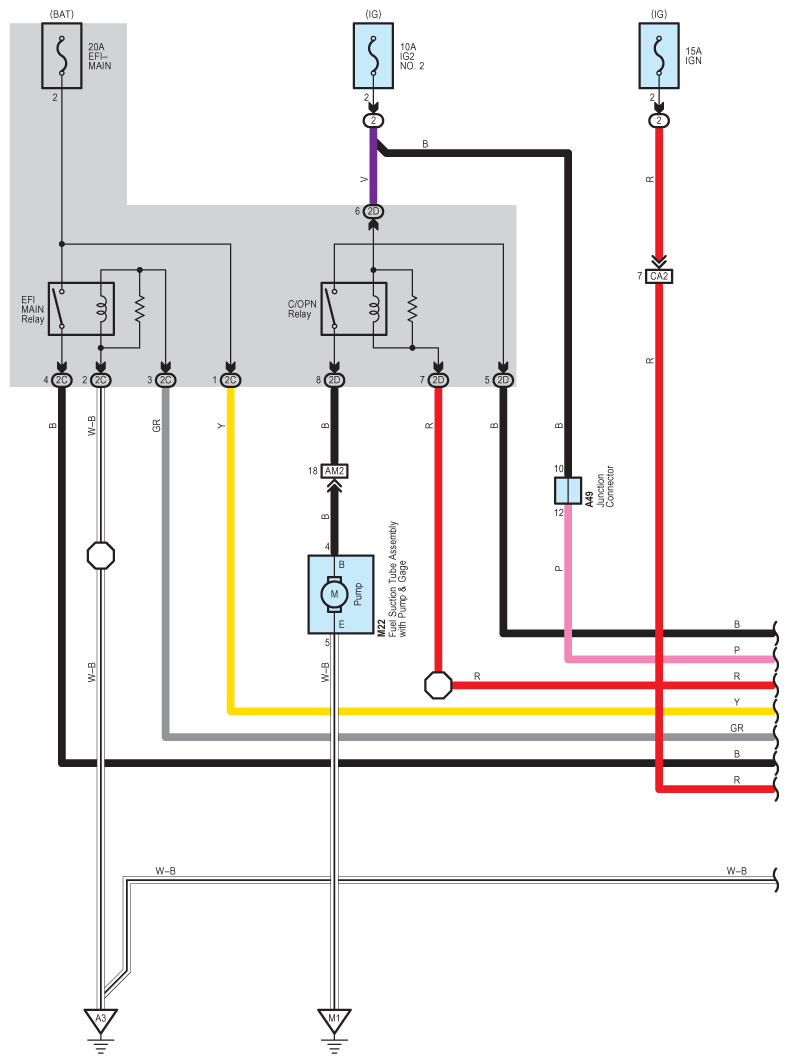

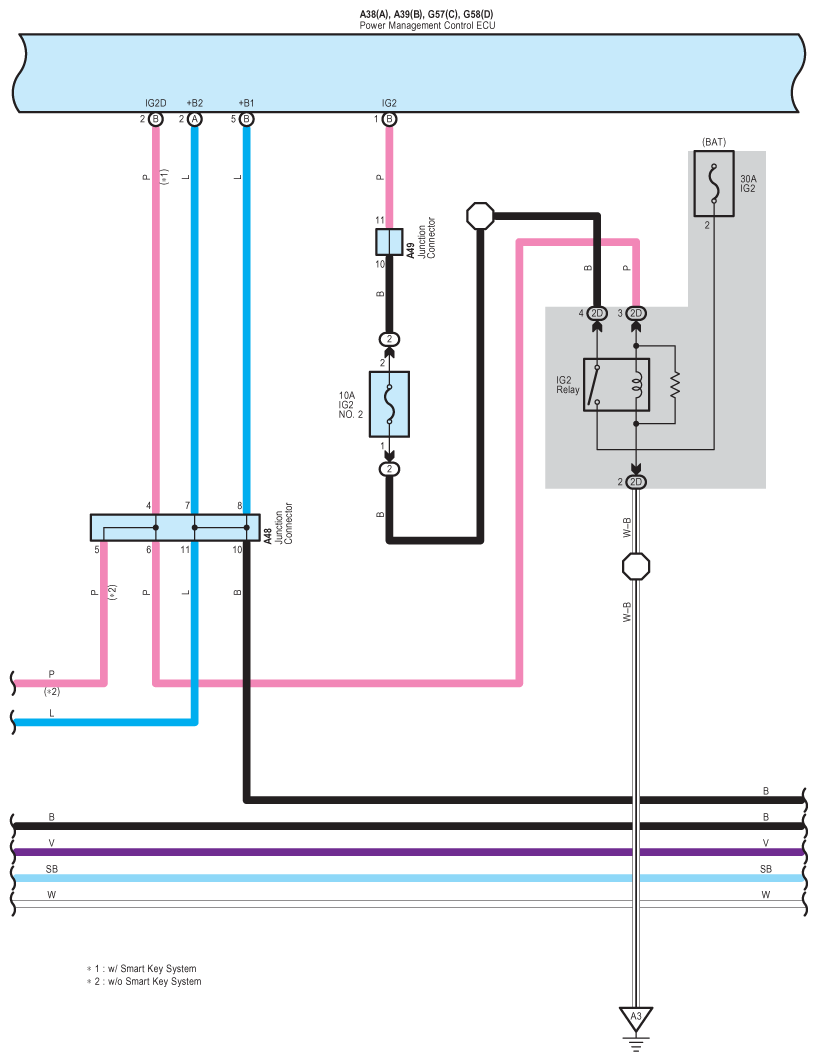

Fig 7: Cruise And Engine Control Wiring Diagram (7 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

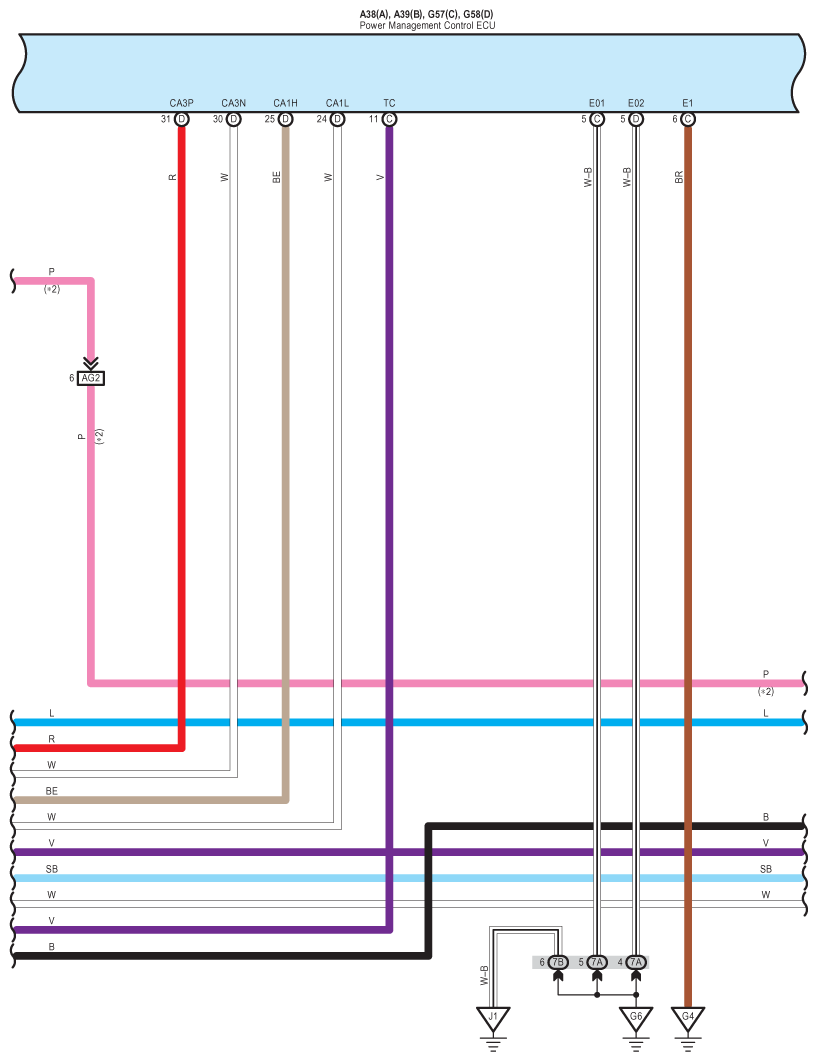

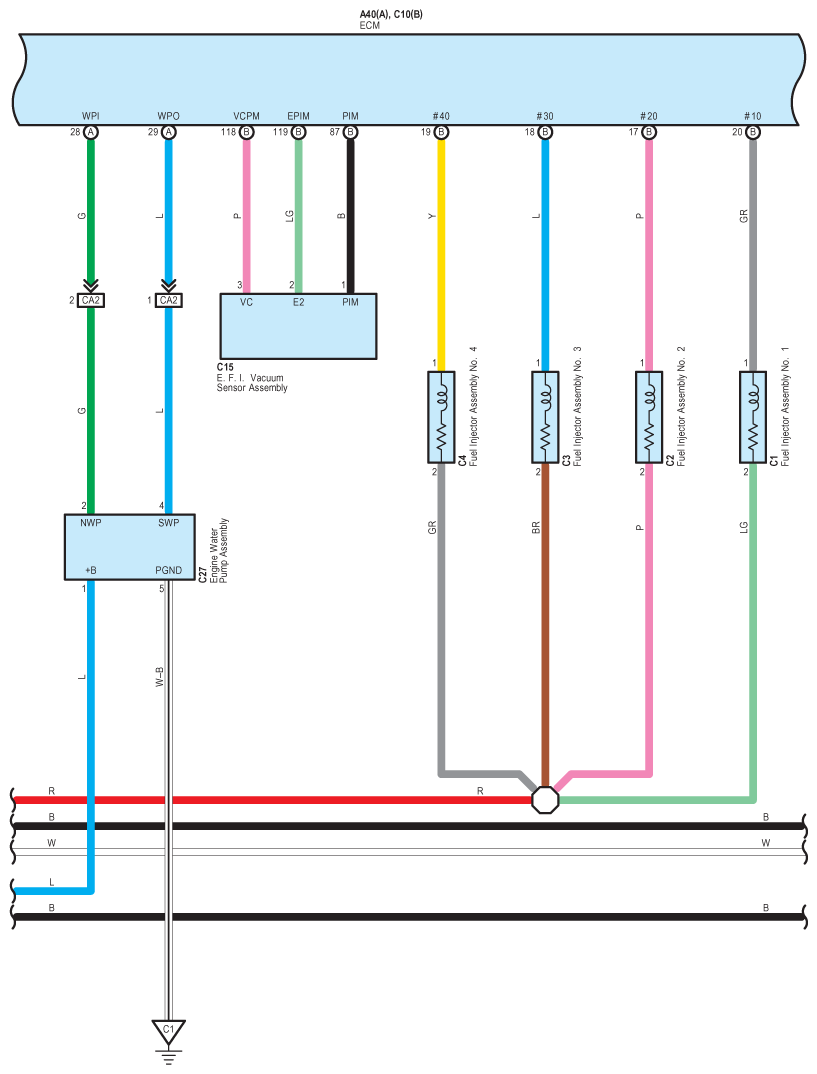

Fig 8: Cruise And Engine Control Wiring Diagram (8 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Cruise And Engine Control Wiring Diagram (9 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Cruise And Engine Control Wiring Diagram (10 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: Cruise And Engine Control Wiring Diagram (11 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Cruise And Engine Control Wiring Diagram (12 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 13: Cruise And Engine Control Wiring Diagram (13 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 14: Cruise And Engine Control Wiring Diagram (14 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 15: Cruise And Engine Control Wiring Diagram (15 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 16: Cruise And Engine Control Wiring Diagram (16 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 17: Cruise And Engine Control Wiring Diagram (17 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 18: Cruise And Engine Control Wiring Diagram (18 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 19: Cruise And Engine Control Wiring Diagram (19 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Cruise And Engine Control Wiring Diagram (20 Of 20)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
