Power Seat: Notes

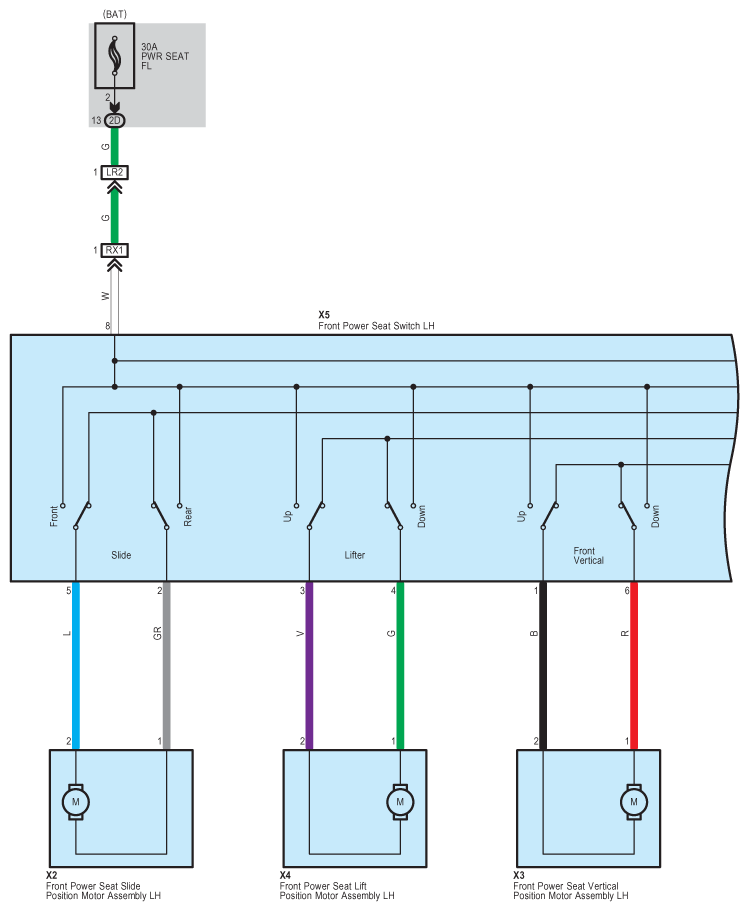

Fig 1: Power Seat Wiring Diagram (1 Of 2)
G09100337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

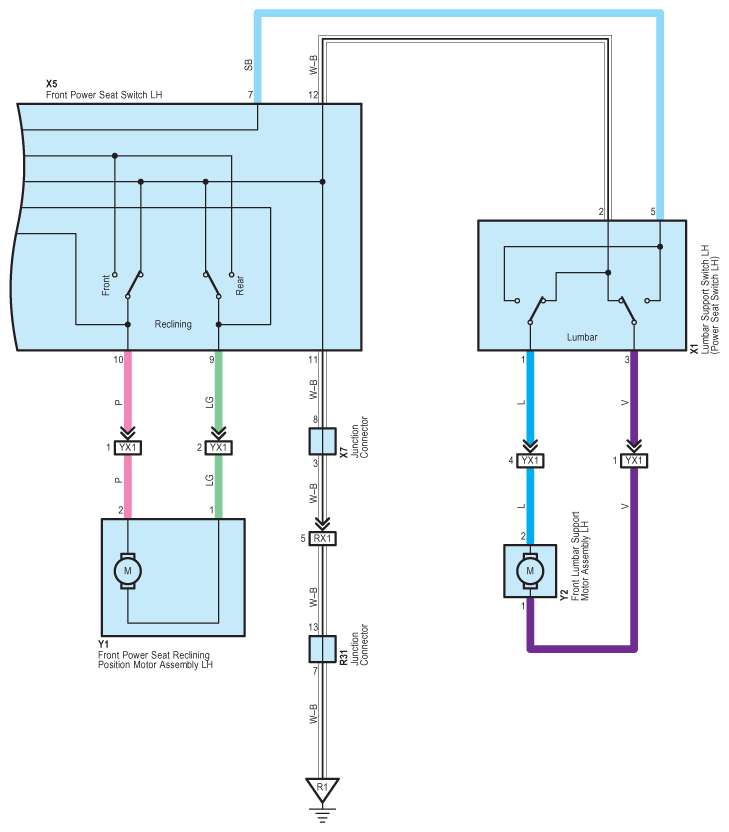

Fig 2: Power Seat Wiring Diagram (2 Of 2)
G09100338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
