Power Window: Notes

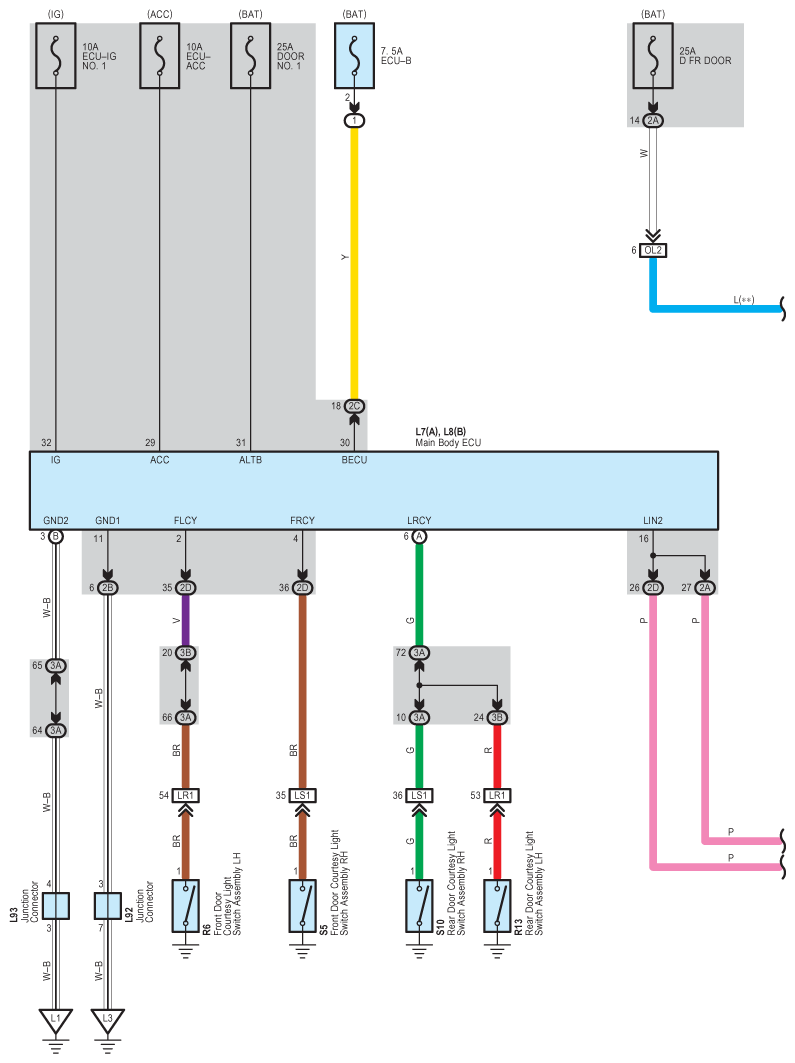

Fig 1: Power Window System Wiring Diagram (1 Of 5)
G09100330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

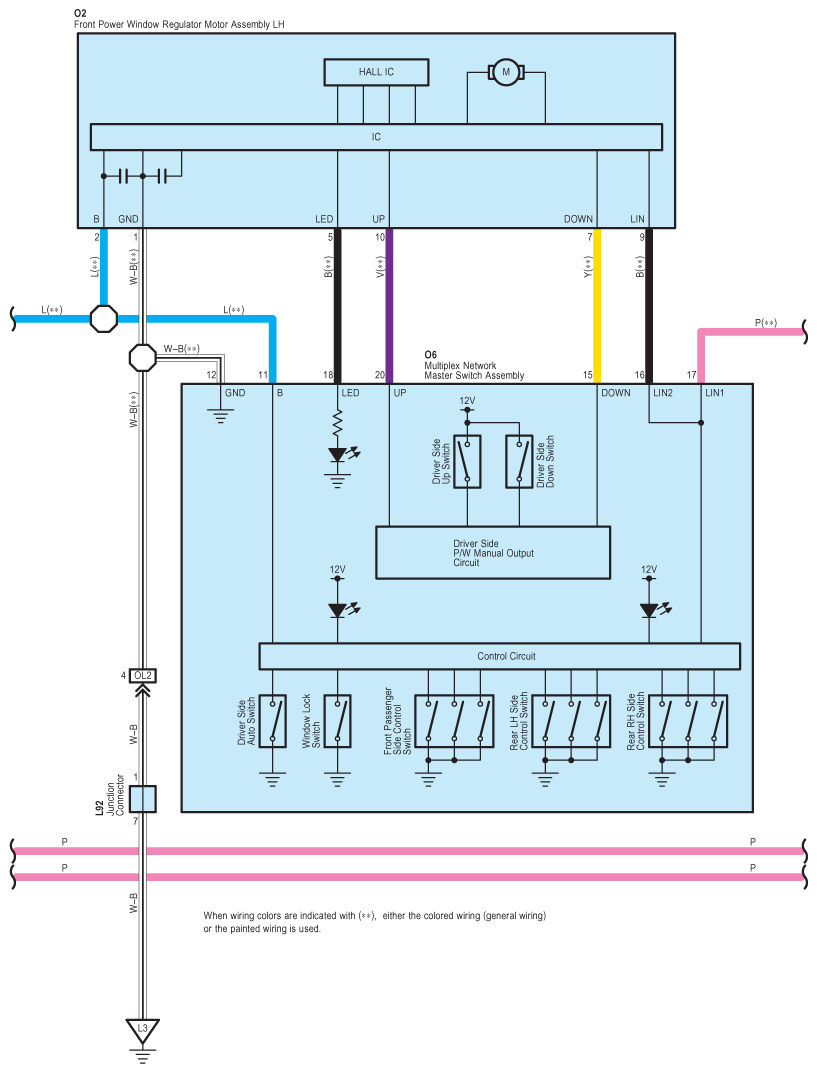

Fig 2: Power Window System Wiring Diagram (2 Of 5)
G09100331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

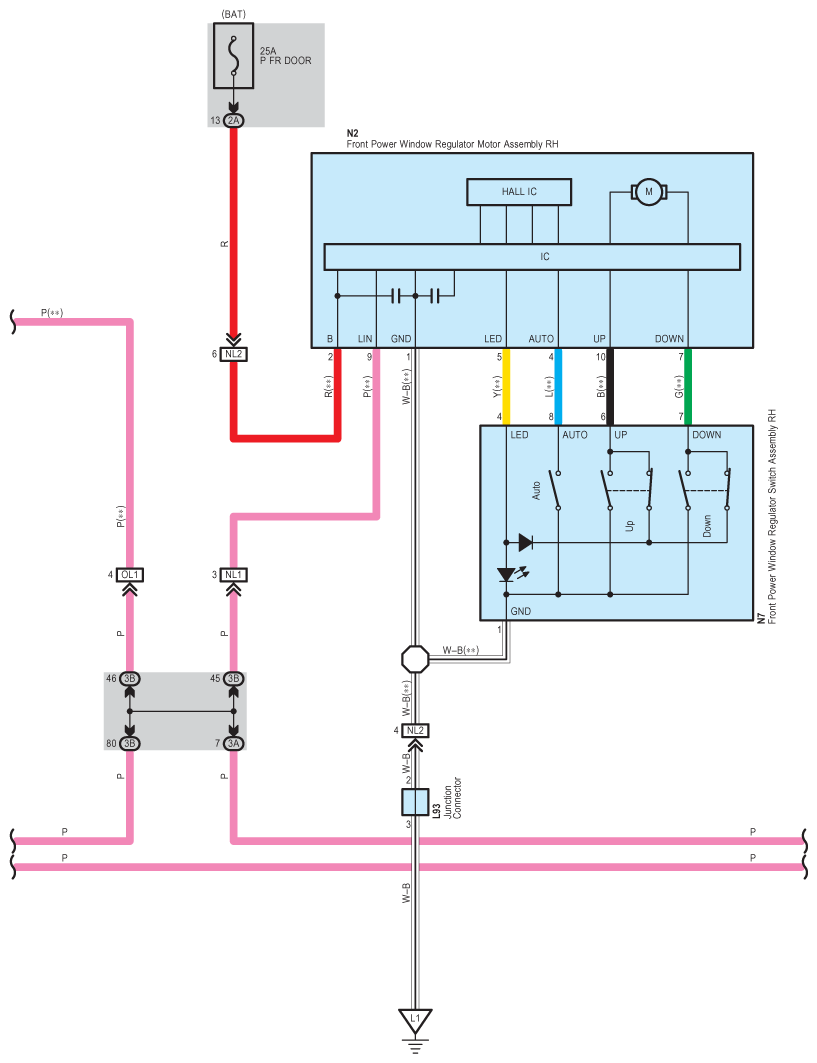

Fig 3: Power Window System Wiring Diagram (3 Of 5)
G09100332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

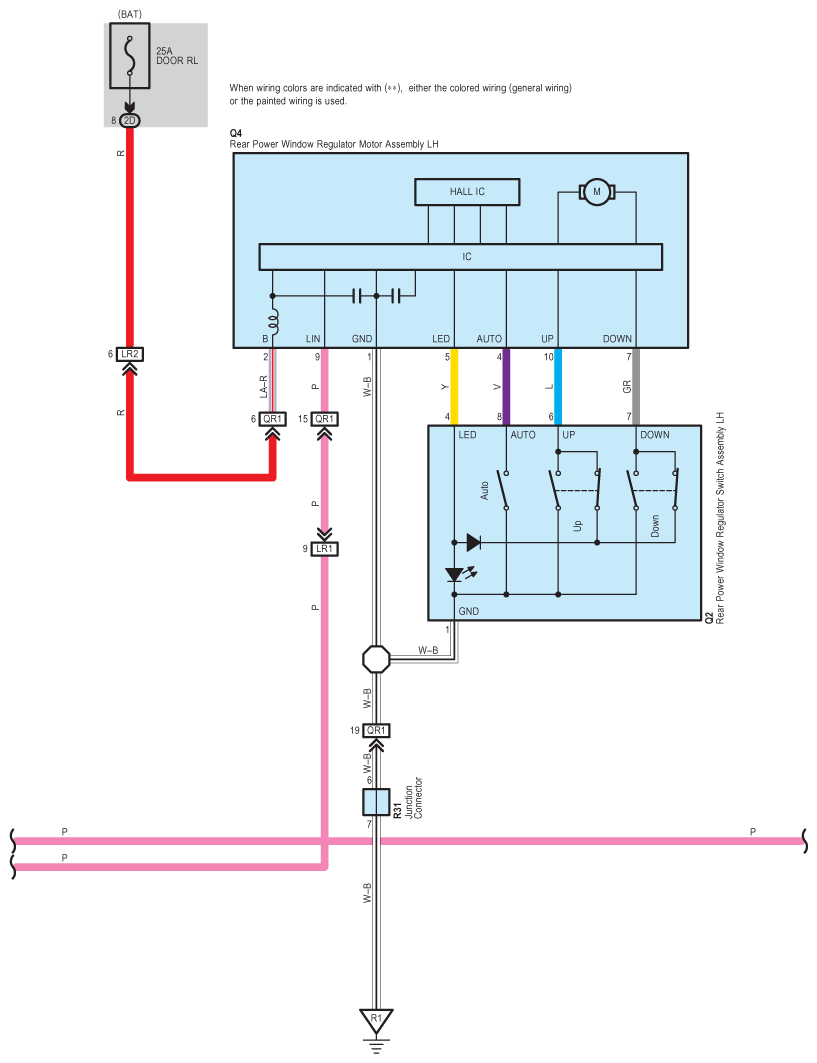

Fig 4: Power Window System Wiring Diagram (4 Of 5)
G09100333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

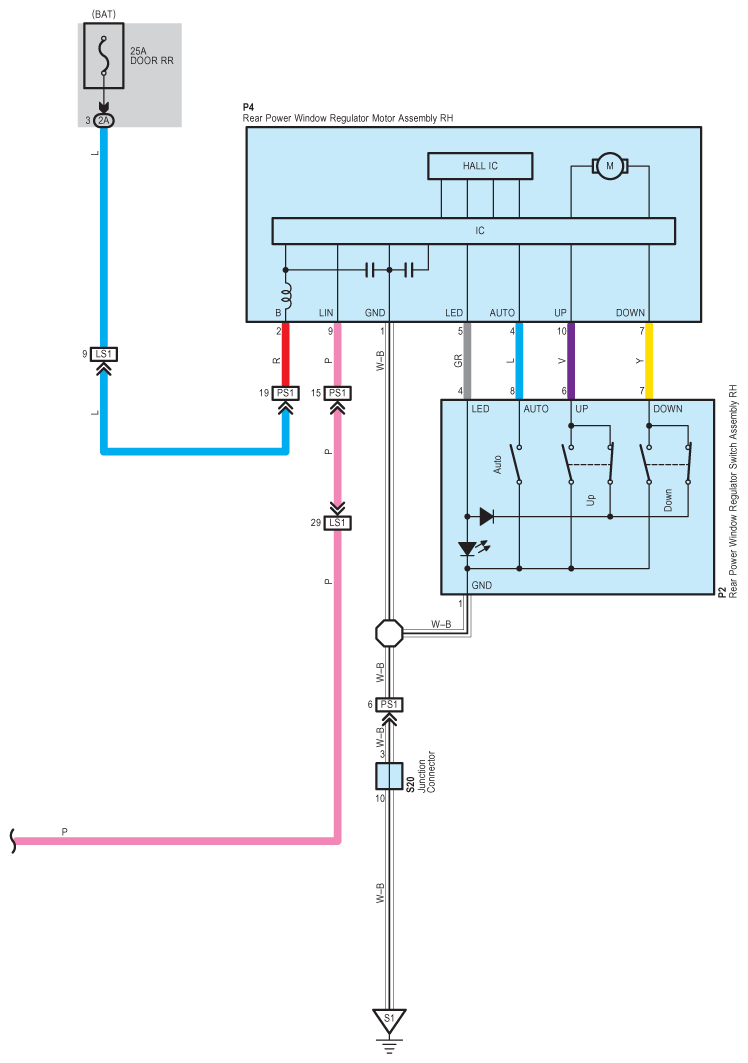

Fig 5: Power Window System Wiring Diagram (5 Of 5)
G09100334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
