SMART KEY SYSTEM (for Start Function)
>>
Parts Location
>>
Illustration
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

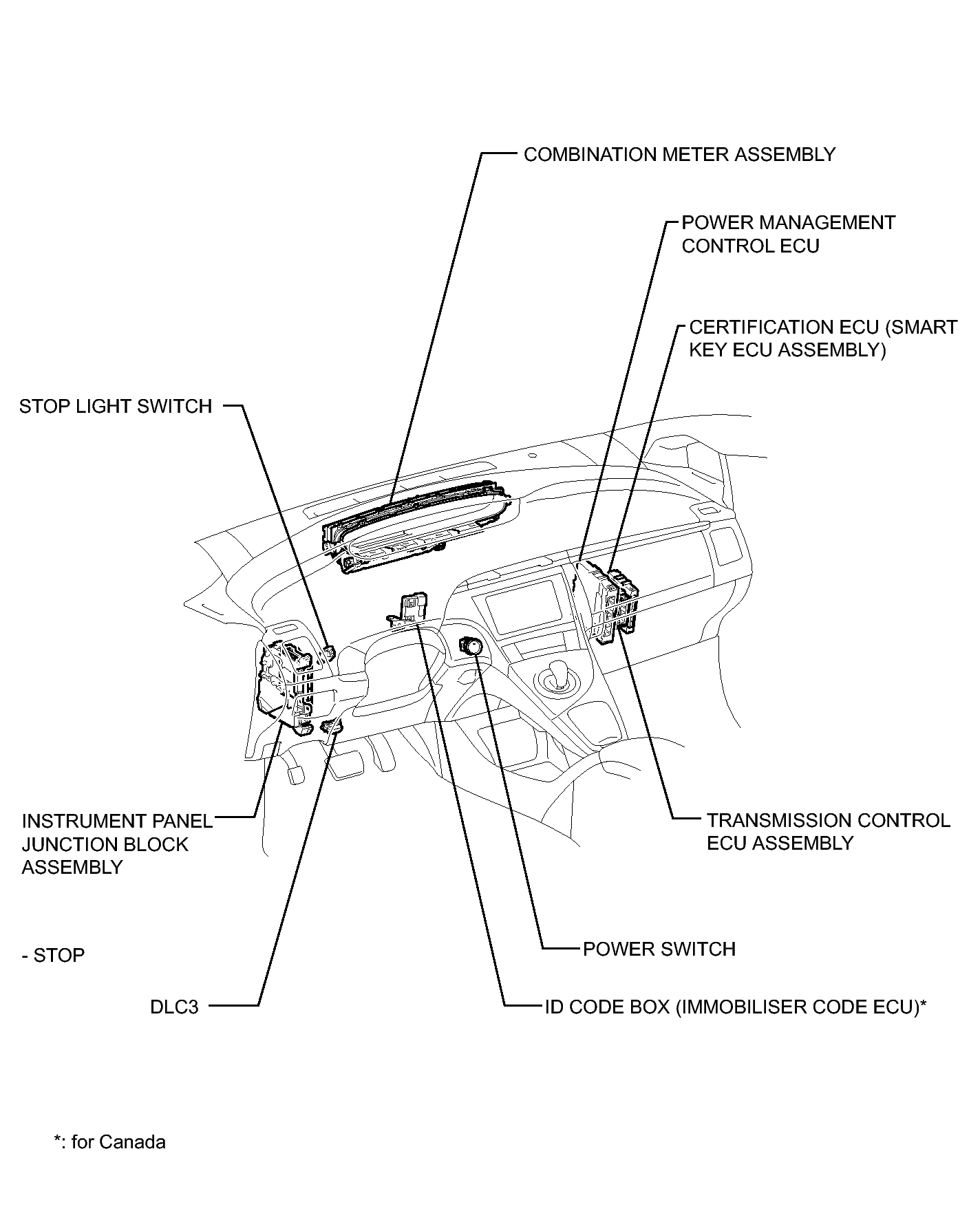

Fig 1: Identifying Smart Key System (For Start Function) Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

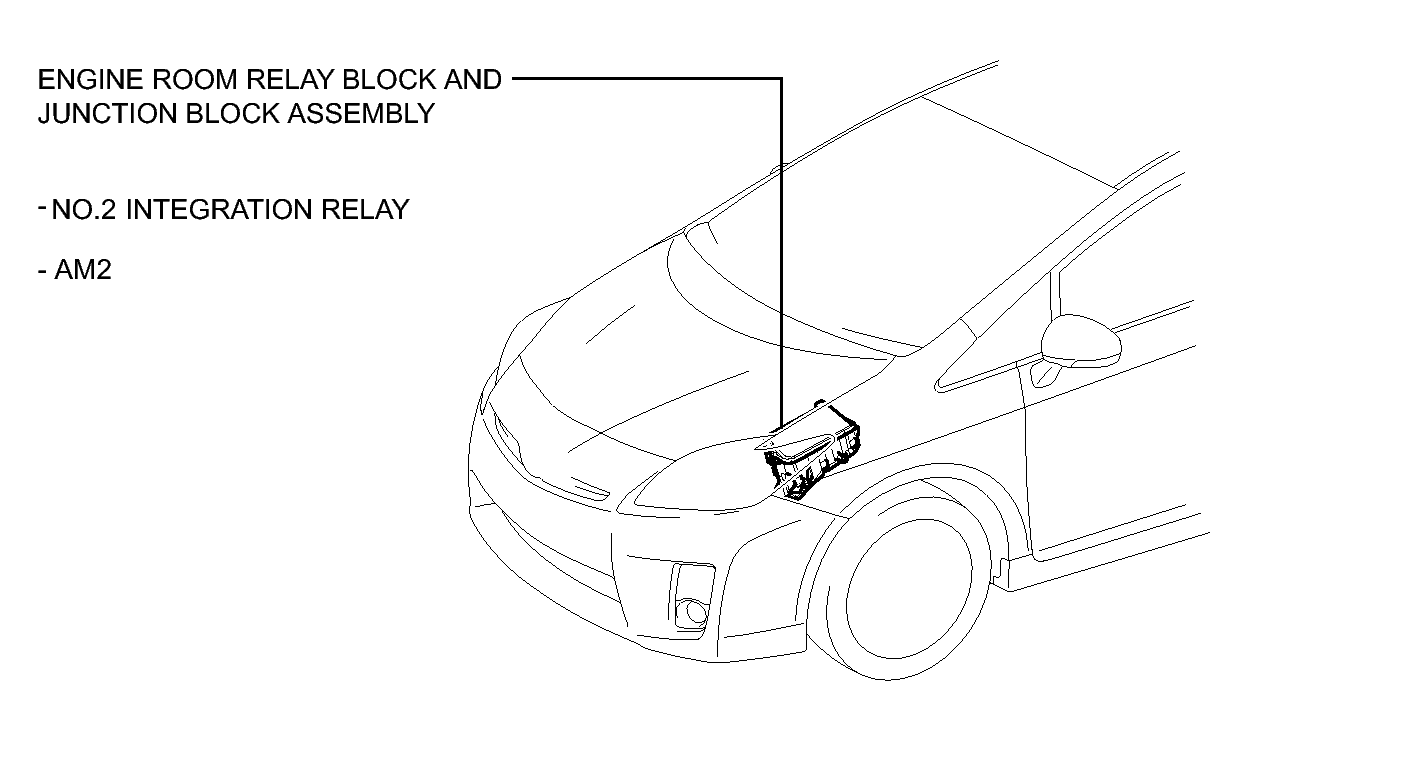

Fig 1: Identifying Smart Key System (For Start Function)Components Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
