Brake Control / Dynamic Control System (Service Information)
>>
Brake Pedal Stroke Sensor
>>
Components
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Brake Pedal Stroke Sensor: Components: Illustration
Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

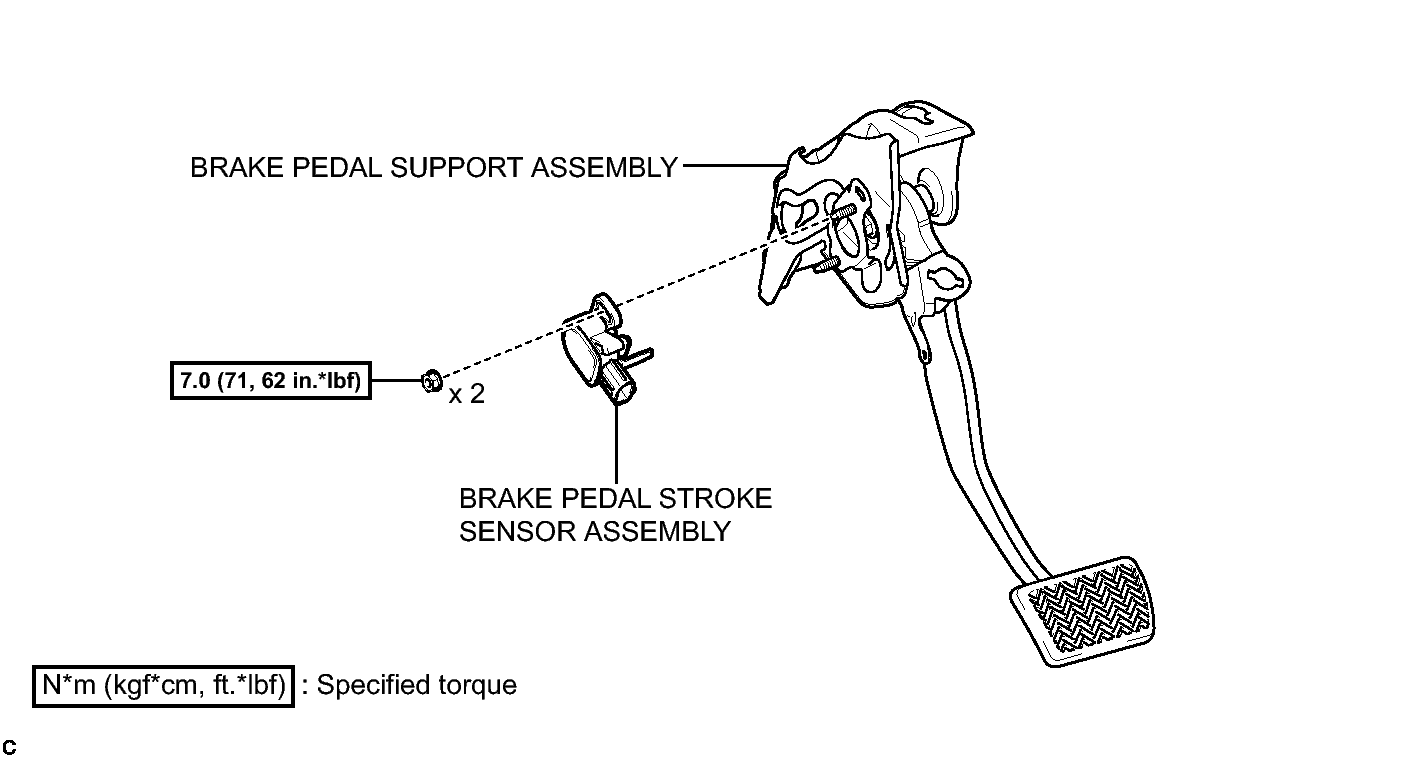

Fig 1: Identifying Brake Pedal Stroke Sensor Replacement Components Location With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
