Hybrid System and Shift Control System: Notes

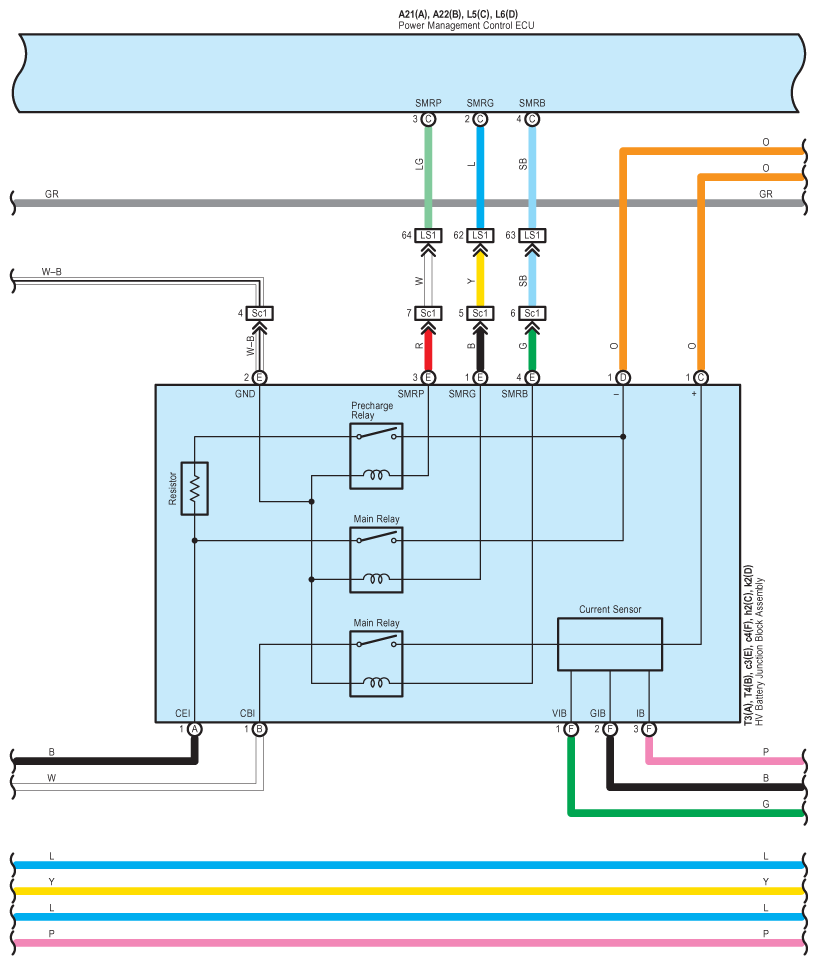

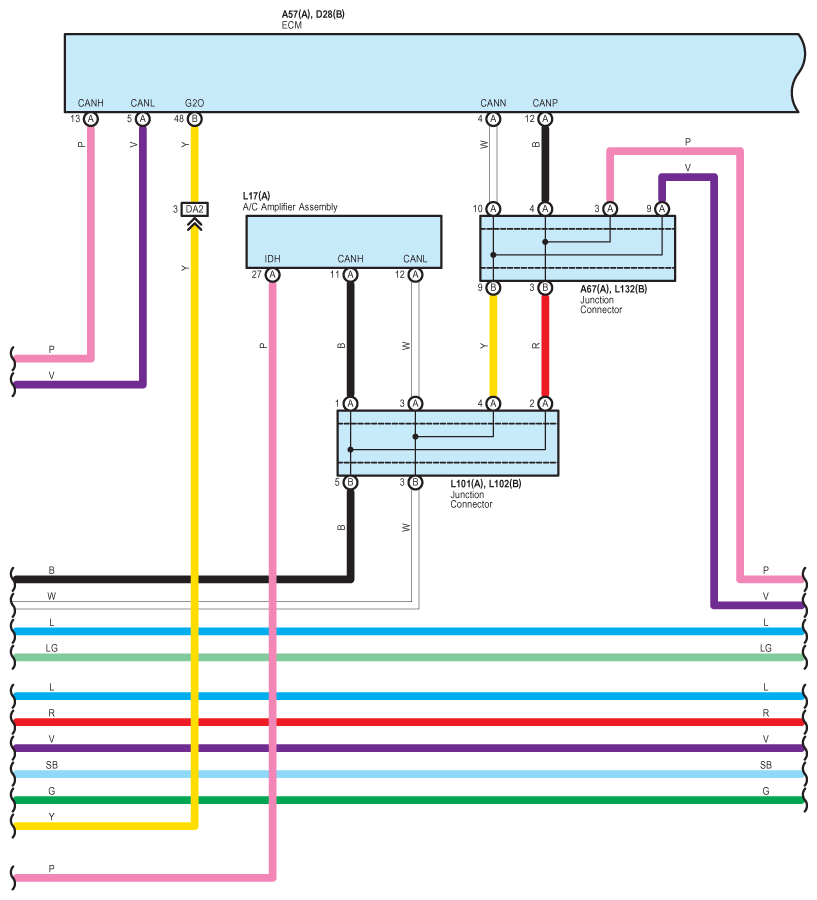

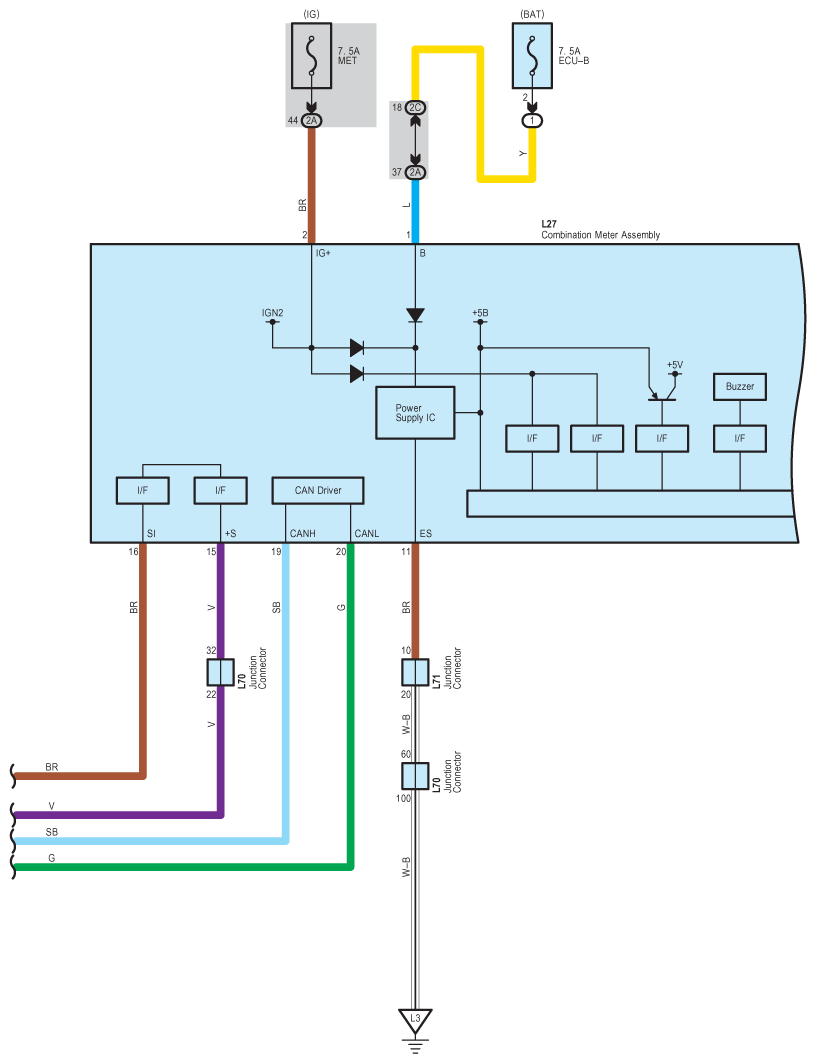

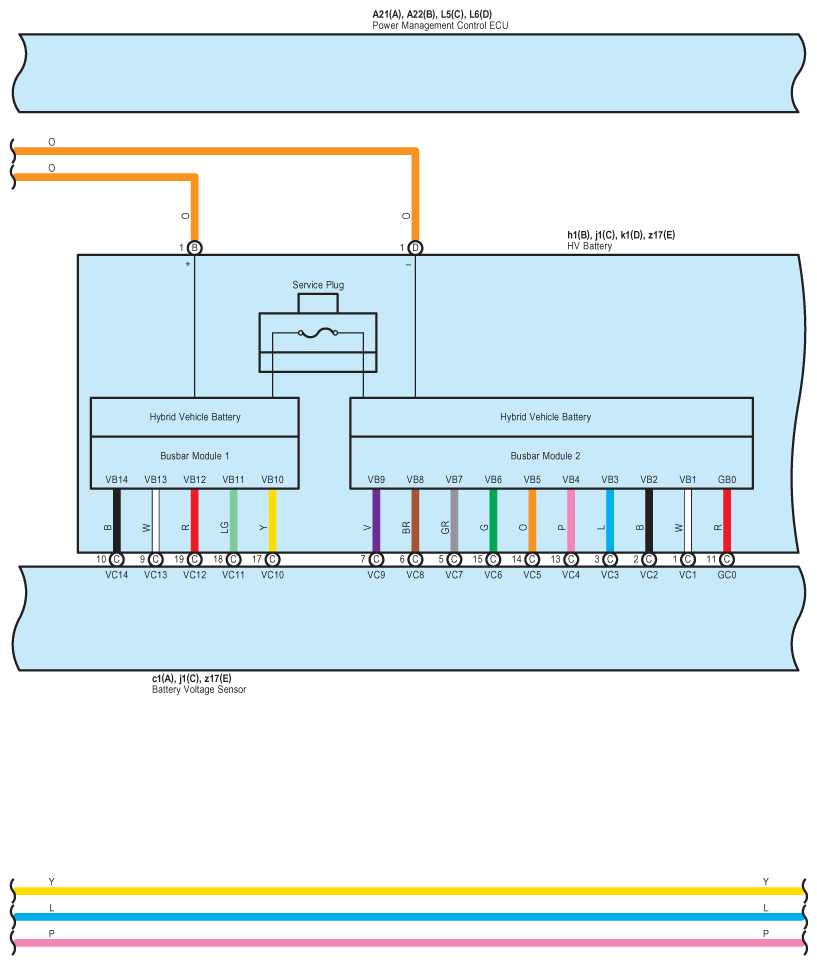

Fig 1: Hybrid And Shift Control System Wiring Diagram (1 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

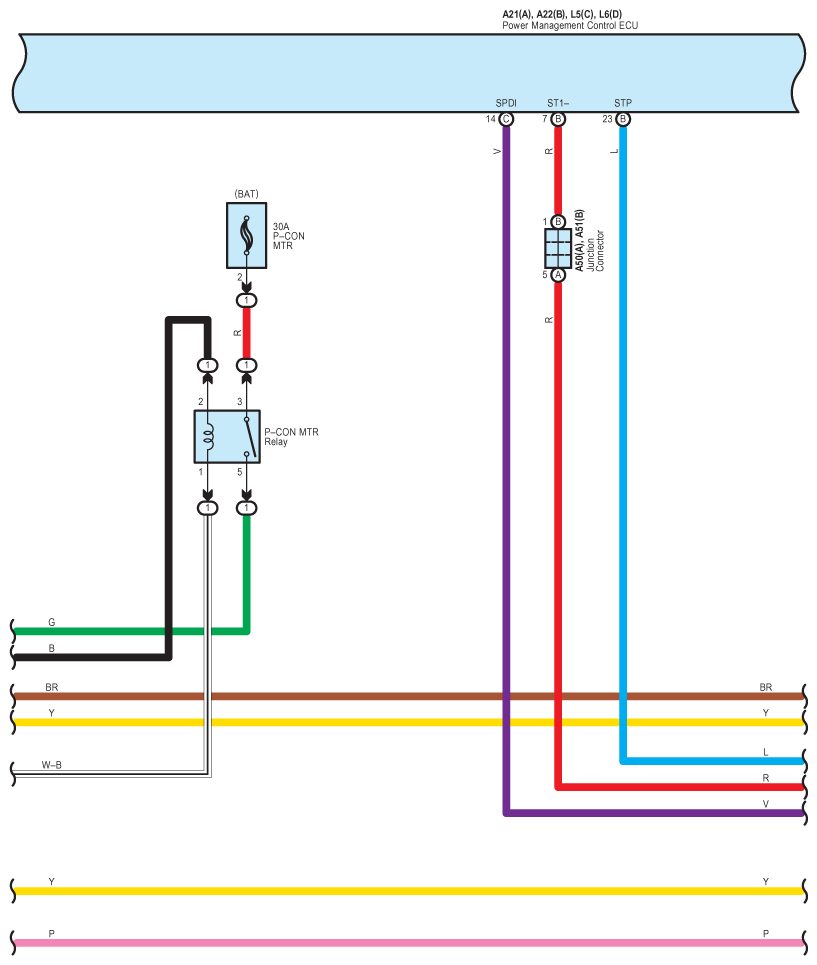

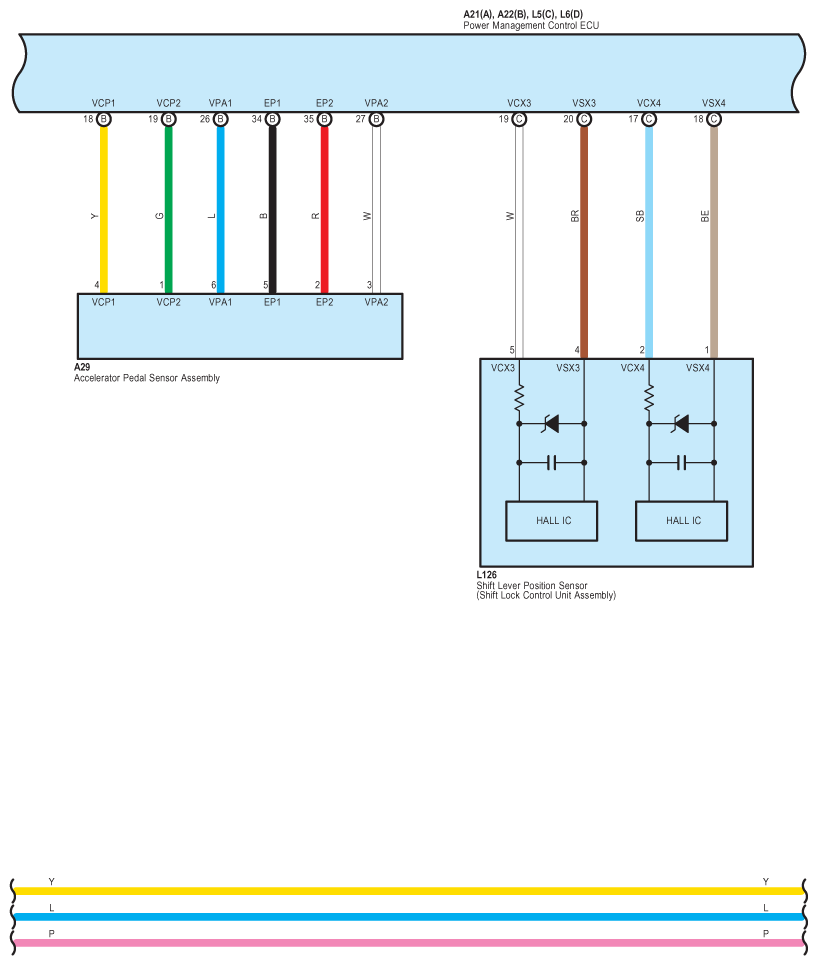

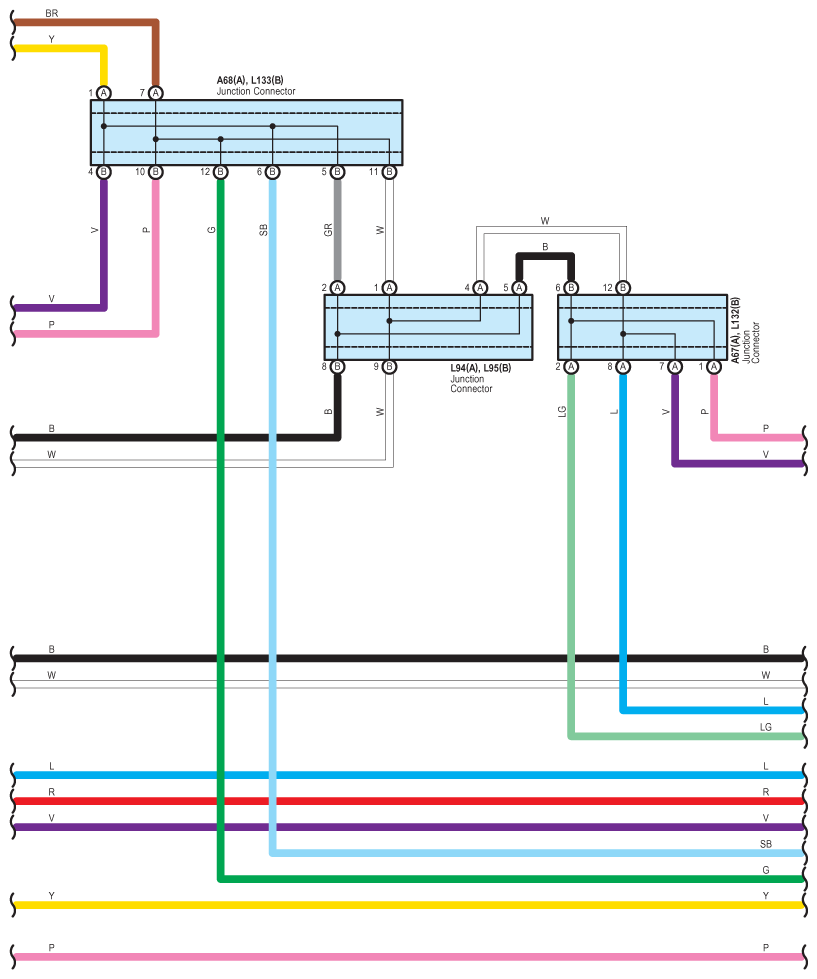

Fig 2: Hybrid And Shift Control System Wiring Diagram (2 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

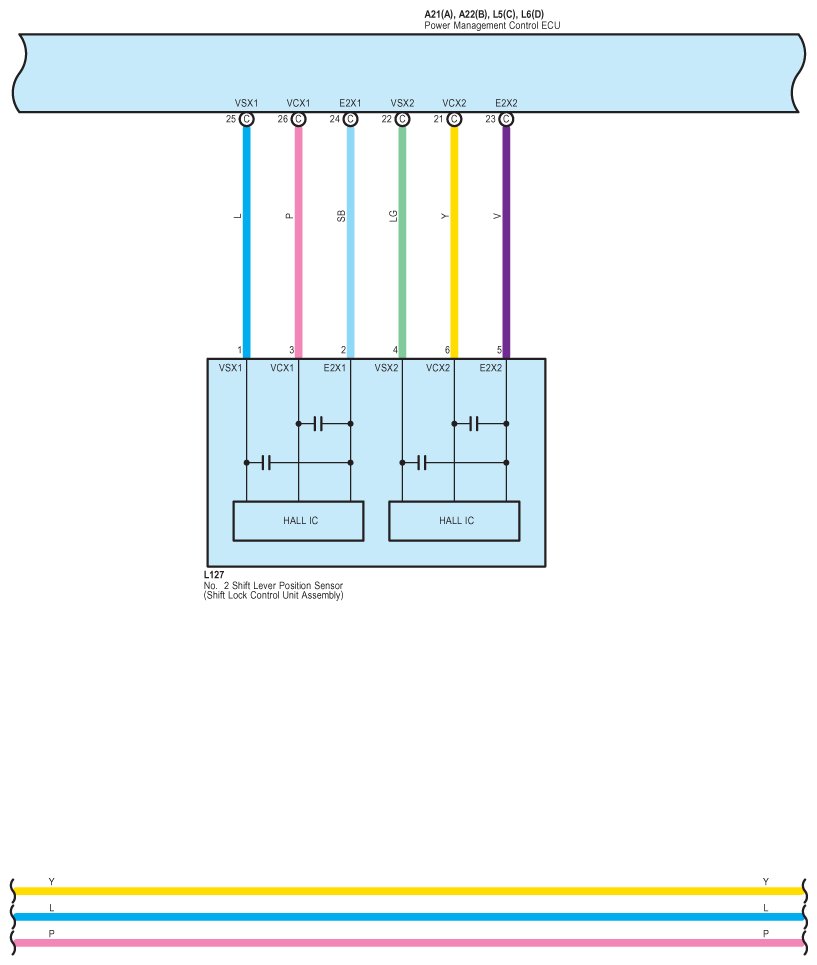

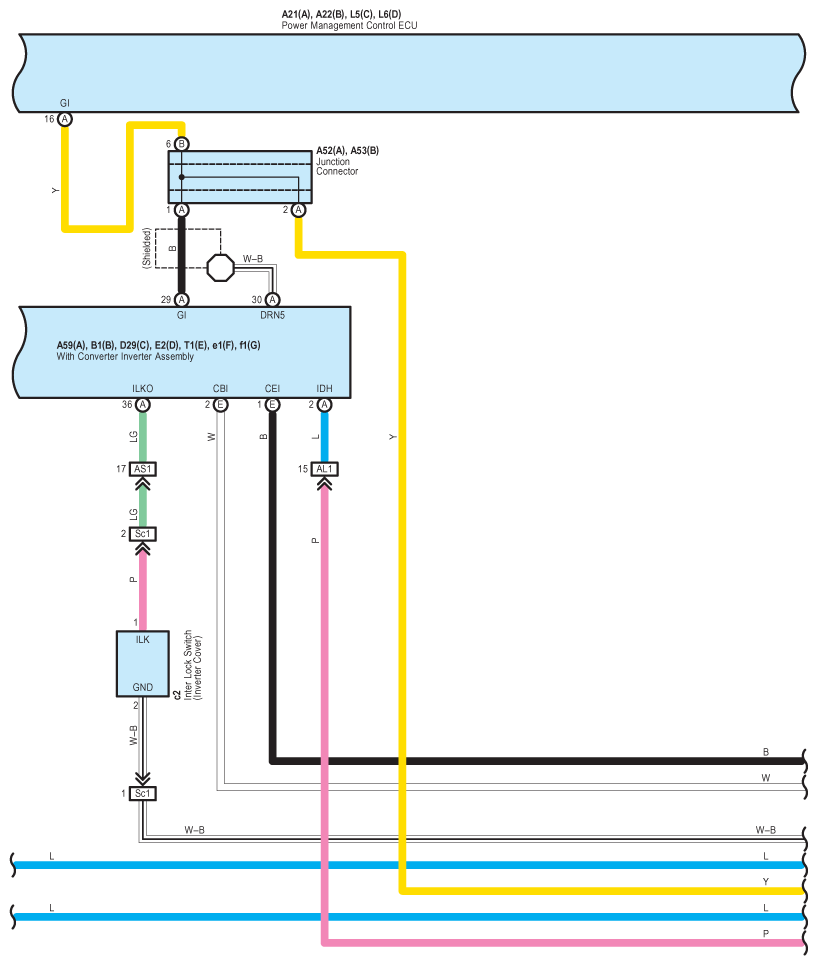

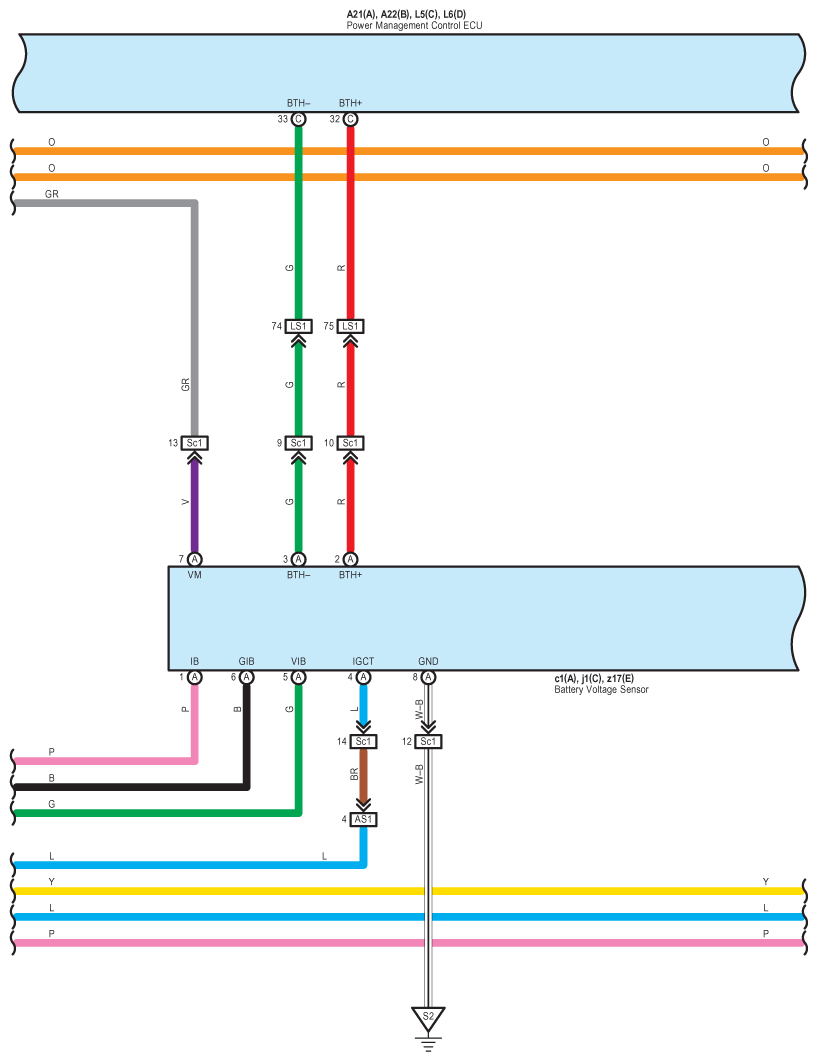

Fig 3: Hybrid And Shift Control System Wiring Diagram (3 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

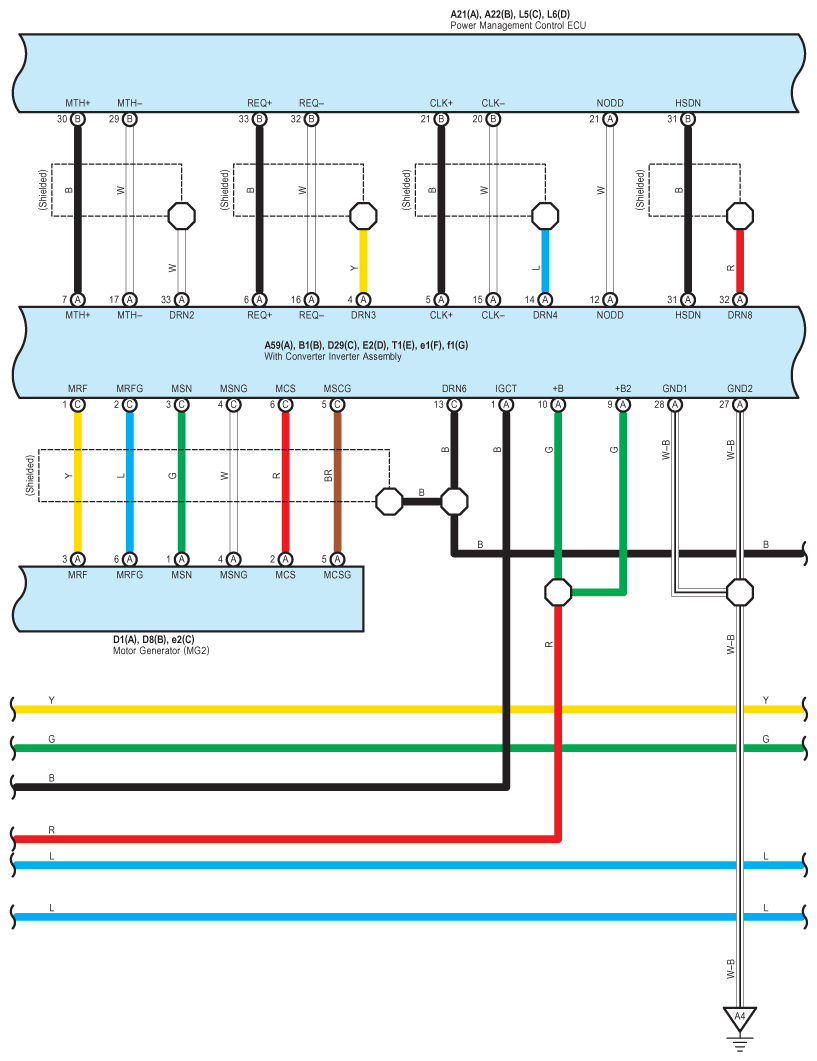

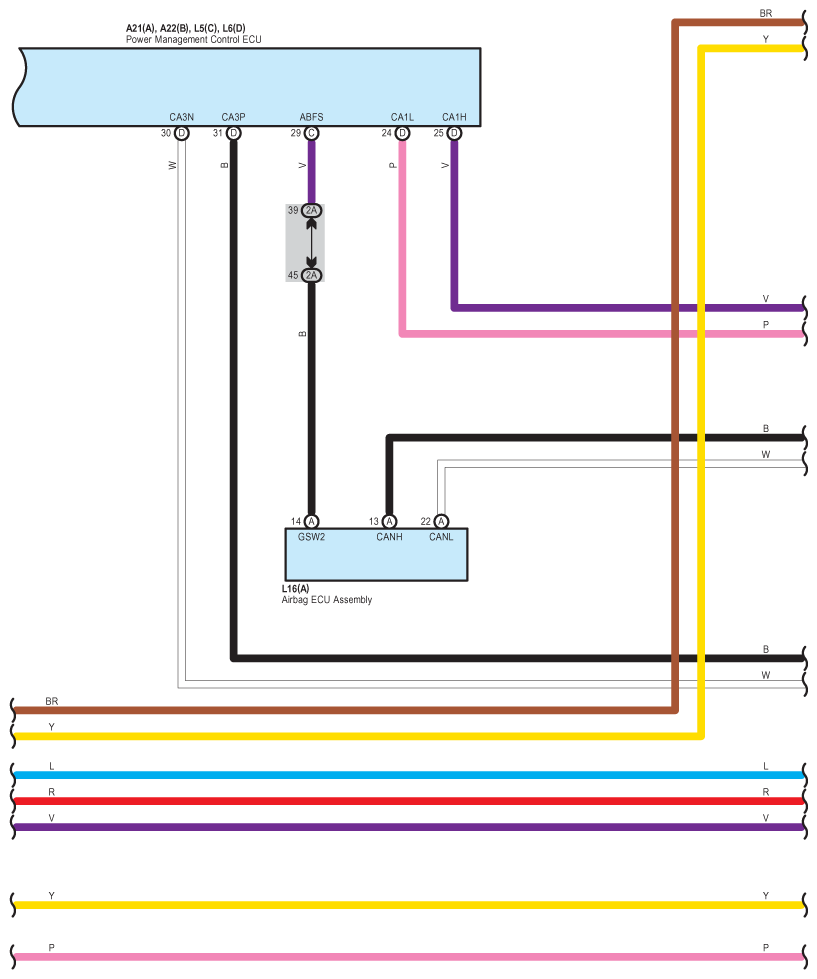

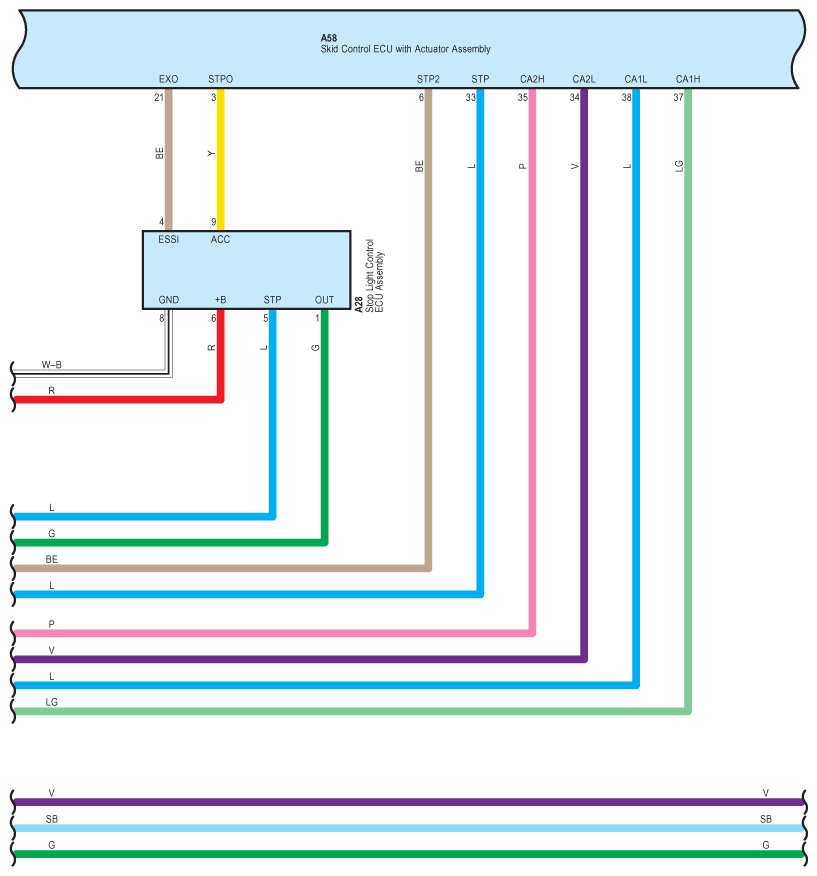

Fig 4: Hybrid And Shift Control System Wiring Diagram (4 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

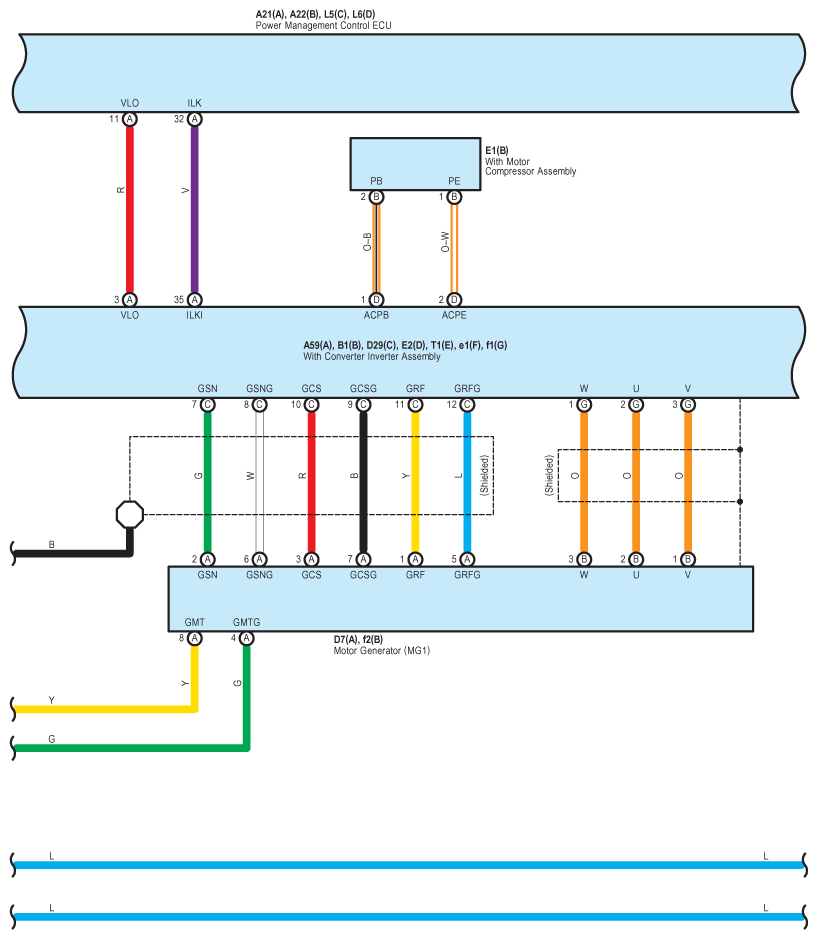

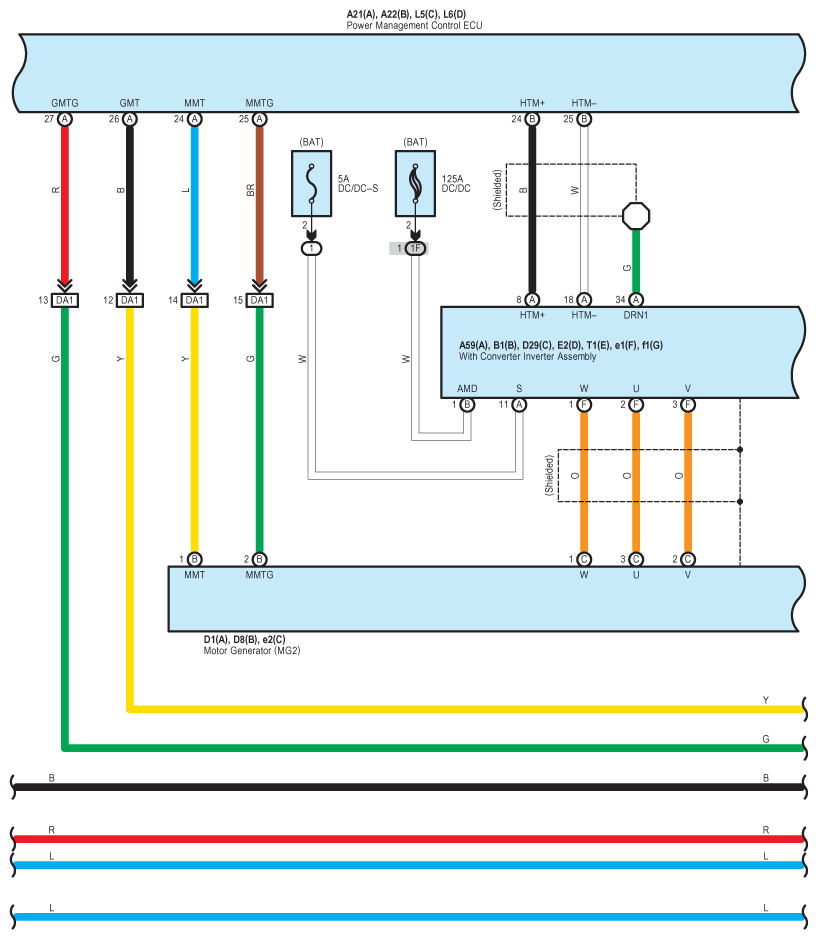

Fig 5: Hybrid And Shift Control System Wiring Diagram (5 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

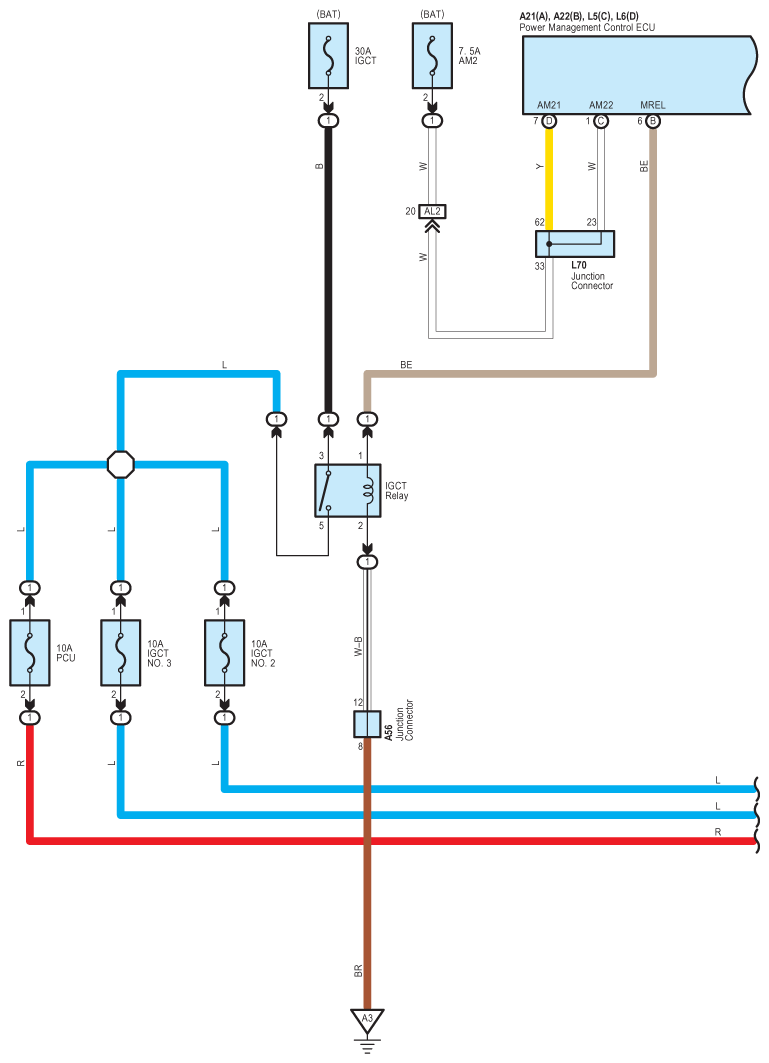

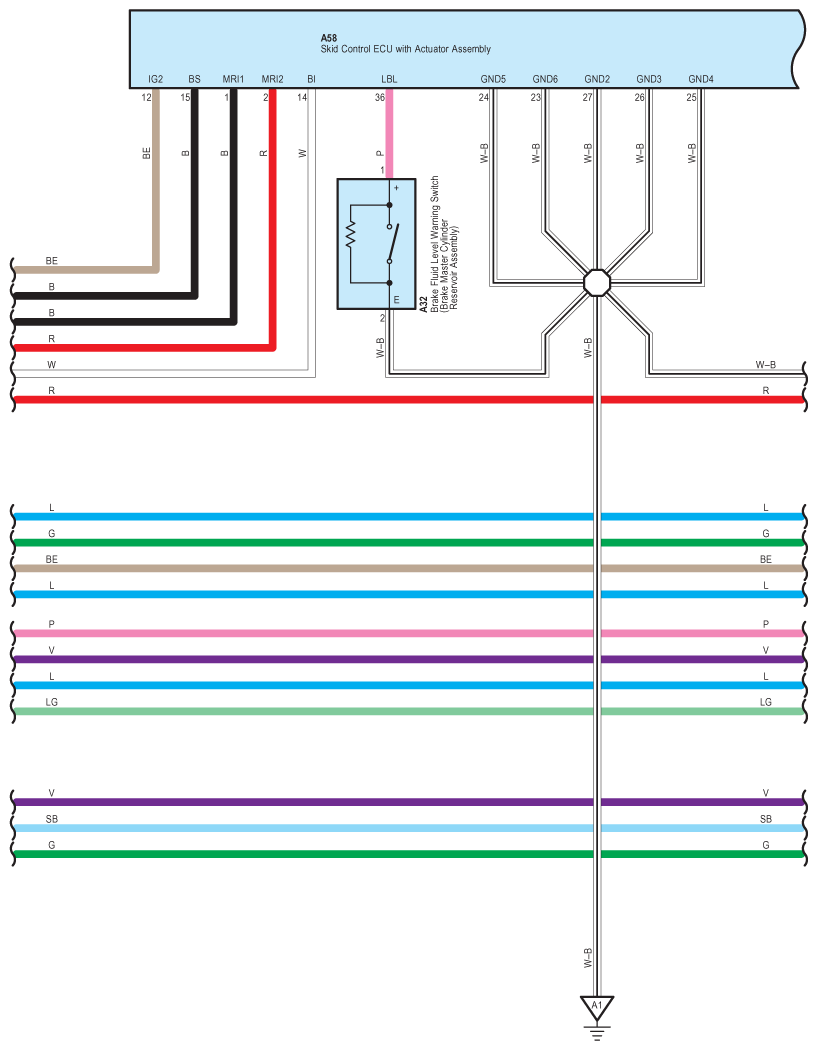

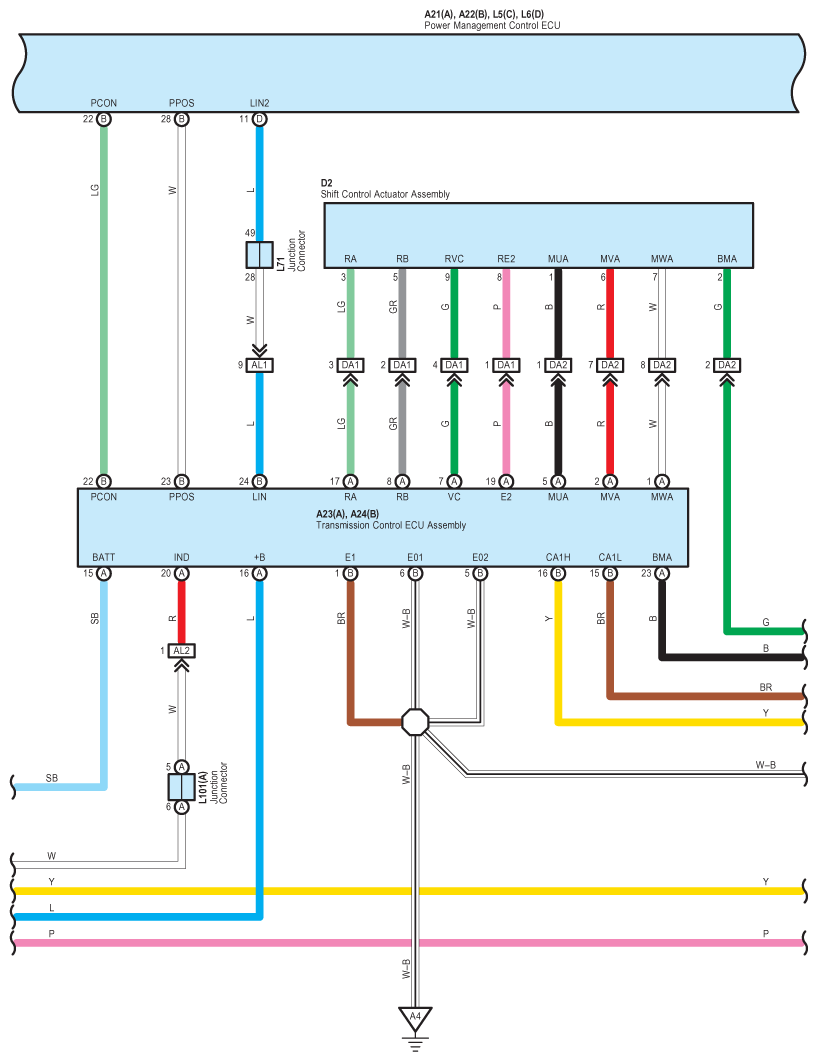

Fig 6: Hybrid And Shift Control System Wiring Diagram (6 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

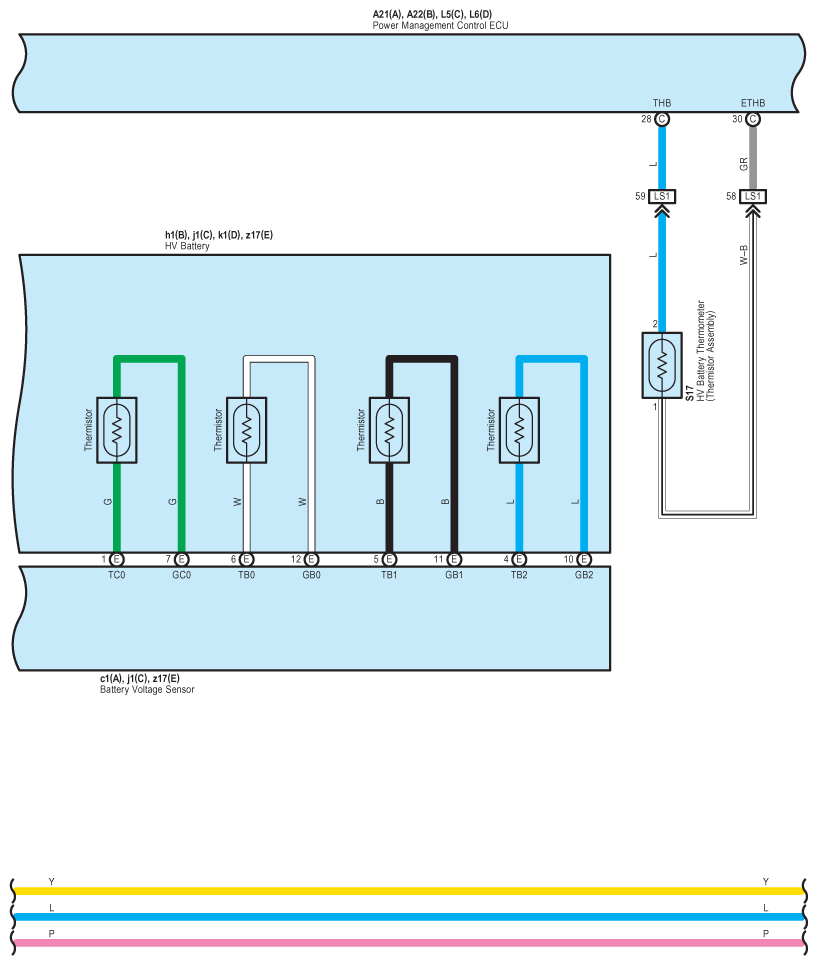

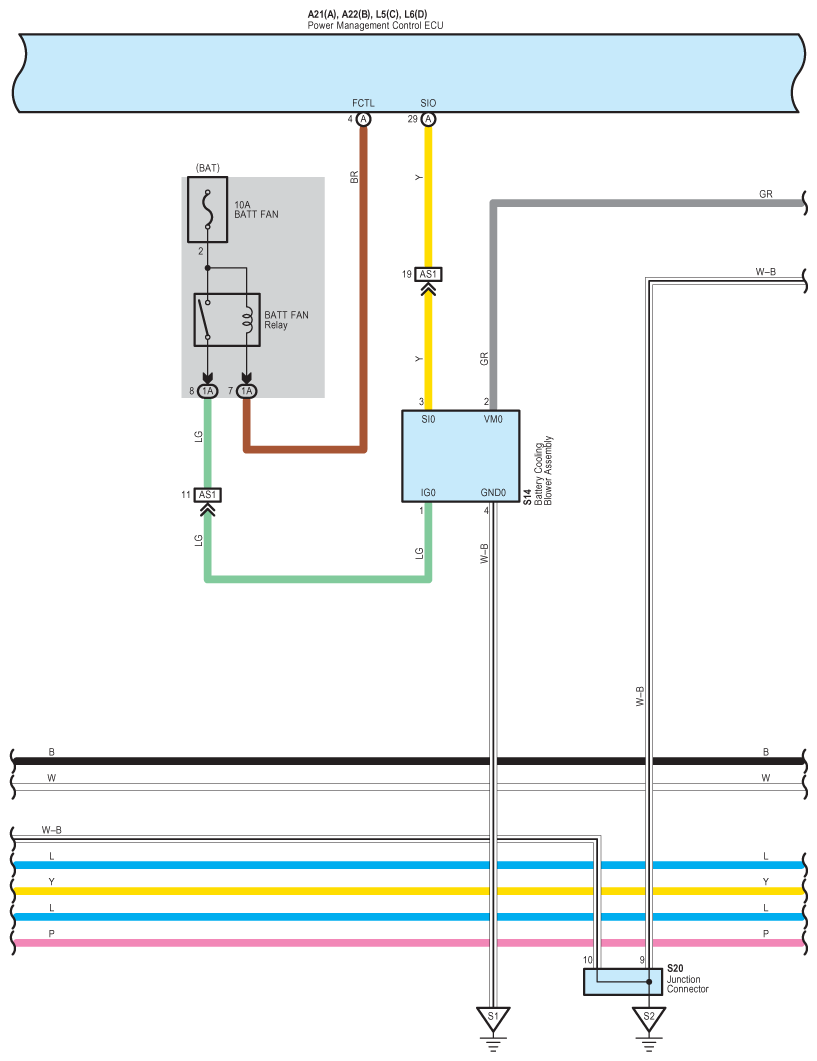

Fig 7: Hybrid And Shift Control System Wiring Diagram (7 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

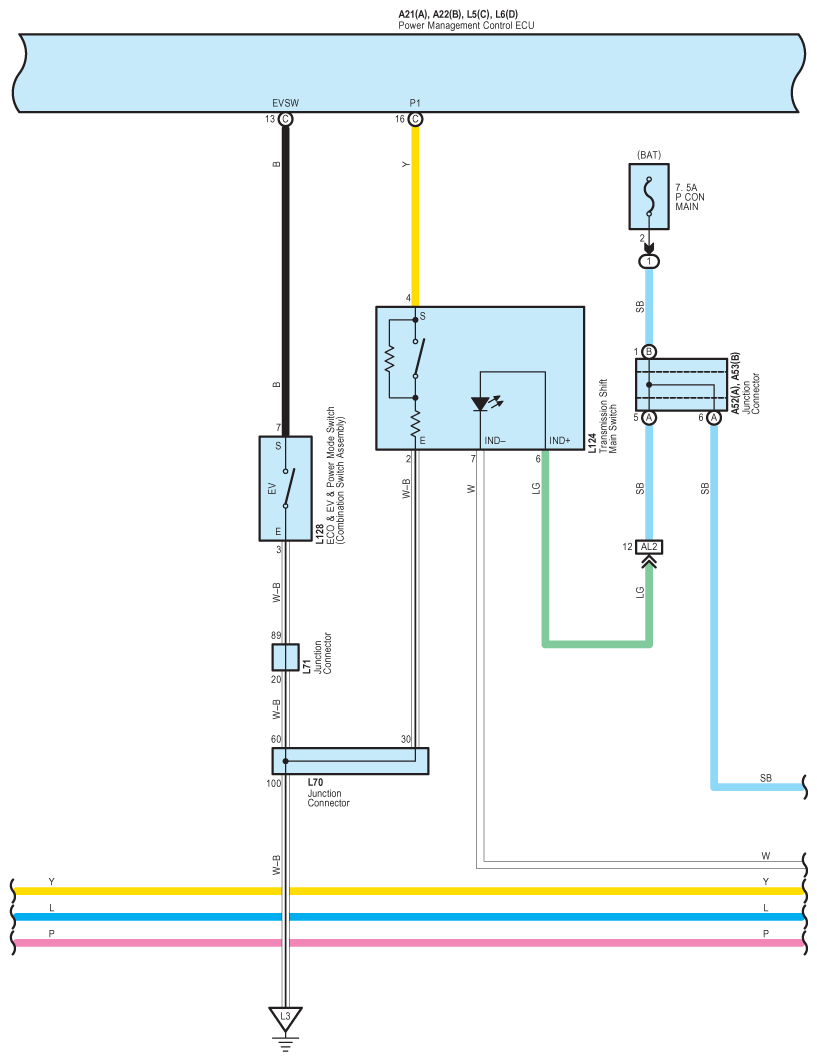

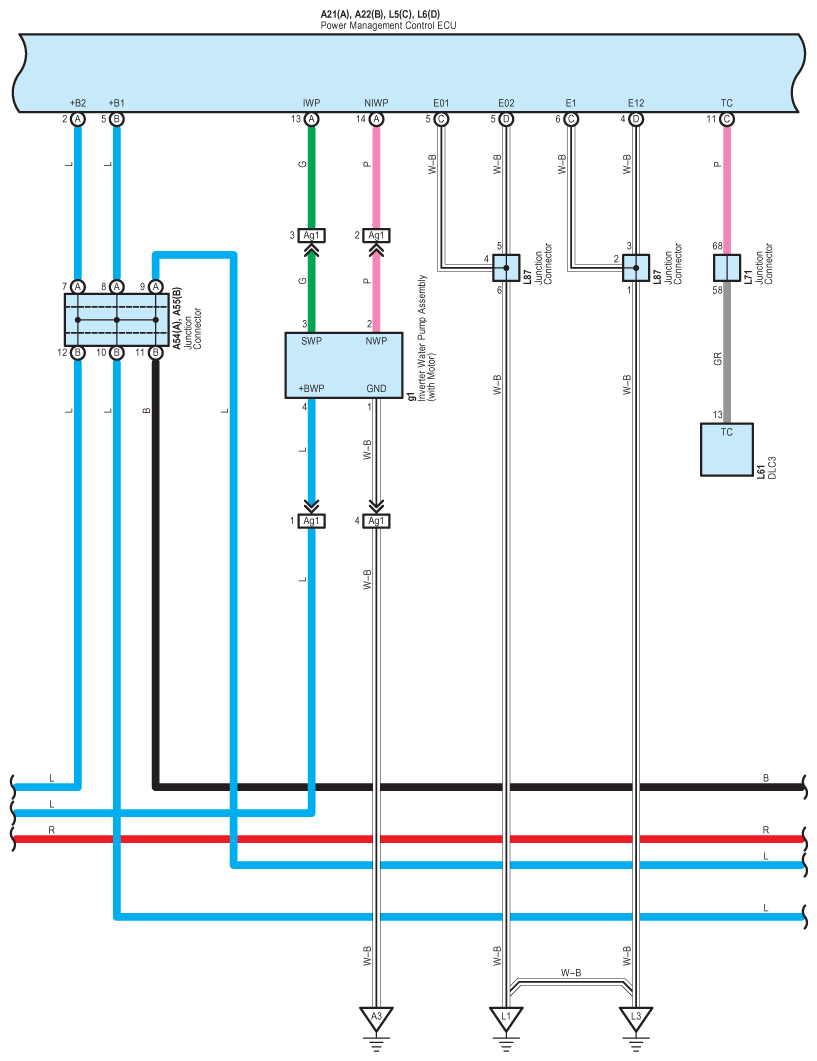

Fig 8: Hybrid And Shift Control System Wiring Diagram (8 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Hybrid And Shift Control System Wiring Diagram (9 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Hybrid And Shift Control System Wiring Diagram (10 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

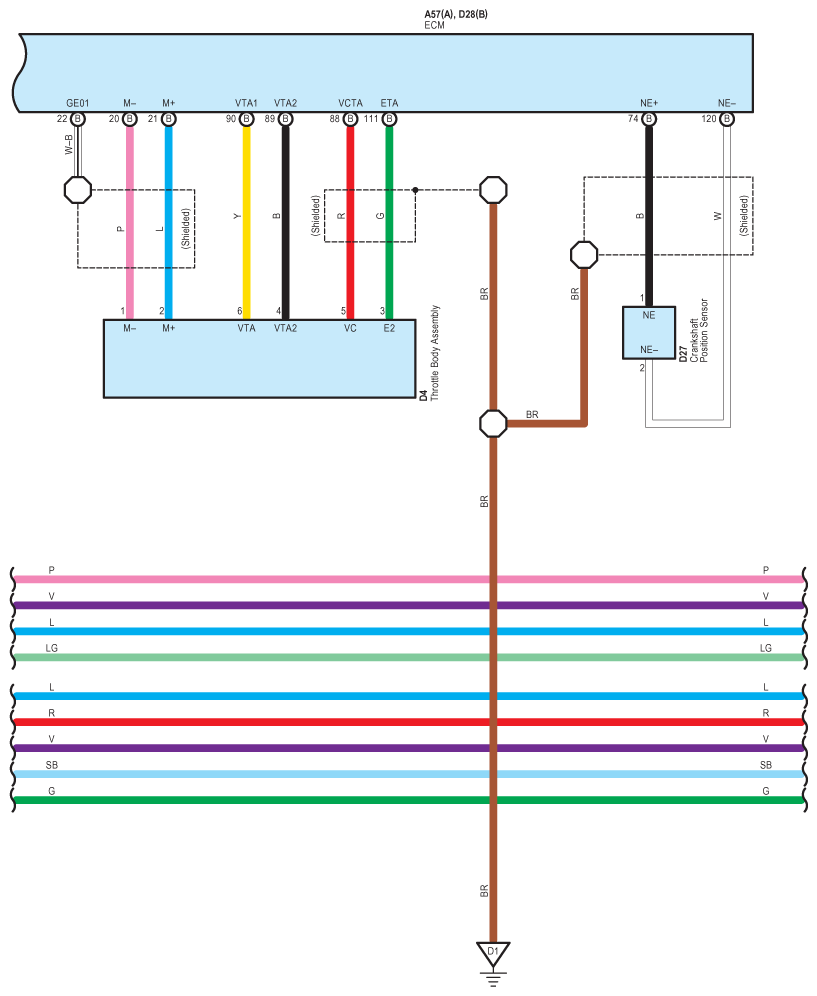

Fig 11: Hybrid And Shift Control System Wiring Diagram (11 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

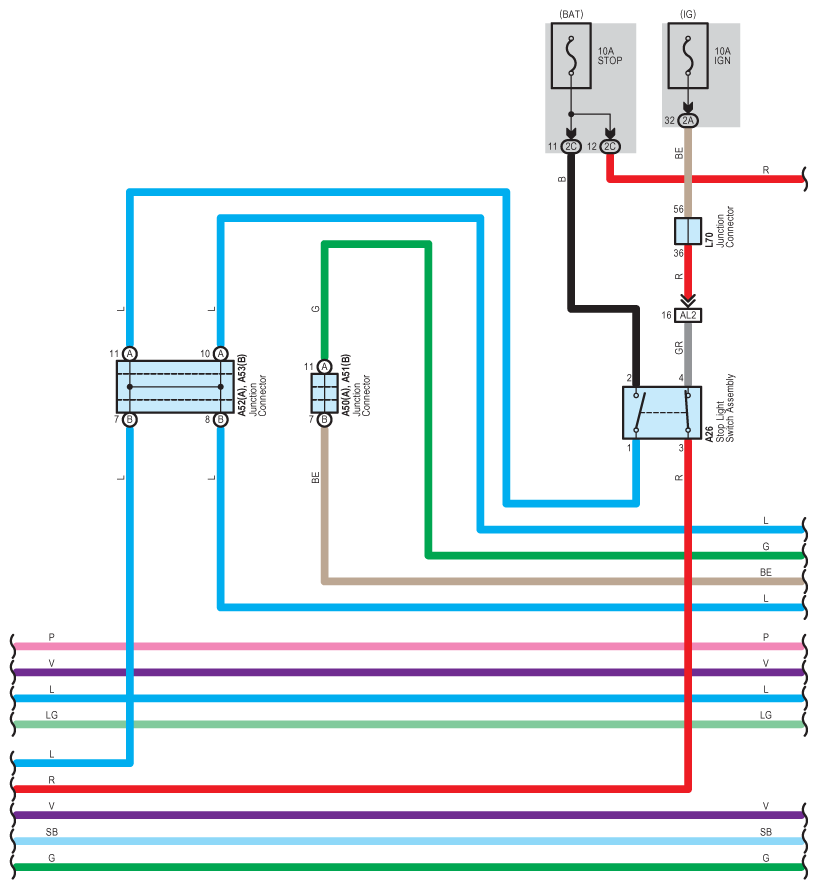

Fig 12: Hybrid And Shift Control System Wiring Diagram (12 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

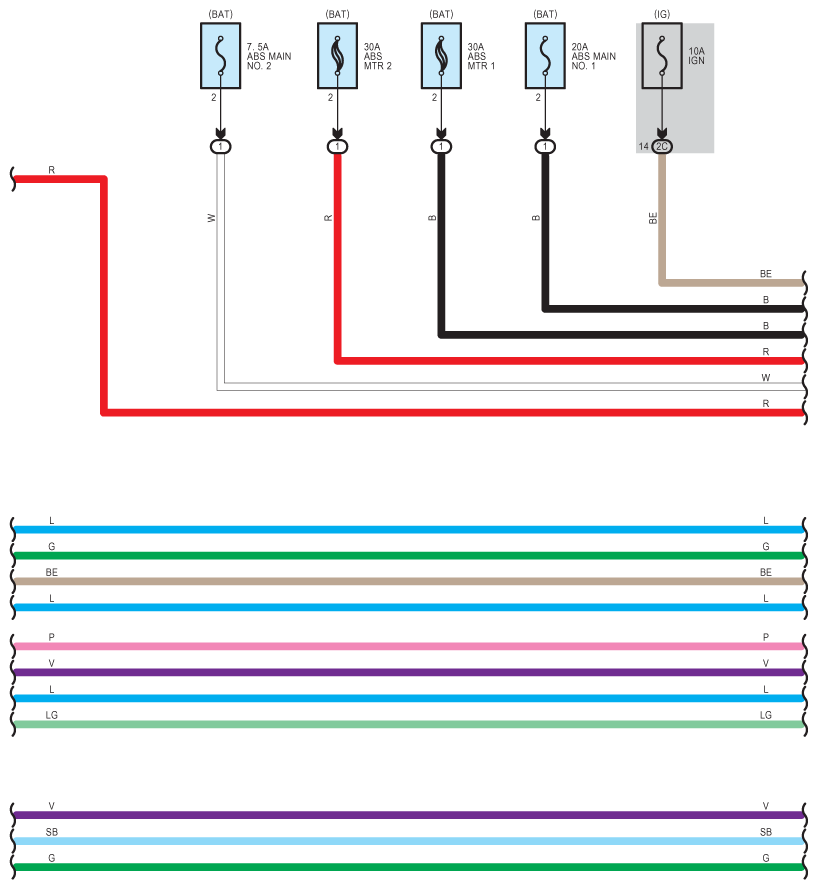

Fig 13: Hybrid And Shift Control System Wiring Diagram (13 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 14: Hybrid And Shift Control System Wiring Diagram (14 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 15: Hybrid And Shift Control System Wiring Diagram (15 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

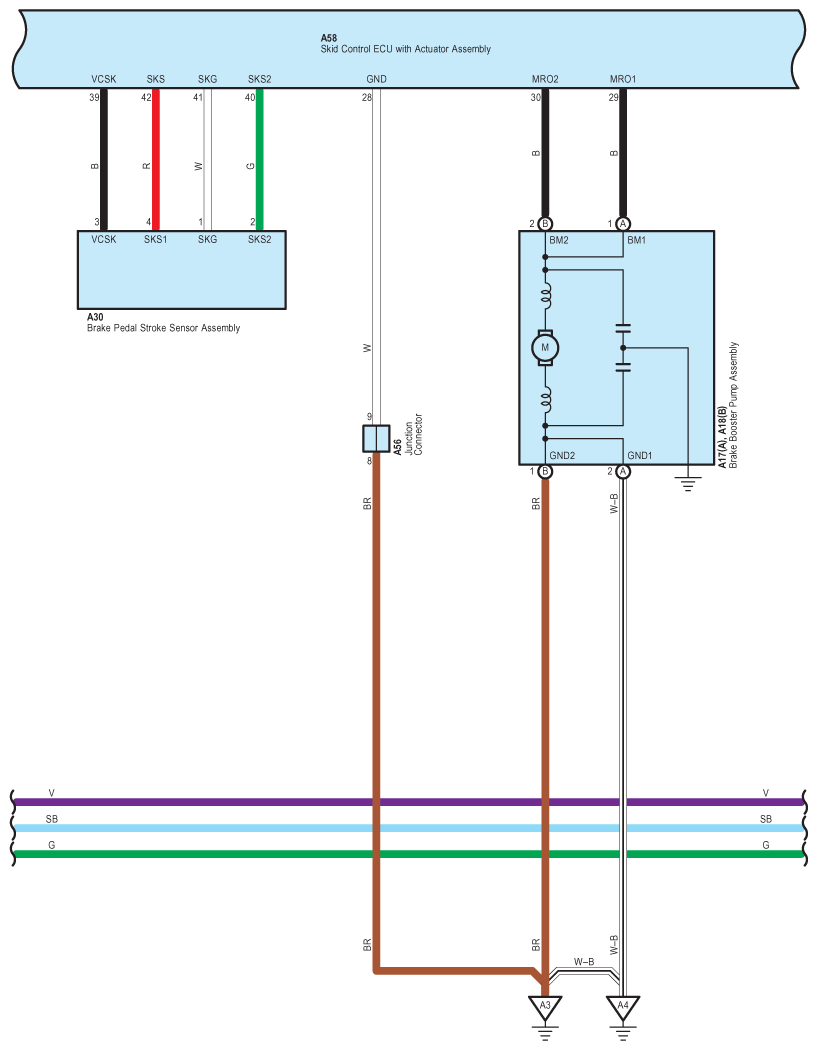

Fig 16: Hybrid And Shift Control System Wiring Diagram (16 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

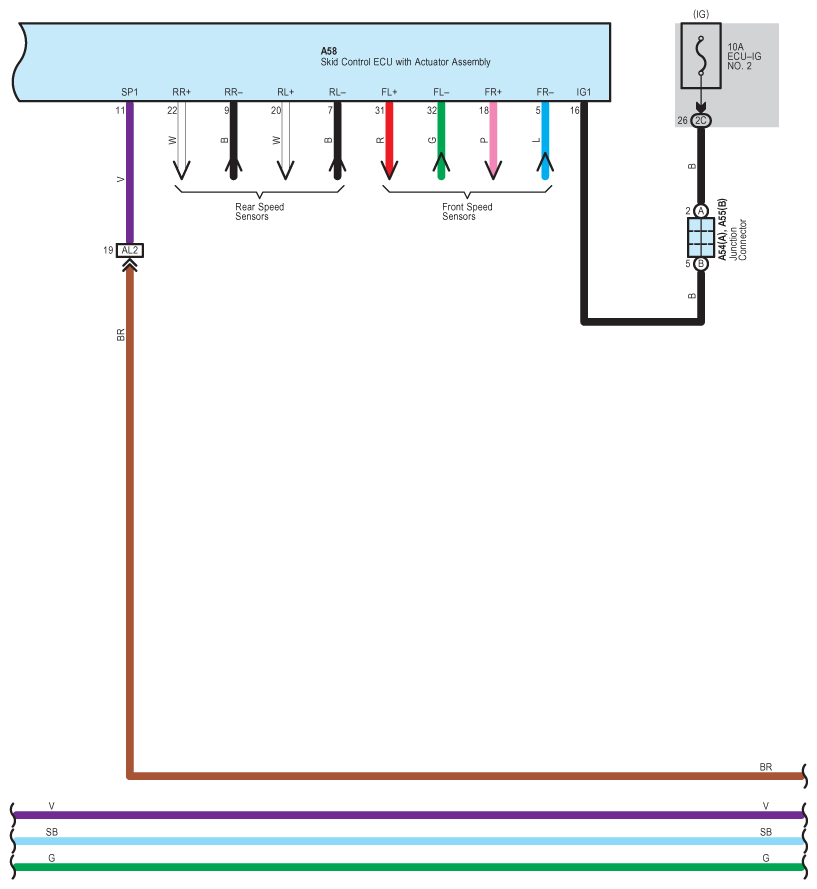

Fig 17: Hybrid And Shift Control System Wiring Diagram (17 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 18: Hybrid And Shift Control System Wiring Diagram (18 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

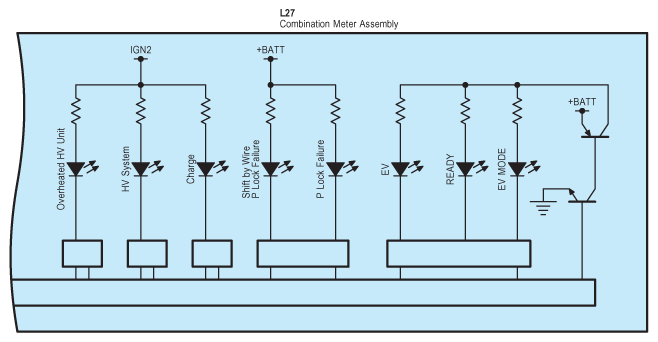

Fig 19: Hybrid And Shift Control System Wiring Diagram (19 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 20: Hybrid And Shift Control System Wiring Diagram (20 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 21: Hybrid And Shift Control System Wiring Diagram (21 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 22: Hybrid And Shift Control System Wiring Diagram (22 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 23: Hybrid And Shift Control System Wiring Diagram (23 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 24: Hybrid And Shift Control System Wiring Diagram (24 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 25: Hybrid And Shift Control System Wiring Diagram (25 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 26: Hybrid And Shift Control System Wiring Diagram (26 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 27: Hybrid And Shift Control System Wiring Diagram (27 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 28: Hybrid And Shift Control System Wiring Diagram (28 Of 28)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
