System Diagram

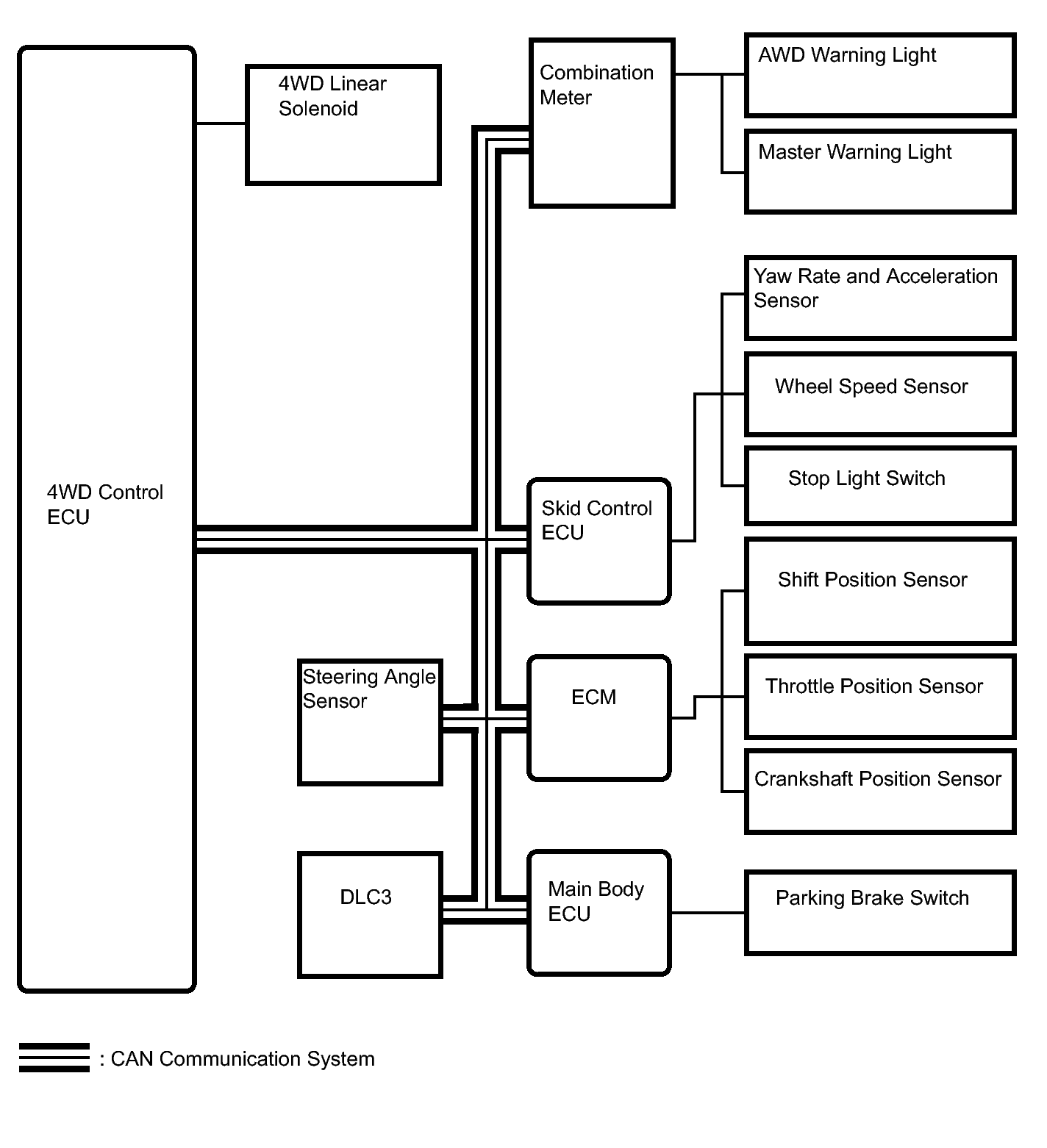

Fig 1: Identifying CAM System Diagram
GTY305135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU Receiving ECU Signal Communication Method
Skid control ECU 4WD control ECU
  • Wheel speed sensor signal
  • Stop light switch signal
  • Deceleration sensor signal
 CAN communication system
ECM 4WD control ECU
  • Shift position sensor signal
  • Throttle position sensor signal
  • Crankshaft position sensor signal
 CAN communication system
Main body ECU 4WD control ECU Parking brake switch signal CAN communication system
4WD control ECU Combination meter AWD warning light signal CAN communication system
