Throttle Body: Removal: Removal

REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to REMOVAL
REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to REMOVAL - Step 10
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 24
REMOVE NO. 1 ENGINE UNDER COVER . Refer to REMOVAL - Step 4
DRAIN ENGINE COOLANT . Refer to REPLACEMENT - Step 3
REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL

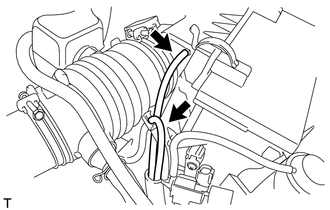

1. Disengage the 3 vacuum hose clamps.

  Fig 1: Locating Air Cleaner Inlet Cover Assembly Seal, Vacuum Hose & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and the air cleaner inlet cover assembly seal.
REMOVE AIR CLEANER AND HOSE

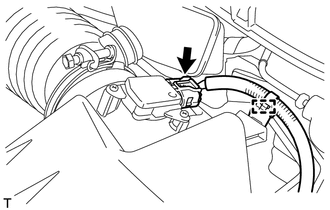

1. Disconnect the mass air flow meter connector.

  Fig 2: Locating Mass Air Flow Meter Connector & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the wire harness clamp.

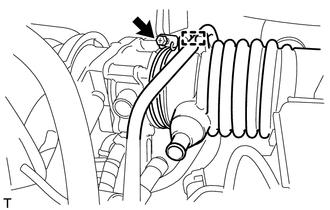

3. Disconnect the vacuum hose.

  Fig 3: Locating Vacuum Hose & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Separate the vacuum hose from the hose clamp.

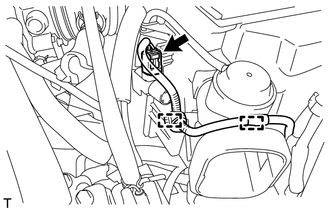

5. Disconnect the vacuum switching valve connector.

  Fig 4: Locating Vacuum Switching Valve Connector & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Disengage the 2 wire harness clamps.
7. Disconnect the 2 vacuum hoses.

  Fig 5: Locating Air Cleaner Vacuum Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Loosen the clip and disconnect the No. 2 ventilation hose.

  Fig 6: Locating No. 2 Ventilation Hose & Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Separate the fuel vapor feed hose from the hose clamp.

  Fig 7: Locating Air Cleaner Hose Clamp & Fuel Vapor Feed Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Loosen the hose clamp and disconnect the air cleaner hose.

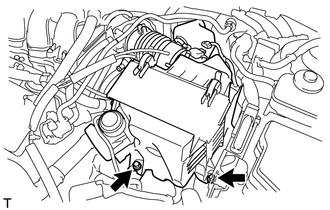

11. Remove the 2 bolts and the air cleaner assembly.

  Fig 8: Locating Air Cleaner Assembly & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT WATER BY-PASS HOSE

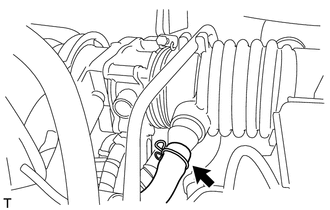

1. Loosen the clip and disconnect the water by-pass hose.

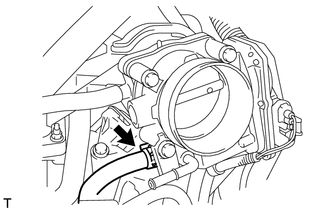

  Fig 9: Locating Water By-Pass Hose & Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT NO. 2 WATER BY-PASS HOSE

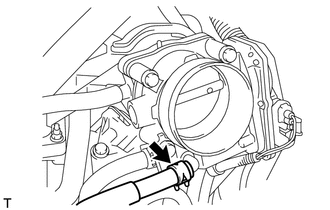

1. Loosen the clip and disconnect the No. 2 water by-pass hose.

  Fig 10: Locating No. 2 Water By-Pass Hose & Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY

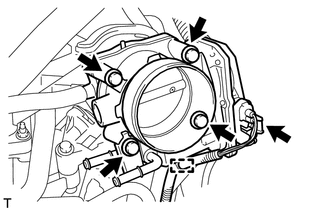

1. Disconnect the throttle body connector and the wire harness clamp.

  Fig 11: Locating Throttle Body/Motor Assembly, Connector & Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts, wire harness clamp stay and the throttle body.
3. Remove the gasket from the intake air surge tank assembly.
