Ignition Coil And Spark Plug: Removal: Removal

REMOVE INTAKE AIR SURGE TANK ASSEMBLY
Refer to REMOVAL
REMOVE NO. 1 SURGE TANK STAY . Refer to REMOVAL - Step 4
REMOVE IGNITION COIL ASSEMBLY
1. Disconnect the 3 wire harness clamps.

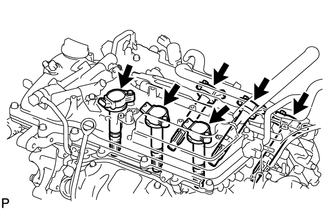

  Fig 1: Identifying Ignition Coil Assembly Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 6 ignition coil connectors.

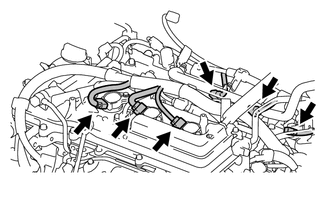

  Fig 2: Locating Ignition Coil Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 6 bolts and 6 ignition coils.

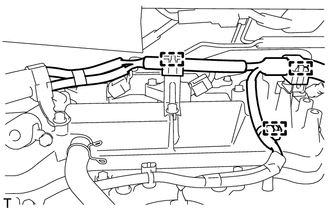

  Fig 3: Installing Ignition Coils
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPARK PLUG
1. Using a 16 mm spark plug wrench, remove the 6 spark plugs.

  Fig 4: Removing Spark Plugs Using Spark Plug Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 16 mm Spark Plug Wrench
