Engine Immobilizer System (w/Smart Key System), Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System): Notes

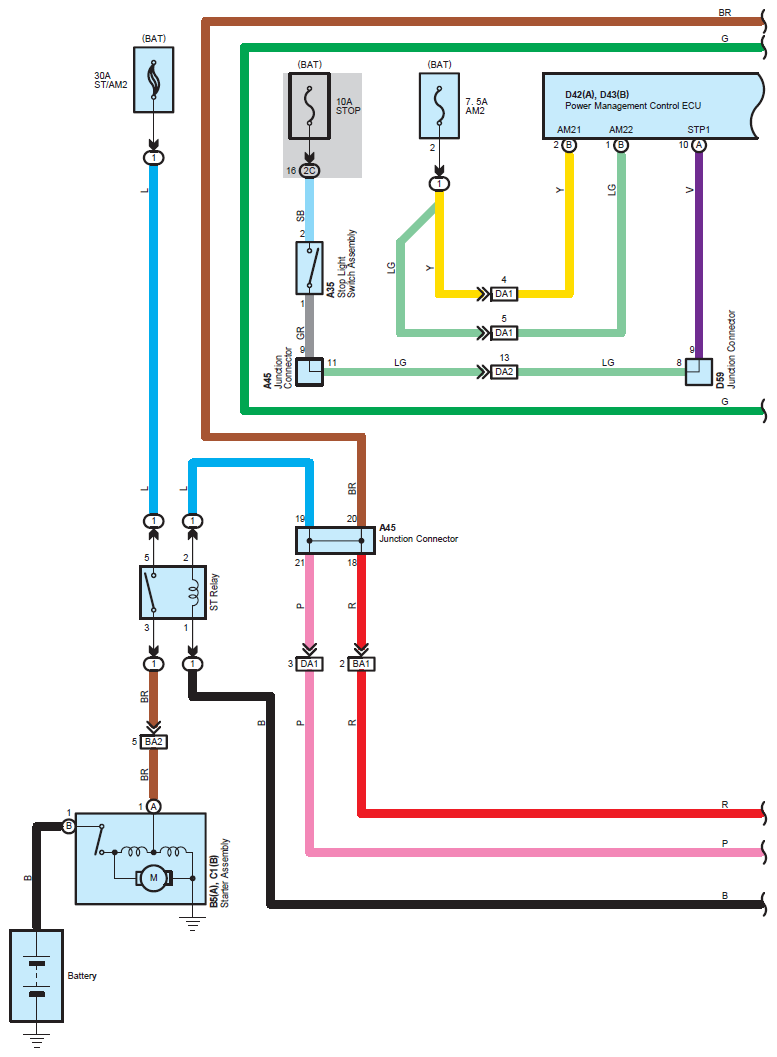

Fig 1: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 1 Of 17)
G09116562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

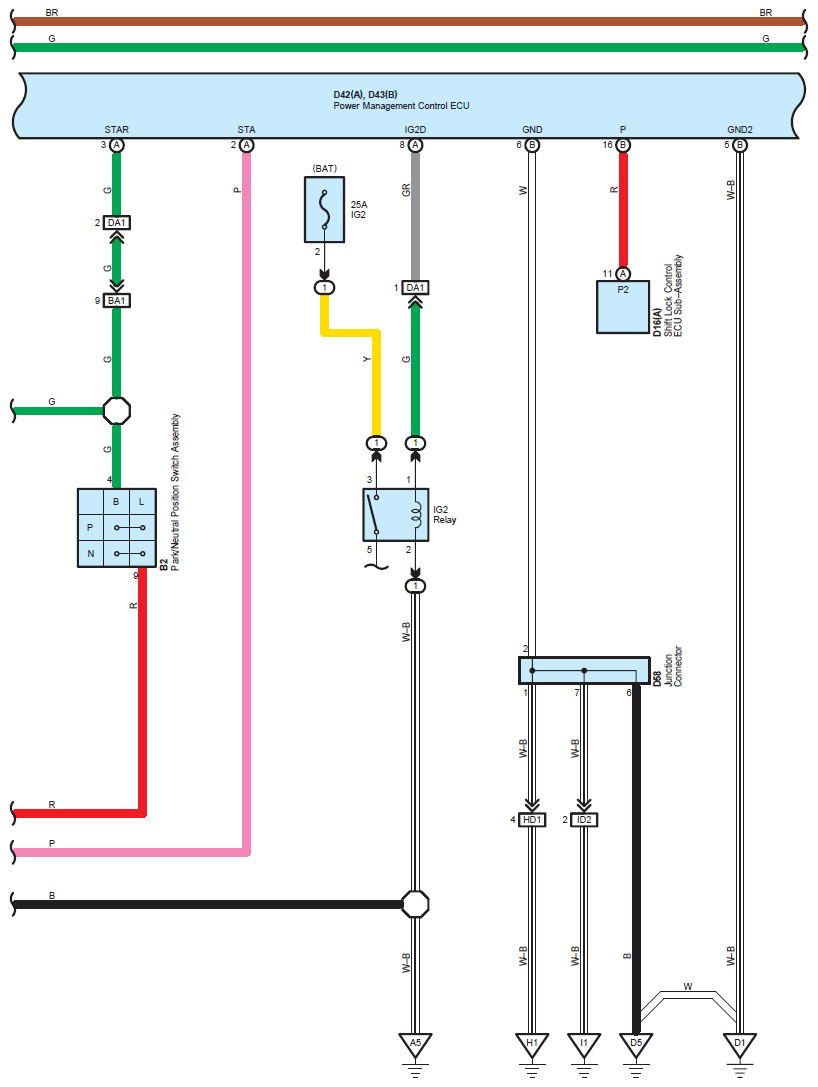

Fig 2: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 2 Of 17)
G09116563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

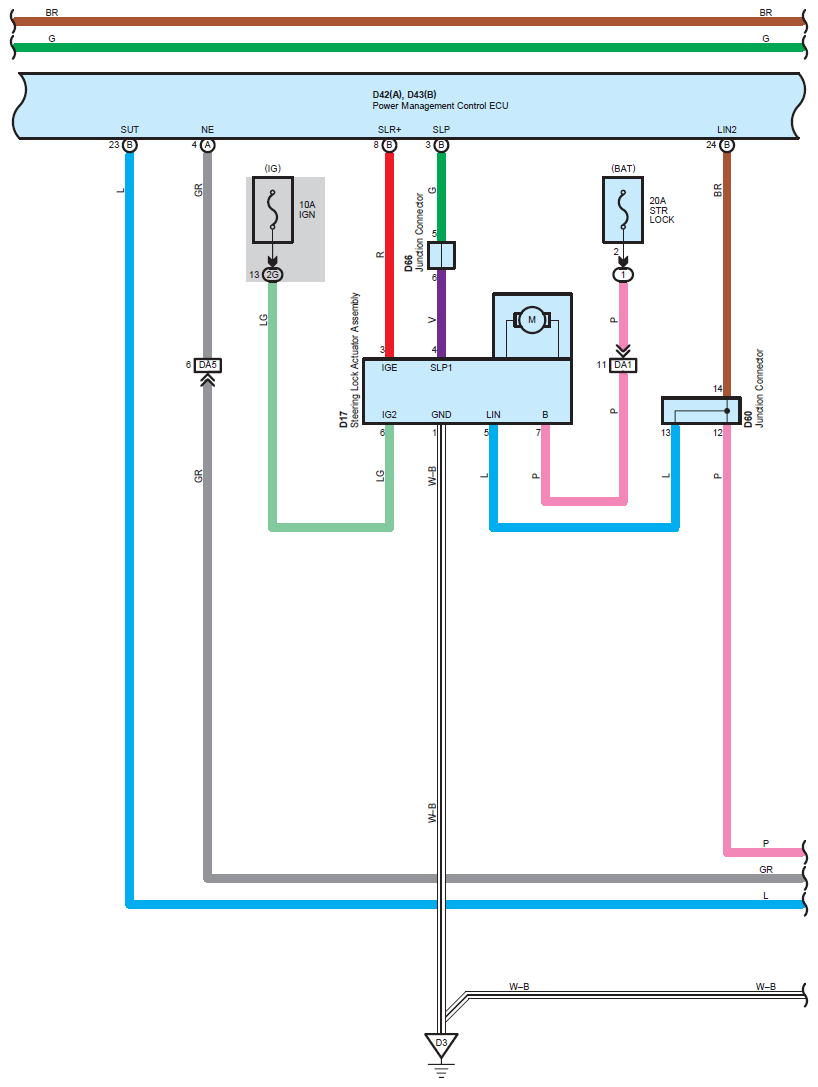

Fig 3: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 3 Of 17)
G09116564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

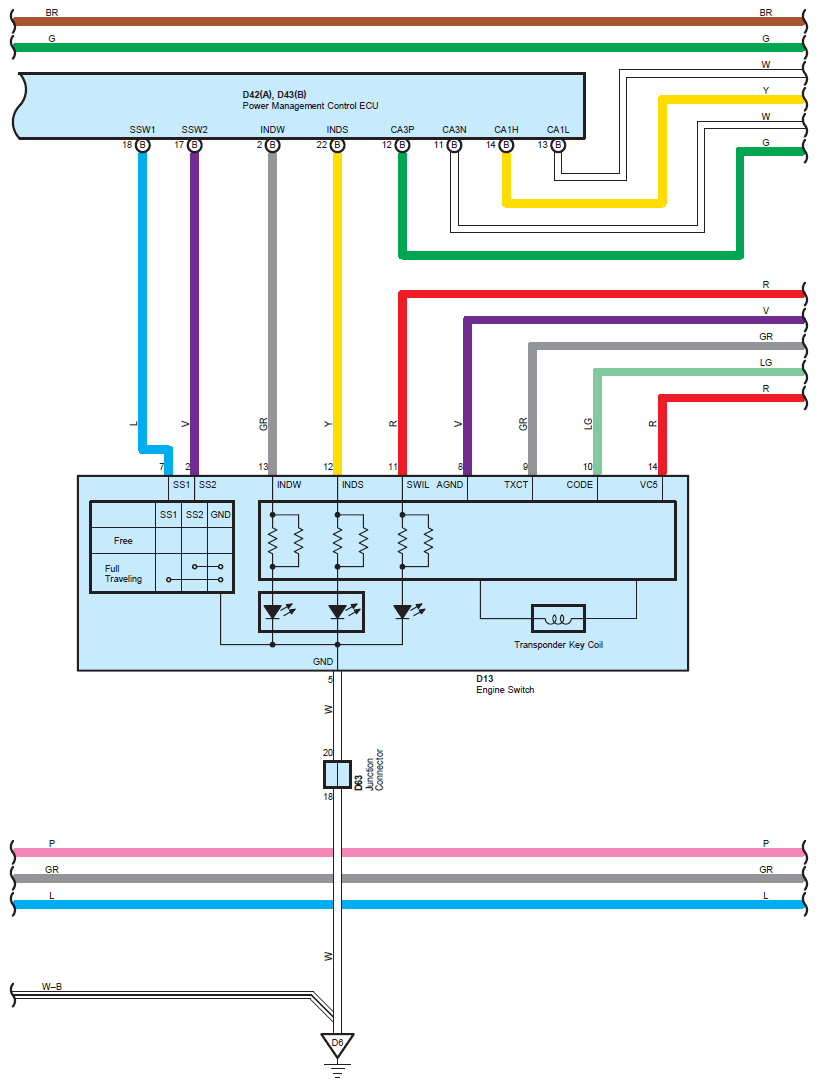

Fig 4: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 4 Of 17)
G09116565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

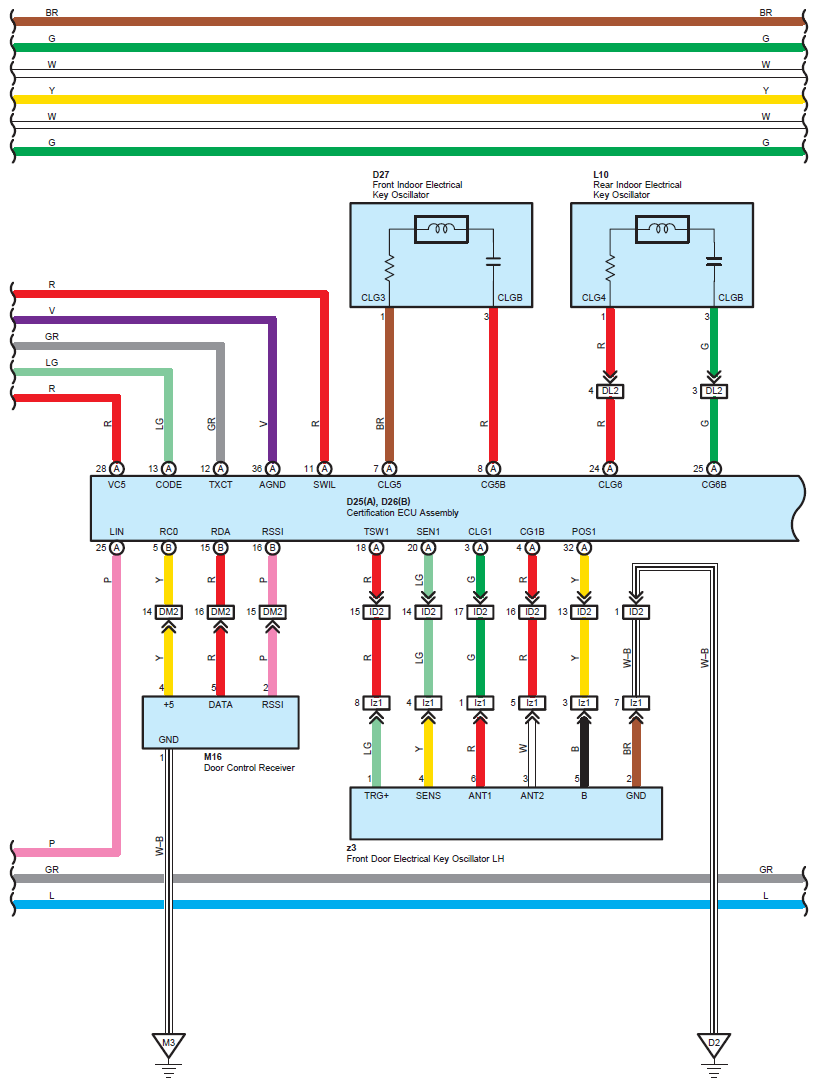

Fig 5: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 5 Of 17)
G09116566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

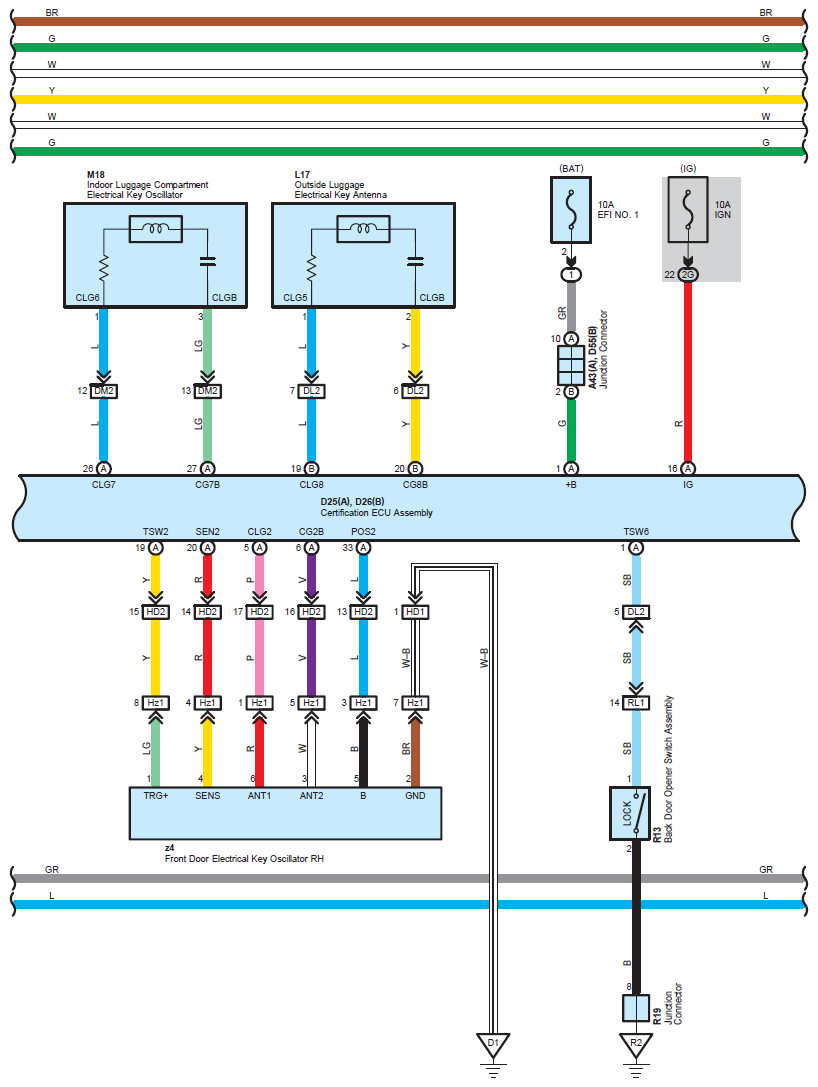

Fig 6: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 6 Of 17)
G09116567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

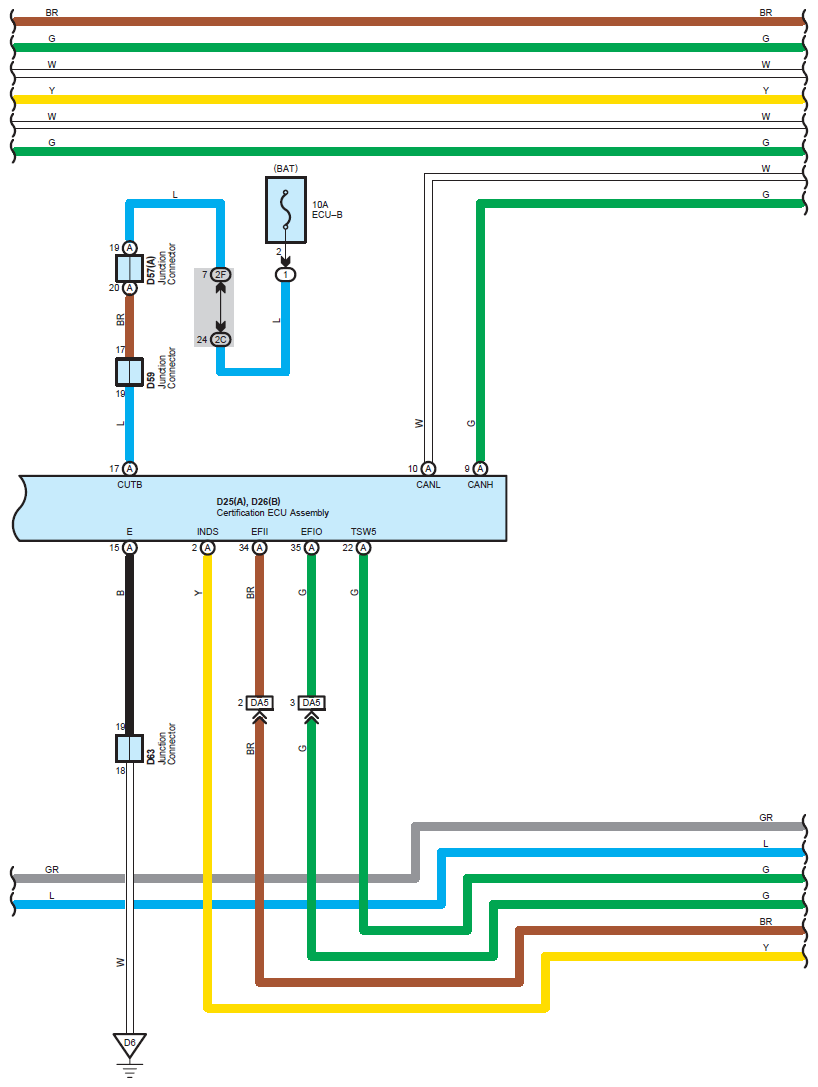

Fig 7: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 7 Of 17)
G09116568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

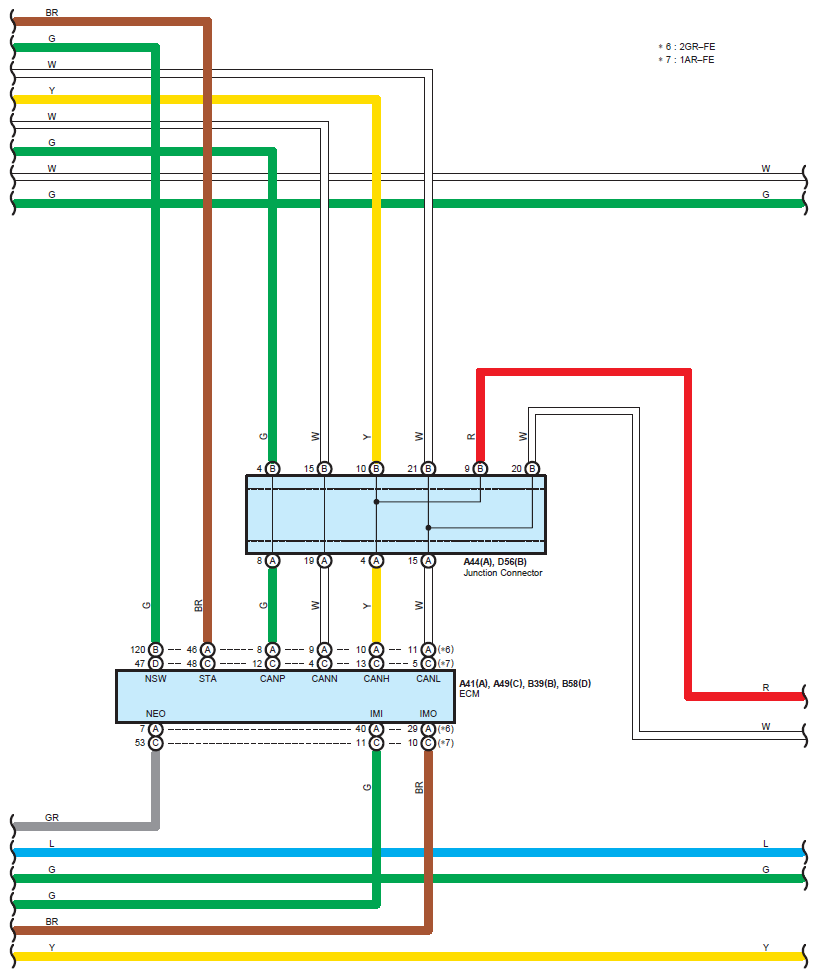

Fig 8: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 8 Of 17)
G09116569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

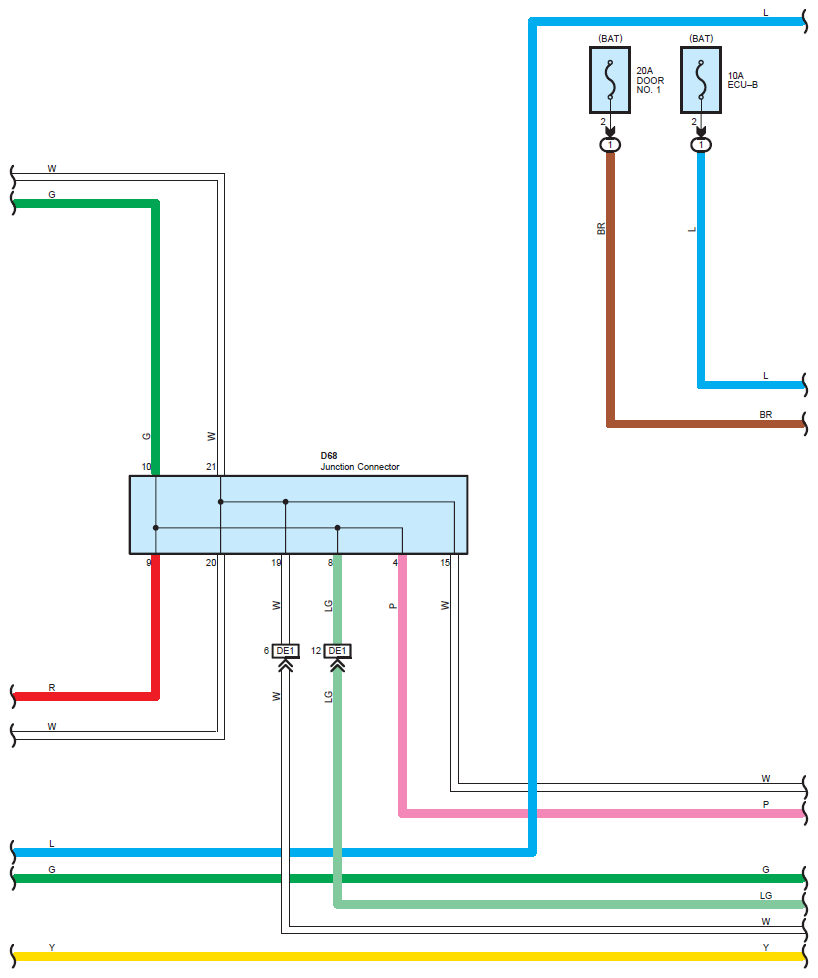

Fig 9: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 9 Of 17)
G09116570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

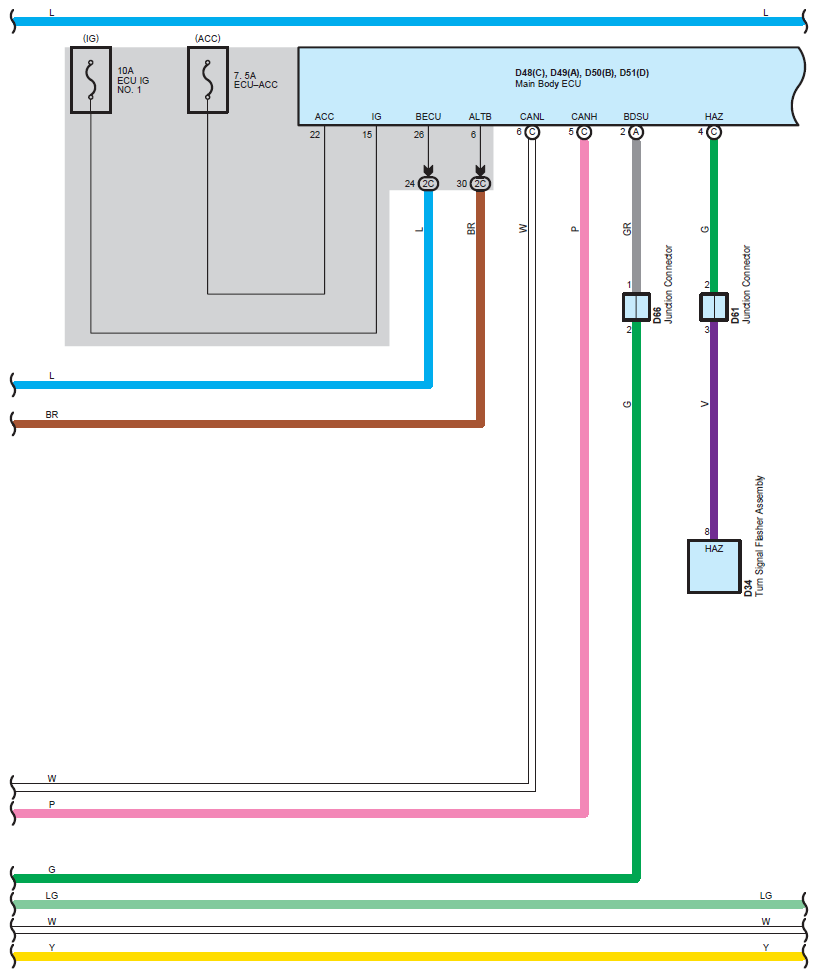

Fig 10: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 10 Of 17)
G09116571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

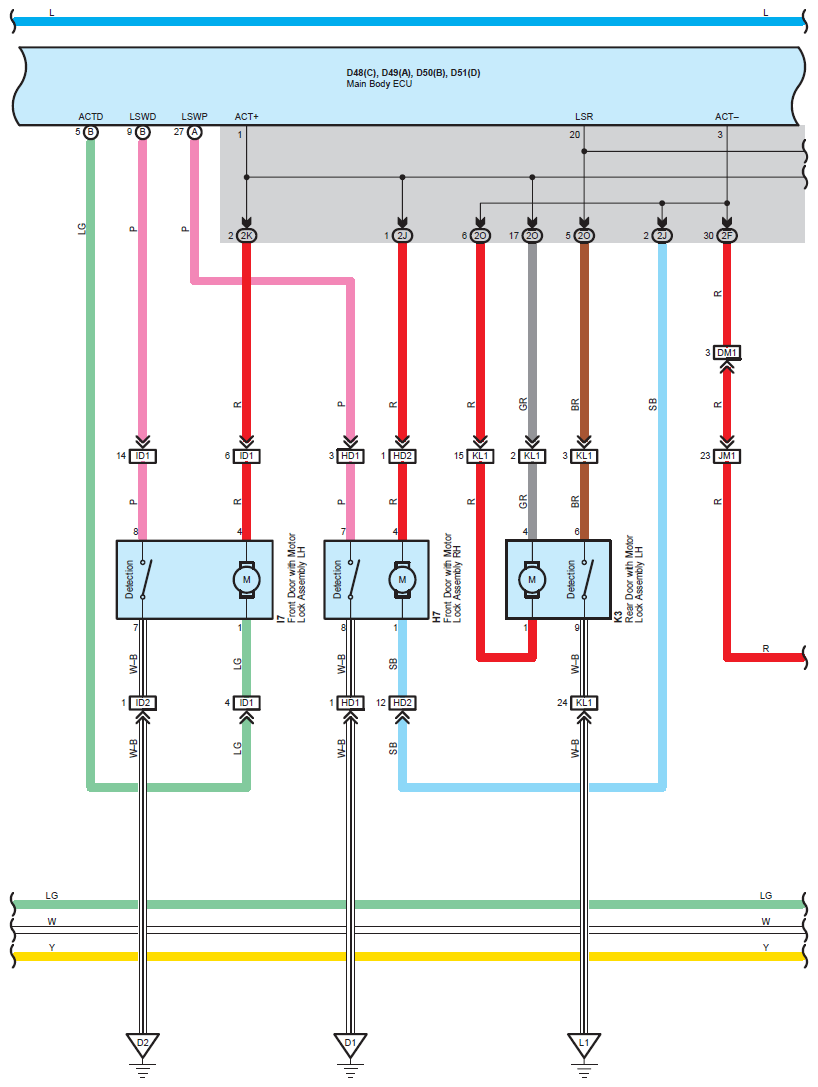

Fig 11: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 11 Of 17)
G09116572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

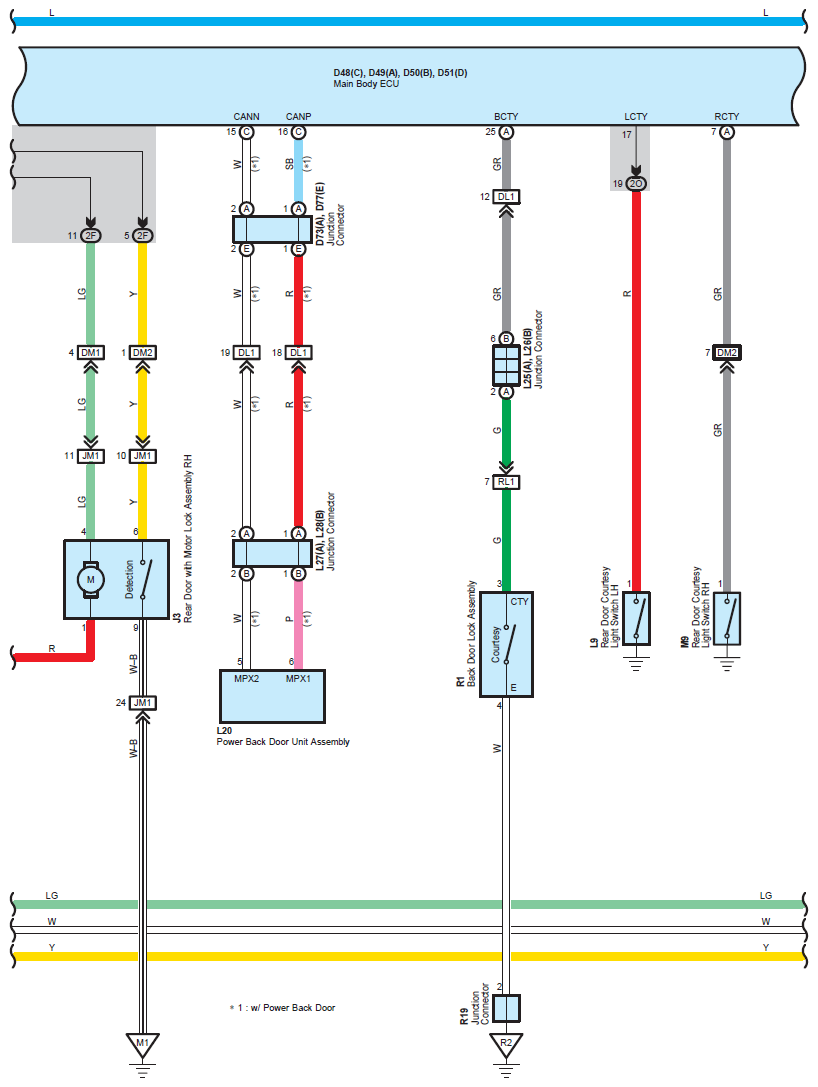

Fig 12: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 12 Of 17)
G09116573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

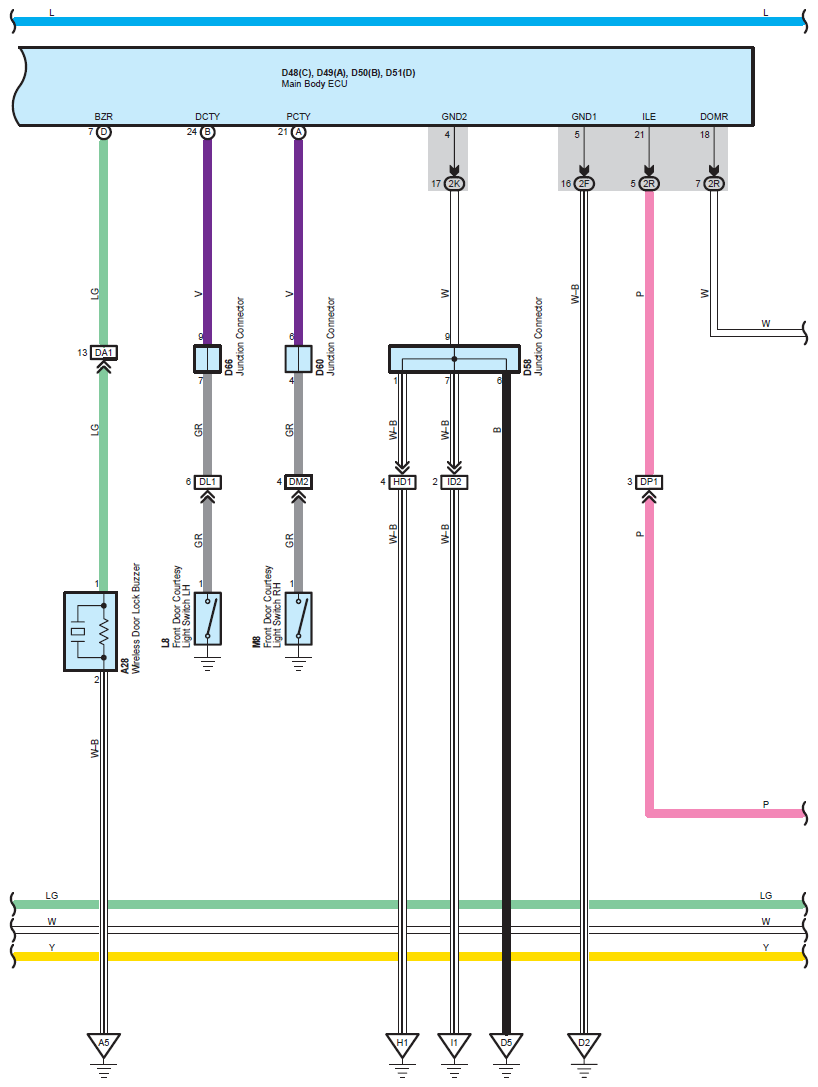

Fig 13: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 13 Of 17)
G09116574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

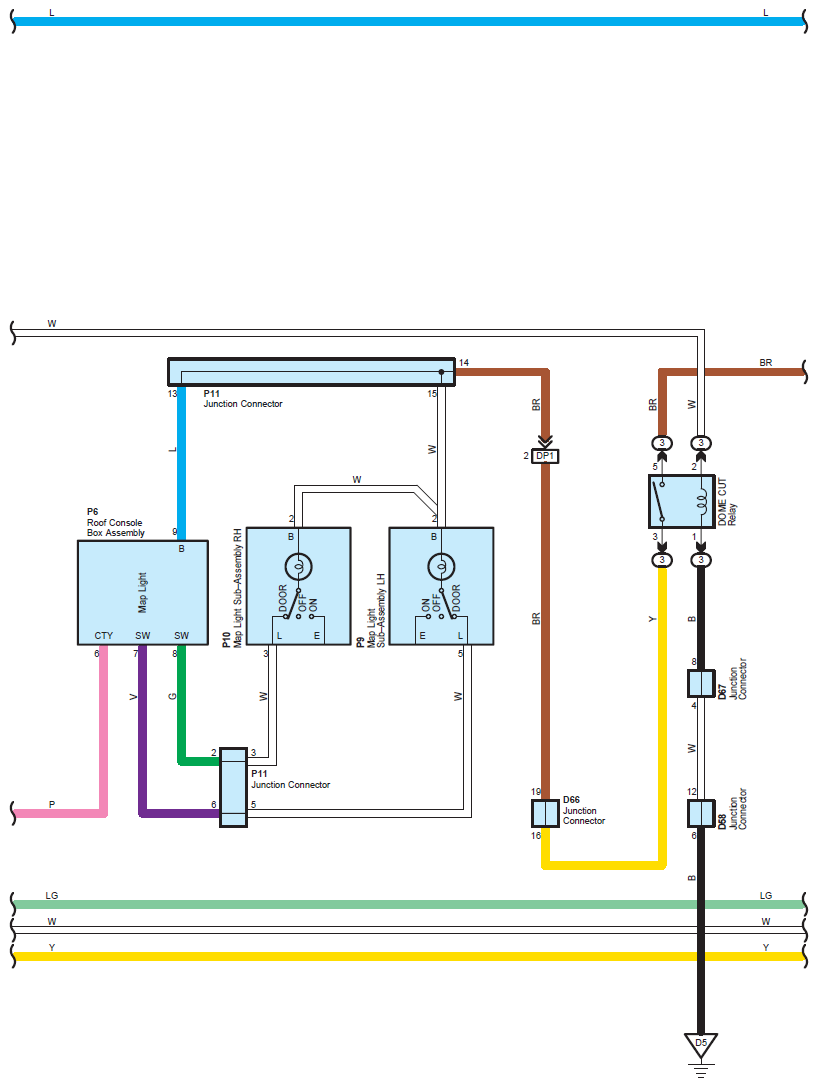

Fig 14: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 14 Of 17)
G09116575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

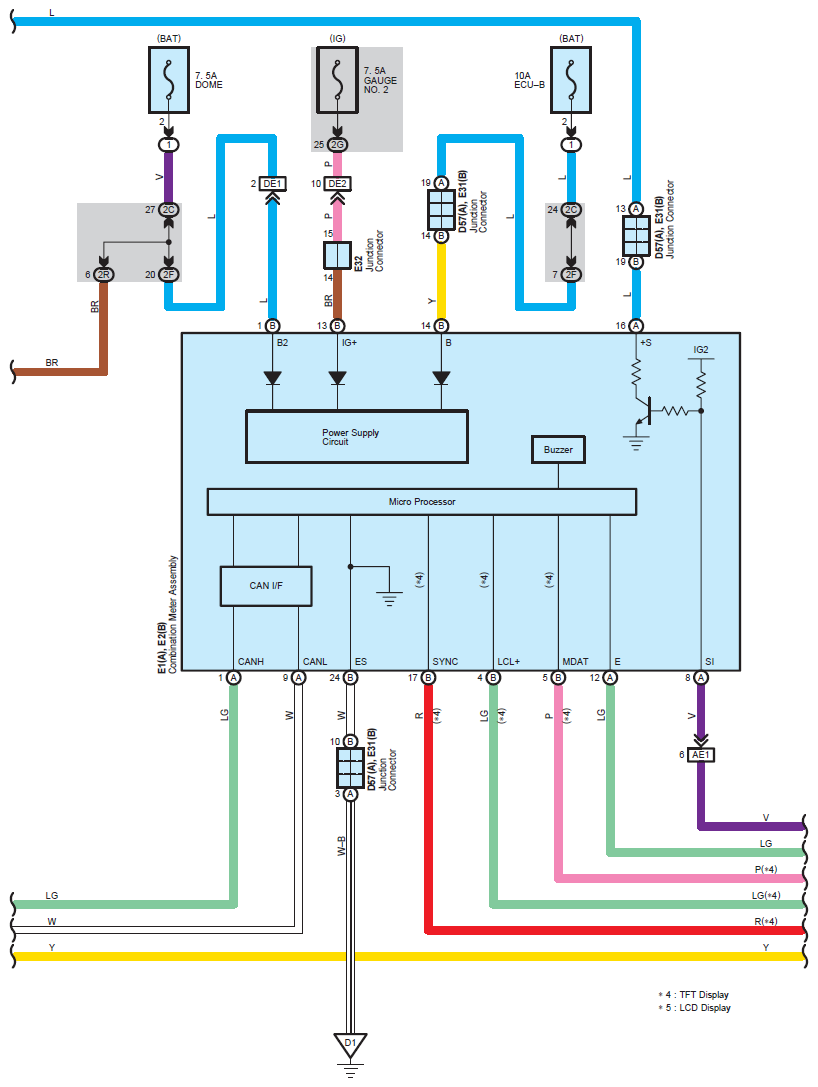

Fig 15: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 15 Of 17)
G09116576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

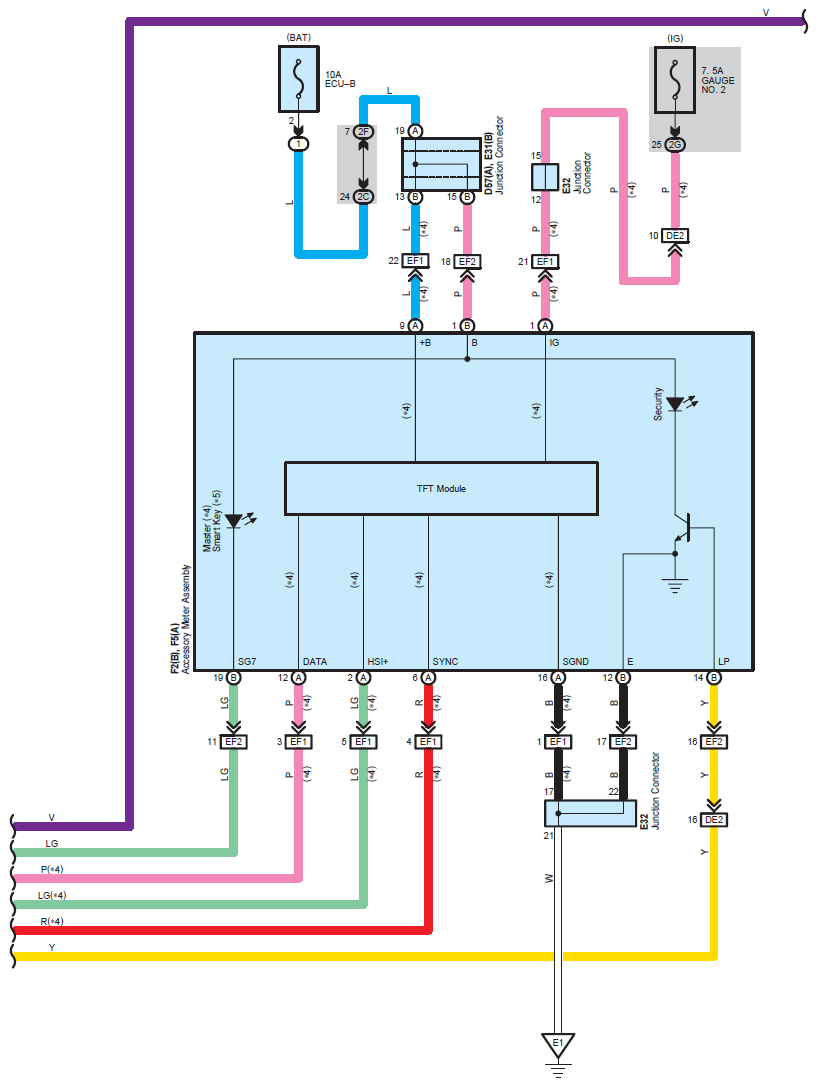

Fig 16: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 16 Of 17)
G09116577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

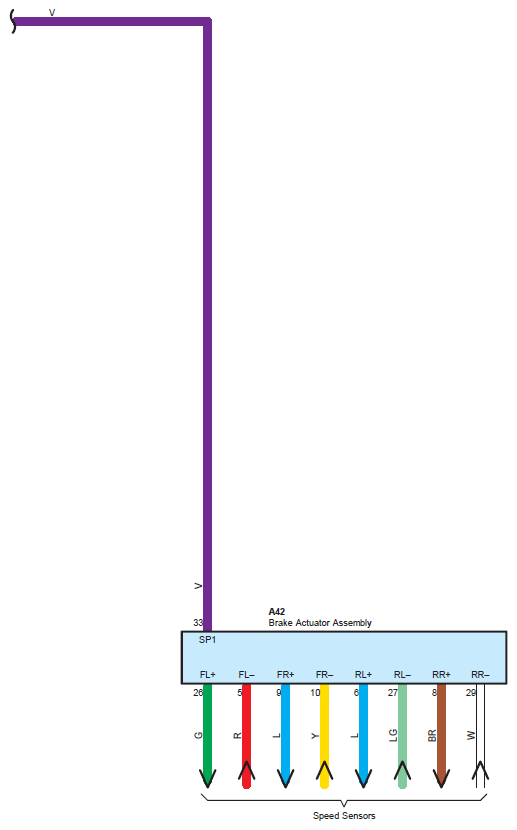

Fig 17: Engine Immobilizer, Smart Key, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (w/ Smart Key System, 17 Of 17)
G09116578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
