Remote Control Mirror (w/Seat Position Memory): Notes

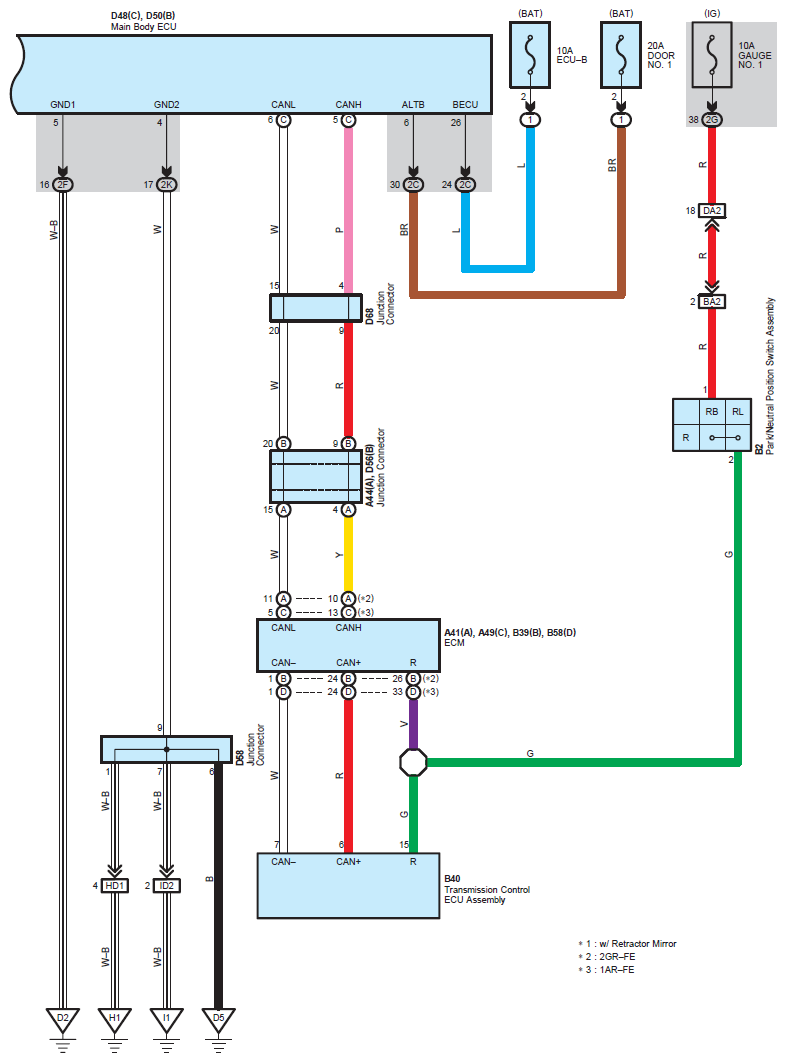

Fig 1: Remote Control Mirror System Wiring Diagram (W/ Seat Position Memory, 1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

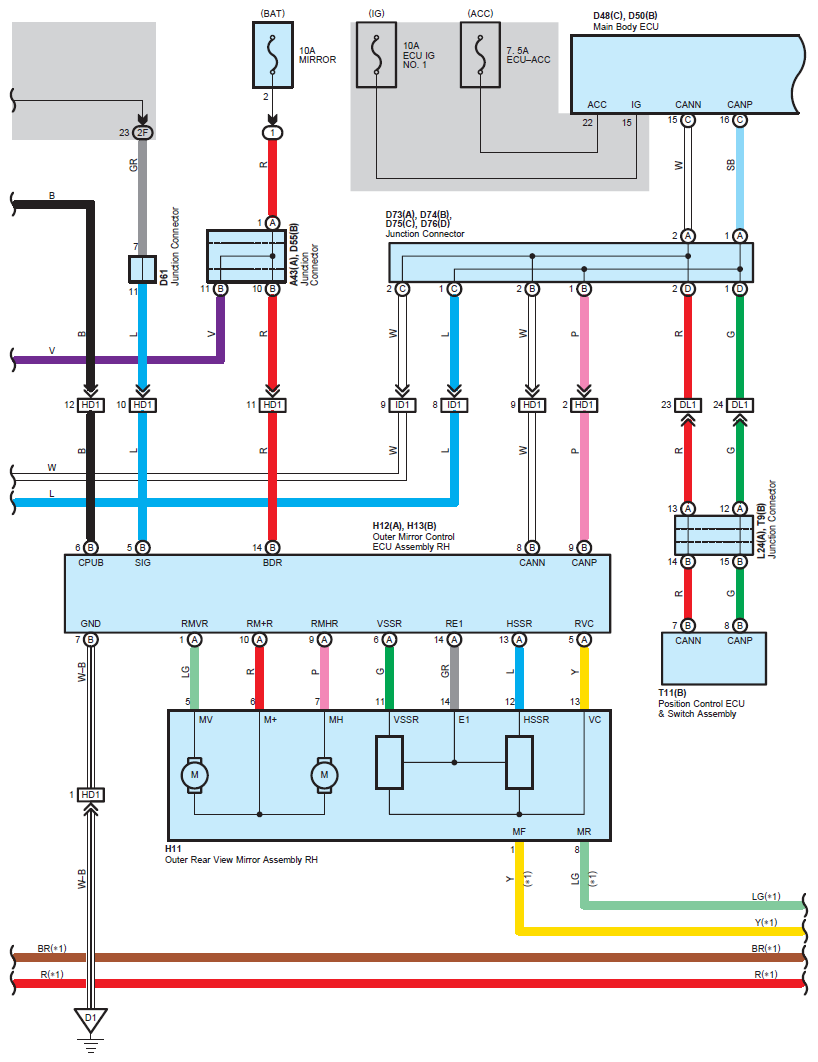

Fig 2: Remote Control Mirror System Wiring Diagram (W/ Seat Position Memory, 2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

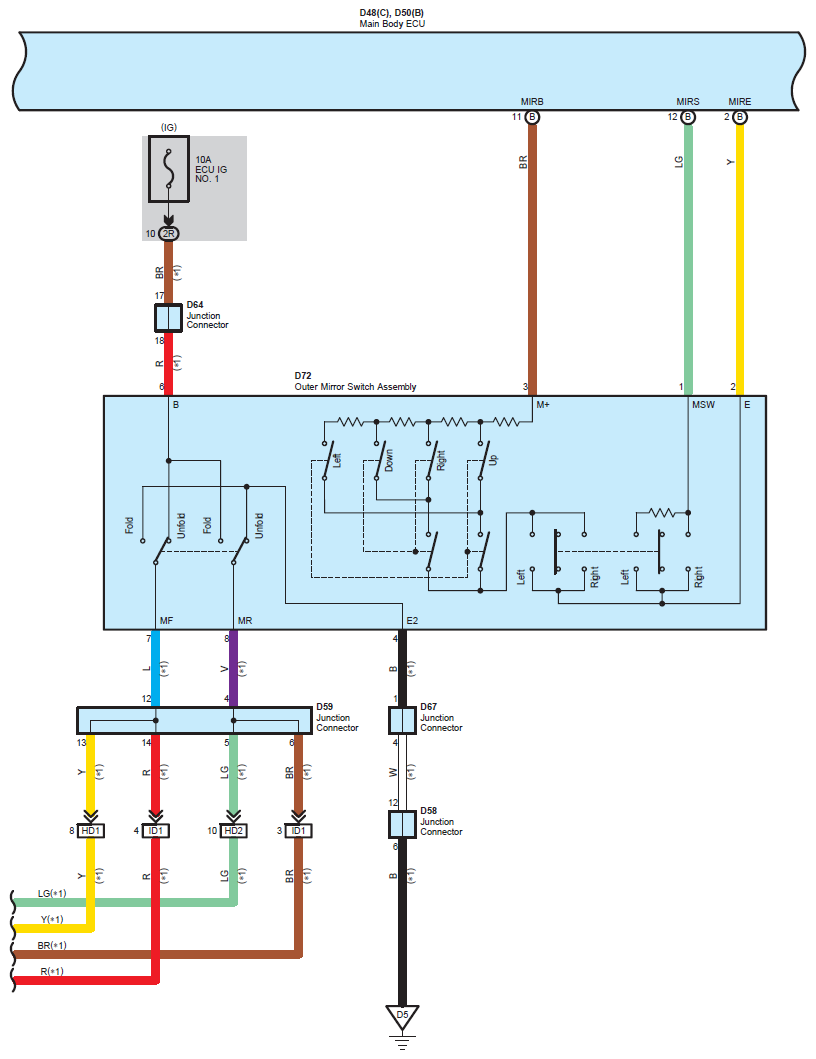

Fig 3: Remote Control Mirror System Wiring Diagram (W/ Seat Position Memory, 3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

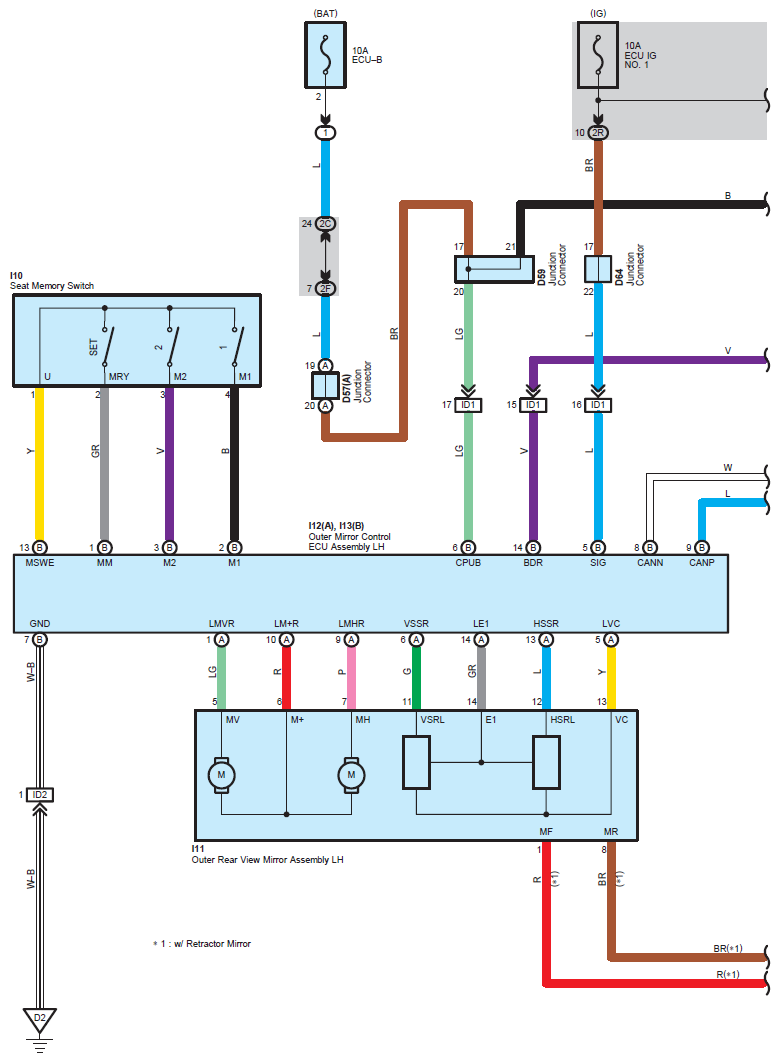

Fig 4: Remote Control Mirror System Wiring Diagram (W/ Seat Position Memory, 4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
