Abs (S/D): Notes

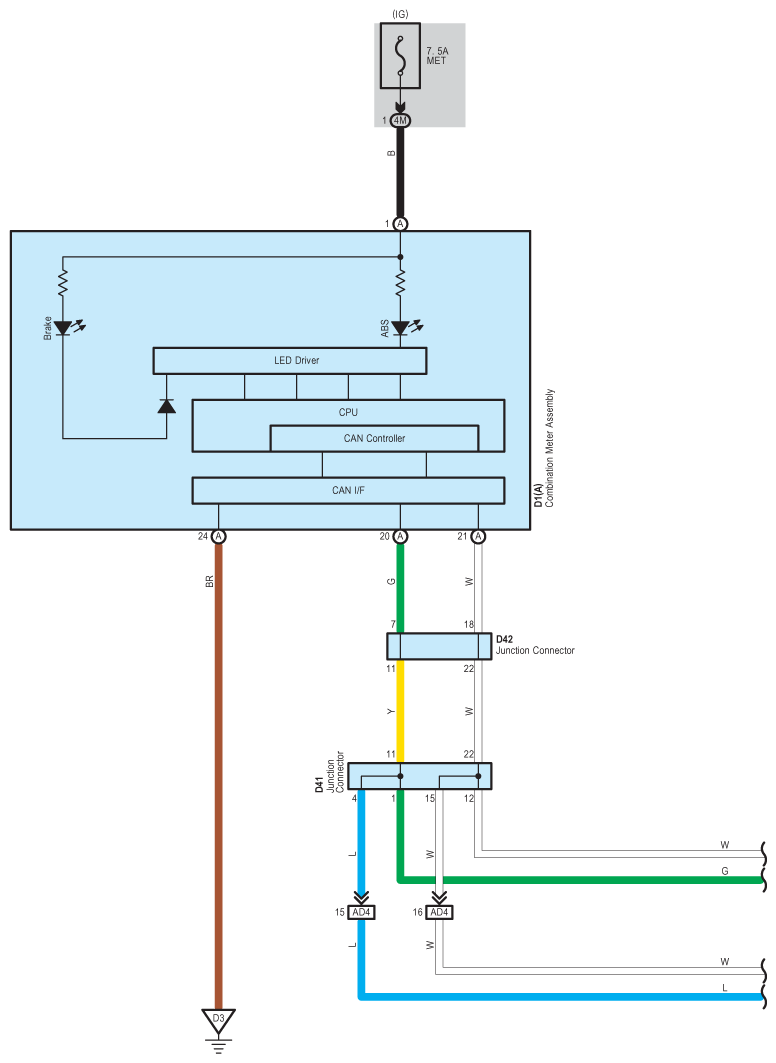

Fig 1: ABS (S/D) System Wiring Diagram (1 Of 3)
G09112720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

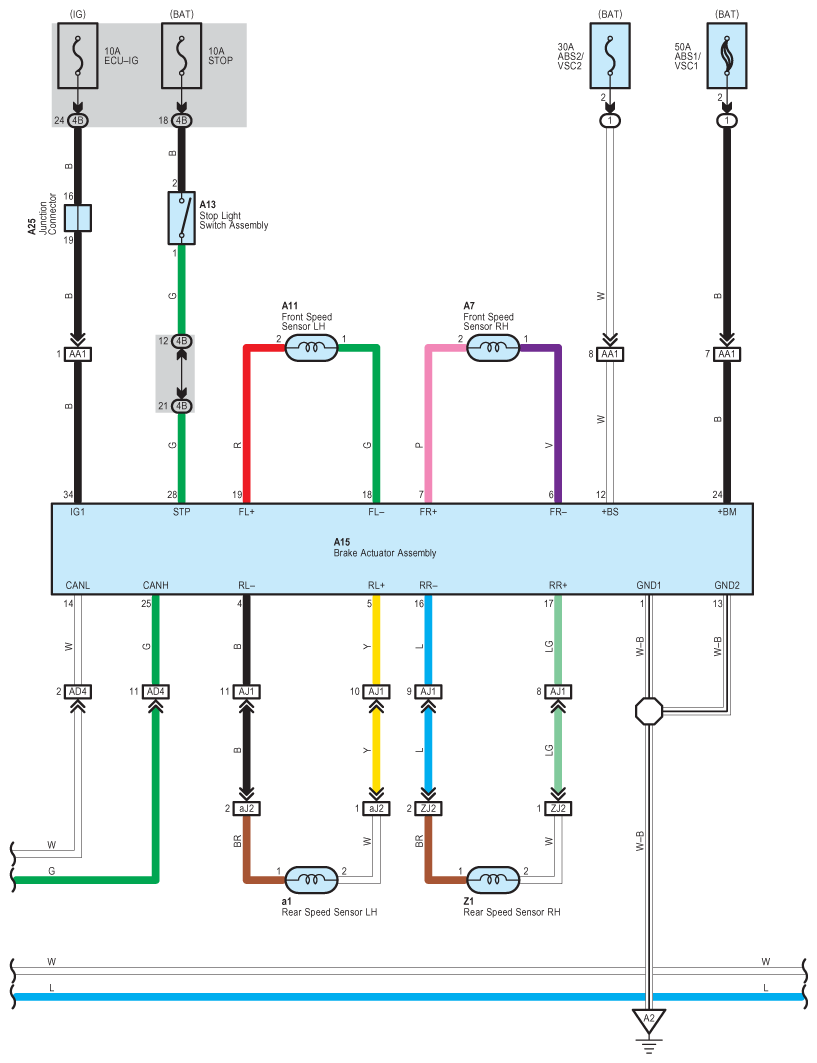

Fig 2: ABS (S/D) System Wiring Diagram (2 Of 3)
G09112721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

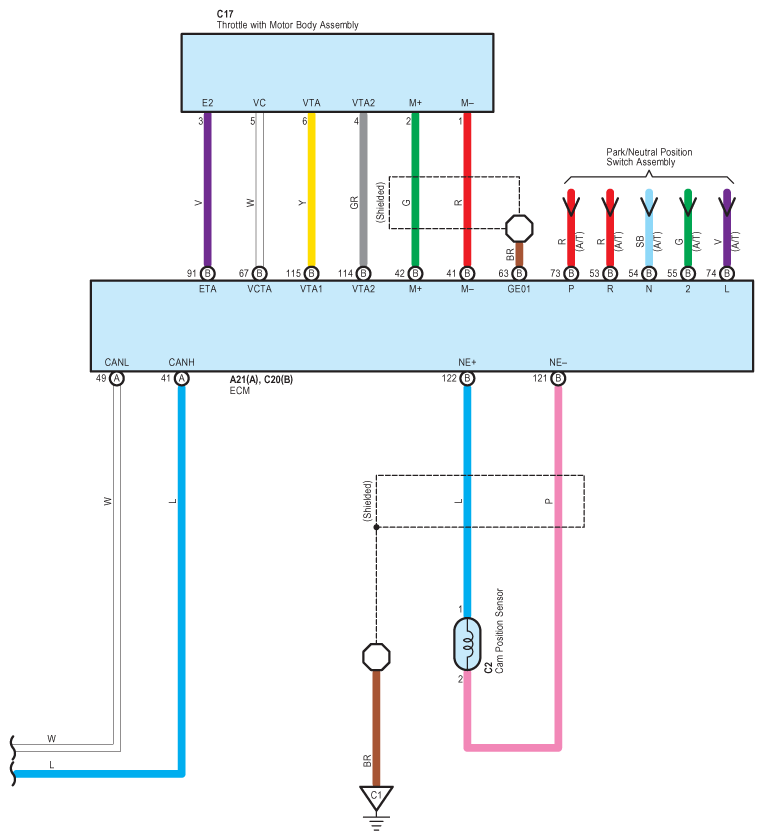

Fig 3: ABS (S/D) System Wiring Diagram (3 Of 3)
G09112722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
