Combination Meter (S/D): Notes

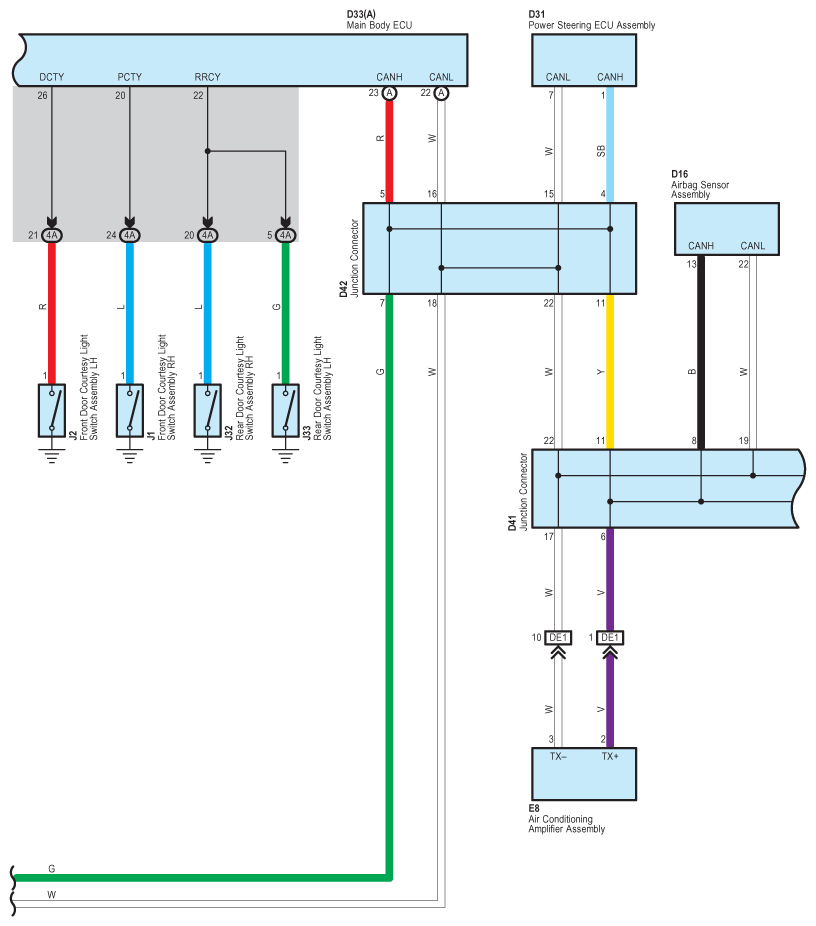

Fig 1: Combination Meter (S/D) System Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

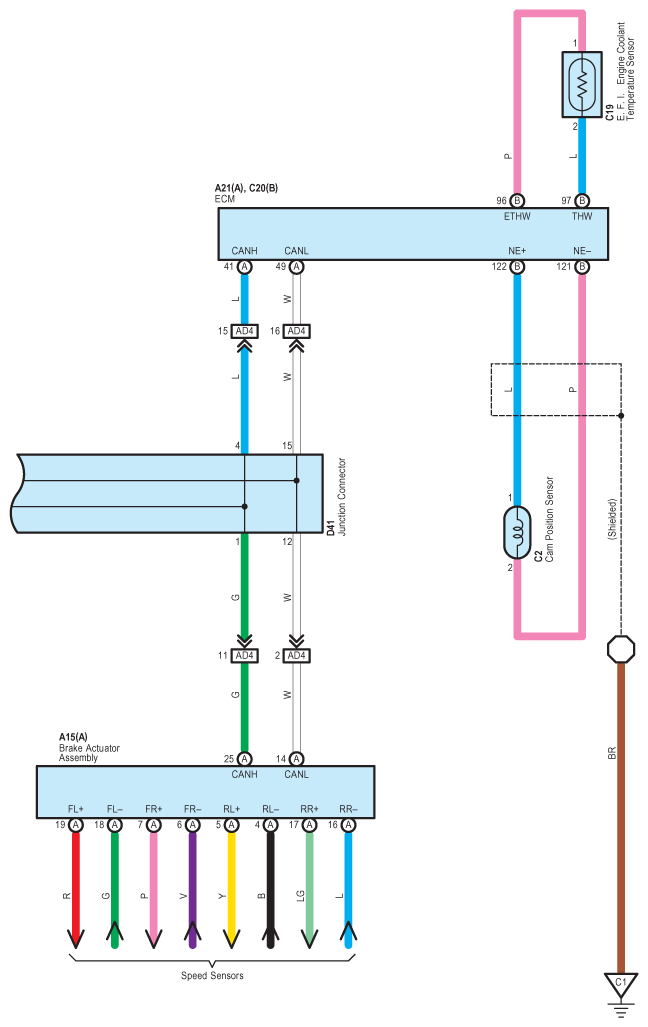

Fig 2: Combination Meter (S/D) System Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

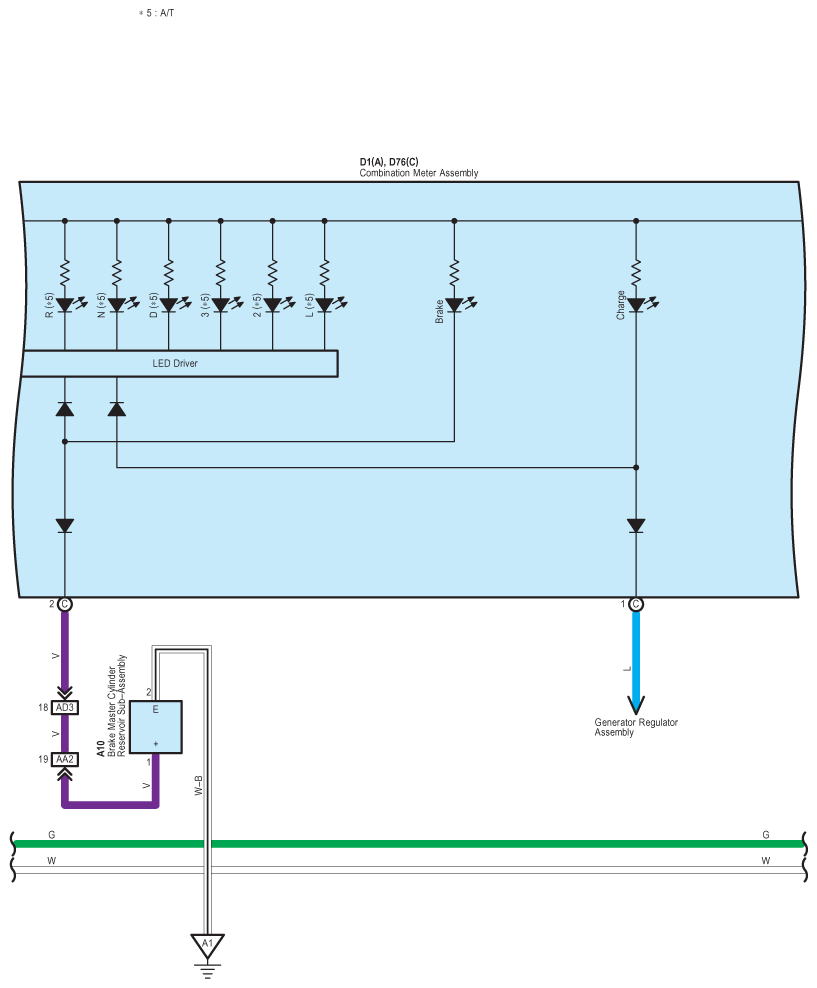

Fig 3: Combination Meter (S/D) System Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

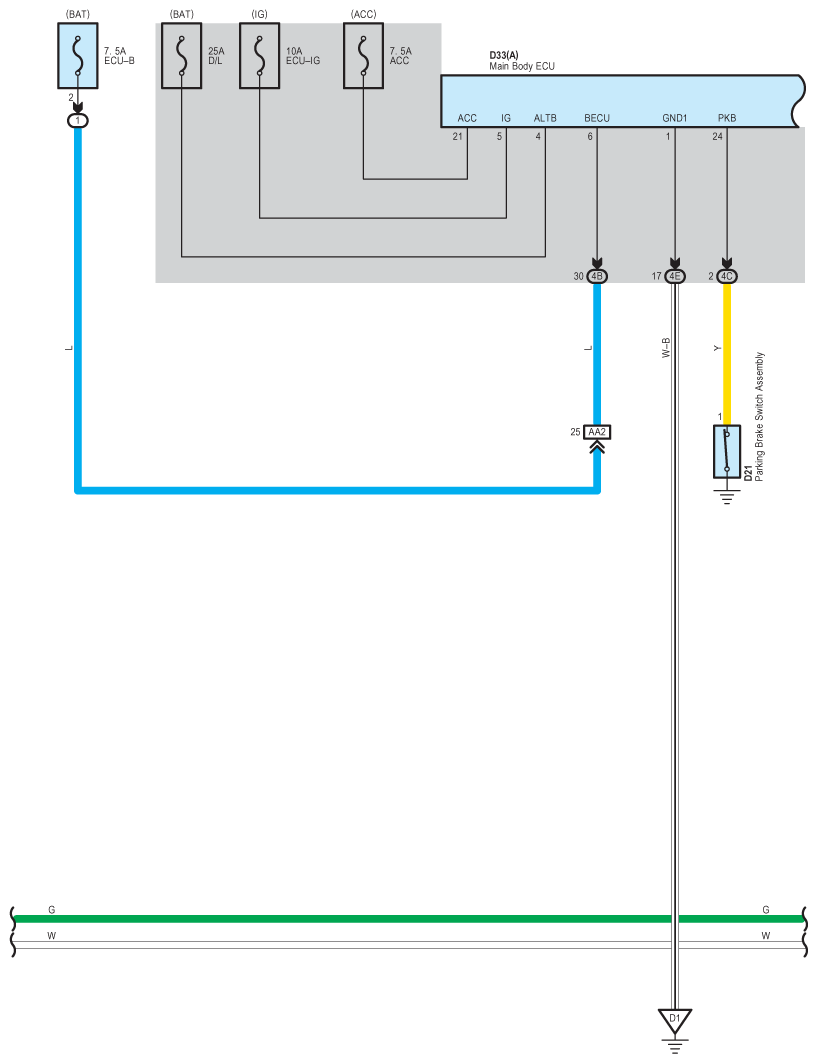

Fig 4: Combination Meter (S/D) System Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

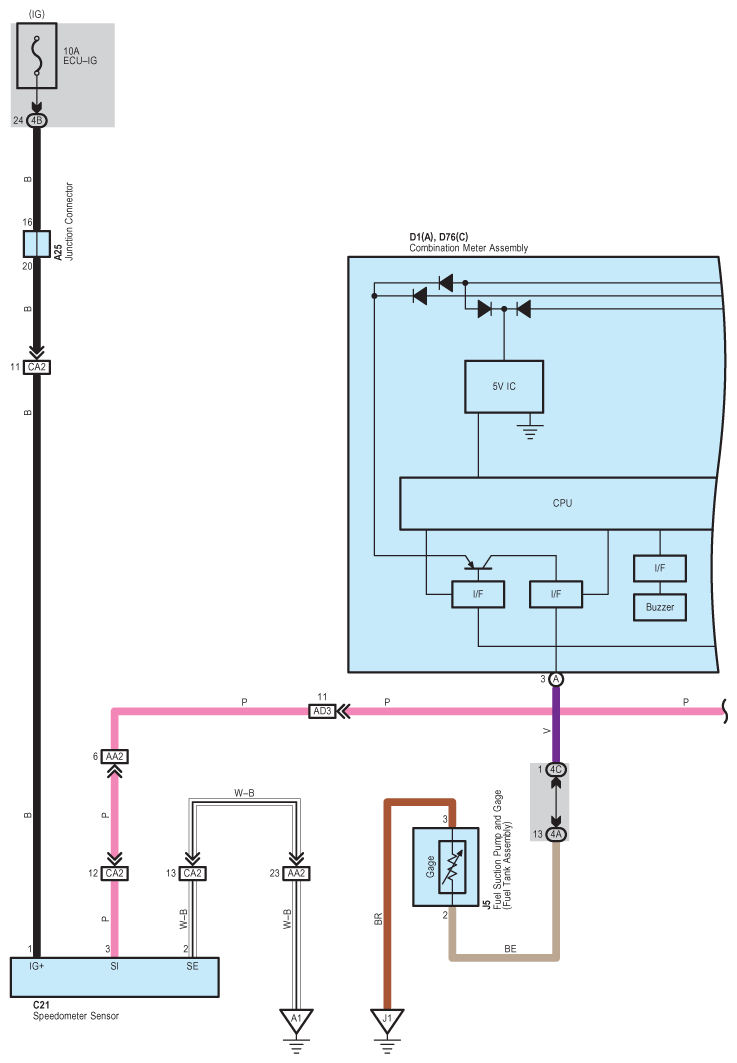

Fig 5: Combination Meter (S/D) System Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

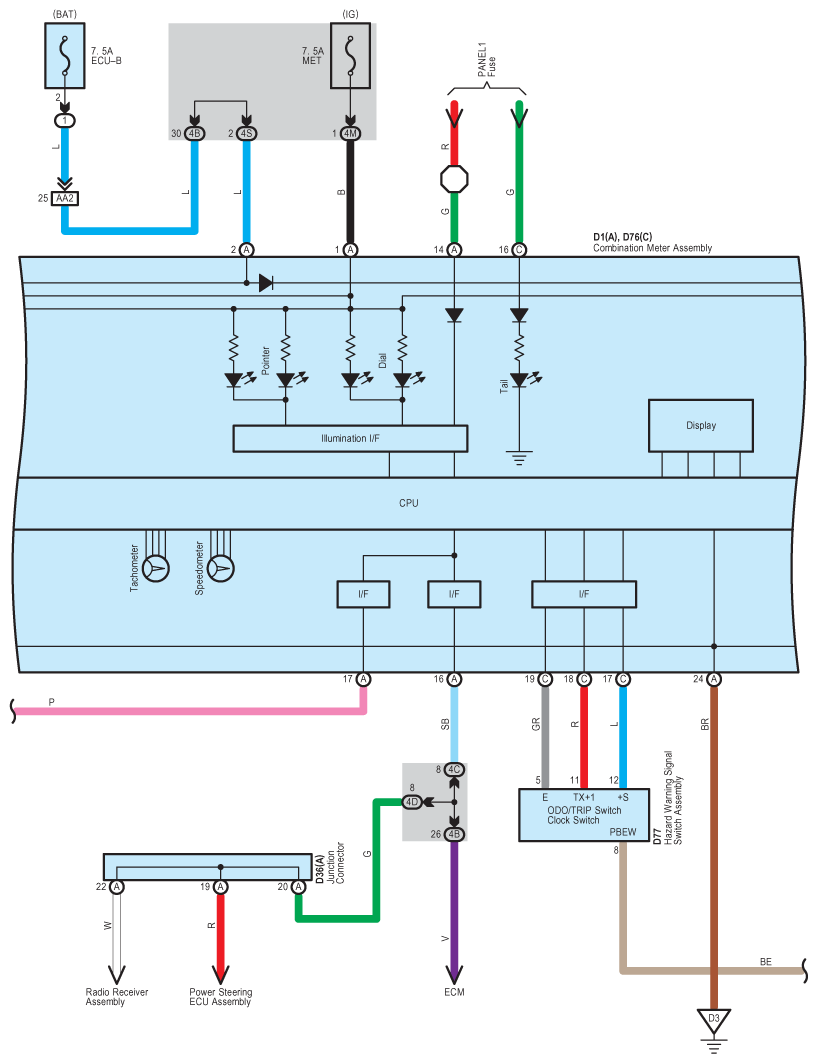

Fig 6: Combination Meter (S/D) System Wiring Diagram (6 Of 8)

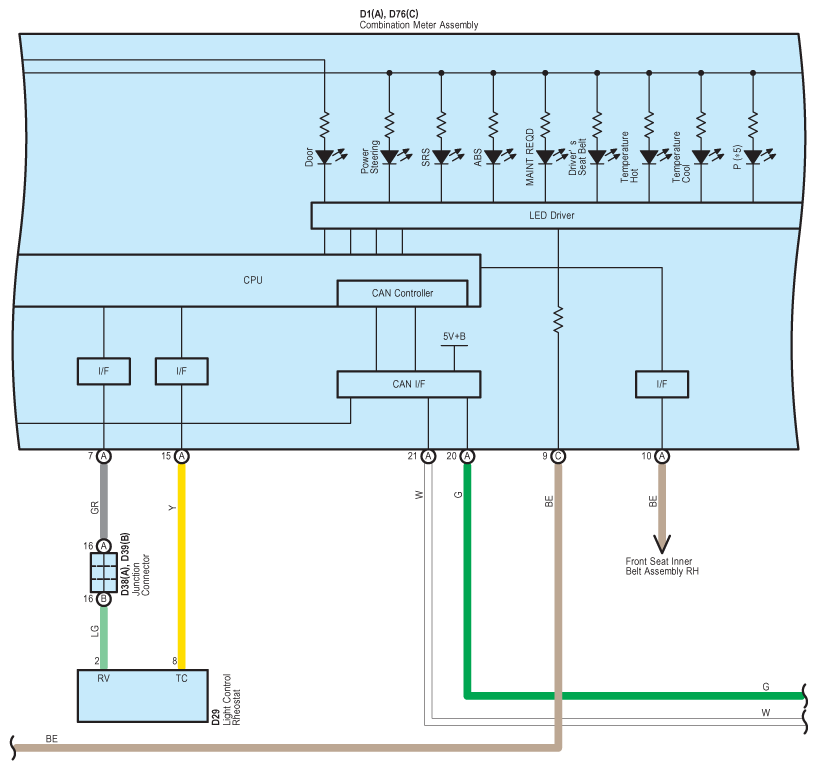

Fig 7: Combination Meter (S/D) System Wiring Diagram (7 Of 8)

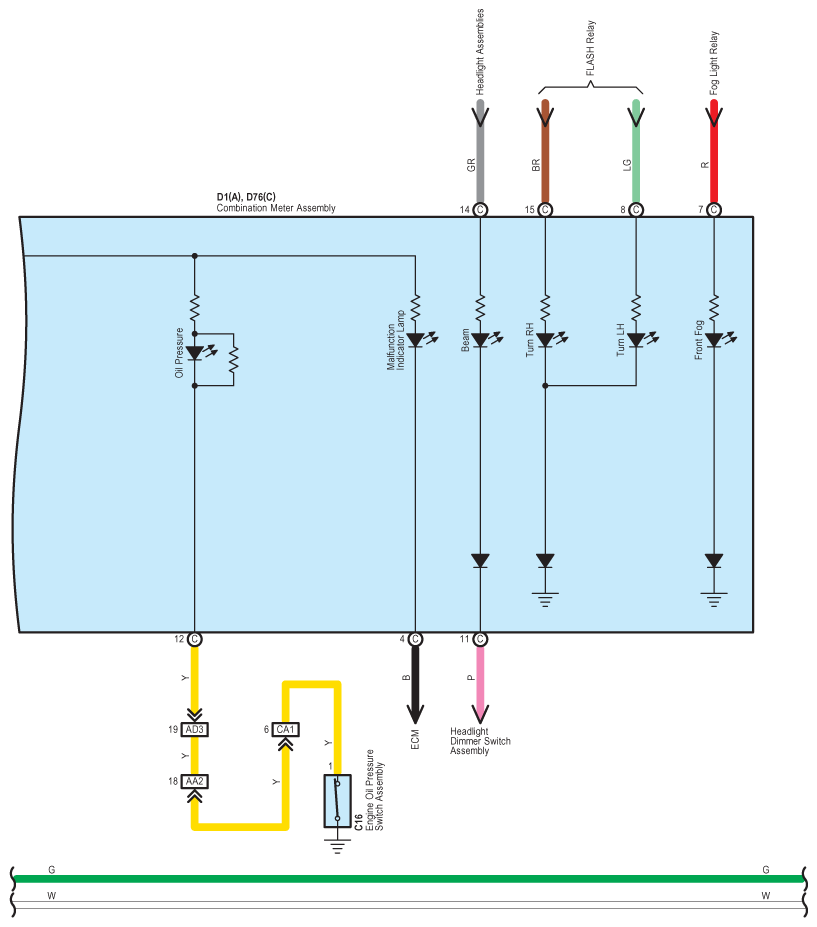

Fig 8: Combination Meter (S/D) System Wiring Diagram (8 Of 8)
