Engine Immobilizer System (H/B): Notes

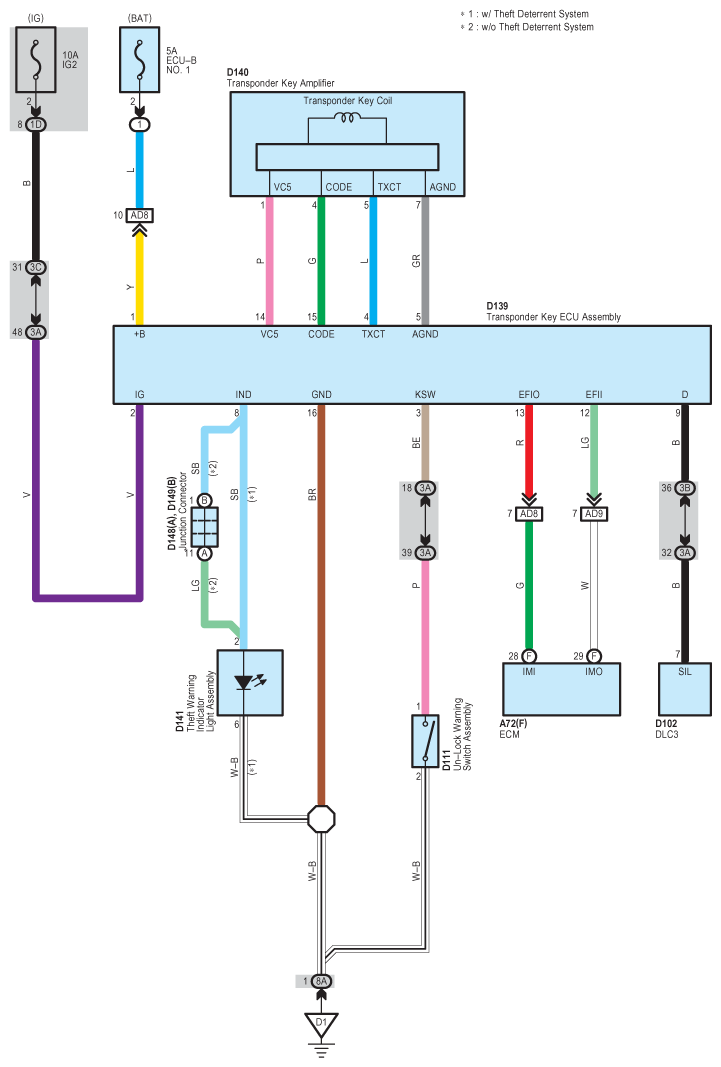

Fig 1: Engine Immobilizer System Wiring Diagram (H/B)
G09112561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
