Power Source (H/B): Notes

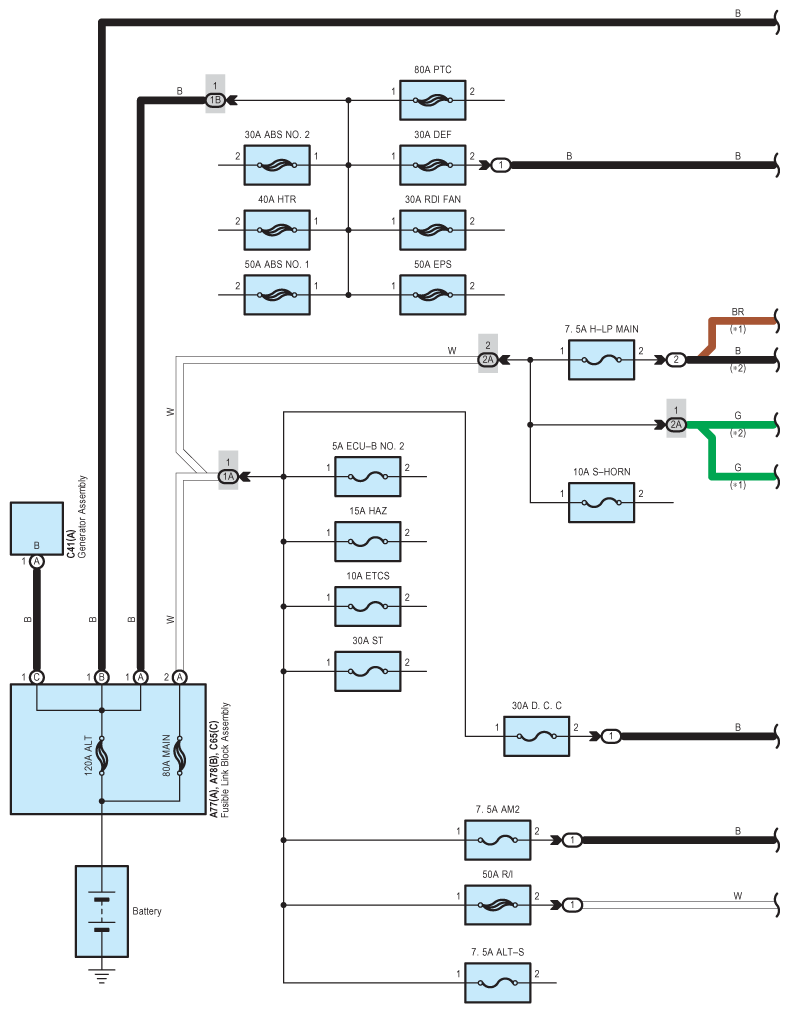

Fig 1: Power Source System Wiring Diagram (1 Of 5)
G09112539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

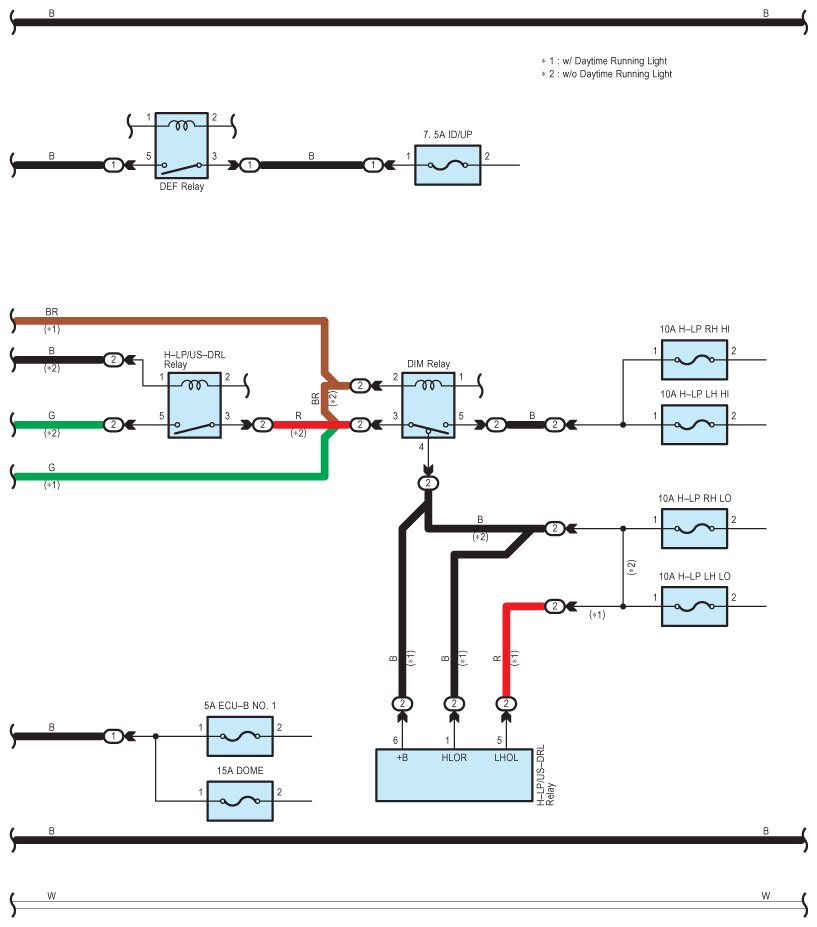

Fig 2: Power Source System Wiring Diagram (2 Of 5)
G09112540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

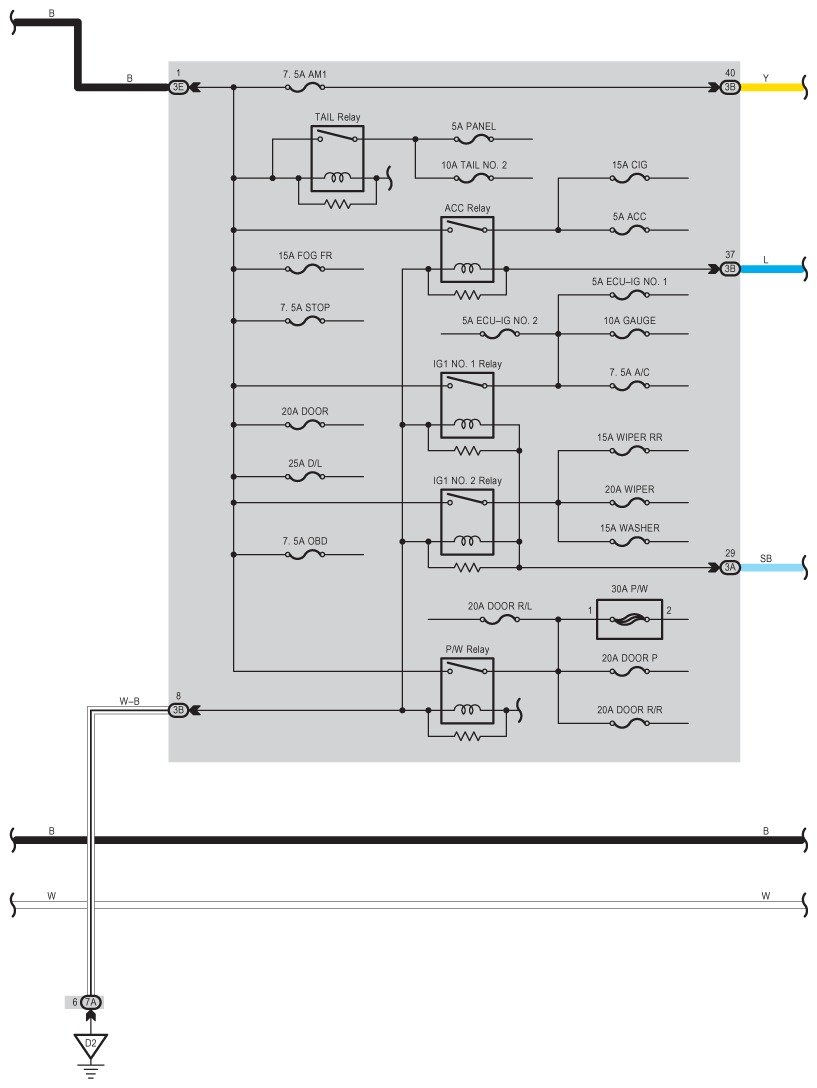

Fig 3: Power Source System Wiring Diagram (3 Of 5)
G09112541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

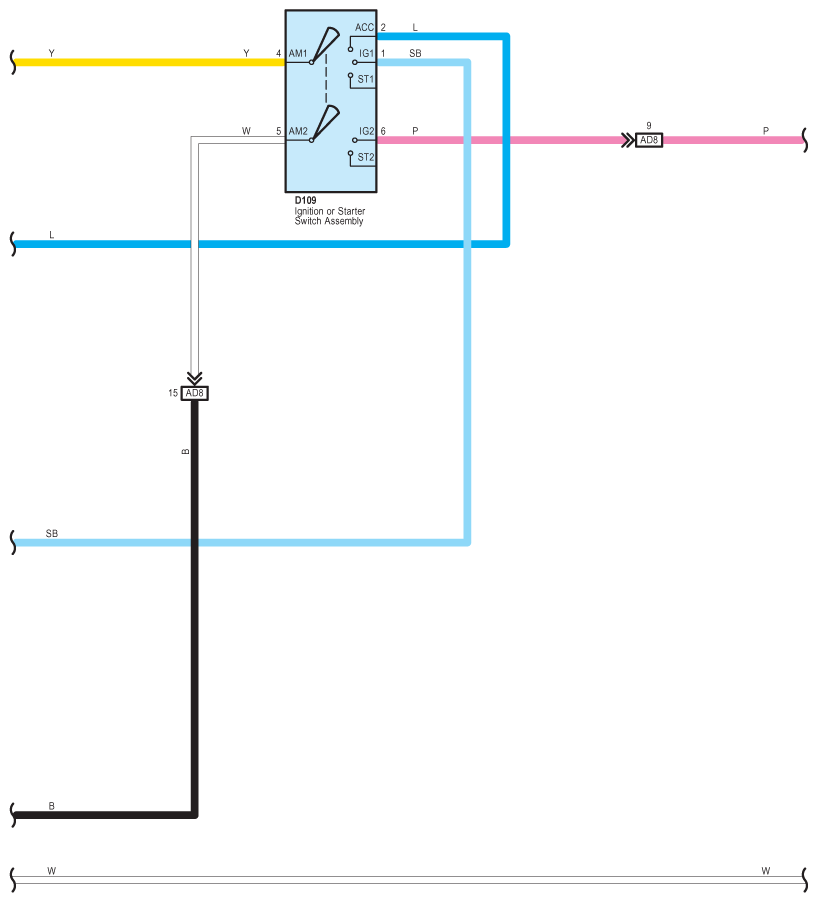

Fig 4: Power Source System Wiring Diagram (4 Of 5)
G09112542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

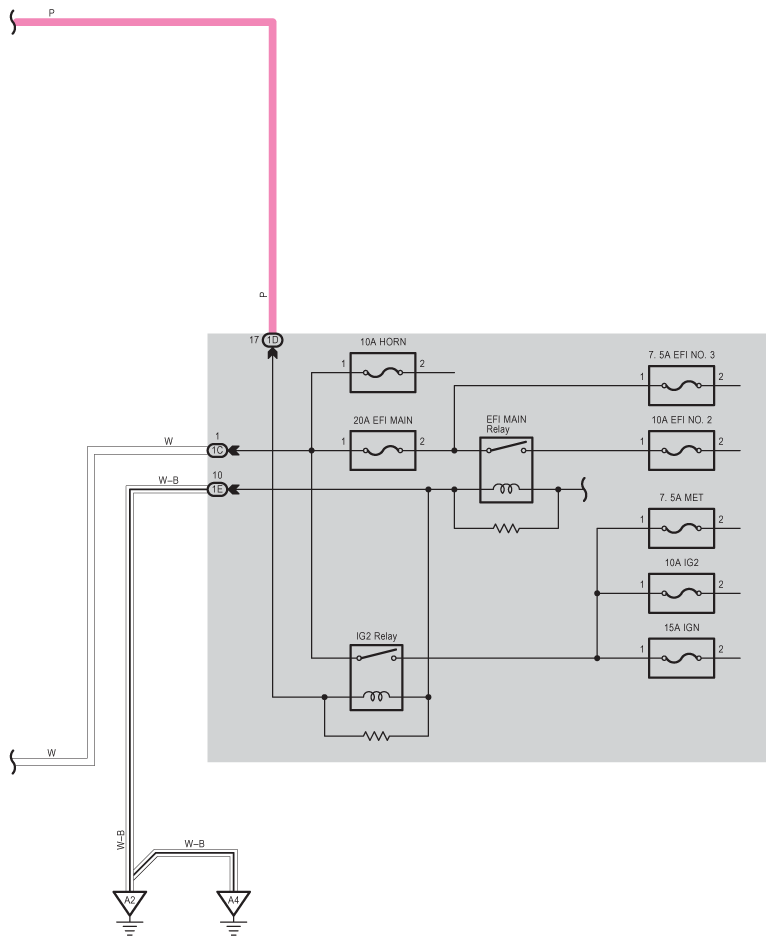

Fig 5: Power Source System Wiring Diagram (5 Of 5)
G09112543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
