Power Source (S/D): Notes

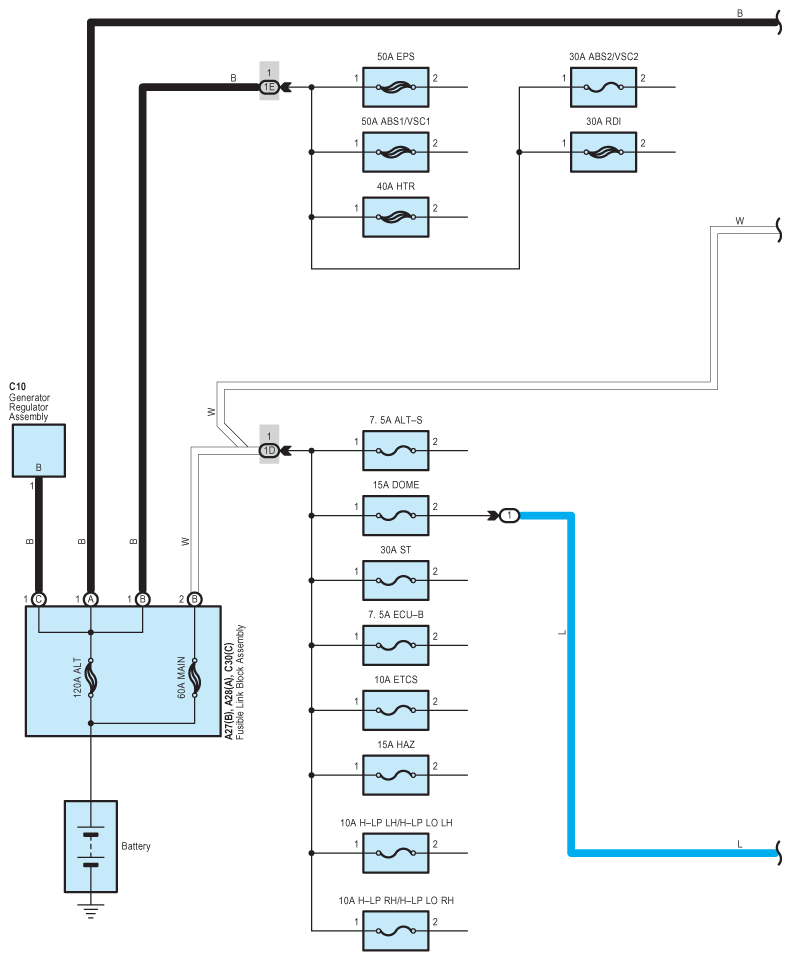

Fig 1: Power Source (S/D) System Wiring Diagram (1 Of 4)
G09112675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

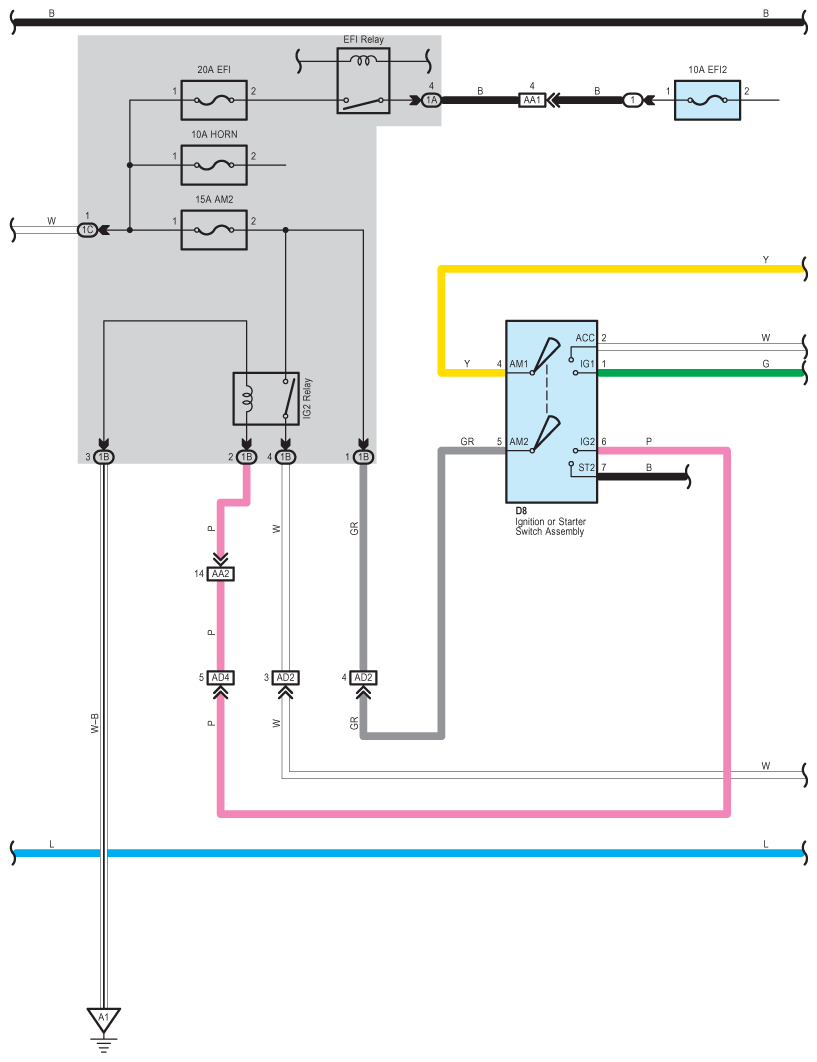

Fig 2: Power Source (S/D) System Wiring Diagram (2 Of 4)
G09112676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

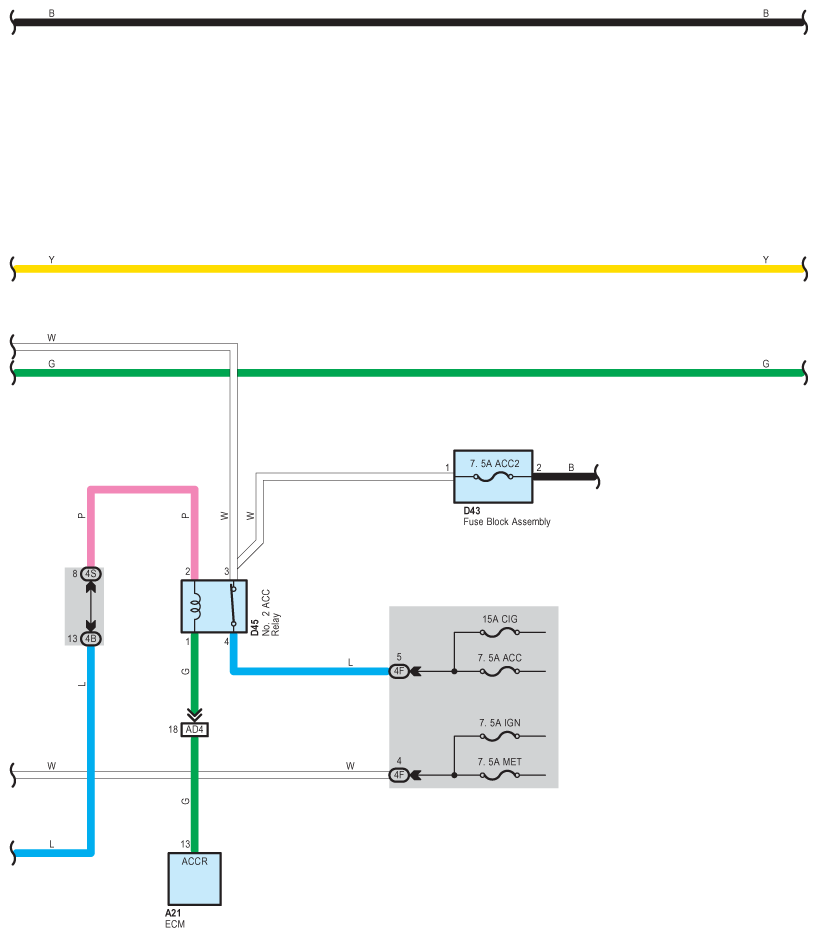

Fig 3: Power Source (S/D) System Wiring Diagram (3 Of 4)
G09112677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

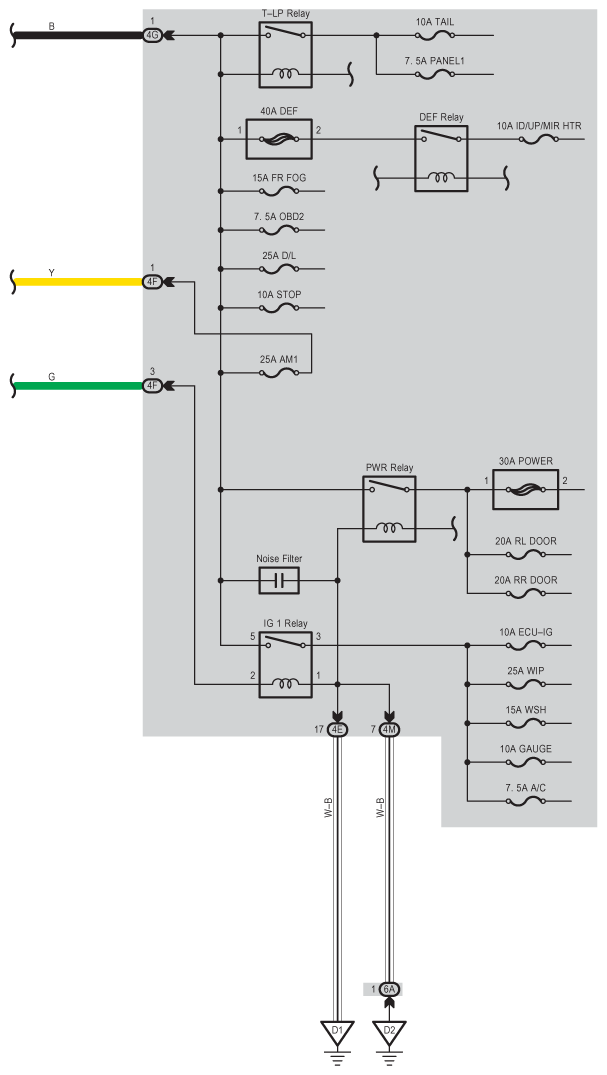

Fig 4: Power Source (S/D) System Wiring Diagram (4 Of 4)
G09112678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
