Rear Window Defogger (S/D): Notes

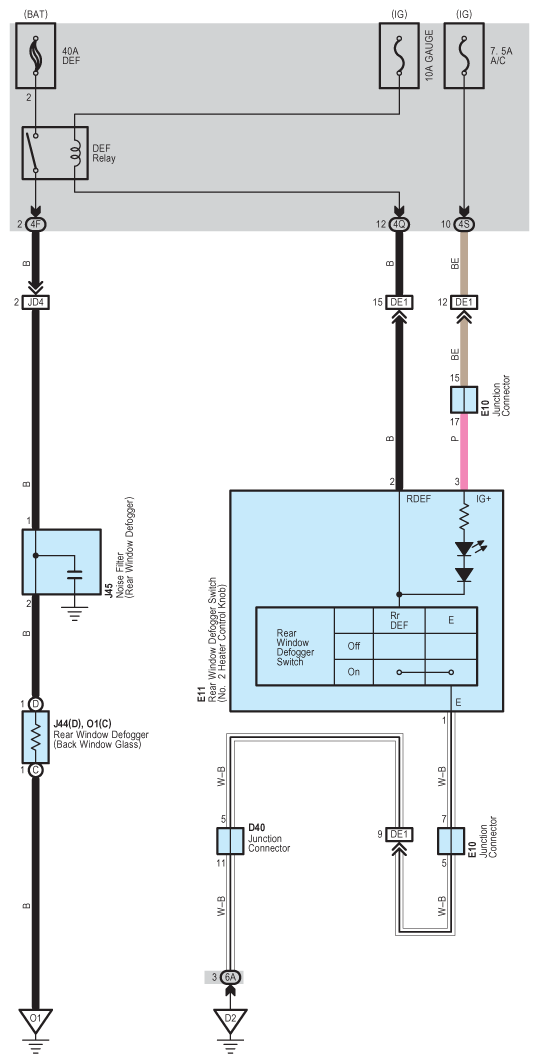

Fig 1: Rear Window Defogger (S/D) System Wiring Diagram
G09112758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
