System Diagrams — 2014 Toyota Corolla LE Service Manual ~ LEMON Manuals

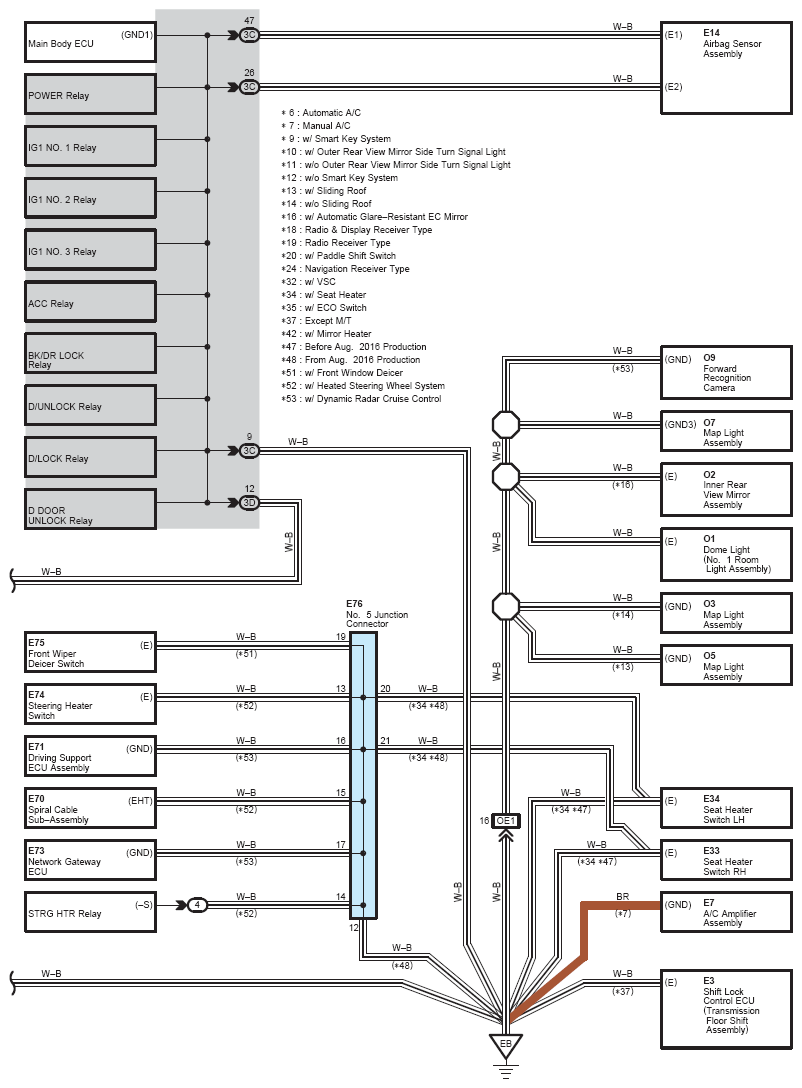

Fig 1: Ground Point (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

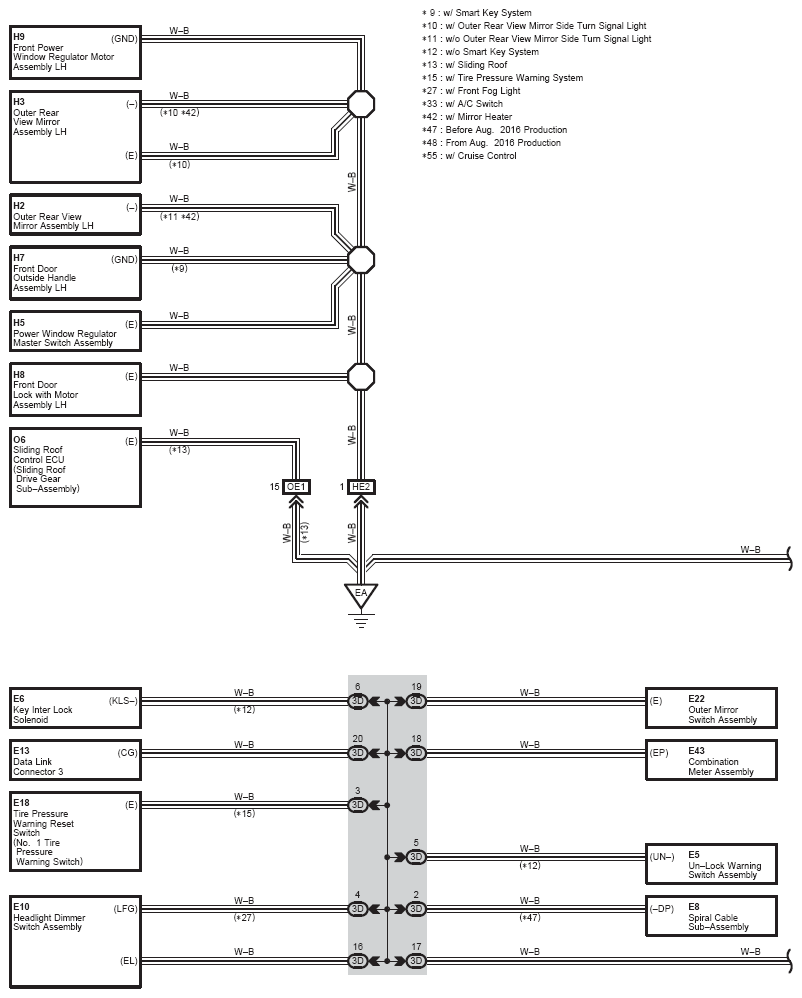

Fig 2: Ground Point (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

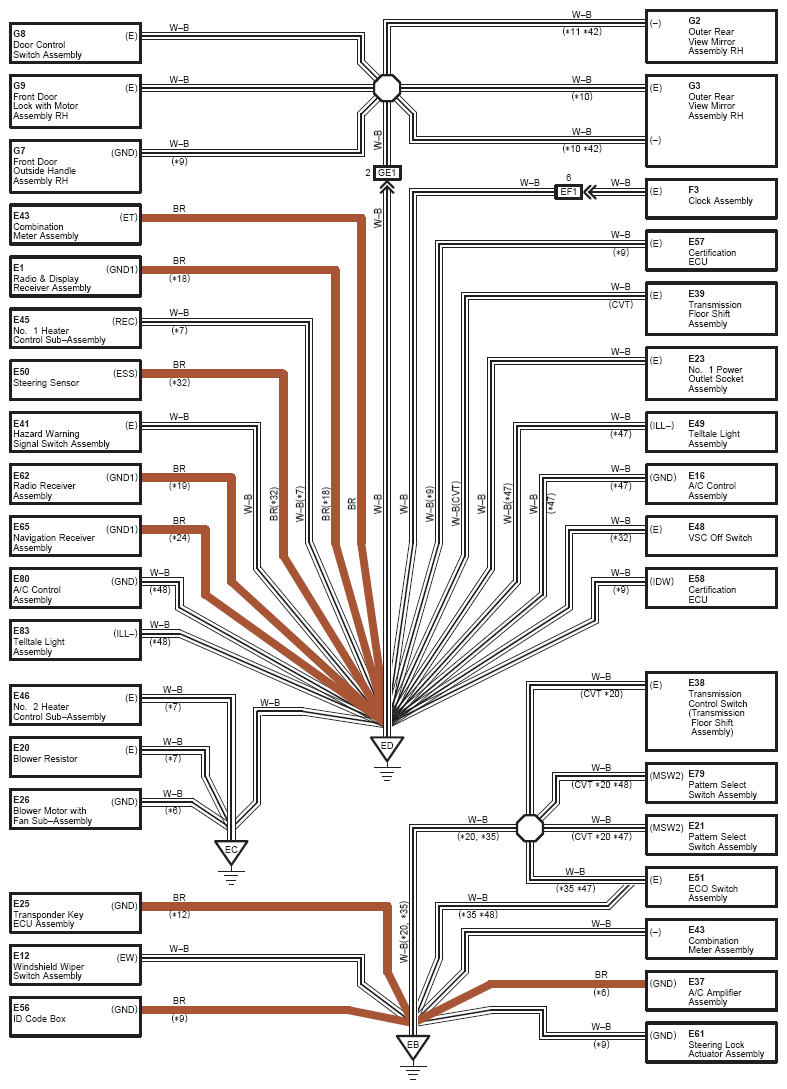

Fig 3: Ground Point (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

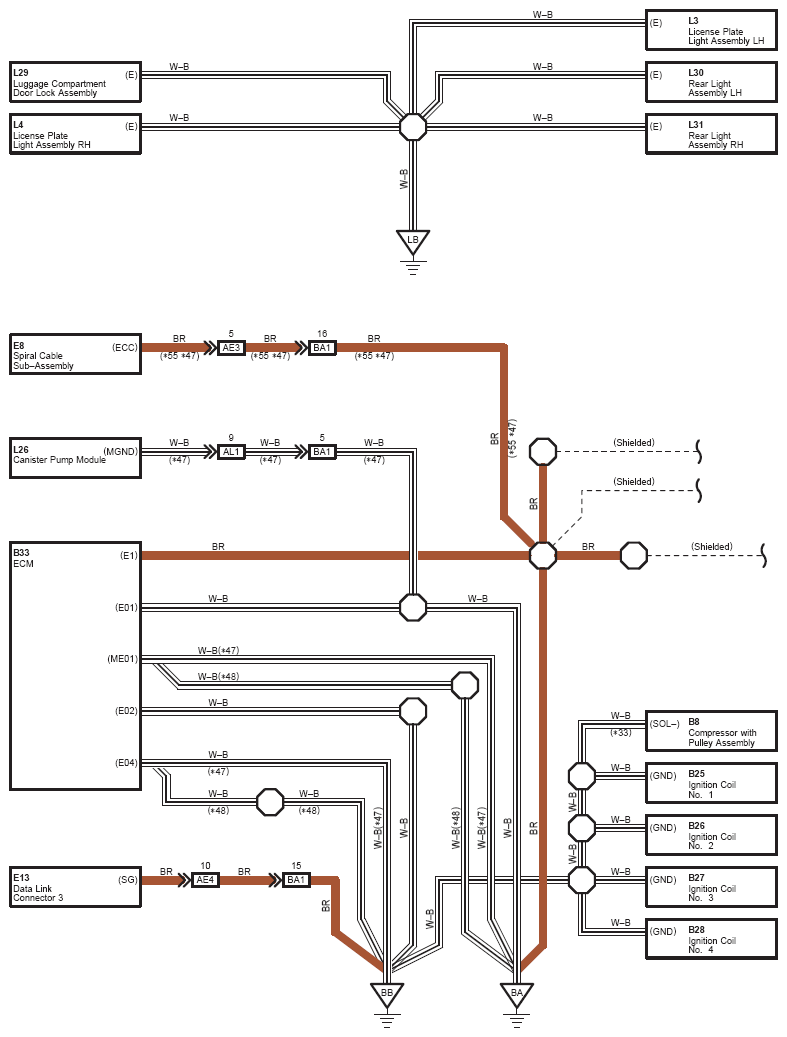

Fig 4: Ground Point (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

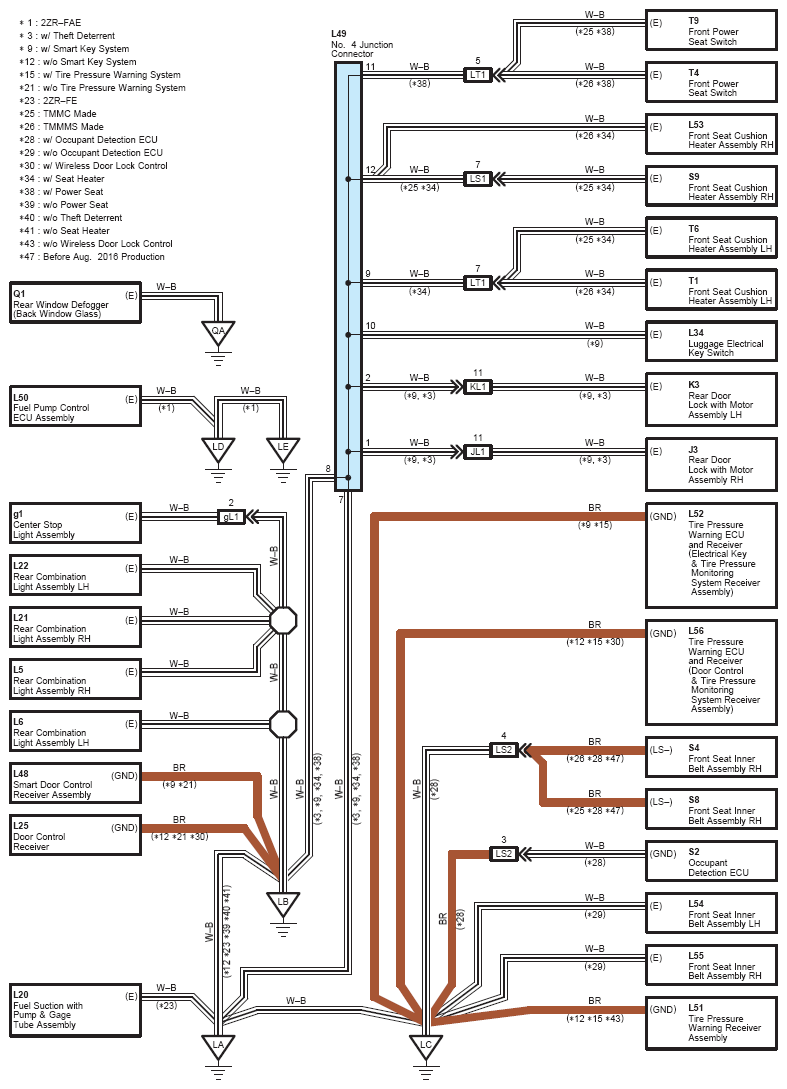

Fig 5: Ground Point (5 Of 7)

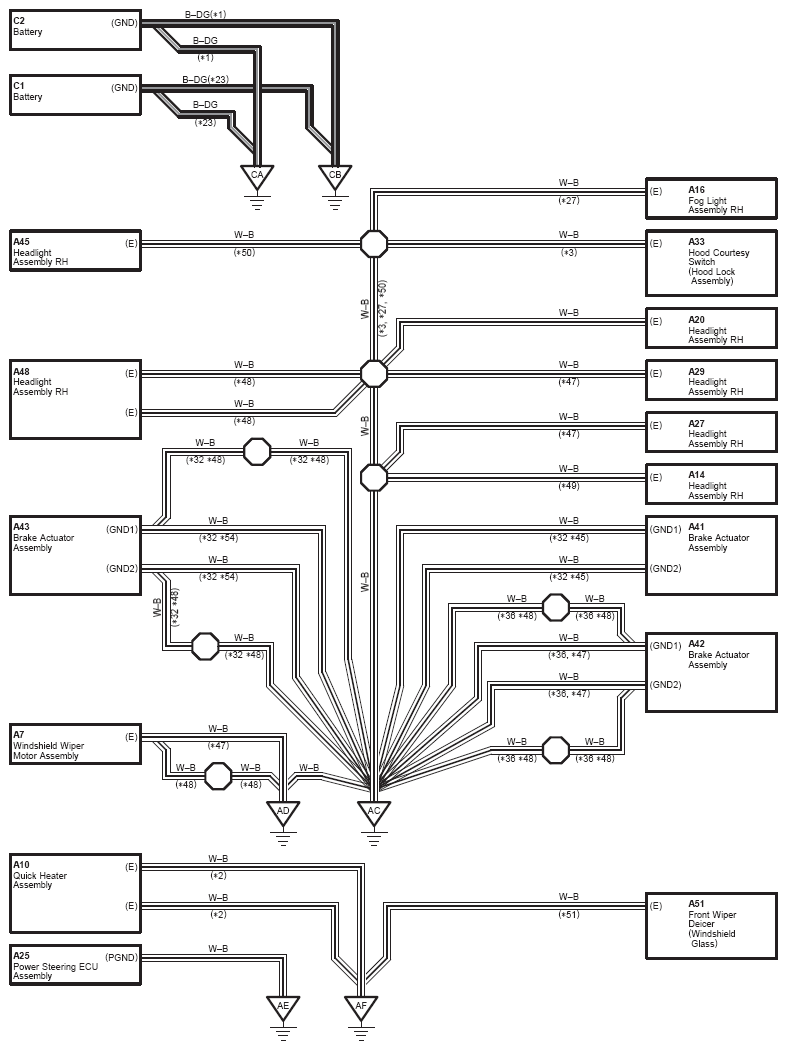

Fig 6: Ground Point (6 Of 7)

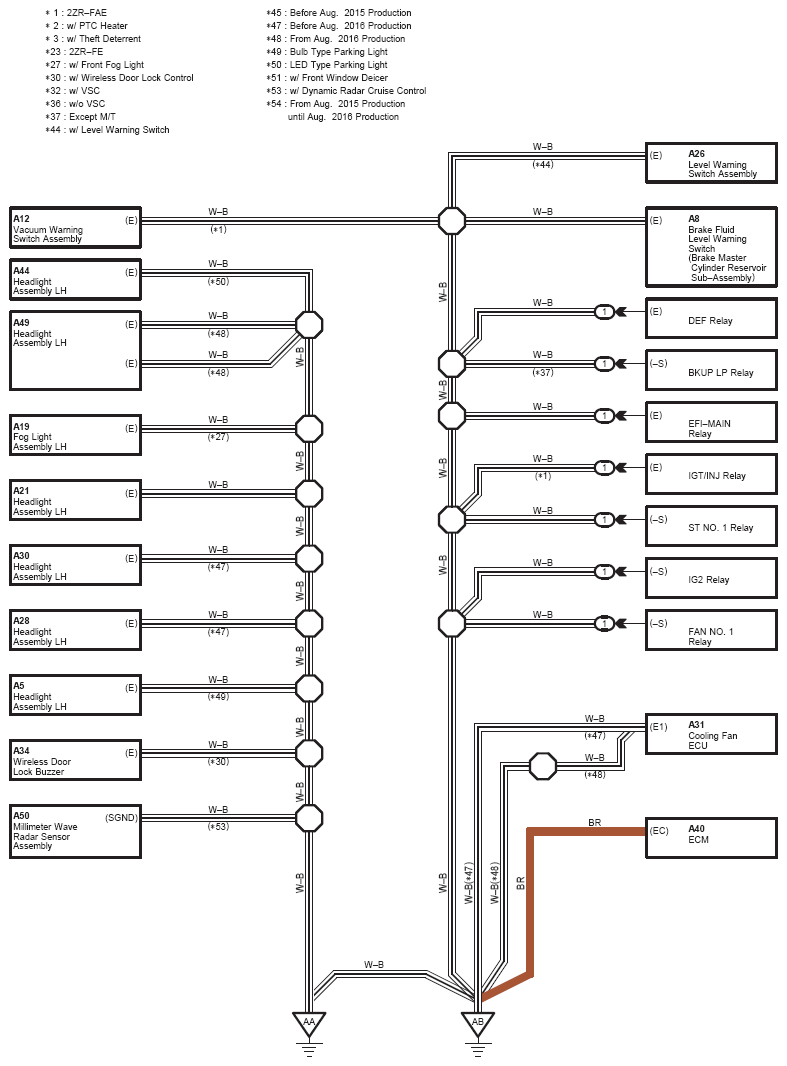

Fig 7: Ground Point (7 Of 7)
