System Diagrams

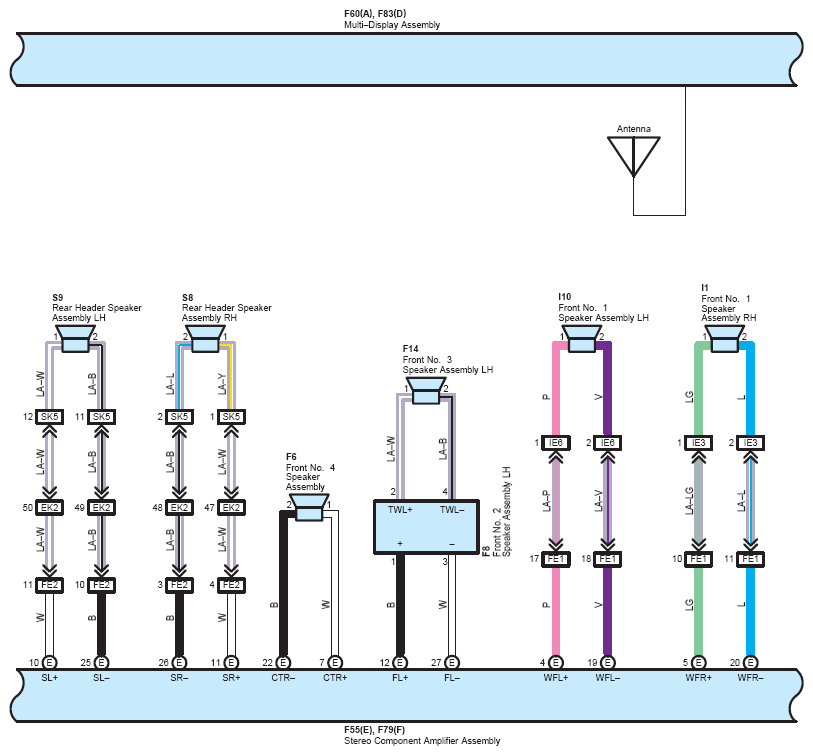

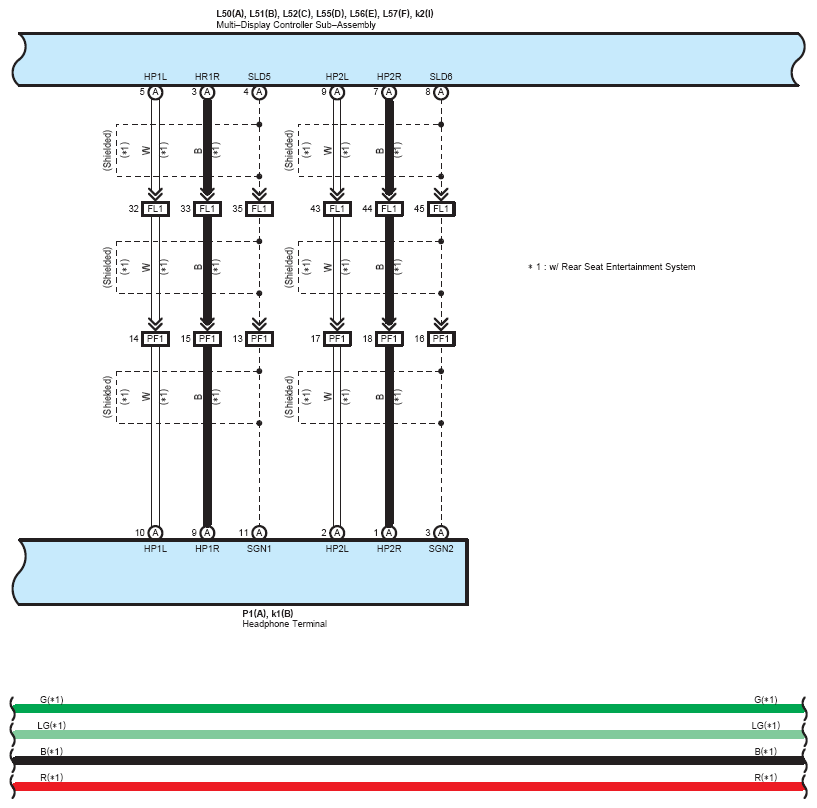

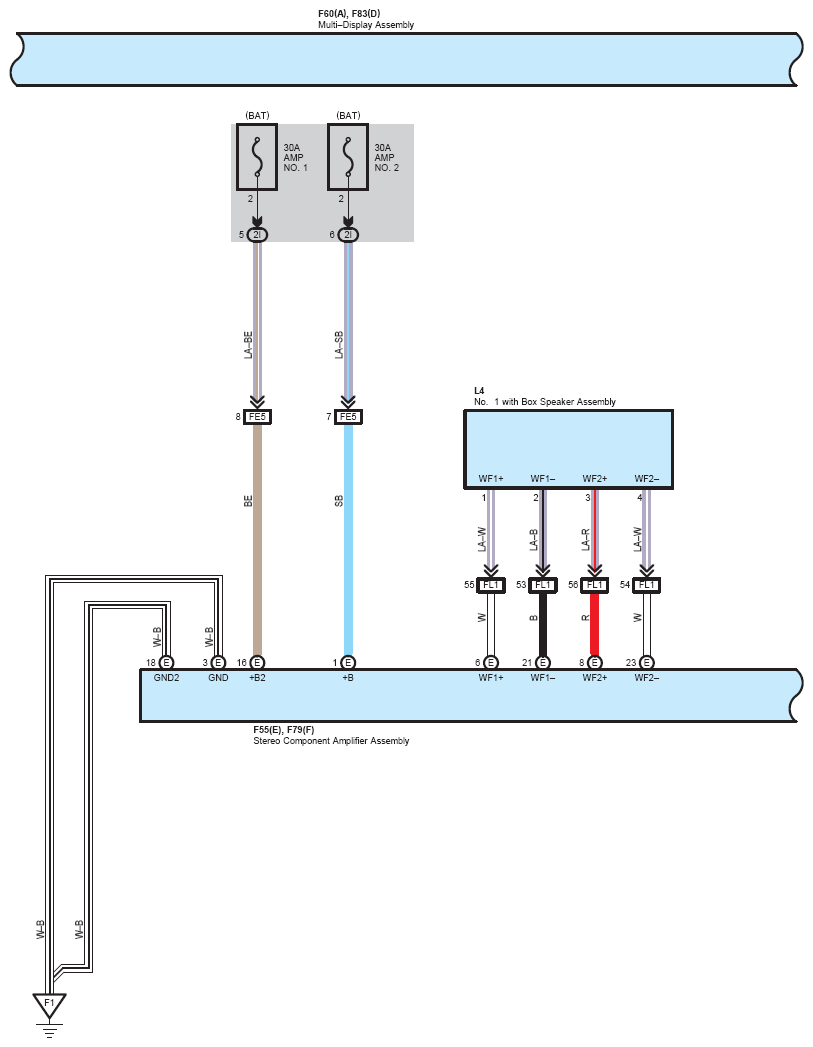

Fig 1: Audio System, Navigation System (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

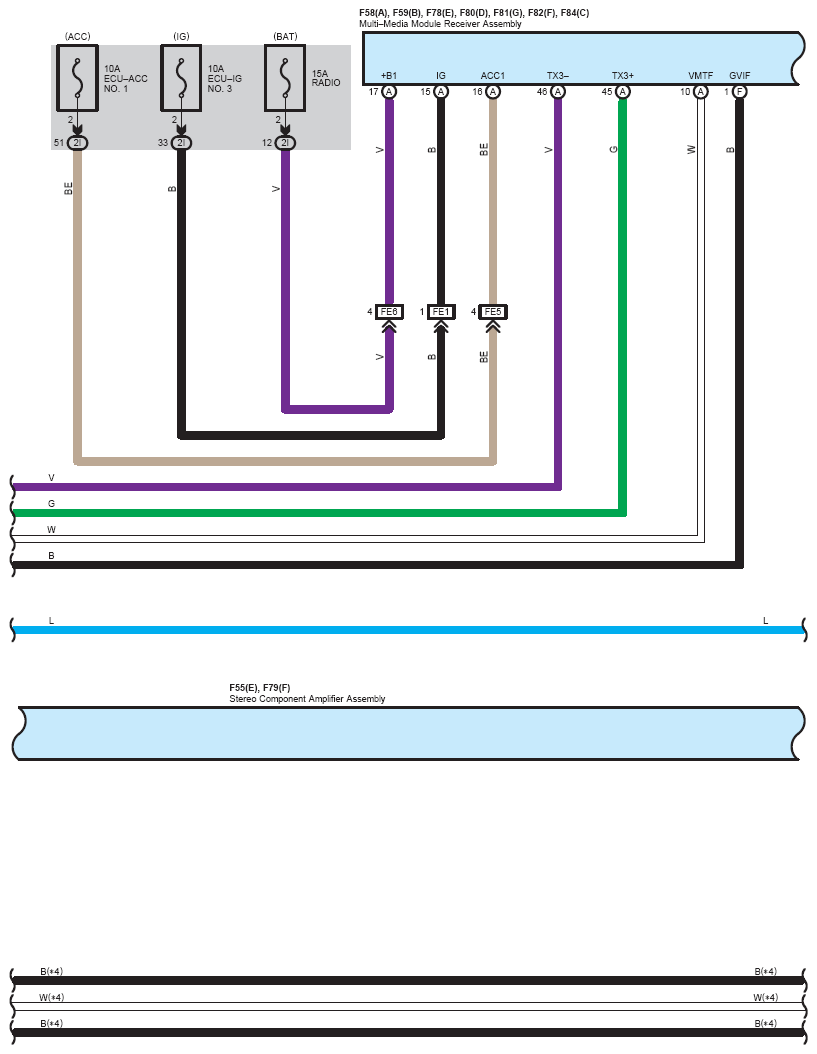

Fig 2: Audio System, Navigation System (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

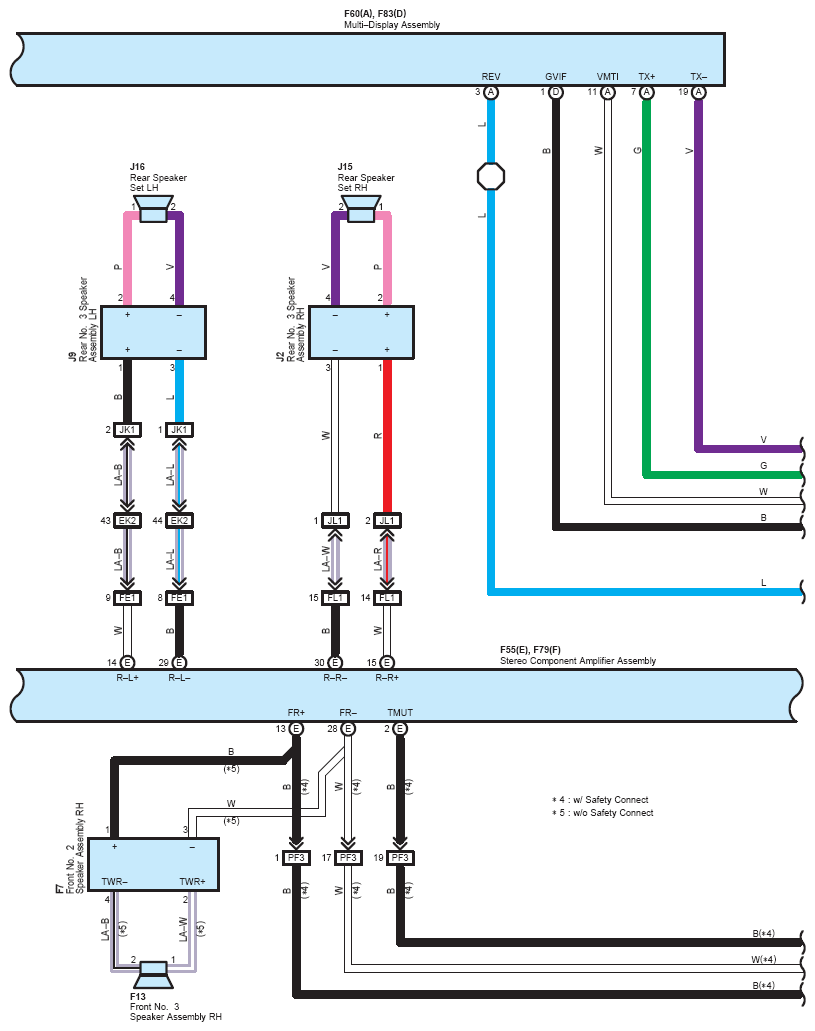

Fig 3: Audio System, Navigation System (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

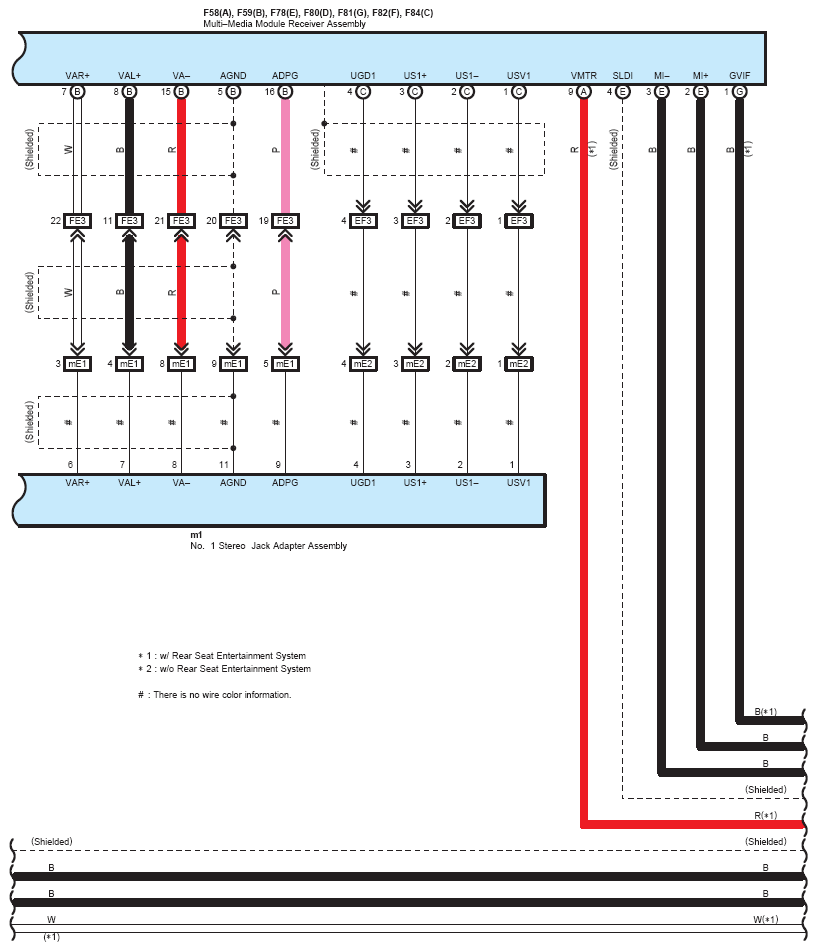

Fig 4: Audio System, Navigation System (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

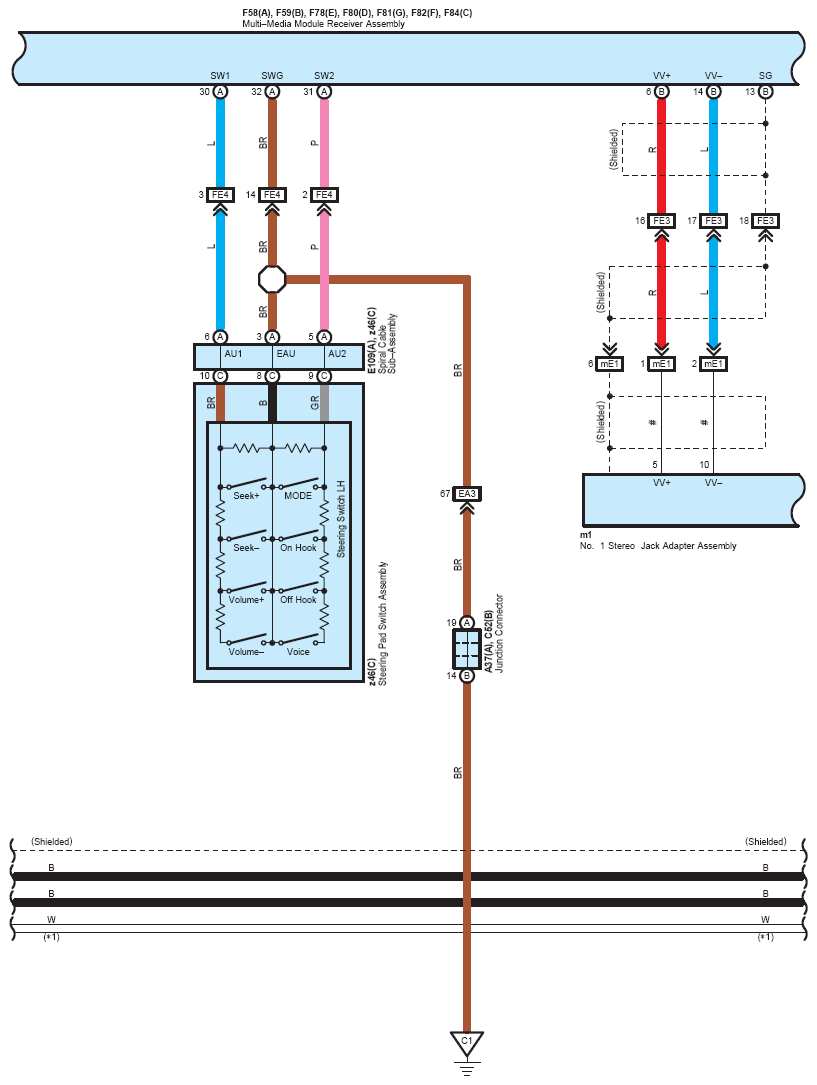

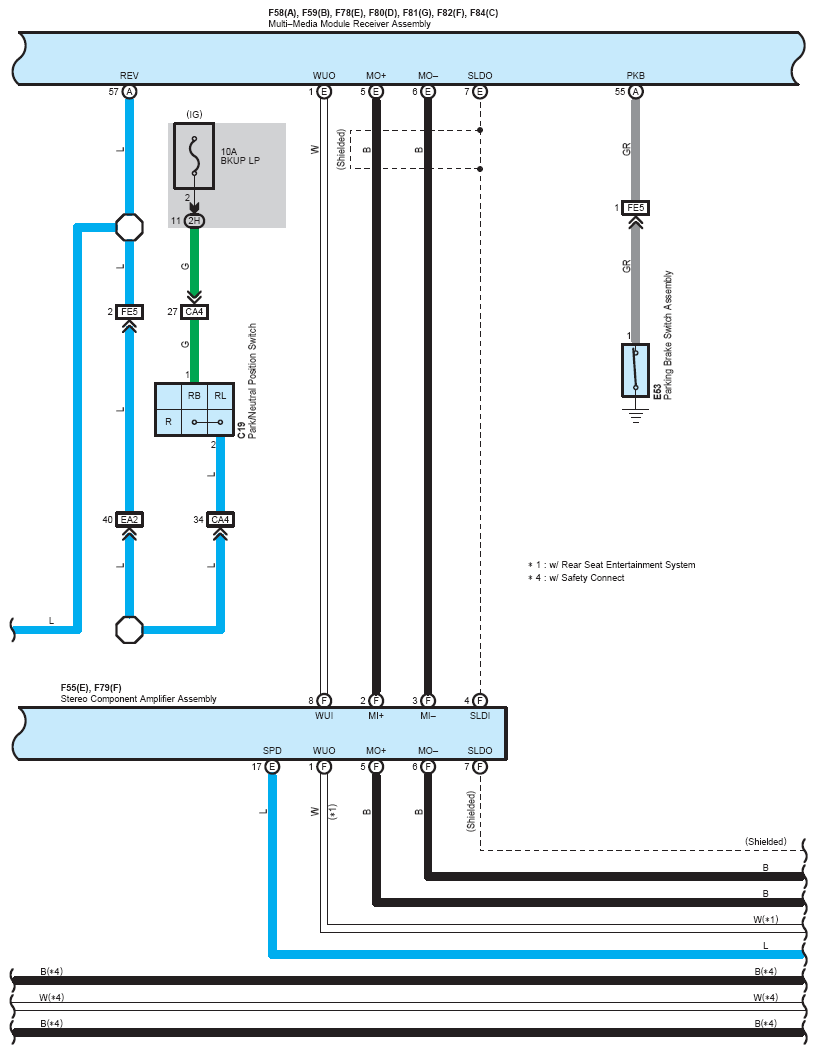

Fig 5: Audio System, Navigation System (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

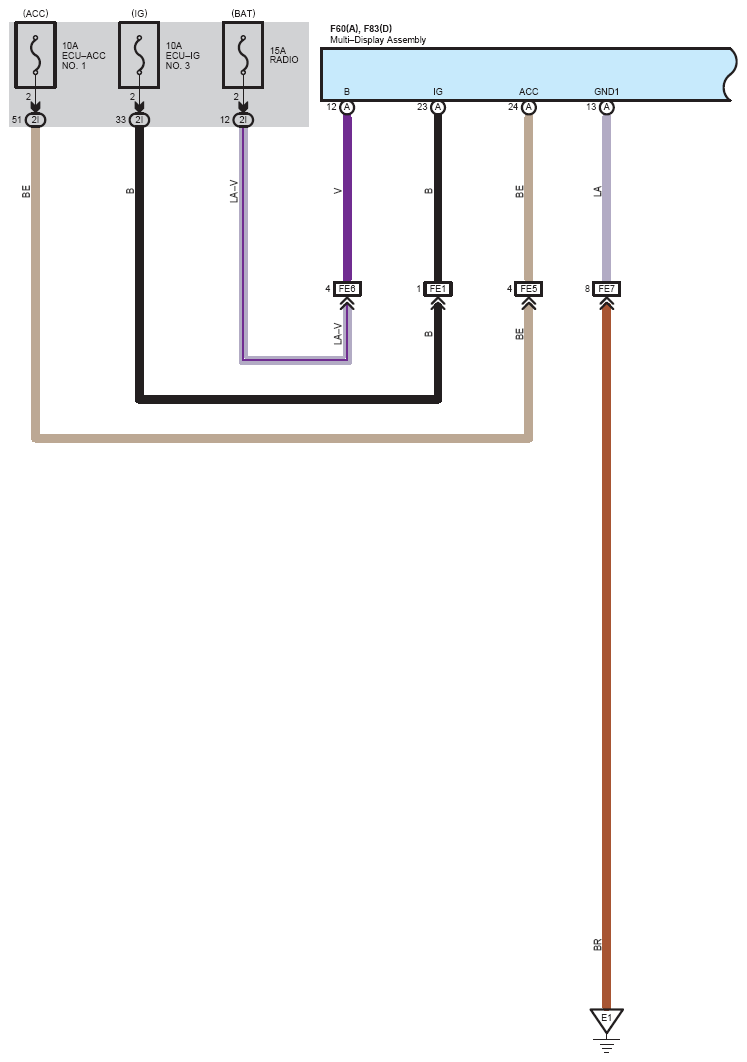

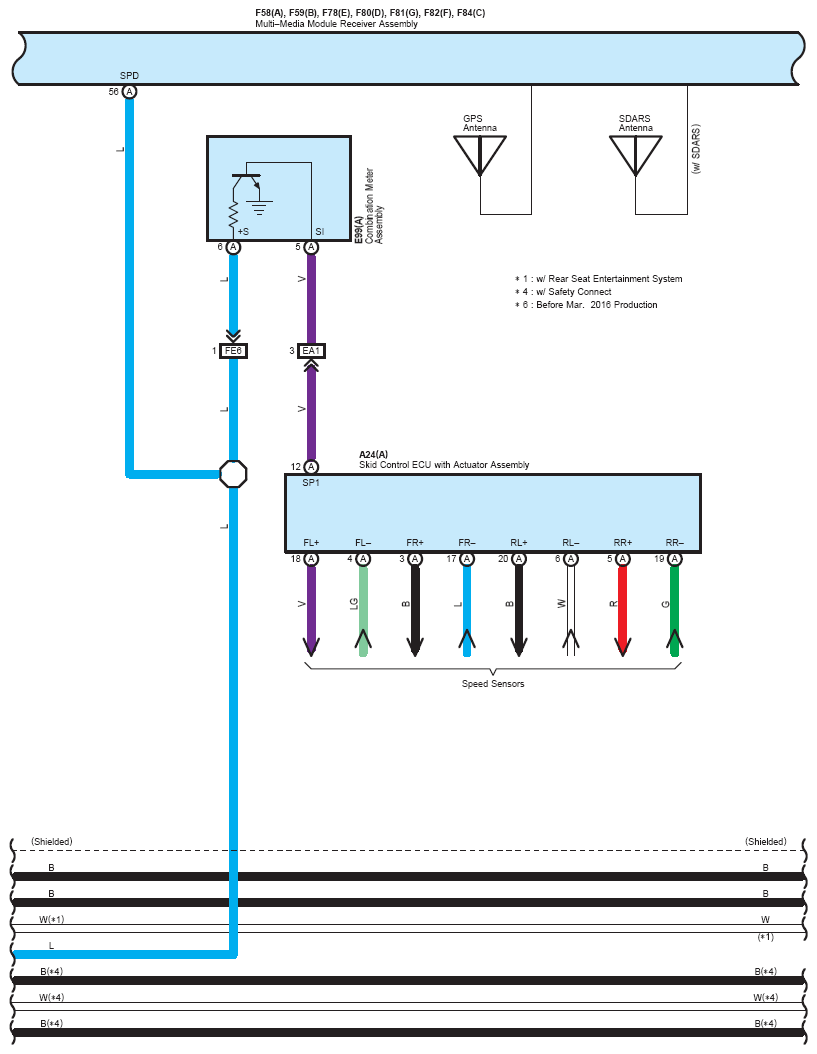

Fig 6: Audio System, Navigation System (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

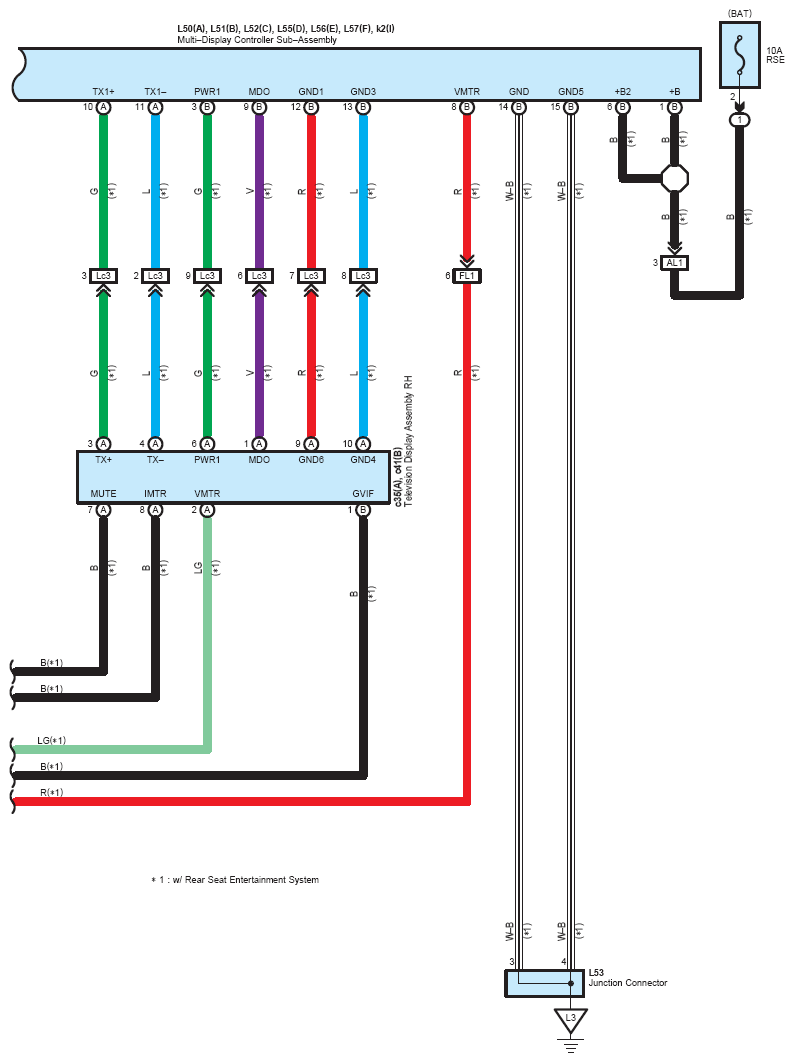

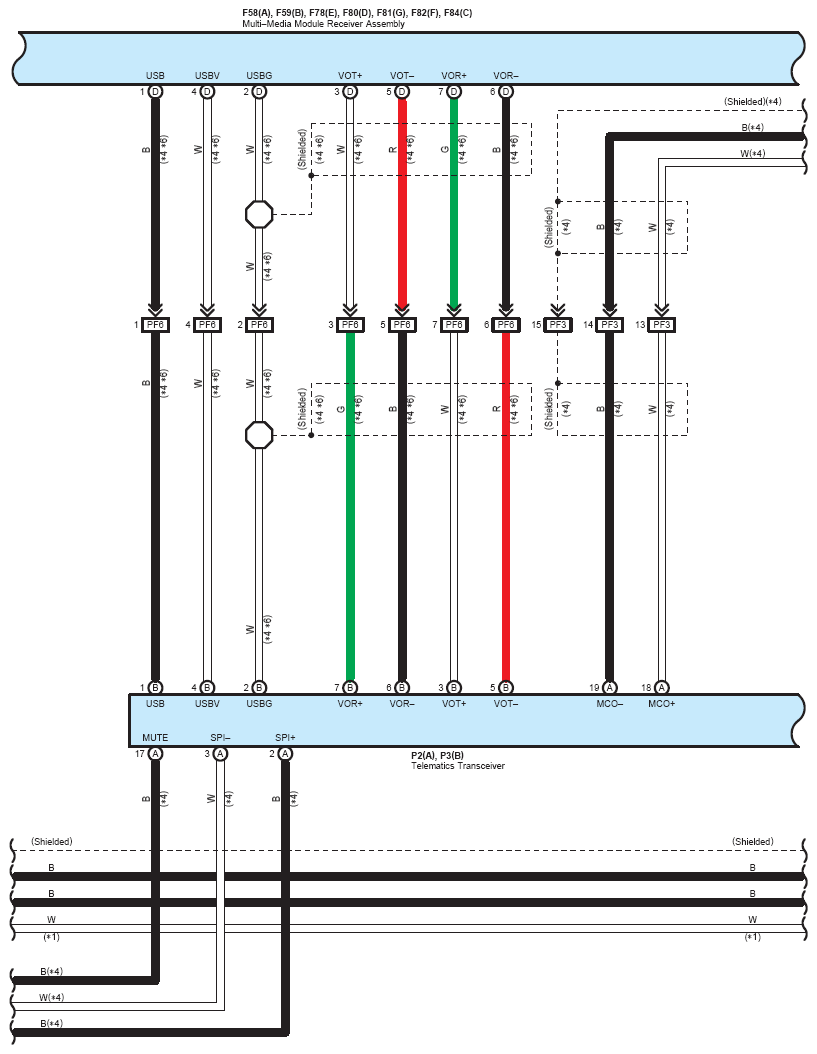

Fig 7: Audio System, Navigation System (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

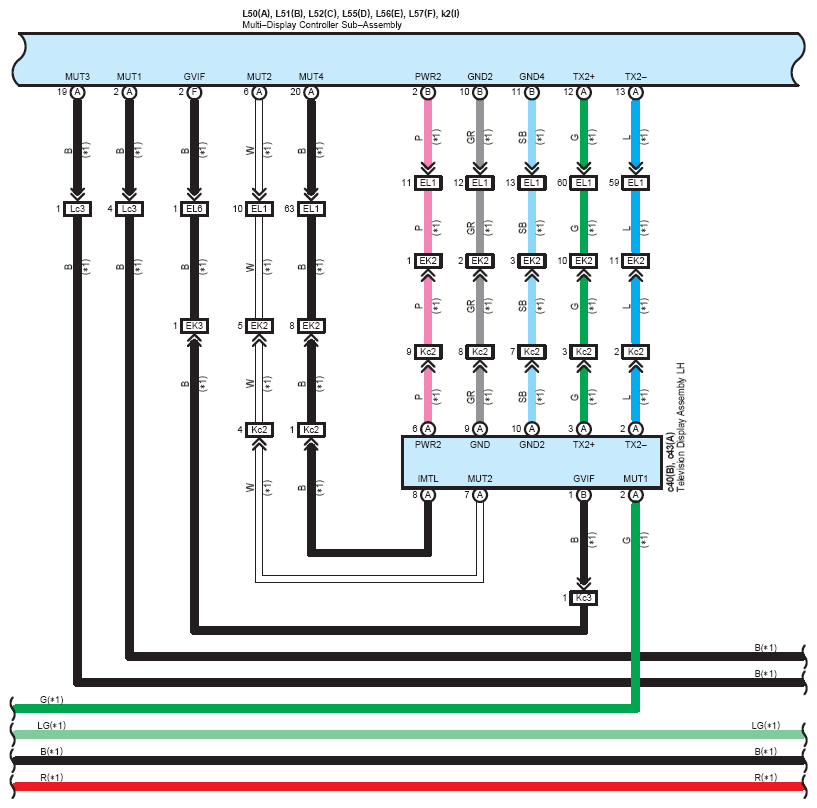

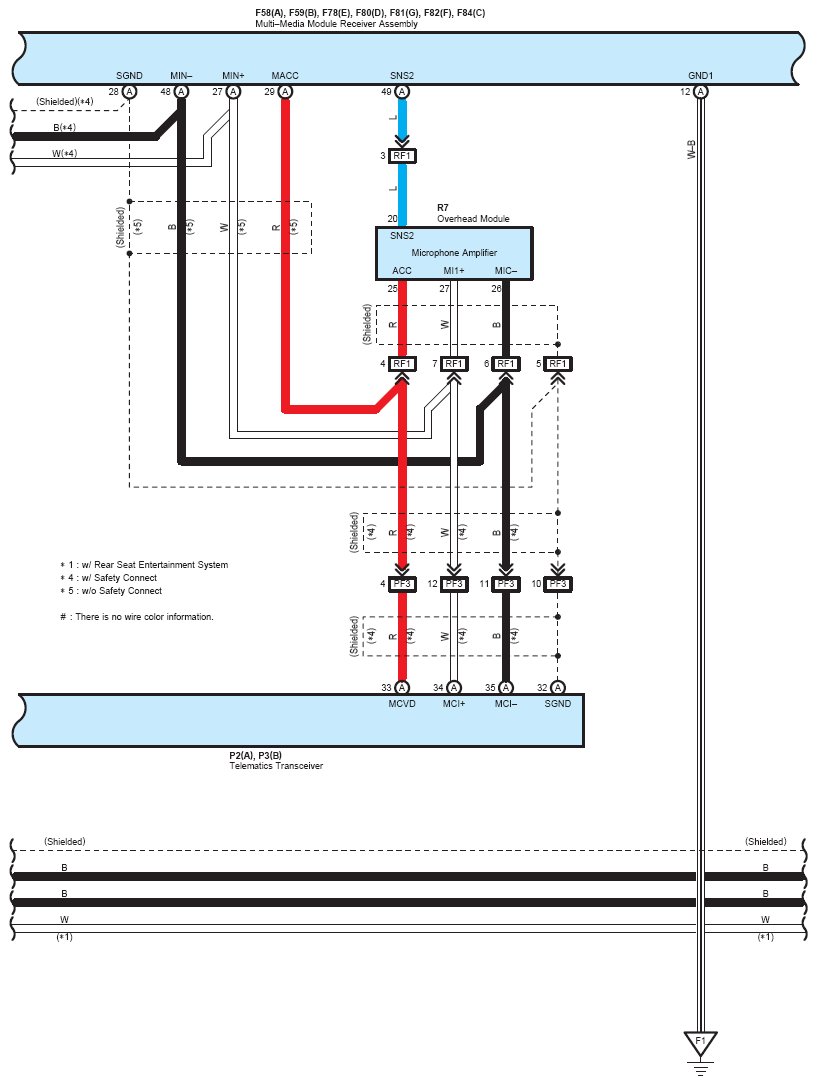

Fig 8: Audio System, Navigation System (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System, Navigation System (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System, Navigation System (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

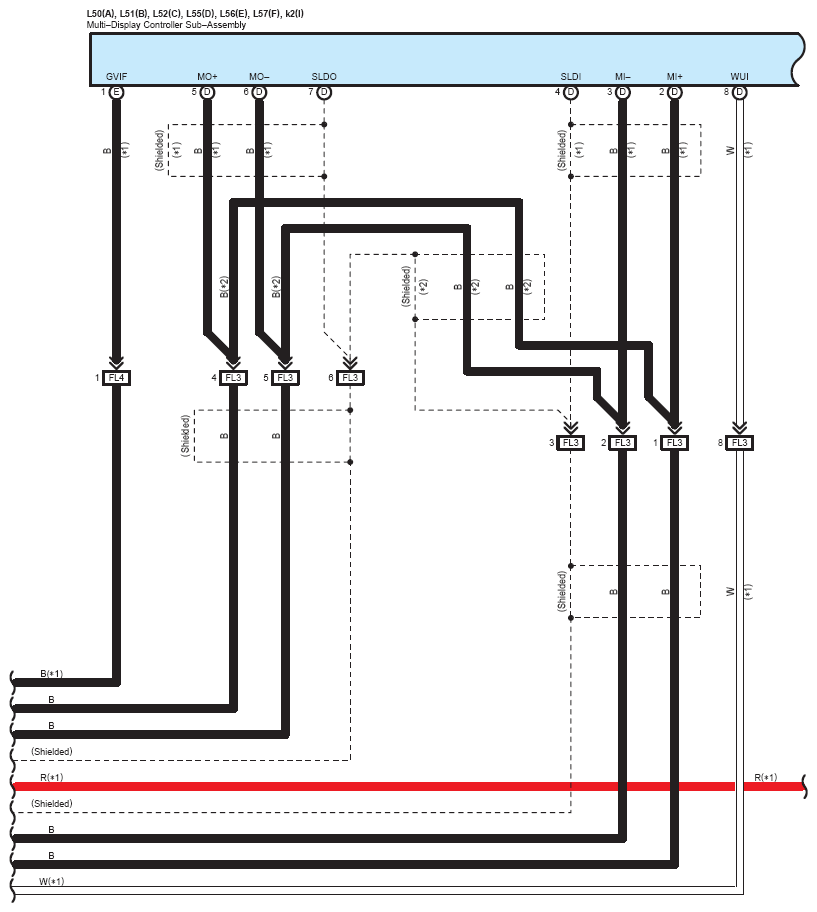

Fig 11: Audio System, Navigation System (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

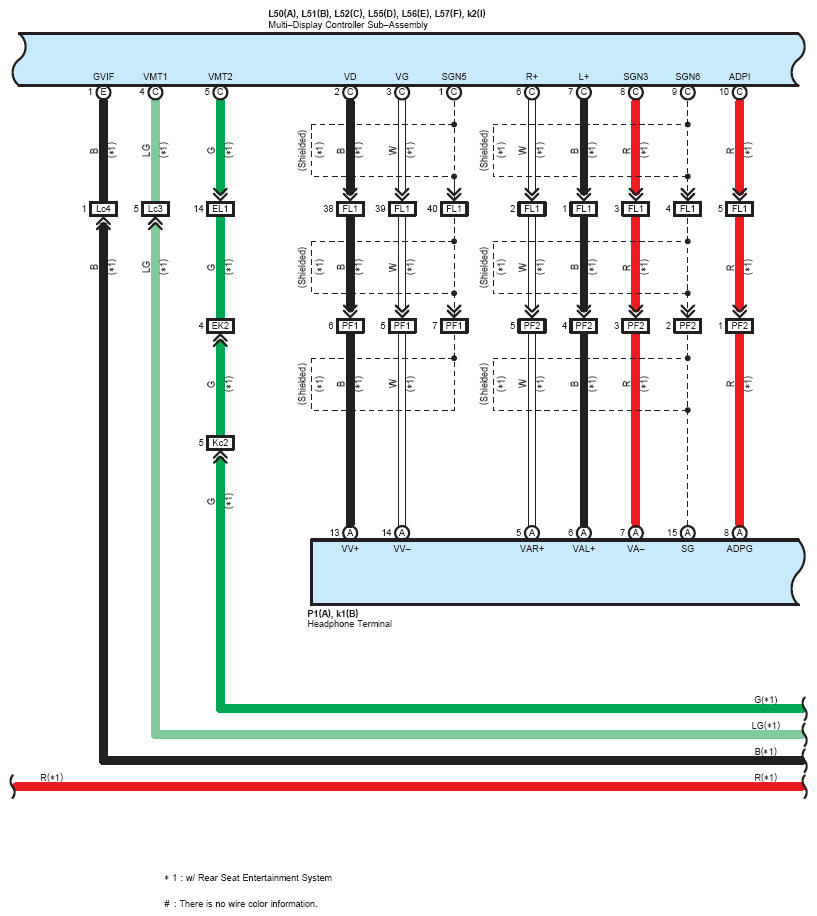

Fig 12: Audio System, Navigation System (12 Of 17)

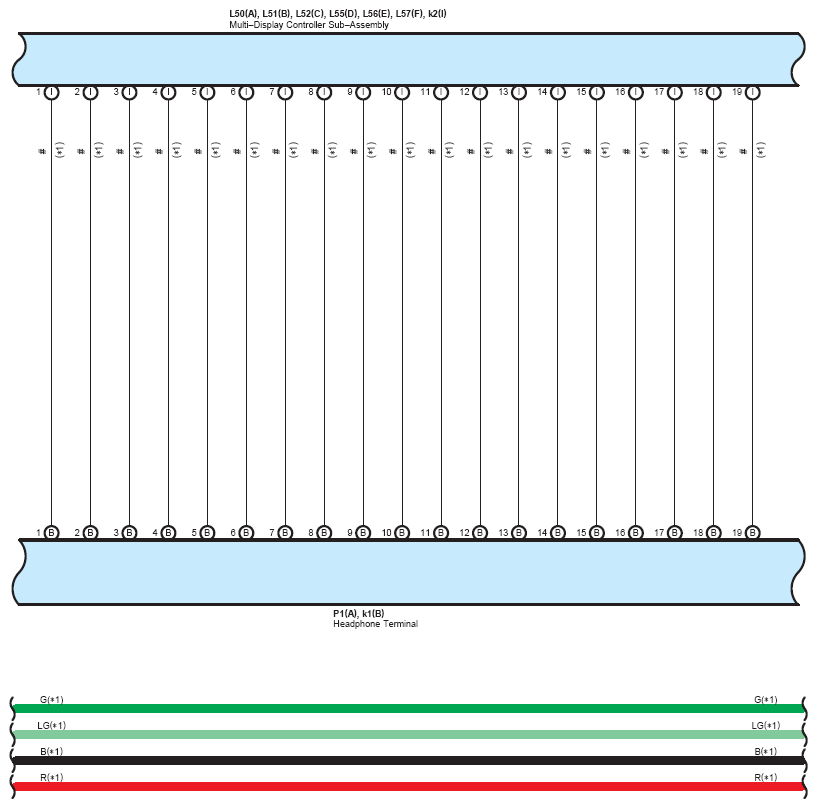

Fig 13: Audio System, Navigation System (13 Of 17)

Fig 14: Audio System, Navigation System (14 Of 17)

Fig 15: Audio System, Navigation System (15 Of 17)

Fig 16: Audio System, Navigation System (16 Of 17)

Fig 17: Audio System, Navigation System (17 Of 17)
