Dynamic Radar Cruise Control: Connectors

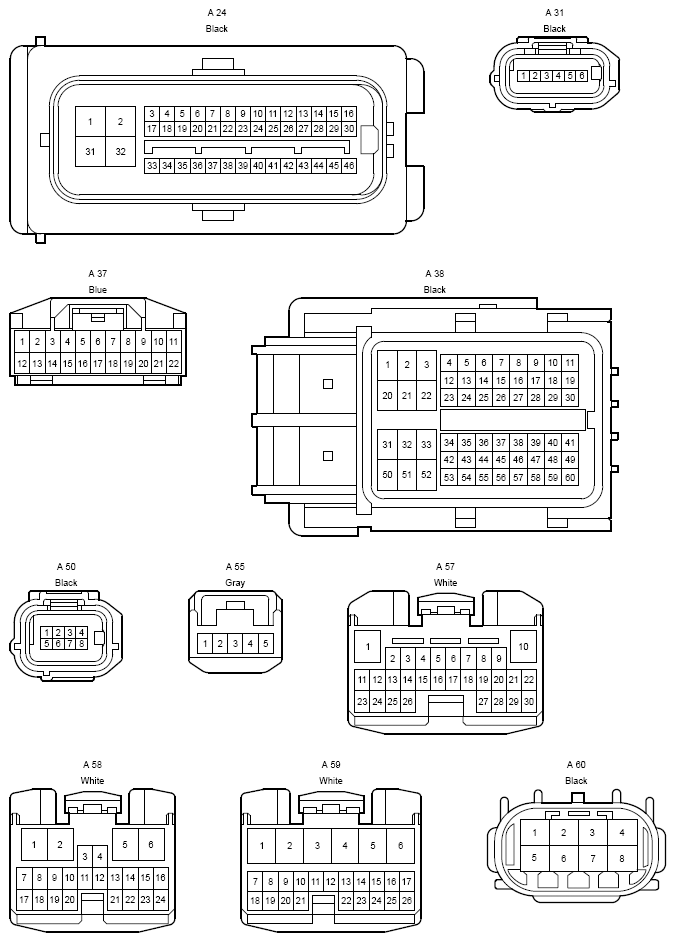

Fig 1: Connectors (1 Of 7)
G12206441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

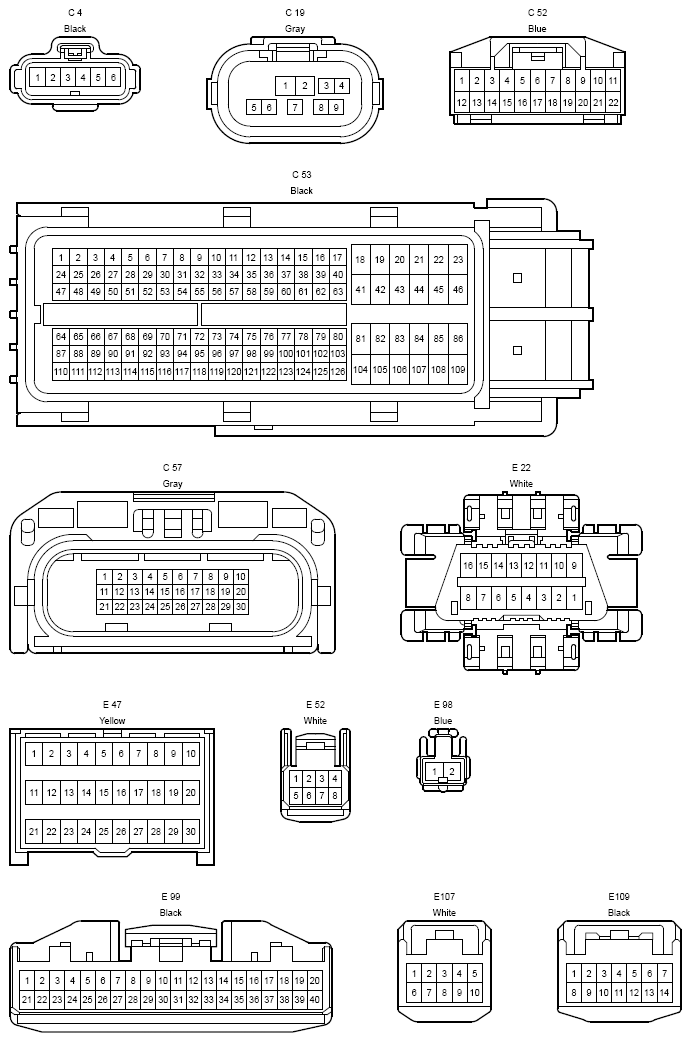

Fig 2: Connectors (2 Of 7)
G12206442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

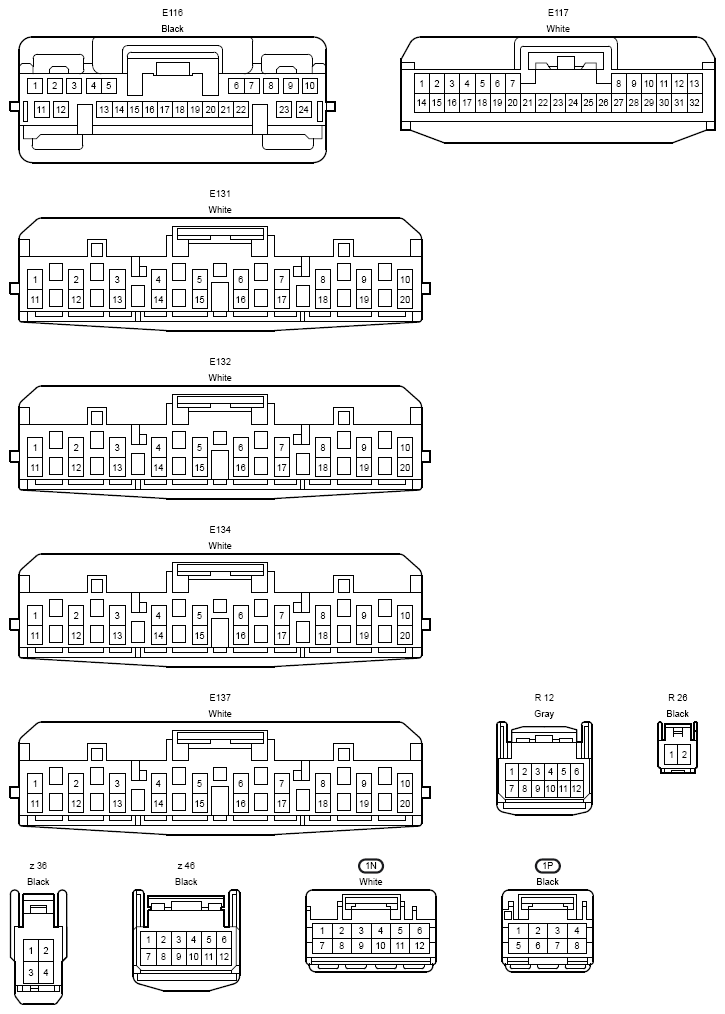

Fig 3: Connectors (3 Of 7)
G12206443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

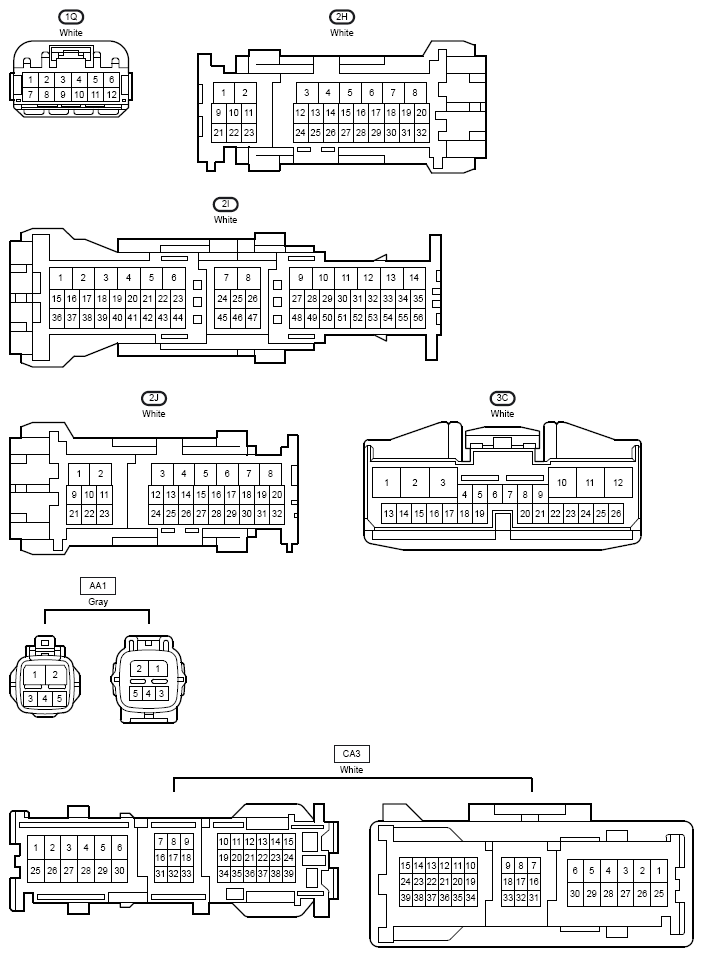

Fig 4: Connectors (4 Of 7)
G12206444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

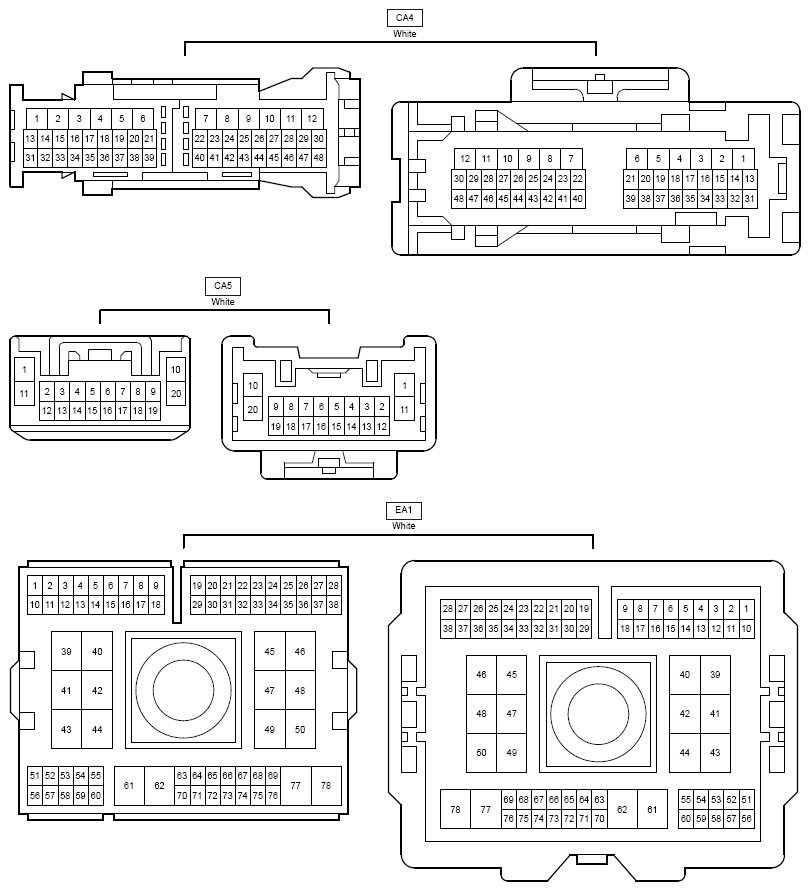

Fig 5: Connectors (5 Of 7)
G12206445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

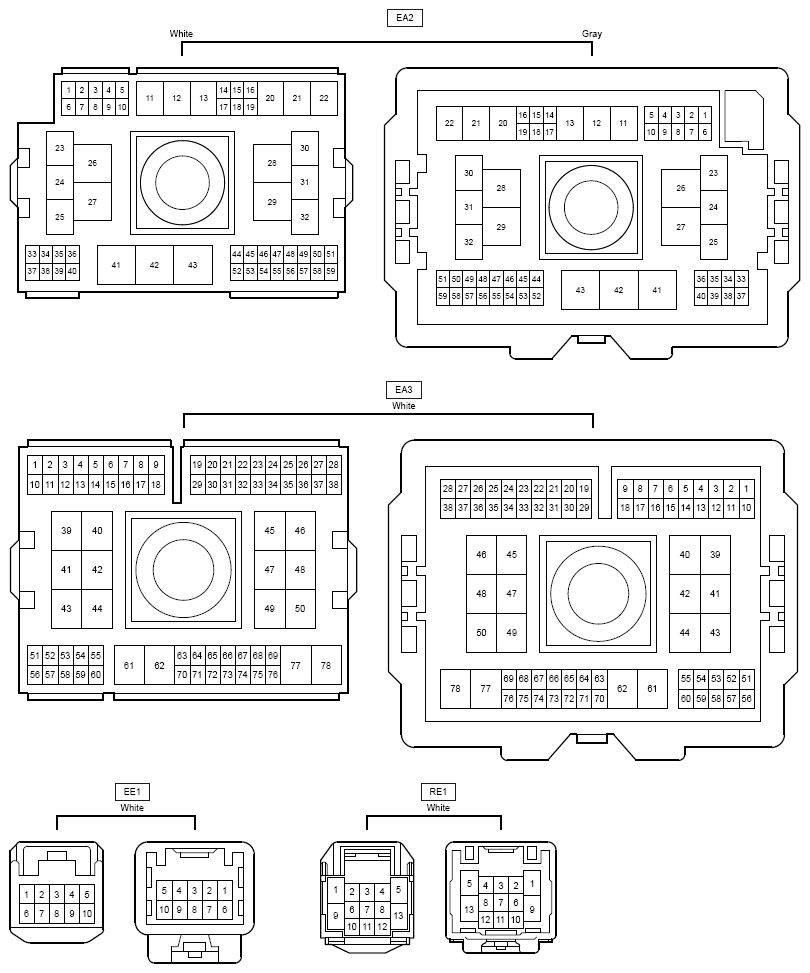

Fig 6: Connectors (6 Of 7)
G12206446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Connectors (7 Of 7)
G12206447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
