System Diagrams

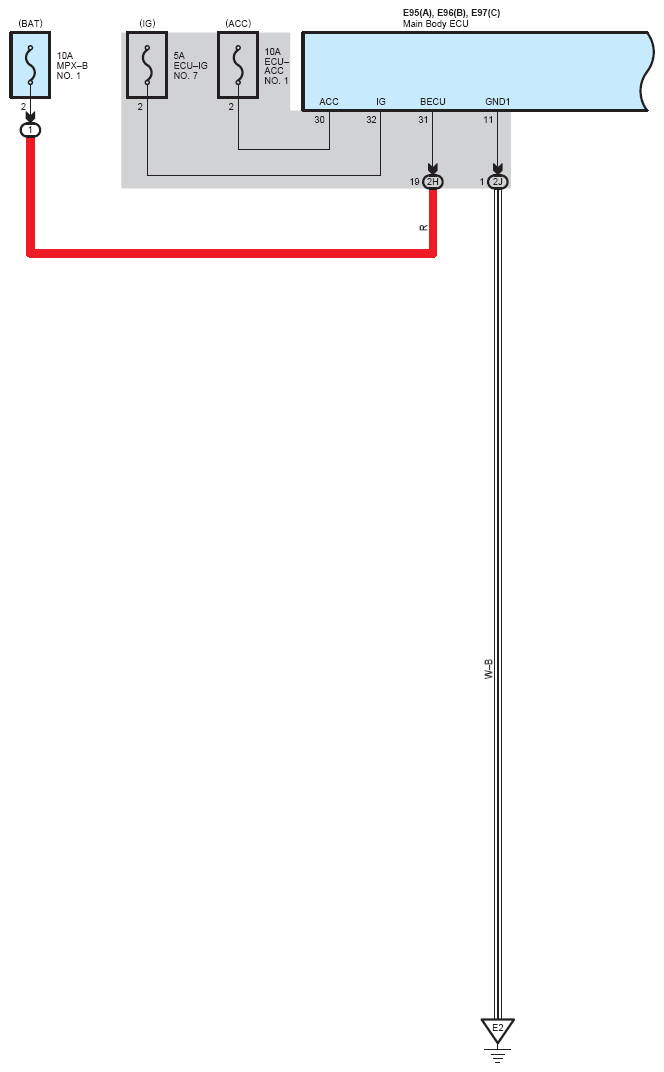

Fig 1: Remote Control Mirror (1 Of 6)
G12206687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Remote Control Mirror (2 Of 6)
G12206688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

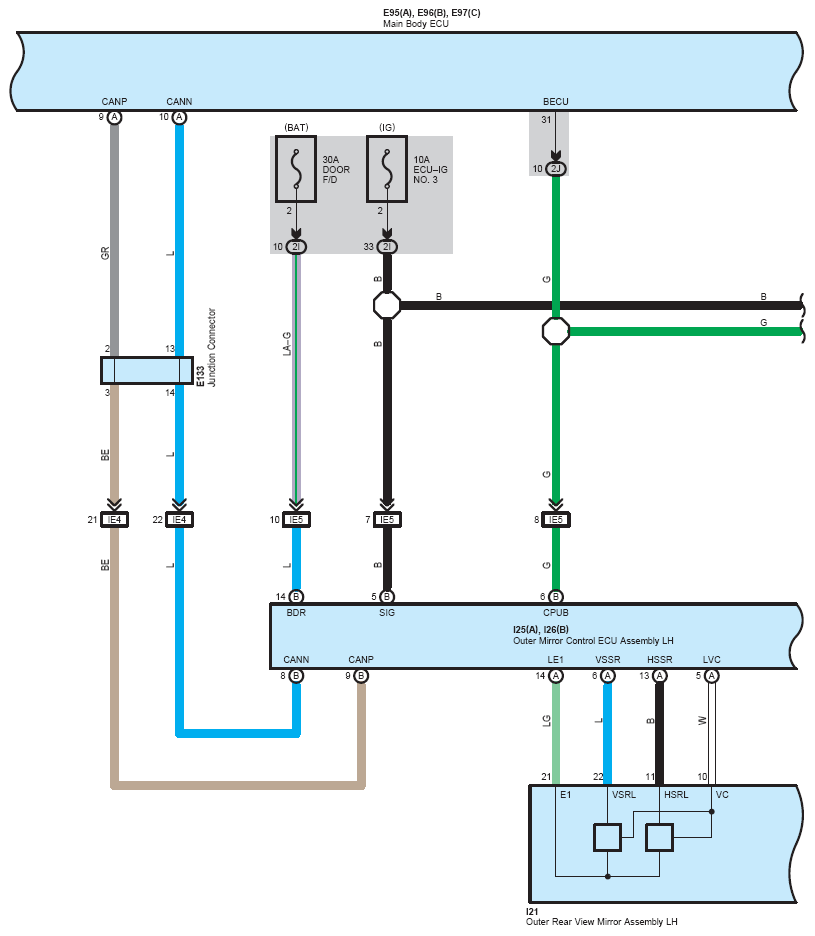

Fig 3: Remote Control Mirror (3 Of 6)
G12206689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

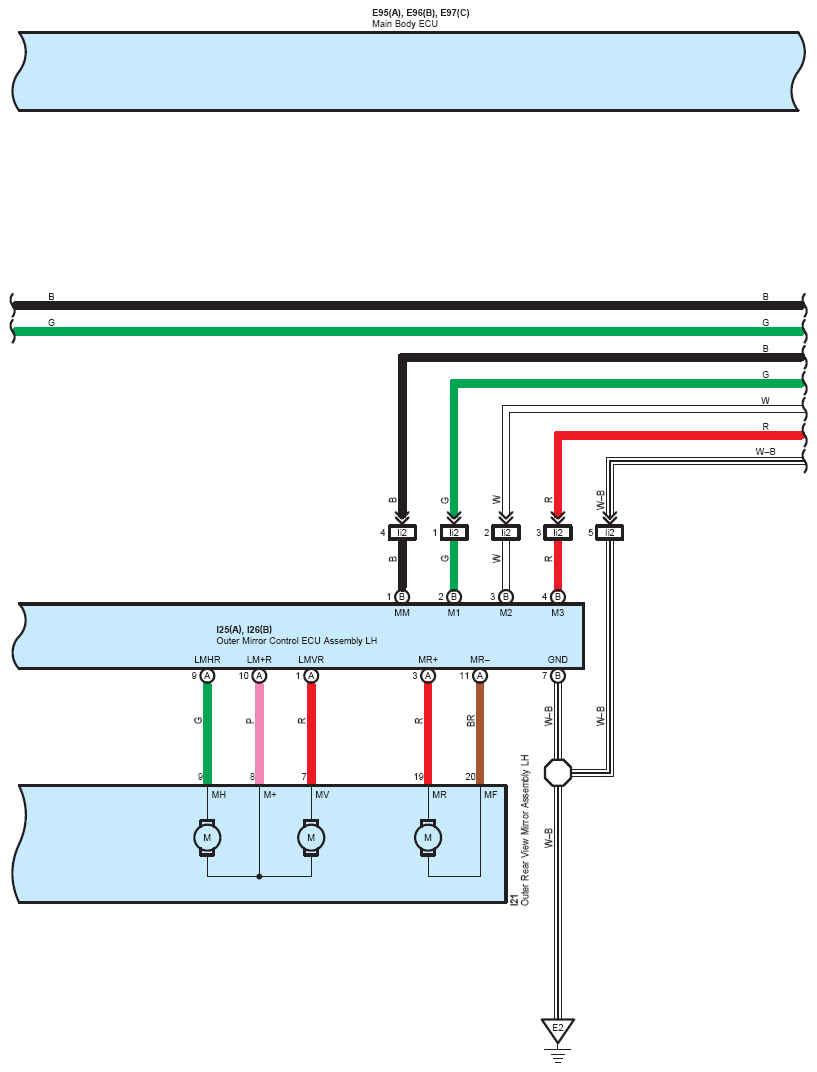

Fig 4: Remote Control Mirror (4 Of 6)
G12206690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

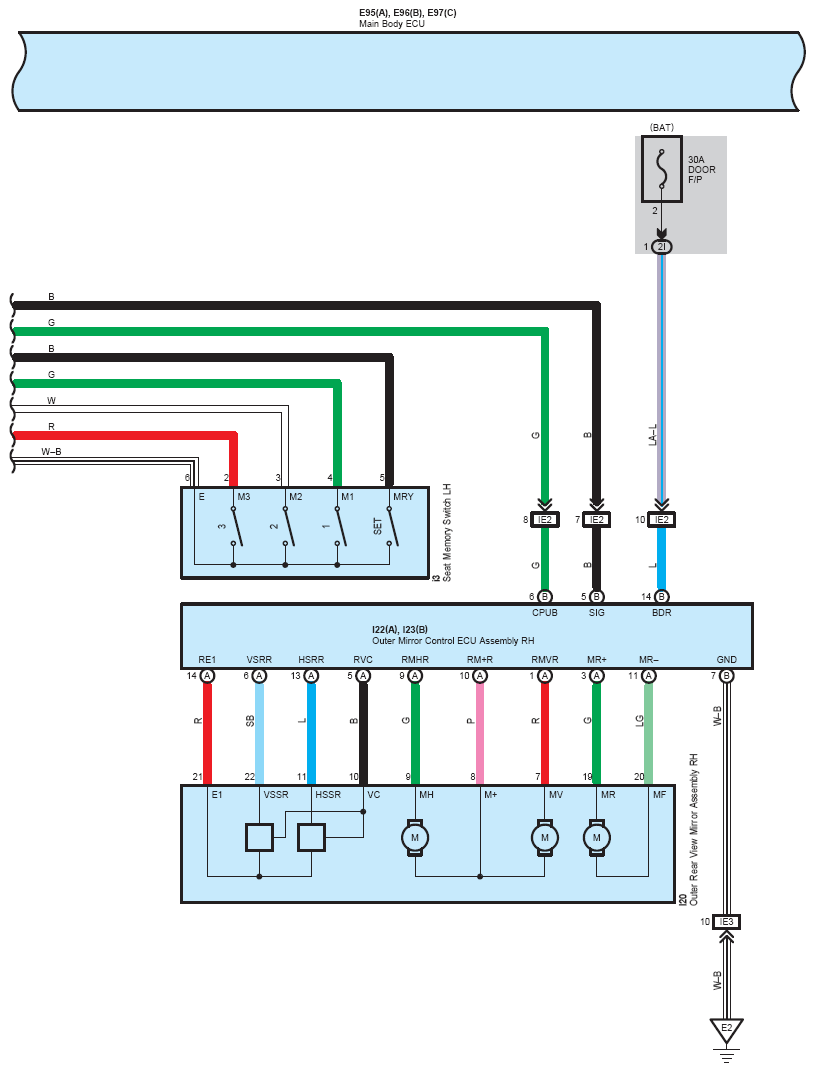

Fig 5: Remote Control Mirror (5 Of 6)
G12206691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

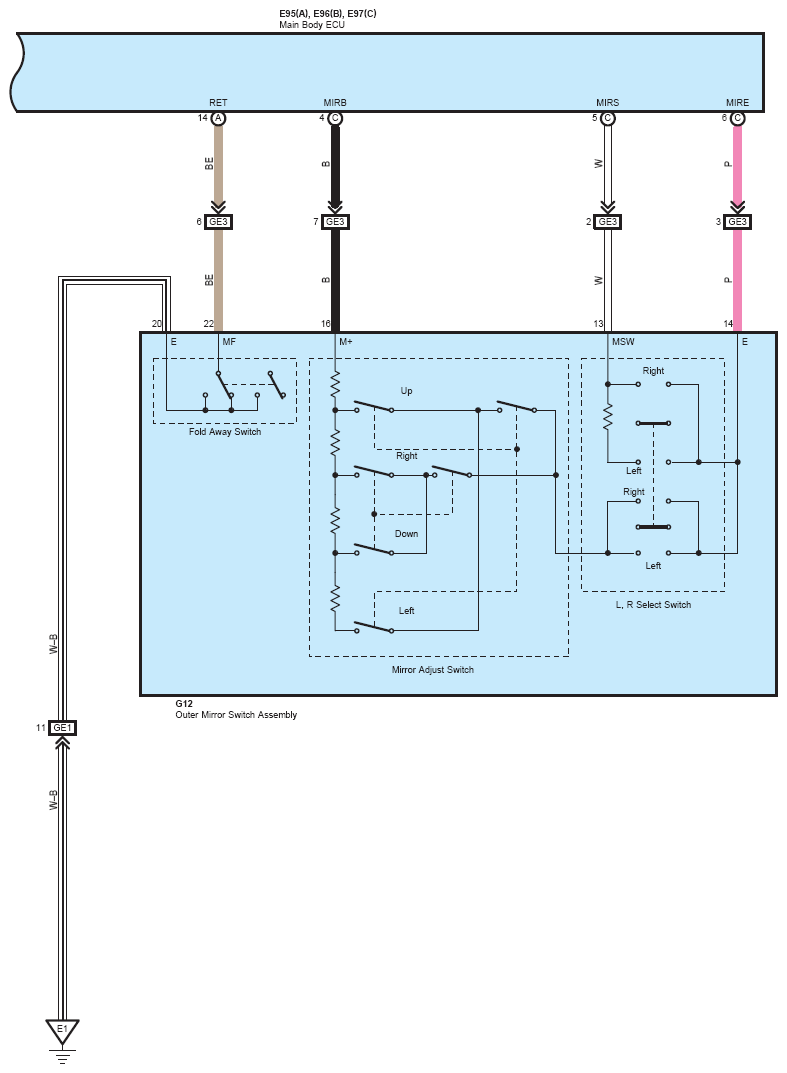

Fig 6: Remote Control Mirror (6 Of 6)
G12206692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
