System Diagrams

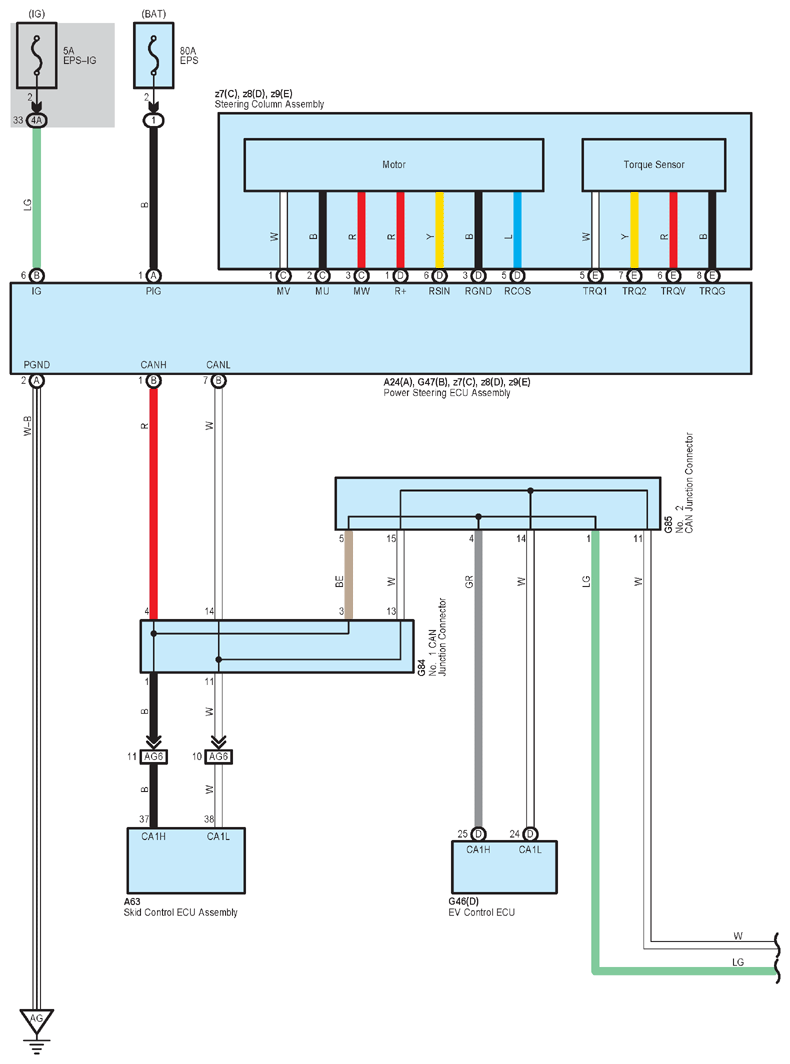

Fig 1: EPS (1 Of 2)
G12204154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

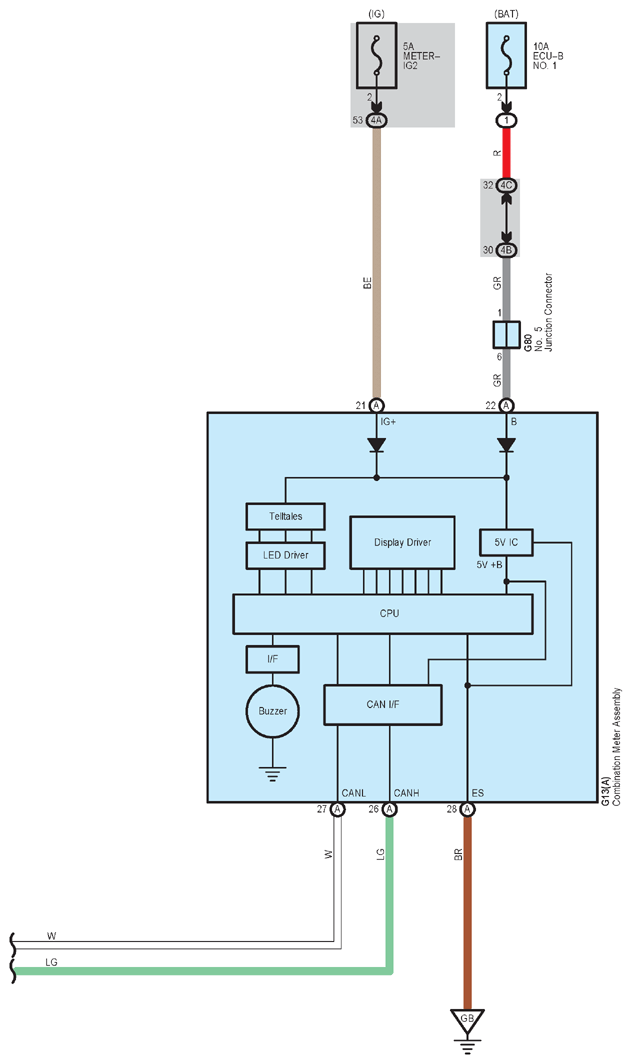

Fig 2: EPS (2 Of 2)
G12204155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
