System Diagrams

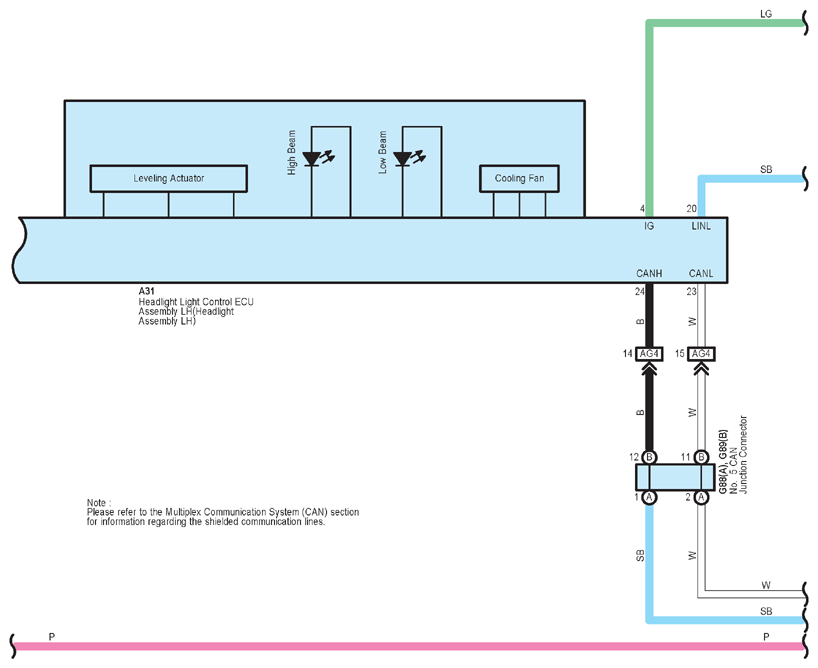

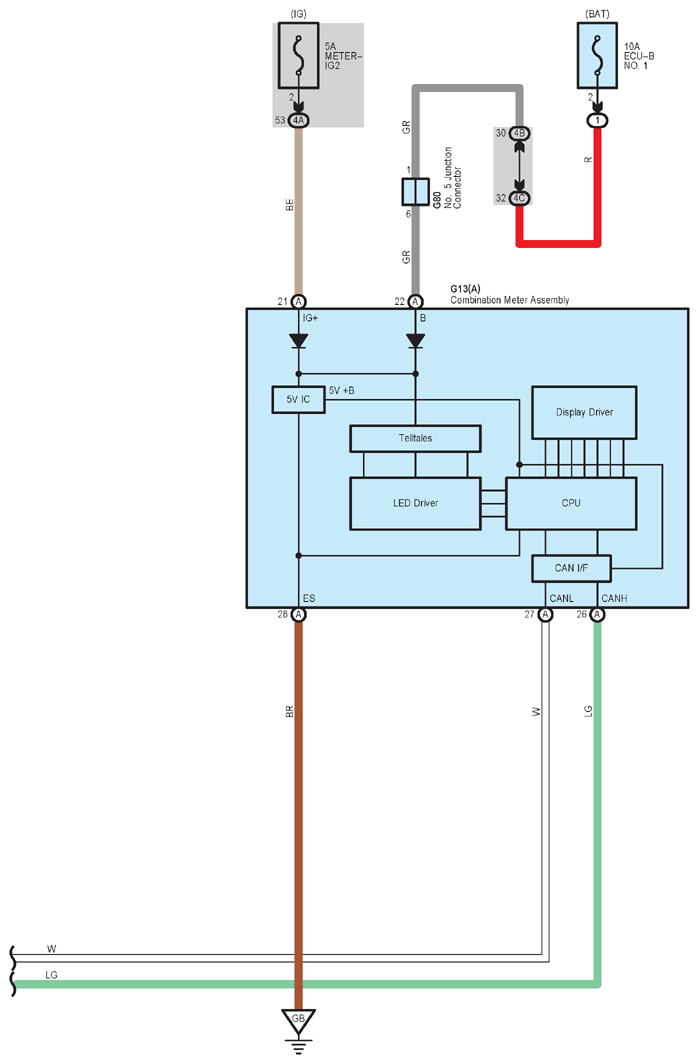

Fig 1: Headlight, Headlight Beam Level Control (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

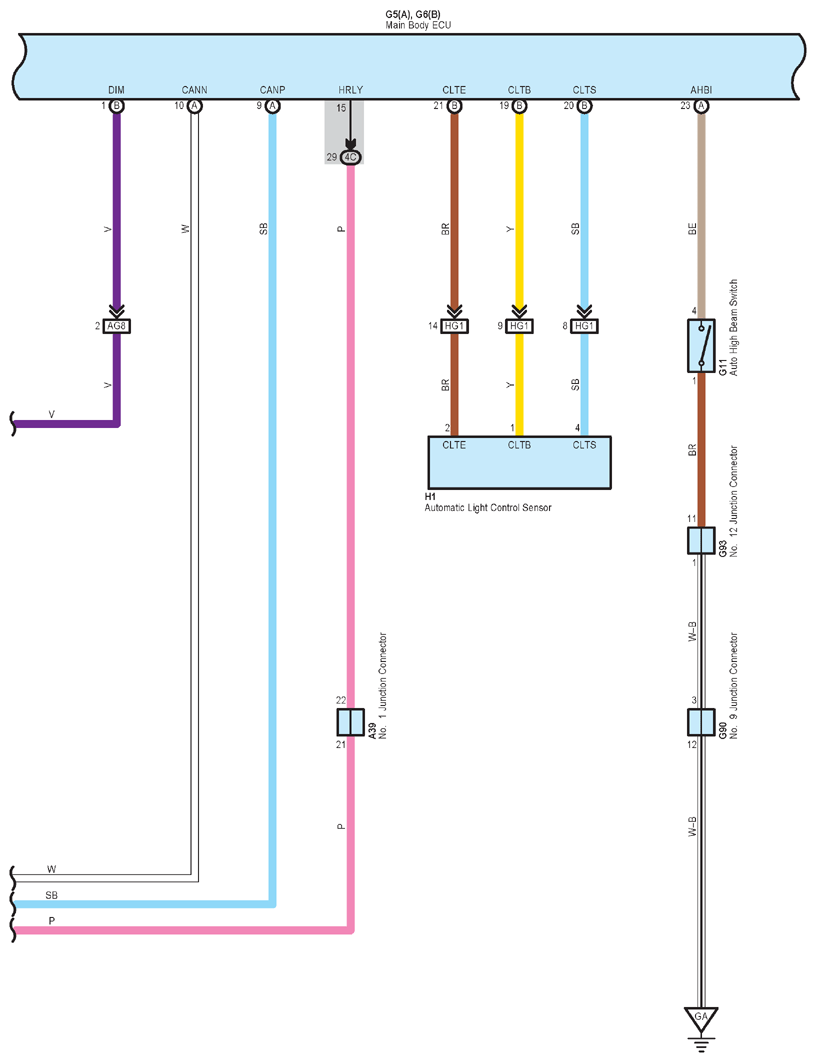

Fig 2: Headlight, Headlight Beam Level Control (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

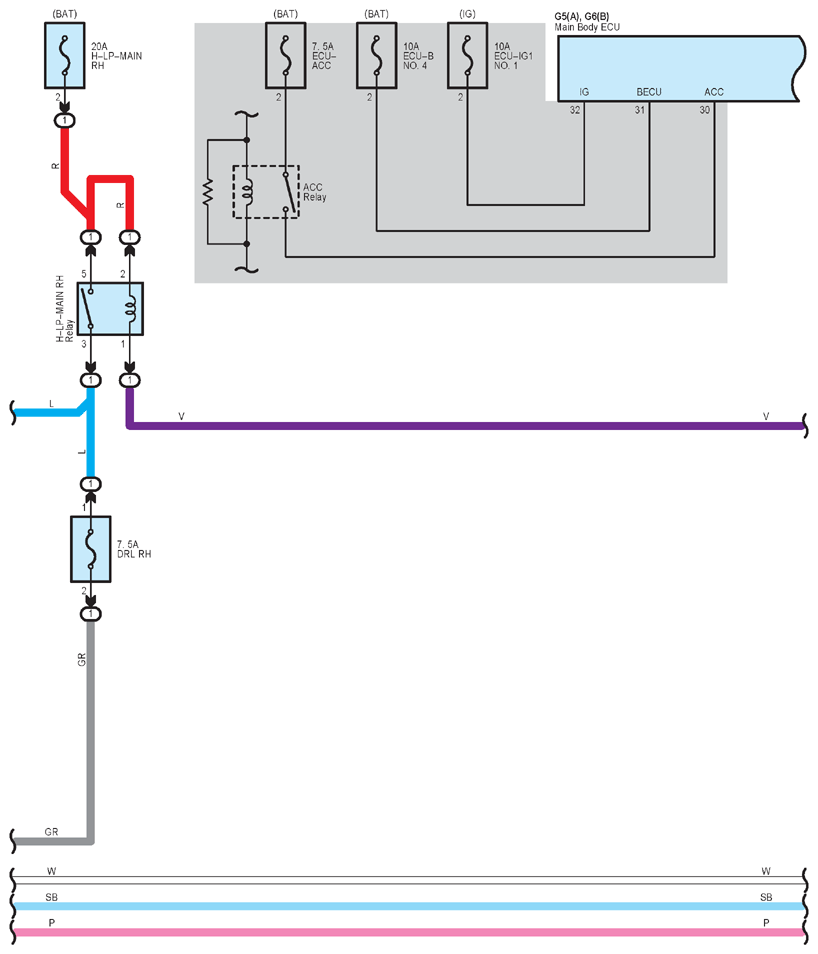

Fig 3: Headlight, Headlight Beam Level Control (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

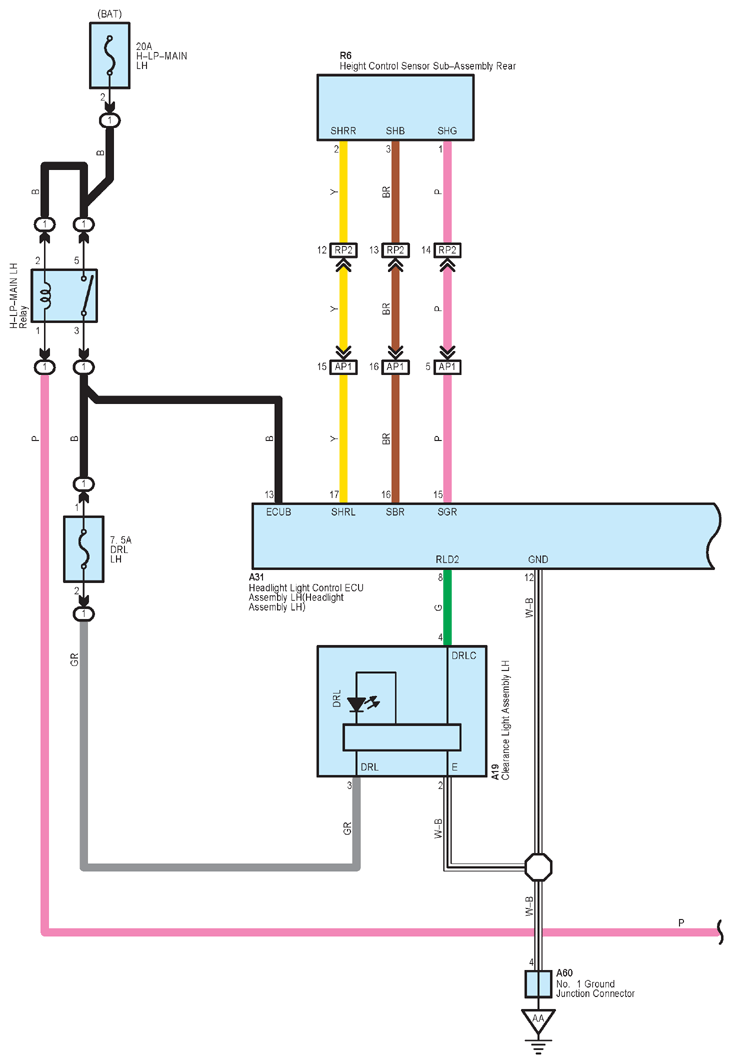

Fig 4: Headlight, Headlight Beam Level Control (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Headlight, Headlight Beam Level Control (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

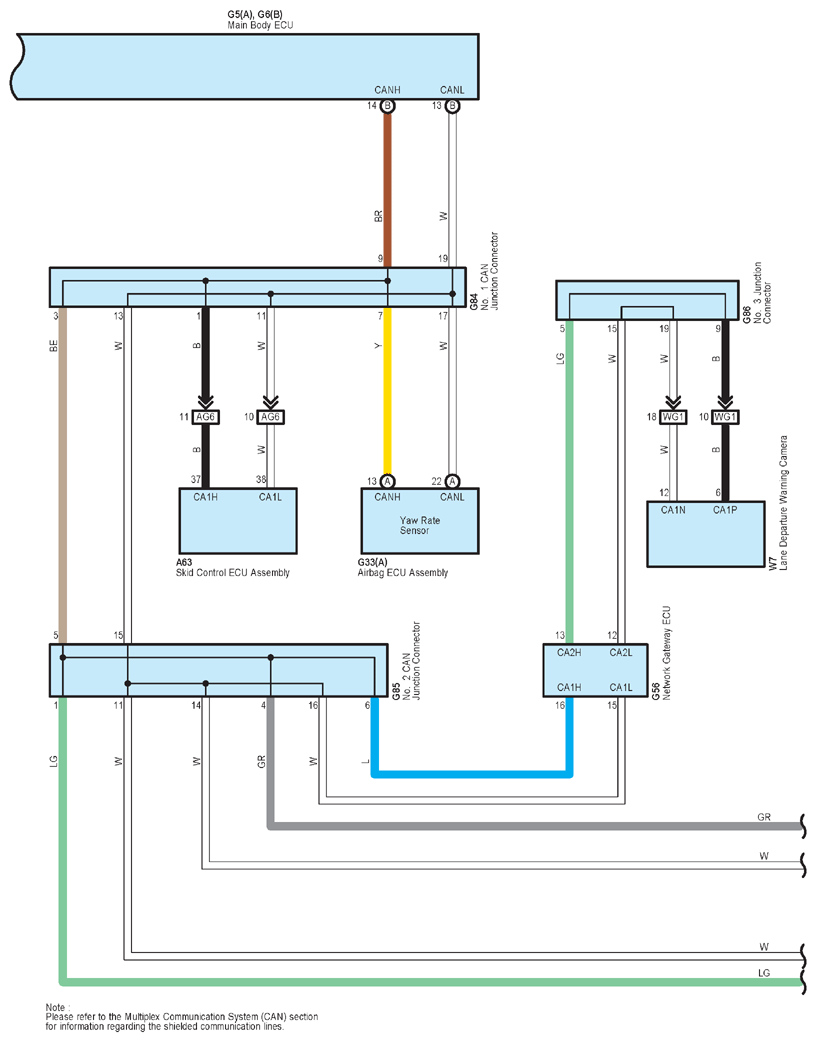

Fig 6: Headlight, Headlight Beam Level Control (6 Of 9)

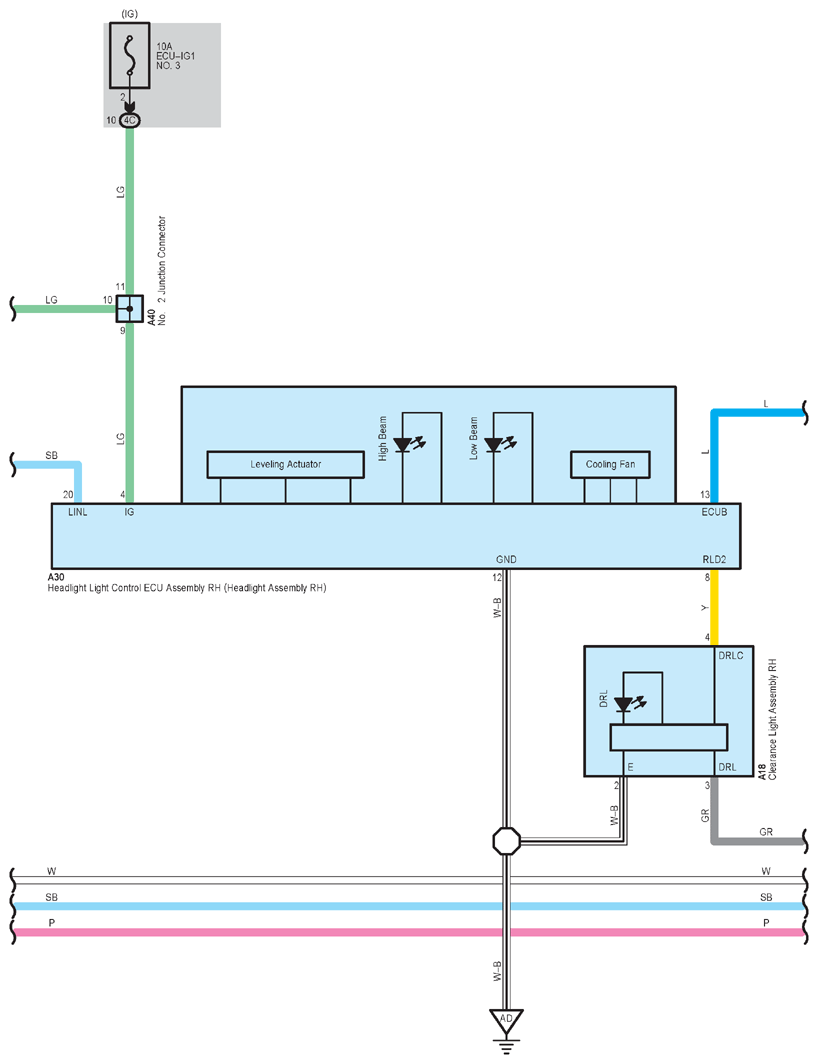

Fig 7: Headlight, Headlight Beam Level Control (7 Of 9)

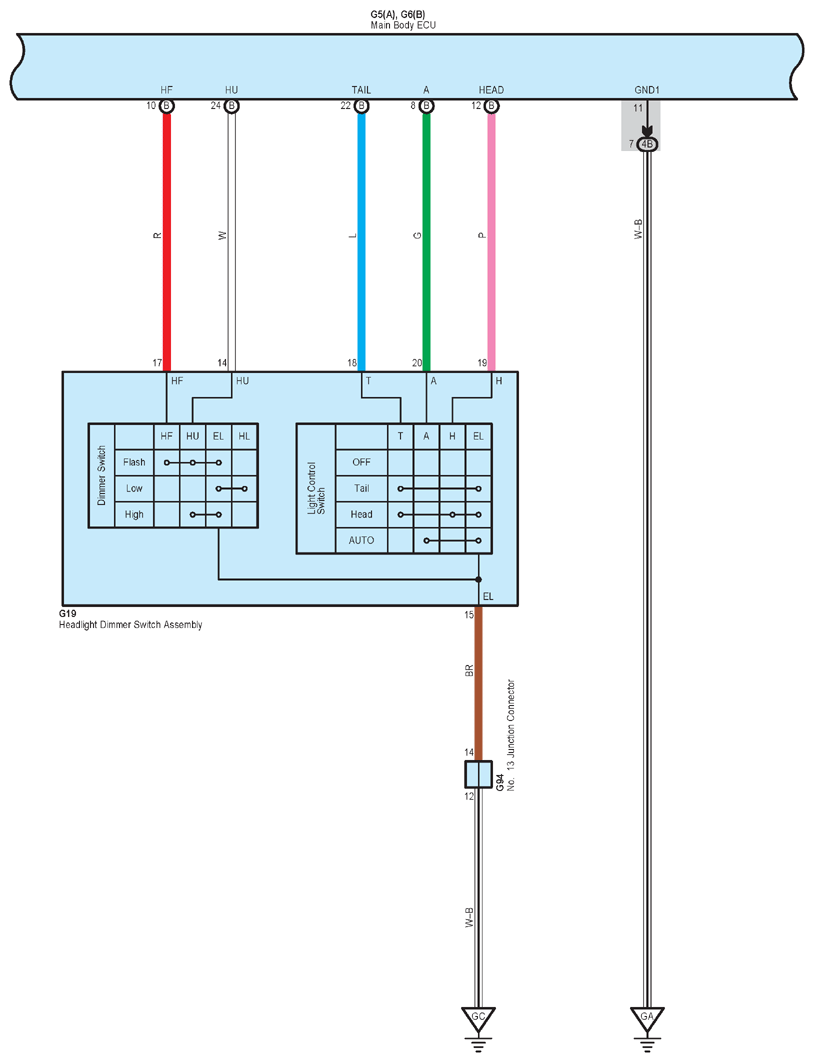

Fig 8: Headlight, Headlight Beam Level Control (8 Of 9)

Fig 9: Headlight, Headlight Beam Level Control (9 Of 9)
