System Diagrams

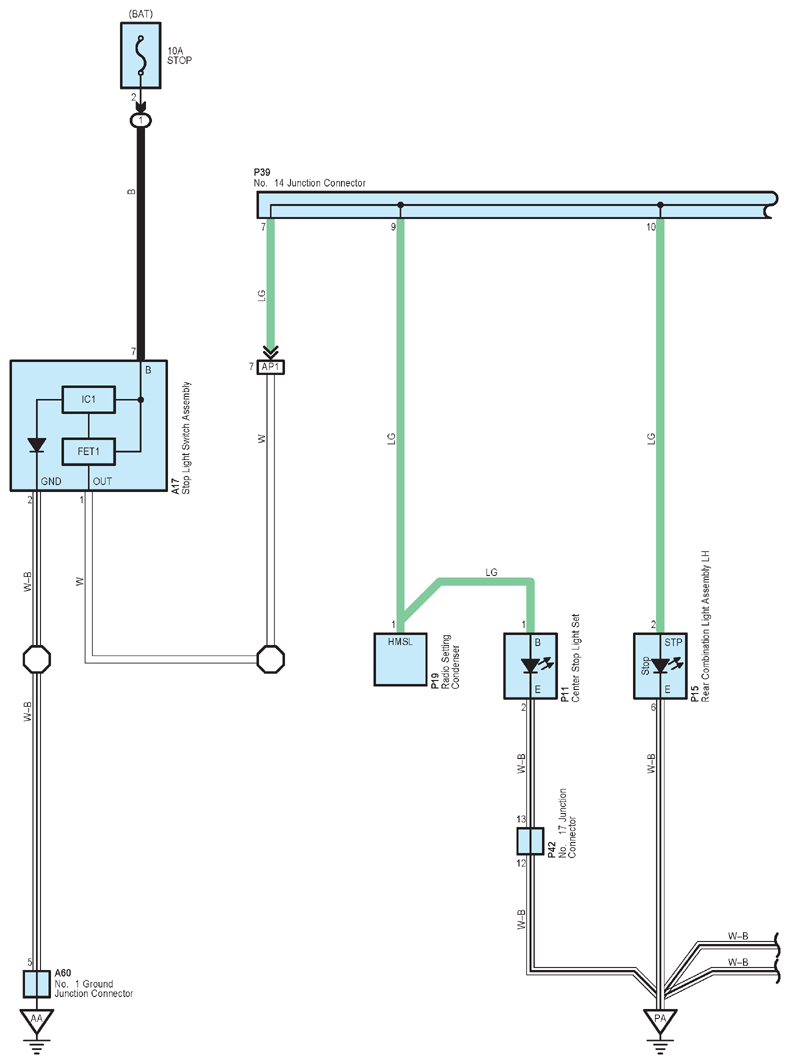

Fig 1: Stop Light (1 Of 2)
G12204497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

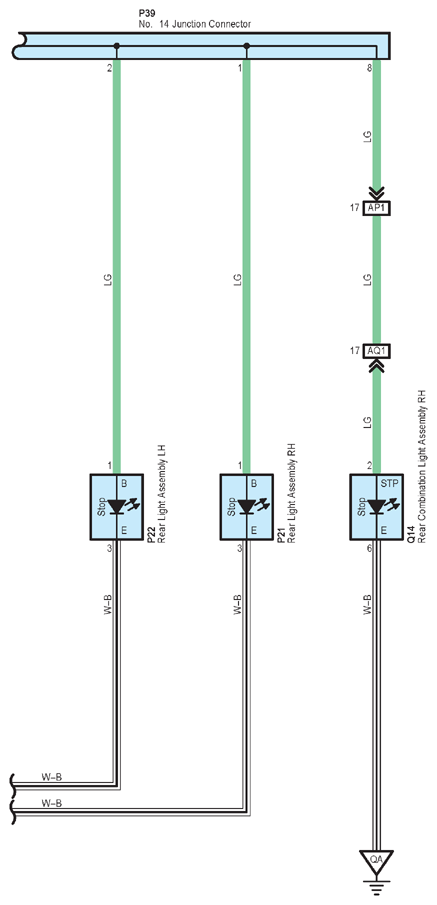

Fig 2: Stop Light (2 Of 2)
G12204498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
